Summary of Contents for La Crosse Technology Radio Controlled Projection Alarm WT-5110

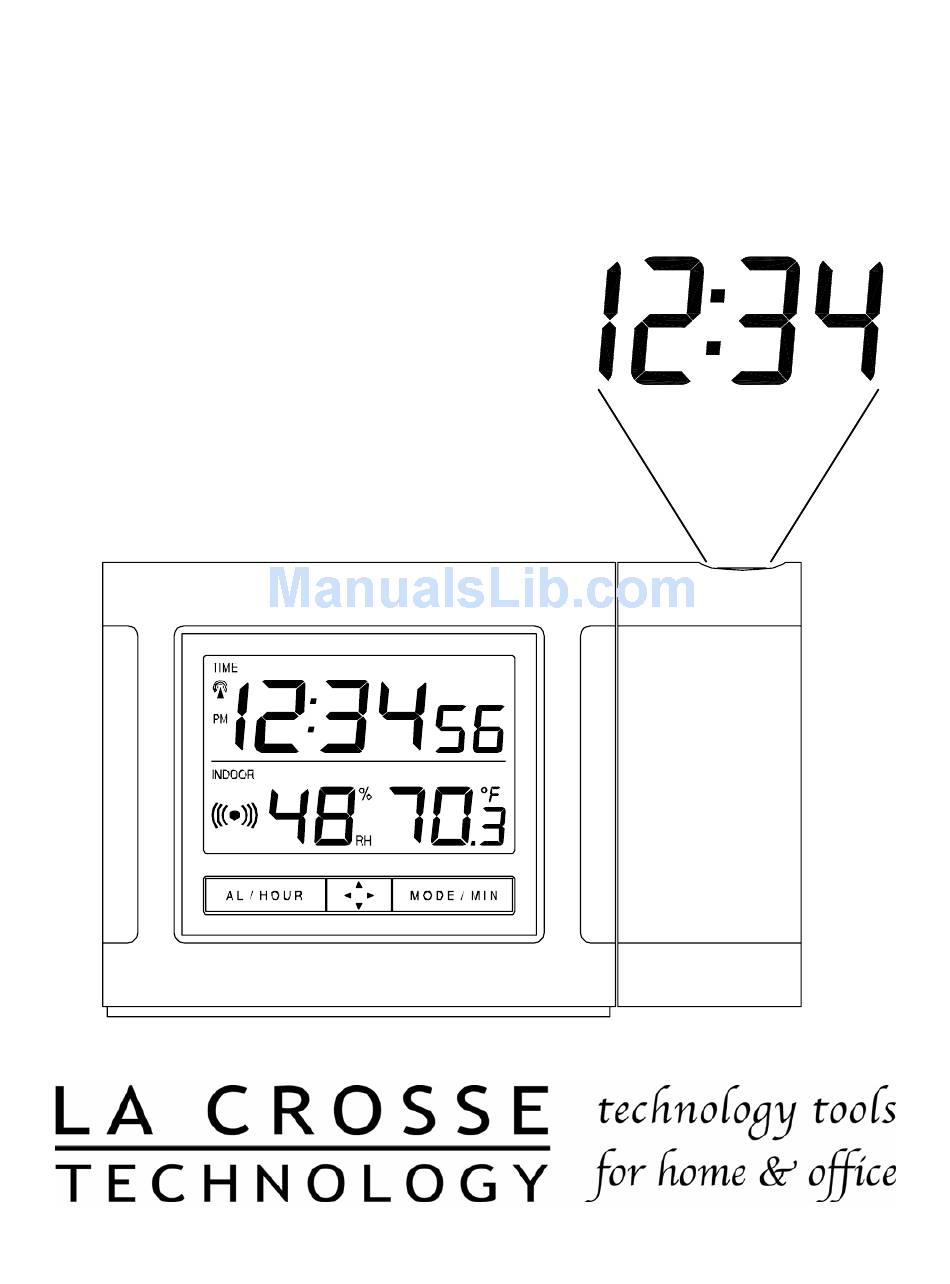

- Page 1 WT-5110 433 MHz Radio Controlled Projection Alarm Instruction Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Topic Inventory of Contents/ Additional Equipment About WWVB Quick Set-Up Guide Detailed Set-Up Guide Battery Installation Program Mode Programming Sequence Function Buttons Manual Time Setting Time Zone Setting Daylight Saving Time (DST) Setting Features & Operations Features Radio-Controlled Time Projection LED Backlight... -
Page 3: Inventory Of Contents/ Additional Equipment
However, the clock will adjust the quartz timing over the course of several days to be very accurate; under 0.10 seconds per day. -
Page 4: Quick Set-Up Guide
NOTE: The above steps are not required but can help the projection alarm receive the signal faster. 3. Place the batteries into the projection alarm clock. 4. DO NOT PRESS ANY BUTTONS FOR 15 MINUTES. NOTE: It is important to not press any buttons after inserting batteries as this will interrupt the WWVB search sequence. -
Page 5: Detailed Set-Up Guide
• If no signal is found during this period, the tower icon will not appear and the clock will search again at 12:00 am the next night. • The radio-controlled time receiver is located on the bottom side of the projection alarm. -
Page 6: Program Mode
PROGRAM MODE To enter the Program Mode hold down the “MODE/MIN” button for 3 seconds, until the time flashes in the top of the display. The Program Mode Guide is laid out in a manner that allows you to program each function separately, or you can follow the instructions entirely to program the projection alarm. -
Page 7: Daylight Saving Time (Dst) Setting
Press and release the “MODE/MIN” button to select the appropriate time zone. There are 24 time zones to choose from (based relative to the international time standard of GMT (“Greenwich Mean Time). NOTE: The U.S. time zones will show abbreviations as opposed to the numerical time zone indicator. -
Page 8: Features & Operations Features
It is possible that your projection alarm may not be exactly on the second due to the variance in the quartz. However, the clock will adjust the quartz timing over the course of several days to be very accurate; under 0.10 seconds per day. -
Page 9: Led Backlight
LED BACKLIGHT The projection alarm has an LED backlight designed for night-viewing. This will light up for 4 seconds whenever the snooze button is pressed. The LED backlight cannot be turned on constantly; this would drain the batteries. INDOOR TEMPERATURE The projection alarm measures indoor temperature with an internal sensor. -
Page 10: Changing Display Mode
2) If batteries are replaced in remote, the unit must be re-started. Solution: Remove all batteries, and then follow start up procedure. Note: For any questions not answered, contact La Crosse Technology with the contact information found at the end of this instructional manual. -
Page 11: Specifications
Checking intervals: Power source: AC Adapter (included) Battery type: Battery life: Dimensions (H x W x D): Projection Alarm Clock 14°F to 99°F with 0.2°F resolution Every 10 seconds 1 – 99% Every 10 seconds Input: 120VAC/60Hz Output: DC 3.2V/100MA 2 x AA, 1.5V (Alkaline recommended) (optional) -
Page 12: Warranty And Contact Information
Warranty service can only be performed by a La Crosse Technology, Ltd authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to La Crosse Technology, Ltd or La Crosse Technology, Ltd’s authorized service center. - Page 13 State. Some States do no allow the exclusion of consequential or incidental damages therefore the above exclusion of limitation may not apply to you. For warranty work, technical support, or information contact: La Crosse Technology, Ltd 2809 Losey Blvd S. La Crosse, WI 54601 Phone: 608.782.1610...
