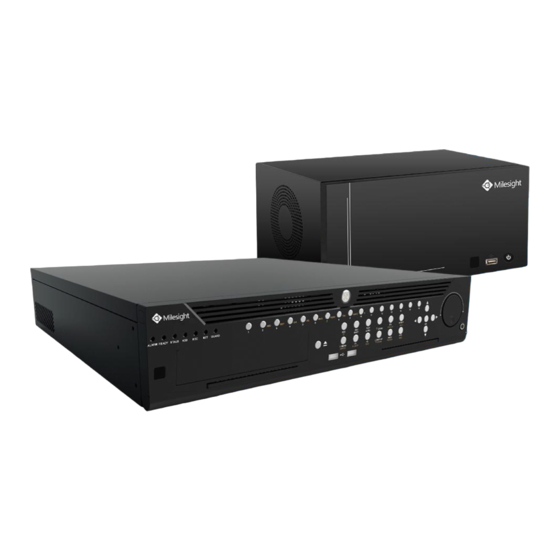

Milesight NVR User Manual
  1. Manuals
  2. Brands
  3. Milesight Manuals
  4. DVR
  5. NVR
  6. User manual

Milesight NVR User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

V3.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NVR and is the answer not in the manual?

Questions and answers

Related Manuals for Milesight NVR

Summary of Contents for Milesight NVR

  • Page 1 V3.01...

  • Page 2: Installation Notes

    Ensure NVR is running within the allowed humidity and operating temperature.  It will lead to shorting when dust on the circuit board of NVR gets damp; please dedust regularly with banister brush regarding the circuit board, connector, chassis and chassis fan.

  • Page 3: Table Of Contents

    User Manual Content 1. Product Introduction ........................1 1.1 Introduction ......................... 1 1.2 Product Key Functions ......................1 2. Hardware ............................3 2.1 Panel Buttons and Lights Instructions ................. 4 2.2 Using a USB Mouse ......................7 2.3 IR Remote Controller ......................8 3.
  • Page 4 User Manual 3.8.4 Holiday Configuration ................... 84 3.8.5 User Account Settings .................... 85 3.8.6 Upgrade ........................88 3.8.7 Save/Load Configuration ..................90 3.8.8 Auto Maintenance ....................92 3.9 Shutdown .......................... 93 3.9.1 Logout ........................93 3.9.2 Reboot ........................93 3.9.3 Shutdown ....................... 93 3.9.4 Close........................

  • Page 5: Product Introduction

    1. Product Introduction 1.1 Introduction Milesight NVR Series are positioned at management and storage application of HD video data, and own multi-disc management systems, front end HD device management system, HD video analysis system and high-capacity system for video. It adopts the technology of high flow capacity data network transmitting &...
  • Page 6 Supports upload alarm and exceptions to remote host.  Supports remote manual start or stop of recording.  Supports remote manual start or stop of alarm output.  Supports remote BMP image capturing.  Supports remote PTZ control  Built-in WEB Server www.milesight.com...
  • Page 7 2 RJ45 100M/1000M Interface 1 RS-485 for PTZ 1 RS-232 for Console Serial Interface External 1 RS-485 for Keyboard Interface USB Interface 2 USB 2.0 4 USB 2.0 Alarm Input Alarm Output DC12V Power Supply DC12V 5A AC 100-240V 47Hz-63Hz 1.5A www.milesight.com...

  • Page 8: Hardware

    User Manual 2. Hardware 2.1 Panel Buttons and Lights Instructions (1) MS-N1000 Series: MS-N1004/MS-N1008 (2) MS-N5000 Series: MS-N5008/MS-N5016 www.milesight.com...
  • Page 9 Ready indicator turns red in process of boot; indicator turns Ready green when NVR is in normal operation. Status indicator turns green when NVR is controlled by a remote controller, indicator turns red when controlled by a Status keyboard and turns orange when remote controller and keyboard are used at the same time.
  • Page 10 USB HDD. (1) ESC button is used to return to previous menu (2) To disarm the NVR by pressing and holding more than 3 seconds in live view mode. (1) The REC/SHOT button is used to enter recording configuration interface.

  • Page 11: Using A Usb Mouse

    (2) Switch the live view channel or screen in live view Control mode. (3) Move the PTZ up and down in PTZ control. POWER Powers NVR on/off. 2.2 Using a USB Mouse Item Click Description Live view: select the channel and show the live view fast Single- click menu interface.

  • Page 12: Ir Remote Controller

    2.3 IR Remote Controller F-2.1 Name Description POWER Power on/off the NVR Enables/disables remote control ABC/123 (1)Alphanumeric buttons are used to switch the corresponding channel in live view or PTZ Control mode. (2)Alphanumeric buttons are used to input numbers and characters in edit mode.
  • Page 13 (1)Select all items on the list. (2)Control light status when in PTZ control. (3)Switch to playback or sequence play in playback state To adjust the iris, focus and zoom of a PTZ camera. CONTROL The F2 button is used to switch menu attribute page. www.milesight.com...

  • Page 14: Local Operation

    3. Local Operation 3.1 Wizard Setting By default, the Setup Wizard will start once the NVR has loaded. The Setup Wizard will guide you complete some important settings to make sure the device function well. You can choose if you will enable wizard when device starts.
  • Page 15 User Manual F-3.1.2 Step3. Network setting Input the IP Address, Subnet Mask, Gate Way and Preferred DNS Server. F-3.1.3 Step4. Login Input the username and password. www.milesight.com...

  • Page 16: Playback

    To play and backup the recorded files in specified time period. 3.2.1 Video Playback It can support playback according to recorded time. Play recorded files in specified time period; synchronous playback of multi channels is supported. Step1. Enter Video Playback Interface shown in F-3.2.1 by clicking Main menuPlayback → www.milesight.com...
  • Page 17 F-3.2.2 Note: 1. The day in red has recording files; please select the date in red to playback. 2. 16 channels can be selected to playback synchronously. www.milesight.com...
  • Page 18 3.2.1.1 Video Files Backup Regular recorded files can be backed up by various devices, such as USB flash drives (USB flash disk, USB HDDs, USB writer), CD/DVD writer and eSATA, etc. Satep1.Enter video playback interface by clicking Main menu→Playback→ www.milesight.com...
  • Page 19 Select the channel and date you want to backup, then select the start time at time line and click , it will change into which means cut begins. F-3.2.4 Select the end time at time line and click , it will change into ,which means cut ends. F-3.2.5 www.milesight.com...
  • Page 20 User Manual Step3.Click enters to backup interface, select Backup media and click [Backup]. F-3.2.6 Step4. The pop-up window will prompt: Please wait… F-3.2.7 Step5.When all backup files have been exported, „Backup Success‟ will be prompted. F-3.2.8 www.milesight.com...

  • Page 21: Picture Playback

    Step1.Enter Picture Playback Interface by clicking Main menuPlayback→ Select a desired channel, start time and end time, click [Search] F-3.2.9 Step2. Enter Picture Info List, Look up the Pictures. Click to play the desired pictures. Or click to auto play the picture. www.milesight.com...
  • Page 22 User Manual F-3.2.10 Picture Playback Tool Bar Description Button Description Button Description Button Description Button Description Backward Previous Play Next Picture Play Picture Backup Close pictures www.milesight.com...
  • Page 23 User Manual 3.2.2.1 Picture Files Backup Step1: Select pictures you want to backup in picture playback interface. F-3.2.11 Step2: Select backup media and click to save picture. F-3.2.12 www.milesight.com...

  • Page 24: Camera Settings

    3.3 Camera Settings Before configuration, please ensure that the IP device is connected to the same network as your NVR and that the network setting for your NVR is properly setup. 3.3.1 Camera Management Step1.Enter camera management interface by clicking main menuCamera Camera Management to enter camera management interface.
  • Page 25 User Manual F-3.3.2 2. Click [search] button to quickly search the IP devices that support ONVIF at the same network segment with NVR. F-3.3.3 www.milesight.com...
  • Page 26 User Manual 3. Double click the channel, input password and click [Add] button. F-3.3.4 Or Check to bulk adding the IP cameras if they are with same password. F-3.3.5 www.milesight.com...
  • Page 27 2. RTSP: Use RTSP to add camera. You can add any IP cameras which have RTSP protocol streams. You need select 554 for the port and input the resource path for the camera. Take Milesight device for example, for main stream the resource path is “/main” and the second stream is “/sub”.
  • Page 28 User Manual F-3.3.7 ONVIF F-3.3.8 RTSP www.milesight.com...
  • Page 29 User Manual F-3.3.9 MILESIGHT Step3.Check the connection status After adding the IP channels, click [Refresh] button, the [state] will show [connected] as below, If not, you need to check if the network is connected or whether the user name, password is correct or not.
  • Page 30 The management port is 80 and the default Transport protocol is UDP. 2. Select [Parameters] attribute page to re-edit this channel parameters. Click [Save] to save the configuration F-3.3.12 3. You can delete this IP channel by clicking , or you can multi-select the devices and then www.milesight.com...

  • Page 31: Camera Search

    User Manual click to delete. F-3.3.13 3.3.2 Camera Search You can search and add IP cameras here Step1.Enter camera search interface by clicking Main menu Camera Camera Search www.milesight.com...
  • Page 32 User Manual F-3.3.14 Step2. Click [search] to quickly search the IP devices that support ONVIF at the same network segment with NVR. F-3.3.15 Note： The IP devices found in the list are those that support ONVIF protocol and in the same network segment with NVR.
  • Page 33 User Manual F-3.3.16 Or you can bulk adding the IP cameras if they are with same password. Click [OK] to finish bulk adding. F-3.3.17 www.milesight.com...

  • Page 34: Ptz Configuration

    Note: Settings for a PTZ camera must be configured before it can be used. Make sure that the PTZ and RS-485 of the NVR are connected properly. Step: Enter configuration interface by clicking Main Menu CameraPTZ Configuration, select “Configuration” page Select a channel and set the PTZ parameters.
  • Page 35 Step1. Use the PTZ direction key to rotate the position of preset. Then select “Set Preset Point” and select a preset number to finish a preset point setting. Repeat above steps to set more preset points. F-3.3.19 Step2. Click to save or call more preset points after number 17. www.milesight.com...
  • Page 36 User Manual F-3.3.20 Step3. Select „Clear Preset Point‟ and click a preset number to delete the preset point. F-3.3.21 Step4. Select “Go to Preset Point”. Click a preset number to check the preset point. www.milesight.com...
  • Page 37 The camera will patrol according to the key points. The total time and patrol speed of the tour is variable. Step1. Select a tour. Up to 6 tours could be set. F-3.3.23 Step2. Click to add key points. Set the key point parameters (including preset point www.milesight.com...
  • Page 38 3. Scan speed is the rotate speed of speed dome from one preset point to the next. 3. Track Patrol The camera will patrol back and forth in a constant speed. There are only a start point and an end point. Step1. Select a track and click . Up to 8 tracks could be set. www.milesight.com...
  • Page 39 3.2.3.3 PTZ Control Operation In live view mode, select quick menu of live view channel to enter PTZ control mode. It can access PTZ control by PTZ control bar or panel PTZ control button. Description of PTZ Control Bar www.milesight.com...
  • Page 40 Description Icon Description PTZ Direction Adjust Zoom+, Adjust Control and Auto Focus+, Zoom-,Focus-, Scan Button IRIS+ IRIS- Zoom: Zoom in Focus IRIS or out Focus automatically after manual zoom Horizontal Movement Adjustment Vertical Movement Adjustment Zoom Adjustment Focus Adjustment www.milesight.com...

  • Page 41: Privacy Mask

    User Manual 3.3.4 Privacy Mask Milesight NVR support privacy mask. It used to cover some privacy area which is not proper to appear on monitor. Entering Privacy Mask interface by clicking: Main Menu CameraPrivacy Mask. F-3.3.27 You can add a privacy mask by following steps: Step1: Select channel on the right top of the interface, and enable it on the below of the channel;...

  • Page 42: Osd Configuration

    F-3.3.29 Step4: Select “Apply” to save the settings. 3.3.5 OSD configuration You can set OSD (On Screen Display) on NVR, and the OSD will be synchronized on IPC. Entering OSD Configuration interface by clicking: Main Menu CameraOSD Configuration. F-3.3.30 Step1: Select channel by clicking the channel number on the right-top, the selected channel will change into gray and the channel number will change into yellow;...
  • Page 43 [Title Position]: Set the position for the video title: Top-Left or Top-Right; [Date Position]: Set the position for the date: Top-Left, Top-Right, Bottom-Left or Bottom-Right; [Date Format]: Set format for date: YYYY-MM-DD, MM/DD/YY or DD/MM/YYYY; F-3.3.31 F-3.3.32 Step3: Select “Apply” to save the settings. www.milesight.com...

  • Page 44: Record Settings

    User Manual 3.4 Record Settings Preparation for Configuration Step1.Ensure your NVR has Install and initialize the HDD. Enter disk management interface by clicking System Settings→Disk Management F-3.4.1 Step2. Ensure that HDD has sufficient storage space. Enter disk management interface by clicking System Setting → Disk Management. Select [Recycle Mode] to ON in the case of insufficient capacity of HDD.

  • Page 45: Record Mode

    There are three record modes: No Recording/Always Record/Record by Schedule. You can select desired one to every channel. F-3.4.3 [No Record]: NVR will not record if you choose this column; [Always Record]: It will always record the chosen channel; www.milesight.com...

  • Page 46: Record Schedule Setting

    User Manual [Record By Schedule]: If you want NVR to record by schedule, then you need select this column and then go to 3.4.2; Step2. Click [Apply] to save the configuration. 3.4.2 Record Schedule Setting Note: The days are devided as Holiday/Sunday/Monday/Tuesday/Wednesday/Thursday/Friday/ Saturday.
  • Page 47 19:00 to 21:00 for Motion recording; 22:00 to 24:00 for Alarm recording) F-3.4.6 Note: Time periods cannot overlap with each other. Step4.Click [Copy] to copy settings to other weekdays, and then click [Apply] to confirm the setting. www.milesight.com...
  • Page 48 User Manual F-3.4.7 Step5.After above steps, this channel with show as below: F-3.4.8 Step6.Copy the recording settings to other channels Select [Copy] to copy the same settings to other channels. And click [OK] to save the configuration. www.milesight.com...
  • Page 49 Click [Apply] button to save the configuration, and then click [Back] to return to the previous menu. Method2.Set record schedule by drag the mouse Step1.Enter Record schedule interface by clicking Record Settings→Record Schedule F-3.4.10 Step2.Click desired channel and record type show as below: www.milesight.com...
  • Page 50 Step3.Drag the mouse to draw certain areas in recording setting zone and then click[Apply] to save the configuration. F-3.4.12 Step4. Copy the recording settings to other channels. Select [Copy] to copy the same settings to other channels. And click [OK] to save the configuration. www.milesight.com...
  • Page 51 User Manual F-3.4.13 www.milesight.com...

  • Page 52: Advanced Settings

    [Duration Time]: Event pre-record duration before event alarm [Audio Record]: Select to record audio or not [Record Stream Type]: Select Main stream or sub stream for record Lastly choose you can choose the copy button to copy the settings of record for other channels. F-3.4.15 www.milesight.com...

  • Page 53: Event Settings

    User Manual 3.5 Event Settings 3.5.1 Video Loss Your NVR can be setup to detect video loss and trigger an action. Step1.Enter video loss configuration interface by clicking Main Menu→Event→Video Loss . F-3.5.1 Step2.Select a desired channel and click [Edit] to configure video loss.
  • Page 54 User Manual [Never]: Your NVR will not trigger any actions when [Never] button is checked. No matter the [Audible Warning] or [Email Linkage] checkboxes are checked or not. [Always]: Your NVR will always trigger actions when [Always] button is checked. Please make sure [Audible Warning] or [Email Linkage] is checked.
  • Page 55 User Manual F-3.5.5 Note: Time periods cannot overlap with each other. Step4. Click [Copy] to copy the video loss schedule to other weeks, and then click [OK]. F-3.5.6 www.milesight.com...
  • Page 56 Trigger Interval: Set the interval between two events. Note: These actions will only take response according to effective time you choose Step6. Click [OK] or [Apply] to confirm the settings. Repeat above steps for other channels. Or click [Copy] to copy settings to other channels. F-3.5.7 www.milesight.com...

  • Page 57: Motion Detection

    User Manual 3.5.2 Motion Detection Your NVR can be setup to motion detect and trigger an action. You can set the motion detection on NVR or on IPC web, both sides‟ settings will be synchronous in both devices. Step1.Enter motion detection setting interface by clicking Main Menu→Event→Motion Detection.
  • Page 58 [Sensitivity]: Set sensitivity for motion detection, range from 1 to 10.It will synchronize to IPC if you set sensitivity here; [Action]: Edit action once motion is detected, refers to next step; Step3. Select the desired channel and click [Edit] to configure motion detection action. www.milesight.com...
  • Page 59 Step4. Select effective time to setup when you want to trigger actions once motion is detected. [Never]: Your NVR will not trigger any actions when [Never] button is checked. No matter the [Audible Warning] or [Email Linkage] checkboxes are checked or not.
  • Page 60 F-3.5.13 Or click [Edit Time] to setup schedules. Schedule can be set for all week or any day of the week with up to 12 time periods per day. Motion detection actions take effect in the scheduled period only. www.milesight.com...
  • Page 61 User Manual F-3.5.14 Note: Time period cannot overlay with each other Step5.Click [Copy] to copy the motion detection schedules to other weekdays. F-3.5.15 Step6. Select actions you want when motion is detected www.milesight.com...
  • Page 62 Note: These actions will only take response according to effective time you choose Step7:[Trigger Channels Record]: Select channels to trigger for recording when motion is detected by checking the checkboxes under the desired channels. Please make sure other channels has setup motion recording schedule. (Refer to 3.4 Record settings) www.milesight.com...

  • Page 63: Alarm Input

    Step8. Click [Apply] or [OK] to confirm settings. Repeat above steps to other channel. Or click [Copy] to copy settings to other channel. F-3.5.16 3.5.3 Alarm Input Alarm Input function is supported on MS-N5016, MS-N5116, MS-N8016, MS-N8032. Step 1: Select Main Menu-Event-Alarm Input: F-3.5.17 www.milesight.com...
  • Page 64 [Trigger Channels Record]: Once the channel in the [Alarm Input No] has alarm input, which channels will be triggered to record. Refer to 3.4 Record Settings; Step3: Set action for alarm input by click： F-3.5.19 You need to set 1.Effective time 2.Action on this Action Interface: 1. Effective time: www.milesight.com...
  • Page 65 3.8.2.4 Mail configuration for mail address setting) Trigger Interval: Set the interval between two events. Note: These actions will only take response according to effective time you choose. Lastly need to APPLY these settings to take effect. www.milesight.com...

  • Page 66: Alarm Output

    [Alarm Type]: Select alarm type: NO or NC; [Dwell Time]: Set the output time for alarm, if that is too long when alarm out is outputting, you can select the Manually Clear to stop it. Step3: Select Effective Time for alarm output： www.milesight.com...

  • Page 67: Exception

    2.by click the “Edit Time” button. Lastly need to APPLY these settings to take effect. 3.5.4 Exception Milesight NVR support exception alarm hint for1. Network Disconnected; 2 .HDD Full; 3.Record Fail; 4.HDD Error; Step1. Enter Exception by clicking Main Menu-Event-Exception: F-3.5.24...
  • Page 68 [Record Fail]: When record Failed. Including HDD Error, HDD Full, no HDD and so on. [HDD Error]: When HDD Error. Step2. Select alarm type: [Audible Warning]: Will trigger audio alarm if checked; [Email Linkage]: Will send alarm Email if checked. www.milesight.com...

  • Page 69: Status

    Step: Enter Network Status menu by clicking Main MenuStateNetwork Status It will show you information in F-3.6.2, including: Connection, Mode, DHCP, MTU(B), IP Address, Net mask, Gateway, MAC, Preferred DNS Server, Alternate DNS Server, Receive Rate, and Send Rate. www.milesight.com...

  • Page 70: Camera Status

    User Manual F-3.6.2 3.6.3 Camera Status Step: Enter camera status menu by clicking Main MenuStateCamera Status It will show you information in F-3.6.3, including: Channel, Name, Enable, IP Address, Record, Frame Rate, Bitrate, Resolution and State. F-3.6.3 www.milesight.com...

  • Page 71: Disk Status

    Type, In Use, and Recycle Mode. You can see the Total Capacity (GB) and Available Capacity (GB) as below: F-3.6.4 3.6.5 Event Status 3.6.5.1 Alarm Status Step: Enter alarm page by clicking Main MenuStateEvent Status It will show you the Alarm Input List in F-3.6.5. www.milesight.com...
  • Page 72 User Manual F-3.6.5 3.6.5.2 Camera Event Status Step: Enter camera event page by clicking Main MenuStateEvent Status. It will show you the camera event status in F-3.6.6. If the shows in red, it means the corresponding project is active. F-3.6.6 www.milesight.com...

  • Page 73: Live View Settings

    User Manual 3.7 Live View Settings 3.7.1 Live View Watching a Live View There are multiple icons on each channel displayed in live view mode, indicating the recording and alarm status of the channel. www.milesight.com...
  • Page 74 Quick Operation for Live View Enter the live view interface; left click the channel, the quick menu will appear. Quick menu operations include playback, recording manually, snapshot, PTZ, zoom, and image configuration. Quick Menu Instructions for Main Output Live View www.milesight.com...

  • Page 75: Layout Configuration

    You can choose single screen/4/ 8 /8-1/9 screens for layout configuration according to your needs and preferences. Step2. Click to close a channel, or click a desired channel (shown F-3.7.3)to add in and then click “Apply” to confirm settings. Click “Reset” to reset the layout. www.milesight.com...

  • Page 76: More Settings

    Channel Name Color To change the color of the channel name Sequence Interval Set sequence interval in live view mode To configure channel order of all layouts Separately Configure Layout respectively Skip Blank Page Skip blank page in sequence mode www.milesight.com...

  • Page 77: System Settings

    User Manual 3.8 System Settings 3.8.1 General Setting Step: Enter general menu by clicking Main MenuSystem SettingsGeneral To setup the general parameters of NVR, including modify the host name, device ID, select resolution, and set system time manually, etc. F-3.8.1 www.milesight.com...

  • Page 78: Network Settings

    Basic configuration includes working mode, IP address, subnet mask, gateway, MTU, DNS server, etc. F-3.8.2 Notes: 1. Check the DHCP checkbox if there has a DHCP server running in networks. 2. The valid range of MTU is 500~9676. 3. Do not input an IP address conflict with another device. www.milesight.com...
  • Page 79 Check the PPPoE checkbox to enable the feature, and then input user name, password and confirm password for PPPoE access. F-3.8.3 Note: PPPoE user name and password can be obtained from your service provider. Once the setup is completed, a connected status will be shown. www.milesight.com...
  • Page 80 User Manual 3.8.2.3 DDNS Configuration If your NVR is setup to use PPPoE to connect public network, you may need to use DDNS (Dynamic Domain Name System) to solve the problems from dynamic IP address. Steps: Enter DDNS configuration menu by clicking Main MenuSystem SettingsNetwork, Select “DDNS”...
  • Page 81 [Select Receiver]: You can have 3 receivers once. [Receiver Name]: Named by yourself for the Receiver E-mail. [Receiver E-mail Address]:E-mail Address for the receivers. [Enable SSL/TLS]: Security Protocol of email sending. [Host Name Enable]: For attaching URL when sending emails. www.milesight.com...
  • Page 82 Noted: 1). You will get a screenshot every time for motion detection email sending. 2). If you use a port forward IP of NVR for the Host Name, please type the entire address including the port. 3). If click the URL in the alarm emails...
  • Page 83 You can use M-VMS to watch the remote live view by P2P.With the introduction of P2P, you can watch the NVR Live view from WAN without do any port forwardings on the router. Right click on the live view and choose “Menu”->“System”->“Network” ->“P2P”, you will see the image like bellow: www.milesight.com...
  • Page 84 2. Fill in your Company Name or your Individual Name in the “Company Name”; 3. Fill in your Email address in the “Email” for active; 4. Apply the settings. 3.8.2.6 More Steps :Enter More configuration page by clicking Main MenuSystem SettingsNetwork →More F-3.8.9 www.milesight.com...

  • Page 85: Disk Management

    The default RTSP port is 1100. Please modify RTSP port according to actual application. Note: 1. You can add this port when using P2P/prot mapping/LAN IP to add NVR. 2. When port mapping, you still need map 554 to 554. Only then you can use 1100 to watch the live view by remote WAN.
  • Page 86 S.M.A.R.T detection is a monitoring system of HDD that detects and reports on various indicators of anticipating failures of HDD. Step: Enter S.M.A.R.T configure page by clicking Main MenuSystem Settings Disk Management →S.M.A.R.T You can command S.M.A.R.T self-checking function to check the HDD status. Select “Test type”, and click “apply” for S.M.A.R.T detection. www.milesight.com...
  • Page 87 User Manual F-3.8.11 Note: 1. Test type has “fast” and “full” options. 2. Test Status can be“status good”, “status bad” and “bad tracks exist”. 3. Test result can be“passed” or “failed”. www.milesight.com...

  • Page 88: Holiday Configuration

    Click Enable‟ checkbox, and then select [style] to setup Start/End date. Then click [OK] to save the configuration and return to holiday configuration page. Click [Apply] to confirm settings. Note: There are Month, Week, and Date in “Style” mode. www.milesight.com...

  • Page 89: User Account Settings

    User Manual F-3.8.13 3.8.5 User Account Settings By default, your NVR comes with the user name: “admin” and the password: “123456”. The administrator has the authority to add or delete a user account and configure parameters for the user. Add New User Step1:Enter user setting menu by clicking Main MenuSystem SettingsUser...
  • Page 90 User name can be comprised of letters and figures. The user level is separated into User and Operator with different authority. Step2: Set user privileges Select the user that has been added and click [limit] button to enter user privilege menu. F-3.8.15 Step3. Click to delete a user. www.milesight.com...
  • Page 91 User Manual F-3.8.16 Step4. Click to edit a user. F-3.8.17 www.milesight.com...

  • Page 92: Upgrade

    User Manual 3.8.6 Upgrade Your NVR supports firmware upgrade. Step1.Enter upgrade menu by clicking Main MenuSystem SettingsUpgrade F-3.8.18 Step2. Search for device, and select the .bin file F-3.8.19 Step3. Click [Upgrade] button to confirm the upgrade www.milesight.com...
  • Page 93 User Manual F-3.8.20 Note: The system will auto reboot after confirming upgrade. www.milesight.com...

  • Page 94: Save/Load Configuration

    User Manual 3.8.7 Save/Load Configuration 3.8.7.1 Backup/Restore Your NVR supports backup and restore configuration. Step1: Enter profile menu by clicking Main MenuSystemSave/Load Configuration→ Backup/Restore F-3.8.21 Step2. Select a folder and then click [Backup] to export configuration to USB device. F-3.8.22...
  • Page 95 User Manual Step3. Select a cfg file and then click [Restore] to import configuration to your NVR. F-3.8.23 3.8.7.2 Reset You can reset all parameters to default settings. Enter to reset menu by clicking Main MenuSystemSave/Load Configuration Reset Click “yes” to confirm reset.

  • Page 96: Auto Maintenance

    You can set the Log and Photo Retention period for Log and Photo. Once is expired, it will automatically delete by NVR. The retention period is ranged from 1 to 12 months, if you don‟t want those files be deleted, you can select Permanent.

  • Page 97: Shutdown

    User Manual 3.9 Shutdown F-3.8.26 3.9.1 Logout Click [Logout] to exit the current logon account. 3.9.2 Reboot Click [Reboot] to restart the NVR. 3.9.3 Shutdown Click [Shutdown] to close the NVR. 3.9.4 Close Click [Close] to exit. www.milesight.com...

  • Page 98: Service

    User Manual 4. Service Milesight Technology Co., Ltd provides customers with timely and comprehensive technical support services. End-users can contact your local dealer to obtain technical support. Distributors and resellers can contact directly with Milesight for technical support. Technical Support Mailbox: support@milesight.com...

This manual is also suitable for:

Ms-n5000 seriesMs-n1000 seriesMs-n8000 seriesMs-n5016Ms-n5008Ms-n8016 ... Show all
