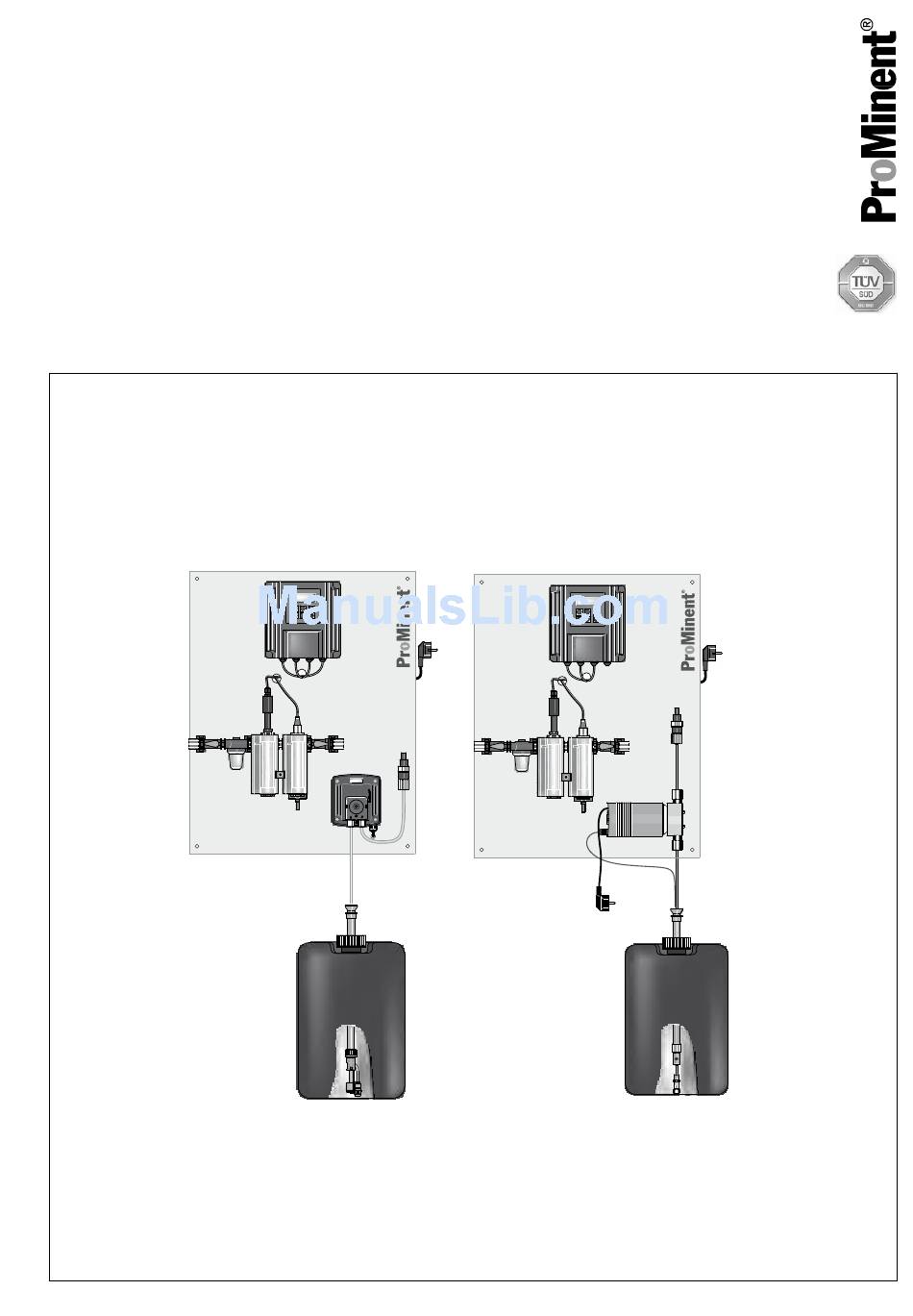

Assembly and operating instructions
DULCODOS
Pool
®
DSPa, R01, C01, V01, B01
A1114
Please carefully read these operating instructions before use! · Do not discard!
The operator shall be liable for any damage caused by installation or operating errors!
Technical changes reserved.
Part number 985541
Original Operating Instructions (2006/42/EC)
BA DD 020 05/12 EN
Advertisement
Table of Contents
Related Manuals for ProMinent DULCODOS
Summary of Contents for ProMinent DULCODOS
- Page 1 Assembly and operating instructions DULCODOS Pool ® DSPa, R01, C01, V01, B01 A1114 Please carefully read these operating instructions before use! · Do not discard! The operator shall be liable for any damage caused by installation or operating errors! Technical changes reserved.
- Page 2 ProMinent Dosiertechnik GmbH Im Schuhmachergewann 5 - 11 69123 Heidelberg Telephone: +49 6221 842-0 Fax: +49 6221 842-419 email: info@prominent.de Internet: www.prominent.com 985541, 1, en_GB © 2012...
- Page 3 Supplemental instructions General non-discriminatory approach In order to make it easier to read, this document uses the male form in grammatical structures but with an implied neutral sense. It is aimed equally at both men and women. We kindly ask female readers for their understanding in this simplification of the text.
-
Page 4: Table Of Contents
Table of contents Table of contents Identity code................5 About this product..............7 2.1 Overview of equipment..........7 Safety and responsibility............9 3.1 Users' qualifications............9 3.2 Explanation of the safety information......10 3.3 General Safety Information......... 11 3.4 Correct and proper use..........12 Storage and transport............ -
Page 5: Identity Code
Identity code Identity code DSPa DULCODOS ® Pool Measured variable: Redox (D1C) Free chlorine (D1C) Total chlorine (D1C) Bromine (D1C) Hardware auxiliary functions: Standard Software auxiliary functions: none Communication interfaces: none Electrical connection: 230 V, 50/60 Hz, European standard plug... - Page 6 Identity code DSPa DULCODOS Pool ® 0.8 l/h DULCO ® flex for up to 45/10 /h circulation HB/FB* 1.6 l/h DULCO ® flex for up to 100/20 m /h circulation HB/FB* 2.4 l/h DULCO ® flex for up to 140/30 m /h circulation HB/FB* 1.8 l/h alpha for up to 100/20 m...
-
Page 7: About This Product

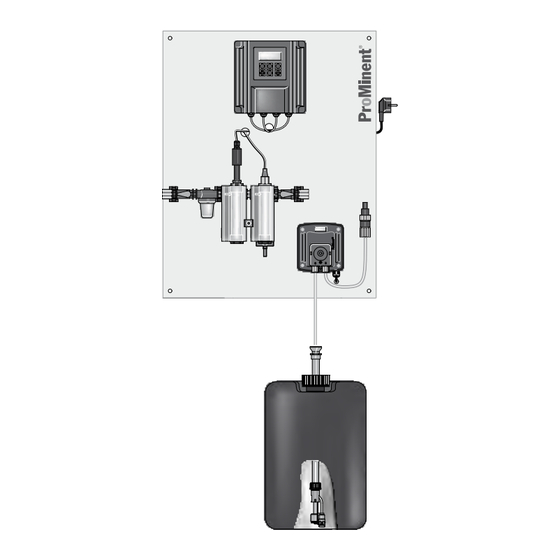

Sensors Controller Metering pumps 2.1 Overview of equipment Components P01 A1115 Fig. 1: Overview of equipment based on the example DULCODOS Pool metering system R01 (with all ® options and metering pump Beta ® or DF2a) Redox controller... - Page 8 About this product Control elements e.g. R01 A1116 Fig. 2: Control elements for the example DULCODOS ® Pool metering system R01 (with all options and metering pumps Beta ® The following are used as control elements: Controller keys and display Flow meter (by scale) Stroke adjustment dial of the metering pump (con‐...
-
Page 9: Safety And Responsibility
Customer Service depart‐ Customer Service department refers to service technicians, who have ment received proven training and have been authorised by ProMinent to work on the system. Note for the system operator The pertinent accident prevention regulations, as well... -
Page 10: Explanation Of The Safety Information
Safety and responsibility 3.2 Explanation of the safety information Introduction These operating instructions provide information on the technical data and functions of the product. These operating instructions pro‐ vide detailed safety information and are provided as clear step-by- step instructions. The safety information and notes are categorised according to the following scheme. -
Page 11: General Safety Information
Safety and responsibility Type of information Hints on use and additional information Source of the information, additional measures Information! Denotes hints on use and other useful information. – It does not indicate a hazardous or damaging sit‐ uation. 3.3 General Safety Information WARNING! Live parts! Possible consequence: Fatal or very serious injuries... -
Page 12: Correct And Proper Use
Safety and responsibility NOTICE! Correct and proper use Damage to the product or its surroundings – The unit is not intended to measure or regulate gaseous or solid media – The unit may only be used in accordance with the technical details and specifications provided in these operating instructions and in the operating instructions for the individual components... - Page 13 Safety and responsibility NOTICE! Correct and proper use The unit is intended to measure and regulate liquid media. The marking of the measured variables is located on the controller and is absolutely binding. The unit may only be used in accordance with the technical details and specifications provided in this operating manual and in the operating manuals for the individual components (such as, for example, sensors,...
-
Page 14: Storage And Transport
® from feed chemicals and water – Rinse out the media carrying parts, including the tubes using clean, pure water – Transport and store the DULCODOS ® Pool metering systems in their original packaging – Also protect the packaged DULCODOS ®... -
Page 15: Assembly
Assembly Assembly Cleaning the injection valve Localised increases in pH can occur through the metering of chlorine into the swimming pool water. This can result in limescale forming in the injection valve. Regularly check, clean and descale the injection valve. The frequency of this work depends on the usage and ambient parameters of your system and must be deter‐... -
Page 16: Fit The Antikink Device For The Bleed Line
Assembly 10 mm A0924 Fig. 3: Hanger bolt Rawlplug (type dependent on substrate and according to stipu‐ lations of the rawlplug manufacturer) Hanger bolt U-washer Hexagon nut 5.2 Fit the antikink device for the bleed line Only SEK liquid end (metering pump Beta ®... -
Page 17: Hydraulic Installation
Assembly 5.3 Hydraulic installation A1117 Fig. 5: Indoor swimming pool: hydraulic connection of the swimming pool metering system to the swimming pool installation Advantage: "Direct" measured values without depletion Disadvantage: In-line probe housing can become dirty... -
Page 18: Metering System
Assembly A1118 Fig. 6: Outdoor swimming pool: hydraulic connection of the swimming pool metering system to the swimming pool installation Advantage: In-line probe housing cannot become dirty Disadvantage: Measured values with depletion 5.3.1 Metering system NOTICE! Maximum permissible operating pressure of in-line probe housing Limit the pressure to a maximum of 2 bar (at 30 °C) directly at the sample water extraction point using a... - Page 19 Assembly Screw the injection valves into a straight union of the filtration circuit pipe A0929 Fig. 7: Connect the tube using the connector kit 1. Valve 2. O-ring 3. Nozzle 4. Clamp ring 5. Union nut 6. Hose Connect the suction hose of the suction assembly to the con‐ nector kit on the liquid end Connect the pressure hose to the pressure connector using the connector kit...
-
Page 20: Sensors
Assembly If water flows out of the sampling tap, the system is not under negative pressure and is working correctly If air is drawn in, this means that there is nega‐ tive pressure in the system. In this case, throttle the valve at the point at which the sample water pipe enters the filtration circuit - the pressure should not exceed 2 bar. -
Page 21: Electrical Installation
Assembly Installing a chlorine or bromine sen‐ sors If there is already sample water in the in-line probe housing Slowly lower the sensor into the in-line probe housing. Otherwise the diaphragm of the sensor is over‐ stretched and the sensor delivers incorrect values. Remove the securing bolt (1) using a 35 mm ring spanner Fit the sensor with electrolyte as described in the sensor operating instructions... -
Page 22: Start Up
Start up Start up Preparation: WARNING! Danger from hazardous substances! Possible consequence: Fatal or very serious injuries. Please ensure when handling hazardous substances that you have read the latest safety data sheets pro‐ vided by the manufacture of the hazardous substance. The actions required are described in the safety data sheet. -
Page 23: Priming And Bleeding
Start up Plug the mains plug into the socket and switch on the mains voltage 6.1 Priming and bleeding Start the control process, if correctly installed, the lines bleed them‐ selves. 6.2 Adjust the flow sensor switching point The flow sensor should switch when the flow falls (flow sensor is con‐... - Page 24 Start up Preparing the filtration circuit WARNING! Danger from hazardous substances! Possible consequence: Fatal or very serious injuries. Please ensure when handling hazardous substances that you have read the latest safety data sheets pro‐ vided by the manufacture of the hazardous substance. The actions required are described in the safety data sheet.
- Page 25 Start up Testing the sensor calibration calibration calibration calibration DPD-value zero p.: 4.00 mA DPD-value zero p.: 4.00 mA slope 1.55 ppm 01.55 ppm slope 6.50 mA/ppm 14.00 mA 6.50 mA/ppm calibration calibration Zeropoint zero p.: 4.00 mA take over value? 4.00 mA A0018_GB Fig.
- Page 26 Start up Necessity of calibrating the zero point Calibration of the zero point is not generally necessary. Calibration of the zero point is only necessary if the sensor is operated at the lower limit of the measuring range or if the 0.5 ppm sensor version is used. During the calibration, the DULCOMETER ®...
- Page 27 Start up Necessity of calibrating the zero point Calibration of the zero point is not generally necessary. Calibration of the zero point is only necessary if the sensor is operated at the lower limit of the measuring range or if the 0.5 ppm sensor version is used. Calibration of amperometric sensors: A container with water, which is free of additives that could falsify Zero point (only in the complete oper‐...
- Page 28 Start up Testing the ORP Sensor NOTICE! Testing the ORP Sensor With ORP measured variables, the sensor is not cali‐ brated but tested according to its design – Observe any notification of abnormal behaviour when testing the ORP sensor – Should the test not be successful, replace the ORP sensor check sensor...
-
Page 29: Maintenance
Maintenance Maintenance WARNING! Danger from hazardous substances! Possible consequence: Fatal or very serious injuries. Please ensure when handling hazardous substances that you have read the latest safety data sheets pro‐ vided by the manufacture of the hazardous substance. The actions required are described in the safety data sheet. - Page 30 Maintenance Maintenance interval:daily You must check the actual swimming pool water values daily to guarantee the safe operation of your swimming pool system. Check the chlorine concentration using the DPD test (refer to the operating instructions for the test kit) Check the pH value using the phenol red test (refer to the operating instructions for the test kit) ð...
-
Page 31: Troubleshooting
Regulations governing disposal of used parts – Note the current national regulations and legal standards which apply in your country ProMinent Dosiertechnik GmbH, Heidelberg will take back decon‐ taminated used devices providing that they are covered by ade‐ quate postage. -
Page 32: Technical Data
Technical data Technical data Refer to the product-specific operating instructions for technical data on the controller, sensors, in-line probe housing, metering pump and multifunctional valve. Cleaning the injection valve Localised increases in pH can occur through the metering of chlorine into the swimming pool water. This can result in limescale forming in the injection valve. - Page 33 Technical data A1119 Fig. 11: Dimensions sheet. All dimensions in mm. Depth 150 mm...
-
Page 34: Systems
Systems Systems 9.1 Spare parts and accessories Spare parts Spare parts Part no. Chlorine sensor CLE 3-mA-2 ppm (for free chlorine) 792920 Spare diaphragm cap for CLE 3 815073 Electrolyte solution for chlorine sensor for CLE, 100 506270 Chlorine sensor CLE 2-mA-2ppm (for organically 792843 bound chlorine) Spare diaphragm cap for CGE 2... -
Page 35: Ec Declaration Of Conformity
This declaration is nolonger applicable if changes are made to the product without our authorisation. Product description: DULCODOS POOL swimming pool dosing system Product type: DSPa _ _ _ _ _ _ _ _ _ _ 0 _ 0 _ 1_ i.e. - Page 36 This declaration is no longer applicable if changes are made to the product without our authorisation. Product description: DULCODOS POOL swimming pool dosing system Product type: DSPa _ _ _ _ _ _ _ _ _ _ X _ X _ 1_ and X >...
-
Page 37: Index
Index Index Question: What ambient conditions need to be taken into consideration?........ 14 Actuating outputs..........26 Question: What components does the product Ambient conditions..........14 include?..............7 Question: What do I need to consider when Calibration............25 operating the product for the first time?....22 Cleaning the injection valve.........
