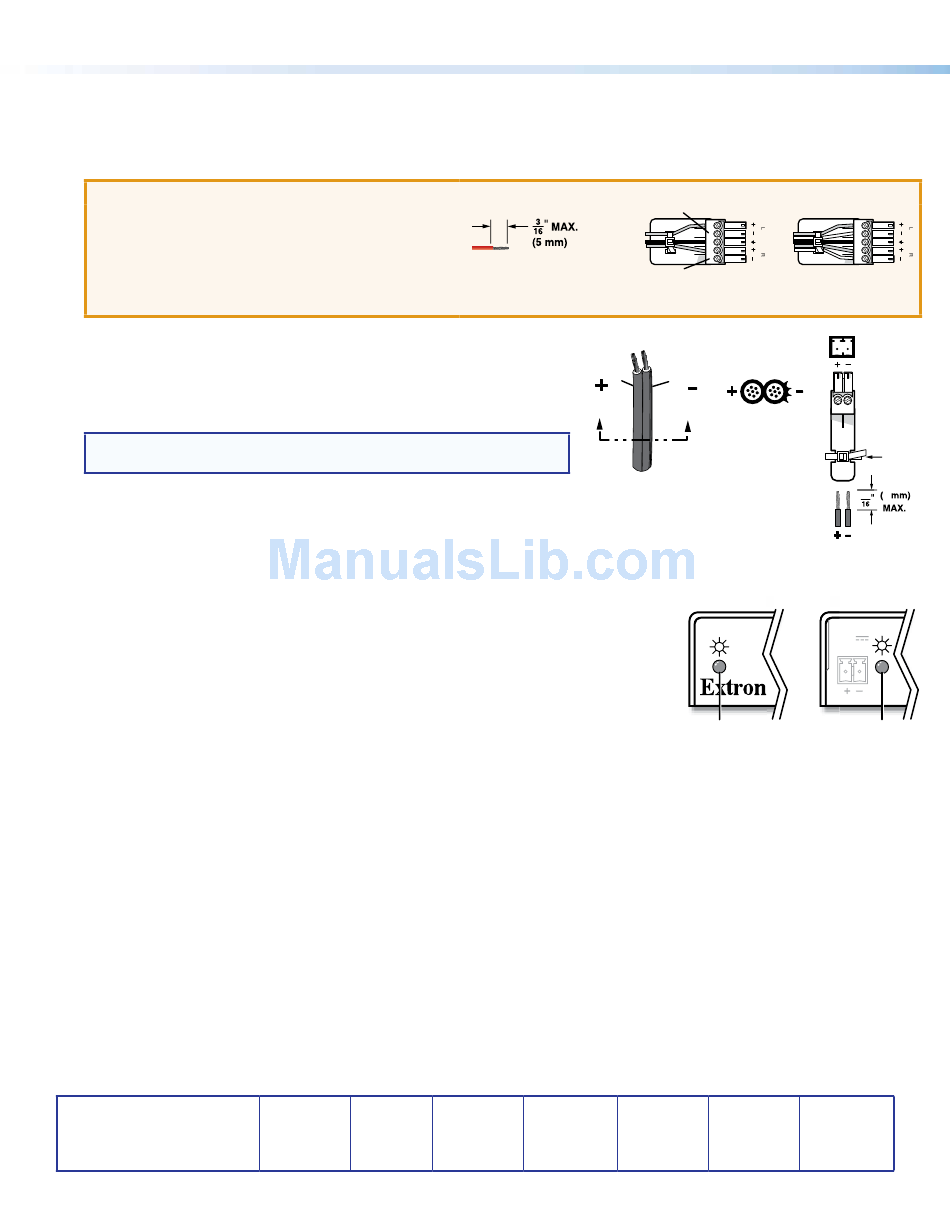

Audio Output connector — Connect an audio device, such as an audio amplifier or powered speakers to this 5-pole, 3.5 mm captive
H
screw connector to receive, unamplified, line level analog audio. This audio is in addition to any audio that may be embedded in the
DisplayPort video signal.
See below to wire the connector. Use the supplied tie-wrap to strap the audio cable to the extended tail of the connector.
ATTENTION:
• For unbalanced audio, connect the sleeves to the
ground contact. Do not connect the sleeves to
the negative (-) contacts.
• Pour l'audio asymétrique, connectez les
manchons au contact au sol. Ne PAS connecter
les manchons aux contacts négatifs (–).
Power — Connect the included 12 VDC power supply to either unit,
I
transmitter or receiver, as shown at right. Use the included tie-wrap to strap
the cord to the captive screw connector.
Connect an IEC power cord between the power supply and a 100-240 VAC,
50-60 Hz source.
NOTE: switch (
If the TP
If the switch is in HDBT, each unit requires its own power supply.

Operation

After all connected devices are connected and powered on, the system is
fully operational. If any issues arise, verify that the cables are routed and
connected properly.

Power Indicators

Power (and signal) LED (front panel) —
A
Amber — The unit is receiving power, either locally or remotely (on the TP cable).
Green — The unit is receiving an active digital input, either on the DisplayPort input if a
transmitter, or transmitted on the DTP cable if a receiver.
Power LED (rear panel) —
B
Amber — The unit is receiving power remotely (on the TP cable).
Green — The unit is receiving power locally.
