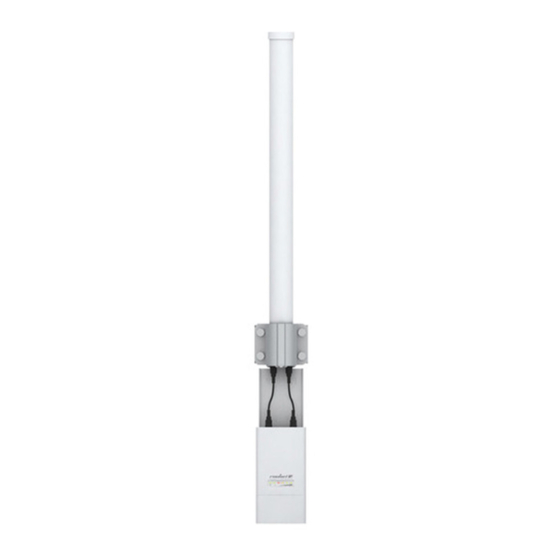

Ubiquiti AMO-2G10 Quick Start Manual

Hide thumbs Also See for AMO-2G10:

Table of Contents

Download this manual

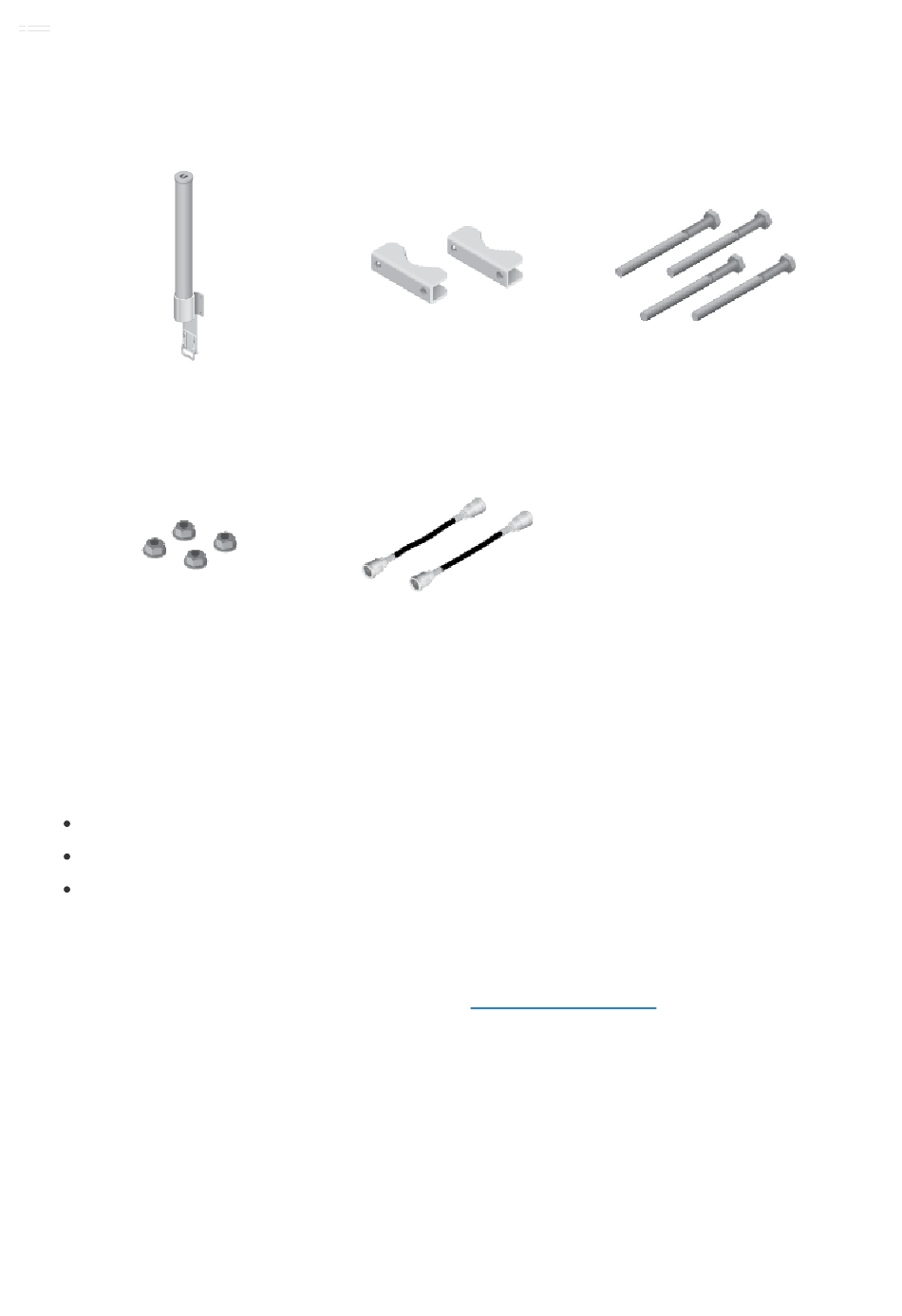

Package Contents

Antenna

Serrated Flange Nuts (Qty. 4)

Rocket®M2 (sold separately)

13 mm wrench

Shielded Category 5 (or above) cabling should be used for all wired Ethernet

connections and should be grounded through the AC ground of the PoE.

We recommend that you protect your networks from harmful outdoor

environments and destructive ESD events with industrial-grade, shielded Ethernet

cable from Ubiquiti. For more details, visit

AMO-2G10 Quick Start Guide

Pole Clamps (Qty. 2)

RF Cables (Qty. 2)

ui.com/toughcable

Carriage Bolts (Qty. 4)

Table of Contents

Do you have a question about the AMO-2G10 and is the answer not in the manual?

Page 1 AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti. For more details, visit ui.com/toughcable Hardware Installation...
Page 2 AMO-2G10 Quick Start Guide...
Page 3 AMO-2G10 Quick Start Guide...
Page 4 AMO-2G10 Quick Start Guide...
Page 5 AMO-2G10 Quick Start Guide Speciﬁcations AMO-2G10 Dimensions 1012 x 122 x 105 mm (39.84 x 4.8 x 4.13") Weight with Mount 2.1 kg (4.24 lb) Frequency 2.35 - 2.55 GHz Gain 10 dBi Elevation Beamwidth 12° Electrical Downtilt 4° Max. VSWR 1.7:1...
Page 6 AMO-2G10 AMO-2G10 Quick Start Guide Polarization Dual Linear Cross-Pol Isolation 25 dB Min. RF Connectors 2 RP-SMA Connectors (Weatherproof) Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included ETSI Speciﬁcation EN 302 326 DN2 Safety Notices 1. Read, follow, and keep these instructions.
