Page 6: Table Of Contents
Table of Contents Introduction Proper use ................Page Description of parts and features ..........Page Technical data ................Page 10 Included items ................Page 11 Safety Instructions ............Page 11 Preparing for use Charging the rechargeable light batteries ......Page 13 ...................Page 14 Using the light without the power lead .........Page 15 Using the light connected to a power supply ......Page 15 Maintenance and cleaning ........Page 16... -
Page 7: Introduction
Introduction LED Work Light © Introduction Familiarise yourself with the product before using it for the first time. In addition please refer carefully to the operating instructions below and the safety advice. Use the product only as described and for the indicated purpose. Keep these instructions in a safe place. -
Page 8: Technical Data

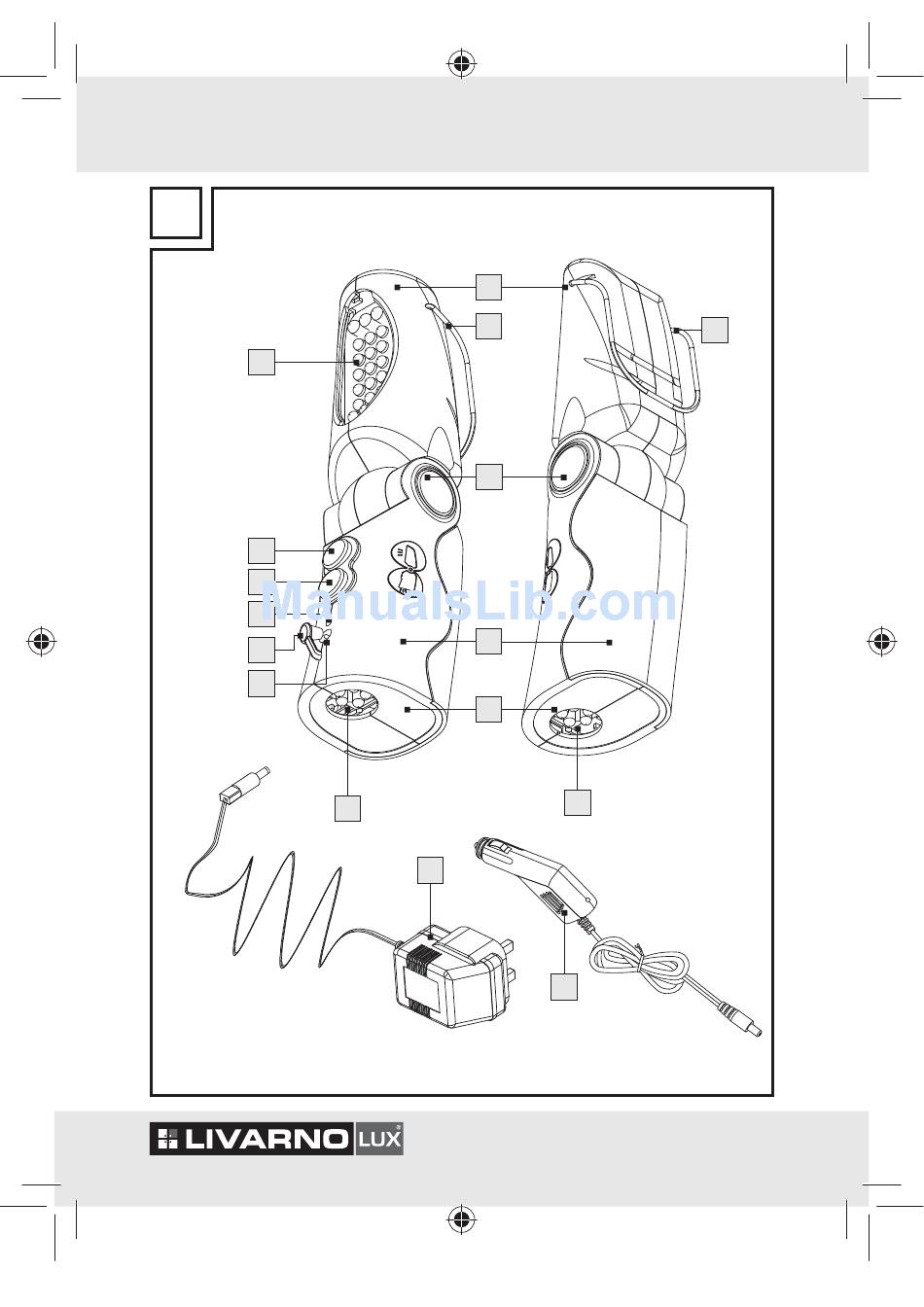

Introduction Charging indicator On / Off switch (handle) On / Off switch (lamp head) LEDs (lamp head) Cigarette lighter socket adapter Mains adapter Screws © Technical data Bulbs: 26 LEDs (white, non-replaceable), of which 21 are in the lamp head / 5 in the handle Lamp rechargeable batteries: Ni-MH, 1600 mAh, 3.6 V... -
Page 9: Included Items
Introduction / Safety Instructions Cigarette lighter socket: Input: 12 V © Included items 1 LED Work Light 1 Mains adapter 1 Cigarette lighter socket adapter 1 Operating instructions Safety Instructions ½ WARNING! DANGER TO LIFE AND RISK OF ACCIDENTS FOR INFANTS AND CHILDREN! Rechargeable batteries are not intended to be in the hands of children. - Page 10 Safety Instructions ½ Do not use the article if you detect any kind of damage. The LED cannot be replaced. ½ CAUTION! DANGER OF EXPLOSION! Do not operate the lamp in potentially explosive environments in which there are inflam mable vapours, gases or dusts. ½...
-
Page 11: Preparing For Use
Safety Instructions / Preparing for use during a storm. When doing this, pull directly on the mains adapt- / cigarette light socket and not on the lead. ½ Protect the product against heat, cold, strong vibrations and impacts. ½ Never point the LED beam on reflective areas, people or animals. -
Page 12: Use
Preparing for use / Use ATTENTION! When charging from a cigarette lighter socket, make sure that the cigarette lighter socket adapter is always fully in- serted into your vehicle’s cigarette lighter socket. Failure to observe this advice may result in overheating and consequent risk of fire. Insert the mains adapter into a mains socket or insert the ciga- rette lighter socket adapter... -
Page 13: Using The Light Without The Power Lead
Failure to observe this advice may result in the light falling down and becoming damaged. Note: The lamp head can be adjusted through 165° (see Fig. B). Bring the lamp head into the desired position by articulating the light at the hinge ©... -
Page 14: Maintenance And Cleaning
Maintenance and cleaning / Troubleshooting © Maintenance and cleaning The product is maintenance-free. The LEDs cannot be replaced! CAUTION! RISK OF ELECTRIC SHOCK! Disconnect the product from the mains supply before cleaning. ½ Never immerse the product in water or other liquids. Clean the product regularly with a dry, fluff-free cloth. -
Page 15: Disposal
Disposal © Disposal The rechargeable battery must be removed before the product is taken for disposal. After the battery has been removed, the product can no longer be used. To remove the rechargeable battery proceed as follows: 1. Open the light by unscrewing the 5 screws using a small Phillips screwdriver (see Fig. - Page 16 Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used rechargeable batteries at a local collection point. Product Description: LED Work Light Model No.: Z30503-BS Version: 02 / 2011 18 GB/IE 56632_livx_LED-Arbeitsleuchte_Content_LB6.indd 18 30.12.10 11:22...
