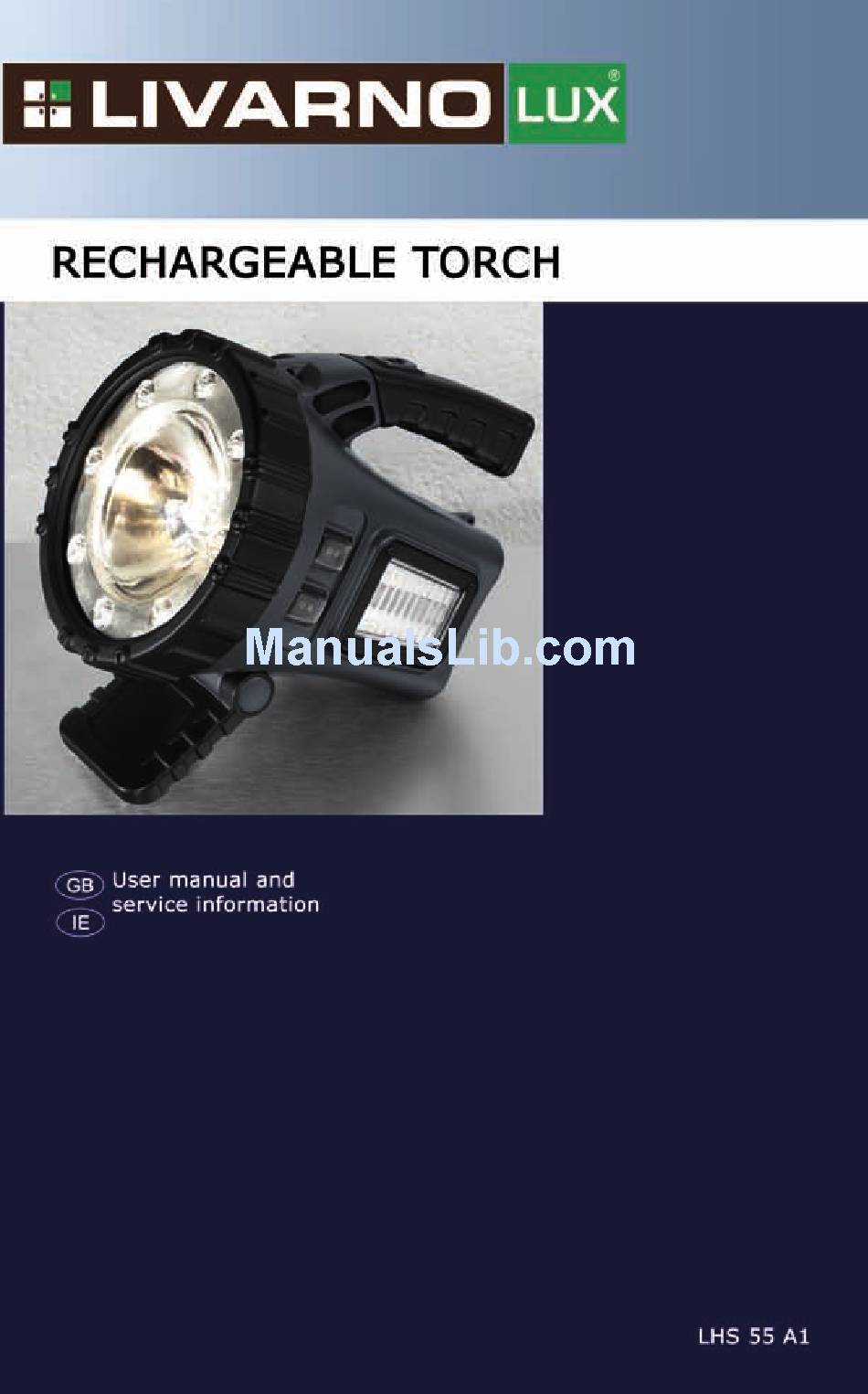

- Page 3 Rechargeable Battery Flashlight LHS 55 A1 .............. 2 Operating and Safety Instructions IAN 56622 Version v1.3...
-
Page 4: Table Of Contents
Rechargeable Battery Flashlight LHS 55 A1 Table of Contents Package Contents ..........3 Safety Instructions ..........4 Intended Use ............7 Description ............. 8 Technical Specifications ........9 Rechargeable Battery Flashlight LHS 55 A1 .. 9 ... -
Page 5: Package Contents
Rechargeable Battery Flashlight LHS 55 A1 Package Contents [A] Rechargeable Battery Flashlight LHS 55 A1 [B] Charger WJB-Y41120500D [C] Car adapter (for 12V car battery) [D] Strap English - 3... -
Page 6: Safety Instructions
Rechargeable Battery Flashlight LHS 55 A1 Safety Instructions Before you use this device for the first time, please read the following notes in this manual and heed all warnings, even if you are familiar with handling electronic devices. Keep this manual in a safe place for future reference. - Page 7 Rechargeable Battery Flashlight LHS 55 A1 LED Radiation! Avoid harm to the eyes! Never look into the LED beam. If you suspect any eye damage, consult a doctor. The protective glass of the reflector becomes very hot in halogen light mode. There is a risk of injury upon touching it! Never cover the reflector while using the device otherwise overheating may occur!
- Page 8 Rechargeable Battery Flashlight LHS 55 A1 damaged. The supplied devices do not contain any parts that require user maintenance. Never open the housing of the devices otherwise they can be damaged. The supplied charger WJB-Y41120500D and the supplied car charger must be used to recharge the built-in battery of the flashlight only.
-
Page 9: Intended Use
Rechargeable Battery Flashlight LHS 55 A1 When not following the above warnings the device may become damaged. Intended Use The Rechargeable Battery Flashlight LHS 55 A1, hereafter called “flashlight” can be used as a mobile light beamer for hobbies, leisure or camping. -
Page 10: Description
Rechargeable Battery Flashlight LHS 55 A1 Description The items in the figure have the following meaning: [1] Slide switch for changing the handle position (carrying position / pistol position) [2] Reflector [3] Reflector ring [4] Receptacle for charger WJB-Y41120500D or car adapter [5] Charging indicator [6] Adjustable stand... -
Page 11: Technical Specifications
Rechargeable Battery Flashlight LHS 55 A1 Technical Specifications Rechargeable Battery Flashlight LHS 55 A1 Brand name: LivarnoLux Safety Level: IPX4 – splash-waterproof Light source: 8 x LEDs Light intensity: approx. 13000 Power approx. 0.06 W LED ring light range: 10-15m 1 x H3 6 V/55 W PK22s OSRAM halogen bulb Luminous flux: 1000 lm +/- 15%... -
Page 12: Approx. Lighting Duration With Full Battery
Rechargeable Battery Flashlight LHS 55 A1 Dimensions: 23 x 29 cm (L x H, handle in pistol position) Head diameter: 17.5 cm Weight: 1960 g Approx. lighting duration with full battery Halogen light mode (up to 70%): max. 20 min. LED light mode (up to approx. -
Page 13: Getting Started
Rechargeable Battery Flashlight LHS 55 A1 Getting Started The Rechargeable Battery Flashlight LHS 55 A1, henceforward named “flashlight”, features a built-in rechargeable battery. Optionally you can recharge the built-in battery with the supplied charger WJB- Y41120500D or the supplied car adapter. Batteries are subject to discharge when stored for a long period of time. -
Page 14: Charging Via The Car Adapter
Rechargeable Battery Flashlight LHS 55 A1 Charging via the Car Adapter Make sure that your vehicle has a 12V battery. Never connect the car adapter to a 24V battery. Otherwise the flashlight and the car adapter may be damaged. Remove the protective cover from the jack [4] on the flashlight. -
Page 15: The Led Ring
Rechargeable Battery Flashlight LHS 55 A1 The LED Ring Press the rocker switch [10] to position II to power the flashlight on. Press the rocker switch [10] to position 0 to power the flashlight off. Blinking LED Warning Light ... -
Page 16: Appendix
Rechargeable Battery Flashlight LHS 55 A1 Appendix Cleaning To clean the flashlight use a dry cloth. Never use any solvents or cleaners that may damage the plastic housing. Make sure that no liquid gets into the housing. If the product is very dirty, use a slightly moistened cloth otherwise the device may suffer damage. - Page 17 Rechargeable Battery Flashlight LHS 55 A1 Do not touch the glass with your fingers. Touching the lamp glass can reduce the bulb's lifetime. We recommend that you use a soft, lint-free cloth. Fix the bulb again with the holding wire and reconnect the cable.
-
Page 18: Disposal Of Old Devices
Rechargeable Battery Flashlight LHS 55 A1 Disposal of Old Devices Devices marked with this symbol are subject European Directive 2002/96/EC. All electric and electronic devices must be disposed of separately from household waste at official disposal centres. Avoid hazards to the environment and dangers to your personal health by disposing of the device properly. -
Page 19: Warranty Information
Rechargeable Battery Flashlight LHS 55 A1 Warranty Information 36 month warranty from date of purchase We ask you to read carefully through the enclosed documentation or online help before putting your product into service. If you have a problem, which can not be solved in this way, please contact our hotline.
