Page 1: User Manual

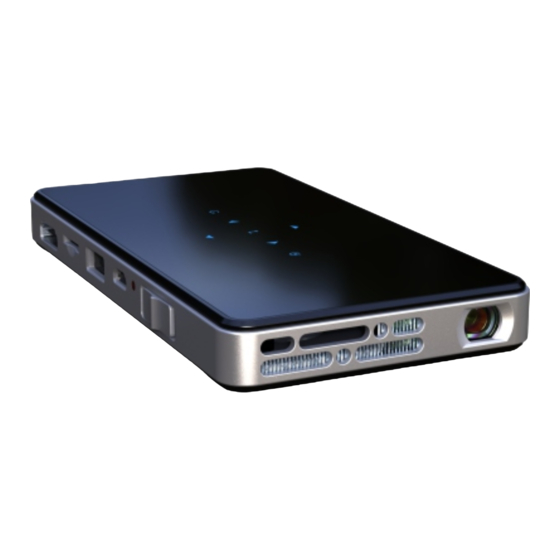

V 3.0 User Manual Color and appearance may differ with the icons in this manual ,Product specifications may vary due to the improved performance without notice... - Page 2 Thank you for using our LED mini projector! After you reading this manual, you will know how to use the projector, experiencing its full function and briefly operations. The projector is a handheld device, designed for family, entertainment, business presentation, and it will project a big screen as you like at any tim The projector integrates high performance optical engine and friendly interfaces with high reliability.
- Page 3 Safety Instructions To ensure using the projector safely, please follow below instructions. Please use the adaptor specified by the company, other company products may damage the projector . Do not disassemble, modify, throw, drop the projector, otherwise it may cause damage; Projector failure can only be repaired by professionals;...
-
Page 4: Hdmi Cable
acking List Please unpack the box carefully, and check below items. If there is lack one or some of the them, please contact the distributor. Projector Adaptor Tripod Carry Bag HDMI CABLE USB CABLE Warranty Card Card （O ） ptional... - Page 5 Summary 1.Lens 2.Air outlet 3.ON/OFF Charging Switch 4.Charging Indicator 5.DC 6.USB Interface 7.TF CARD ︵ ︶ 8.HDMI/ MHL Interface Optional 9.Touch Key 10.Battery Level Indicator 11.Focus 12.Support Knob 13.Air Inlet 14.Tripod Hole 15.Speaker 16.Headphone...
-
Page 6: Touch Key
Touch Key Source OK/Menu Up/Vol+ Right/Next/Fast Forward Left/Previous/Fast Backward Down/Vol- Return Charging When Charging, insert one end of the USB cable to the USB of the projector, the other end to PC/ Laptop/mobile power adaptor or original adaptor. *Charging after 5 hours, the projector is fully charged, Power Adaptor the LED light close. -
Page 7: Brightness Mode
Charging for mobile devices The internal battery not only can be used for projection,but also can charging for mobile devices. Push the Power switch forward and reach to charging mode, Operation instruction as below:Charging power for cellphone via USB: Plug one end of the USB cable to the projector USB, the other end to the mobile devices. - Page 8 Mobile Devices Connect to Projector HDMI Connection *Use the HDMI cable to connect the HDMI output device and projector, projector will select the source automatically after a few seconds, or you can also select the source manually. *TF-card (Max 32GB support) *U-disk (Max 32GB support) *USB cable charge for mobile devices (Note: USB port does not support mobile Hard-...
- Page 9 Select Source Input “ ” Press 【 】, switch to signal input channel, there is corresponding icon and character prompted after switch. WIFI Display Smart devices via wireless signal or wireless network WiFi to connect to projector to play images, select here to entre. Projector play content of TF card, select here to entre.
-
Page 10: Media Play
Projector play content of flash memory, select here to entre. HDMI Projector connect to device which have HDMI output to play image or video select here to entre. Media Play Press the 【 】longly or shortly，appear corresponding menu interface, press 【 】【 】to select different adjustment item, appear corresponding icon and options, press 【... - Page 11 WiFi-Display Mode Select ( Optional ) Appearing following screen after selecting W iFi-Display. There are two mode under WiFi-Display push the projector on / off button forward to switch between Miracast and DLNA. Projector on/off Device Name: LOLLIPOP-19561 Status: Waiting for connection... Mode: Miracast Peer Device Name:...
- Page 12 Miracast nder Miracast mode , the projector can mirror the movie or photo of smart phone or tablet . Please confirm your smart device support M iracast. If you want to know that the tablet , TV box other smart device support Miracast or not , please consult to device supplier .
- Page 13 Open WiFi-D isp ay on your smart phone or tablet, find the projector default name, after connect it can mirror the movie or photo. Default name Device Name: LOLLIPOP-19561 Status: Waiting for connection... Mode: Miracast Peer Device Name: Peer Device MAC: Peer Device IP: Selected WiFi-Display Mode * f the smart de ice b ush unofficial genuine brush pack, t ma not sup ort...
- Page 14 Samsung Phone 3.Select AllShare Cast 1.Enter menu of Samsung S3 4.Find LOLLIPOP-19561”, click on it and wait few seconds find setting option. , then the projection image is screen of Samsung S3. 2.Select more setting. 设置。...
- Page 15 DLNA Under DLNA mode, can output photo, movie, music of smart phone or internet to projector and then project via wireless transmission technology. Before using DLNA, the smart device need to install software application that support DLNA, like PPTV, Tencent video, Soho Video, etc. The method of iPhone or android phone is basically same.
- Page 16 Play Local Video By DLNA To use the iMediaShare Lite-v4.02 as an example, open iMediaShare Lite, select my videos appea device selection interface, select“LOLLIPOP-19561”, wait a few seconds then the projector play Phone Control Interface *Some client software do not support to play local file by DLNA.
-
Page 17: Input Password
After connection successfully, open browser, input“192.168.49.1”Select , click“Scan”，sele the network you want to connect, input password of the network, connect to the wireless router. After connected successfully, enjoy home entertainment share. INNOVATIVE INNOVATIVE Select Wireless Network Scaning Wireless network Input Password... -
Page 18: Menu Introduction
Menu Introduction Click“ , display wireless network selec menu, select set wireless network. Click“ ”appear playing control butt Select control play video or control by client Click“ ”to switch between Miracast DLNA Click“ ” o adjust the picture aspect... - Page 19 Some client software should open the DLNA on "Setting". If the DLNA does not open, there is no DLNA Icon on the control menu of player.
- Page 20 ＊If the transfer process is not smooth or the buffer time is too long, one reason is that the distance between the smart device and wireless router is too long, sending and receiving data drops significantly, resulting slow data transfer, replace high power wireless router, or near to wireless router;...
-
Page 21: Technical Specifications
Technical Specifications Product Name LED Mini Projector Native Resolution 854×480 Display Technology Lamp R,G,B LED Projection Size 37.8''@1m Standard HDMI Input(Support Android Sticker) HDMI WiFi-Display DLNA/Miracast* WiFi Media Player Built-in 1080P media player Support Storage Device File System NTFS,FAT16,FAT32 Headphone Output 3.5mm stereo headphone...
