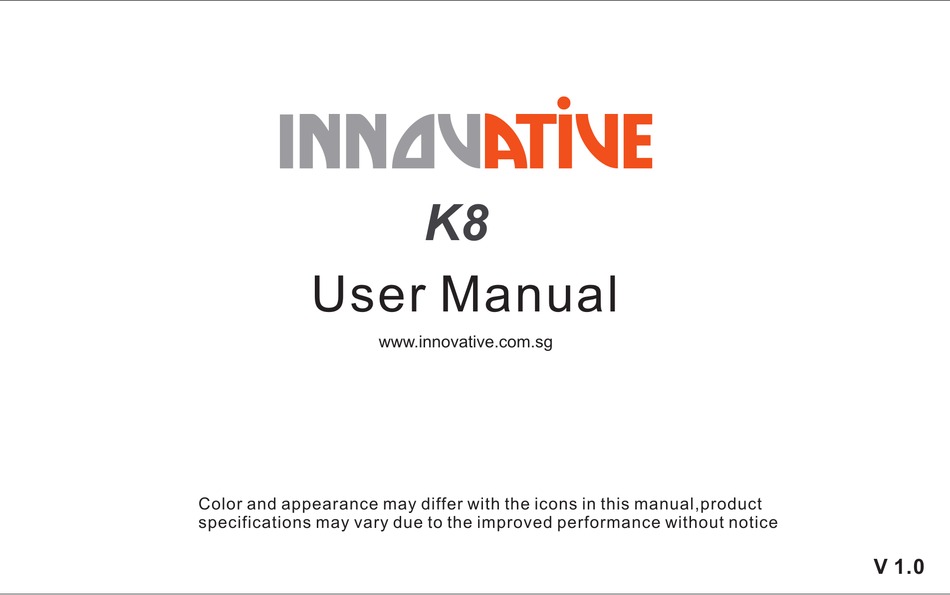

Page 1: User Manual
User Manual www.innovative.com.sg Color and appearance may differ with the icons in this manual,product specifications may vary due to the improved performance without notice V 1.0... -
Page 2: Table Of Contents
Content Features… … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … .1 Safety Instructions… … … … … … … … … … … … … … … … … … … … … … … … … .2 List of Items…... -
Page 3: Features
Thank you for purchasing our LED mini projector! Please read the manual carefully before you start to use the projector. The projector is designed for home entertainment, and it will project a big screen as you like at any time. 1 Features The projector integrates high performance optical engine and friendly interfaces with high reliability. -
Page 4: Safety Instructions
1.1 Safety Instructions ● To ensure the safety of using this product, please follow the using instructions. ● Please use the adaptor specified, other products may damage the projector. - Page 5 ● Do not disassemble, modify, throw, or drop the projector, otherwise it may cause damage; ● The Projector must be repaired by professional technicians; ● The battery is integrated, do not to cover up or modify.
- Page 6 ● Do not drop metal objects into the projector, otherwise it will result in damage; if any external objects land inside the projector, please turn off the power quickly. ● Do not place liquids near or on the projector. If liquid has been spilled into the machine, immediately turn off the power, and do not use.
- Page 7 ● Use the projector in a well-ventilated area with temperature range 0-35℃/humidity 0~85%. Use at an elevation2000m or lower. ● Do not block the air outlet vents; do not use the projector on bedding, blankets and other soft surfaces; Do not cover the vents with cloth or other objects;...
- Page 8 ● Do not use the projector under extreme light or near a strong magnetic field. ● Do not use the projector in dirty or dusty condition.
- Page 9 ● Do not look directly into the lens while the projector is running, it may damage your eyes. ● This product and the user manual for further improvement or supplementsed without notice.
- Page 10 Attention for viewing 3D movie ● Long close watch will affect vision; ● Wear stereo glasses watch program or game for long time will cause dizziness or eye fatigue; ● Pregnant women, elderly, patients with heart disease or prone to vomiting, to avoid excessive viewing; ●...
- Page 11 2.If the vision of two eyes are different, please watch after correction. 3.The eye height aim the 3D image, positive watch. 4.Please stop watching when feel headache or fatigue, dizziness. 5.Do not watch long when hardship, fatigue or illness. ● Children watch in the guardian care. Please confirm when watching 3D 1.Please watch 3D image in effective audition angle and distance.
-
Page 12: List Of Items
ist of items Please unpack the box carefully; Box contents include: a c t i v e TF card AV CABLE Projector Remote (optional) (optional) Adaptor Power Cable... -
Page 13: P R O J E C T O R E X T E R I O R V I E
2 Projector Exterior View Touch Panel(optional) Focus Lens Infrared receiver window Outlet Speaker Headphone/ Coaxial audio output HDMI Power ON/OFF Charging indicator TF card (optional) Support tripod Power Inlet Lifting screw... -
Page 14: Touch Key Instructions A Nd Remote Instructions
3. Touch Key Instructions UP/Prev Right/Vol+ Return Source OK/Menu Left/Vol- Down/Next Mute ON/OFF Source UP/Prev Left/Vol+ Left/Vol- Down/Next OSD Menu Return 3D Mode... -
Page 15: Operations Instructions
4 Projection size and distance table(just for reference) Turn the focal wheel to adjust the focal length to obtain a more clear picture. Distance(unit:m) Size(unit:inch) Series number with H Remark: The suggested projection is between 16:9 16:10 16:10 40 inches and 100 inches. 0.63-0.66 0.50-0.53 0.53-0.55... -
Page 16: Focus Adjustment
5. 1 Focus Adjustment clear . wheel picture Push the forward or backward make the Push this wheel forward or backward Note: keep projector and screen in horizontal level Screen Light Axis... -
Page 17: Select Input Source
5.2 Select Input Source »É´ĂĽ This projector support following sources: T-Flash------Play contents inside TF-card HDMI------Connect to external devices with HDMI output Blue-ray DVD----Connect Blue-ray player with HDMI output VGA-----Connect to PC with VGA output USB----play contents inside USB stick AV----connect external devices with AV output Press “Source”... -
Page 18: Connect To U-Disk Or Multimedia
5.3 Connect to U-Disk or Multimedia Operating the projector into multimedia system Connecting U-disk or TF card, insert U-disk or TF card into the marked direction of the projector, select the media type in the main menu, enter the file fold of the USB or TF, choose the corresponding file to play. -
Page 19: Connecting To Video Device
5.4 Connecting to video device Connect one end of the AV cable to the projector, the other end to the AV equipment corresponding hole. press on the panel or Source on the remote to change AV channel. The complete connection should be like shown below. DVD player/SAT Composite AV cable yellow... -
Page 20: Connecting To Audio Device
5.5 Connecting to Audio device Plug one end of the coaxial audio cable into the projector, the other end to the audio device that support AC-3/DTS decoding, you can enjoy 5.1 multi-channel surround sound, or plug in the stereo headphones to appreciate 2.0 stereo. The complete connection should be like shown below. -
Page 21: Connect To Wifi Display Dongle
5.6 Connect to Wifi Display Dongle Insert the Wifi display stick to HDMI port upon the projector, press “ ” button and switch to Wifi display Connecting method as below photo *Dongle is an optional purchase Note: If you do not choose the wireless application, but select the HDMI signal, the wifi dongle will no image output. -
Page 22: Connecting To Hdmi Device
5.7 Connecting to HDMI device Connect one end of the HDMI cable to the projector, the other end to the HDMI device. Press on the panel or Source on the remote to change to HDMI channel. The complete connection should be like shown below. DVD player HDMI Game console... -
Page 23: Connecting To Pc
5.8 Connecting to PC Connect one end of the VGA cable to the projector, the other end to the pc or laptop. Press on the panel or Source on the remote to change to VGA channel. The complete connection should be like shown below. Note: If the projector can not display the VGA when boot and select the VGA channel, please follow the following steps to check and set the computer. -
Page 24: System Setting Menu
5.9 System Setting Menu Press on remote or press on machine,appears corresponding menu interface press to adjust. Press OK or to enter.Press to exit or waiting for several seconds until the system exit automatically. -
Page 25: F U N C T I O
5.9.2 Function Explanation Picture Set: picture setting option Sound set: sound setting option Brightness standard: set projector brightness mode “Cinema mode, Eco mode1, Eco mode2” Dynamic Con: turn on the option, projector will adjust contrast ratio automatically through different projection images Input source: sources setting option 3D: 3D mode setting Keystone: keystone correction setting... - Page 26 5.9.3 Picture Set Picture mode: Standard/Soft/ User/Dynamic Brightness: 0-100 Contrast ratio: 0-100 Color:0-100 Sharpness: 0-100 图像模式 标准 Color temp: Standard/Warm/User/Cold Brightness Mode Sigal Auto Detect Aspect ratio: Auto/4:3/16:9/16:10 Restore Factory Default Software Update(USB) Image scaling: reduce image size “0-6” 6different options...
- Page 27 5.9.4 Sound Set Sound mode: Standard, Music, Cinema, Move, User Treble: 0-100 Bass: 0-100 FM TX: Turn on/off FM function and set FM frequency System Settings (Note: ensure frequency different with the frequency applied by local radio station) SPDIF Mode: set coaxial audio output format Surround sound: Set surround or SRS effect Auto volume: turn on “Auto volume”, volume in projector will adjust automatically according to requiremen...
-
Page 28: Watching 3D Image Requirements
3D Function 6.1 Watching 3D Image Requirements Best viewing angle: Up/Down/Left/Right 9° Best viewing distance: 3-5m Suggest Projection Size: 60 inches * Usually, only to watch 3D video in a dark room. * Set the brightness mode to standard when watching 3D video. Notice 1.The pairing of the DLP-LINK glasses is impacted by the intensity of the reflected light of screen. -
Page 29: Watch 3D Movie
6.2 Watch 3D Movie Press on remote or enter “System Setting menu” and select 3D mode, then select the correct 3D mode inside the projector to play Side by side, Blue-ray, Top bottom format 3D sources. *3D on/off: turn on the 3D option before check 3D content *Side by side 3D *top bottom 3D *Blue-ray 3D (connect to Blue-ray 3D player to play 3D movies) -
Page 30: Use Dlp-Link (Dlp-Ready) Type Glasses
6.3 Use DLP-LINK (DLP-Ready) type glasses 1 Press the button on the glasses when watching 3D images. 2 The glasses will flick after press the button, and synchronize with 3D images. (The flashing is a unique operation of DLP-LINK type glasses. This may be different due to the different types of glasses. -
Page 31: Multimedia Menu
7.1 Multimedia Menu The projector can play these media files(video/photo/music/text), and the support format includes: Video Format:(support video play with subtitle file. support file suffix:srt,idx,ssa,ass,smi,txt,ttx,sub.) Suffix Name Internal Code Max Resolution Max Baud Rate Video Format: MPEG1 DAT/MPG/MPEG 1920×1080/30P 20Mbps MPEG2 MPEG 1920×1080/30P... -
Page 32: Multimedia Interface
7.2 Multimedia Interface Enter multimedia operating interface, press “left” “right” button at remote control or upon projector to select corresponding file type(photo,music,video,txt); then press “ok” and get interface as below image: Select the right storage device, find the right file and press “Ok” button to play. - Page 33 Multimedia shorcut menu: Pause Fast Back Fast Forward Pause Previous Next Stop Next. Prev. Stop Playlist Repeat Set A Repeat List Set A Slow Forward Step Forward Information Info Step FW Slow FW Zoom out Timing Zoom in Timing Zoom In ZoomOut Aspect Ratio Move...
-
Page 34: Ppt/Pdf Document Play
PPT/PDF File Play Before playing PDF/PPT files, you need to convert the file to MPTG file to play. System requirements CPU: Intel Pentium processor M1.5G or higher Memory：above 256M OS： Windows XP Sp2、Windows Vista、Win7 Office： Offce2003.Offce2007 PDF Reader: Adobe Reader8、9、9.1 8.1 Install the convert program 1 insert the Tfcard to the computer, find the installer. - Page 35 3.Select the target location. * Input file: the full path to the selected PPT/PDF file. * Output driver: the target disk storage path. * Output file name: convert name the full path to the file. The convert file is same name as the source file and store in the same path.
-
Page 36: Trouble Shooting
9 Trouble Shootings If you encounter any problem during using the projector, please refer to the below methods to solve the problem, if you still can not solve the problem, please contact the distributor. .1 Projector can not be powered on, no image 1 check the power connection, the power work normal or not Connect one end of the power cable to the projector, the other end to the socket. - Page 37 2 Projector does not aim the screen Adjust the angle and direction, or height if necessary. 3 Lens is dirty Clean the lens. 4 Light is strong Pull down the curtain or power off some bulbs to lower the light. 9.3 No image 1 Video sources does not power on or connect wrong Power on the video sources and inspect the connection.
-
Page 38: Technical Specification
10 Technical Specifications CS-LED projector Name Resolution 1280×800 Display Technology Lamp R,G,B LED DLP-LINK 3D Ready Color gamut ≥110％ Power 100V-240V 0.8A Power consumption Dimension(L×W×H) 180×110×28mm Weight 520g/450g(No battery) VGA input standard VGA input port AV input 3.5mm AV input port HDMI input standard HDMI input port Support storage device file system...
