Summary of Contents for Innovative K7i
-

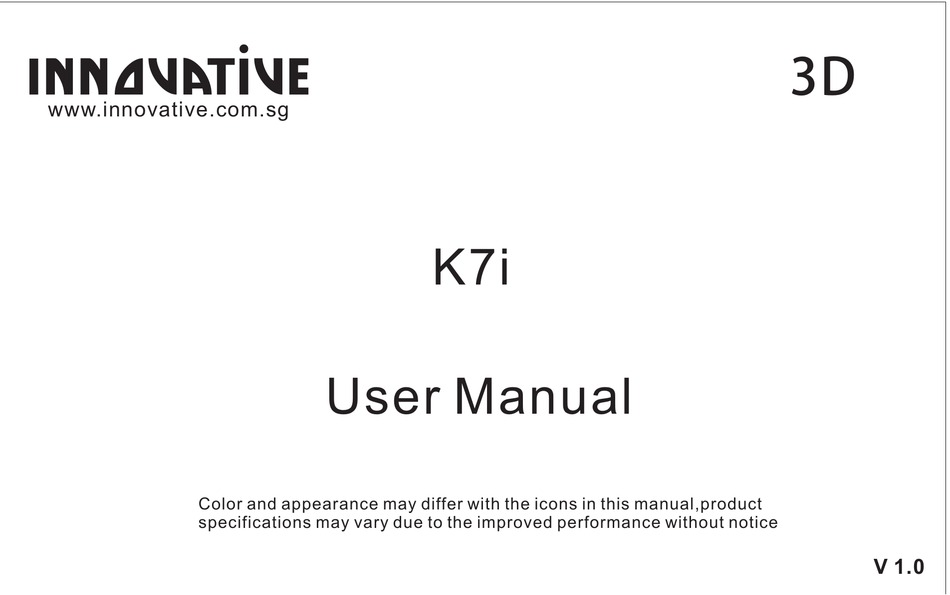

Page 1: User Manual
User Manual Color and appearance may differ with the icons in this manual,product specifications may vary due to the improved performance without notice V 1.0... -
Page 2: Table Of Contents
Content Features…………………………………………………………………………………….1 Safety Instructions… … … … … … … … … … … … … … … … … … … … … … … … … .2 List of Items… … … … … … … … … … … … … … … … … … … … … … … … … … … ….10 Projector Exterior View…... -
Page 3: Features
Thank you for using our LED mini projector! After you reading this manual, you will know how to use the projector. The projector is designed for home entertainment, and it will project a big screen as you like at any time. 1 Features The projector integrates high performance optical engine and friendly interfaces with high reliability. -
Page 4: Safety Instructions
1.1 Safety Instructions ● To ensure the safety of using this product, please follow the using instructions. ● Please use the adaptor specified by the company, other company products may damage the machine. - Page 5 ● Do not disassemble, modify, throw, drop the projector, otherwise it may cause damage; ● Projector failure can only be repaired by professionals; ● The battery is integrated device, not to cover up and modify. The battery can only be replaced by qualified service person;...
- Page 6 ● Do not drop metal objects into the projector vents, or fall into the projector, otherwise it will result in machine damage; if any foreign objects into, please turn off the power quickly, contact the after-sales service person to deal; ●...
- Page 7 ● Please use the projector in a well-ventilated, temperature 0-35℃/humidity 0~85%/Elevation 0~2000M of the environment; ● Please do not block the air outlet vents, do not use the projector on the bedding, blankets and other soft surface; Do not cover the whole with a cloth or other objects; If the projector ventilation holes are serious disrupted, excessive internal temperature may damage the projector, or may cause a fire hazard;...
- Page 8 ● Do not use the projector under high light or high magnetic field; ● Do not use the projector under dirty or dusty environment;...
- Page 9 ● Do not look directly in the source of lens while the projector is running; ● This product and the user manual for further improvement or supplementsed without notice.
- Page 10 Attention for viewing 3D movie ● Long close watch will affect vision; ● Wear stereo glasses watch program or game for long time will cause dizziness or eye fatigue; ● Pregnant women, elderly, patients with heart disease or prone to vomiting, to avoid excessive viewing; ●...
- Page 11 2.If the vision of two eyes are different, please watch after correction. 3.The eye height aim the 3D image, positive watch. 4.Please stop watching when feel headache or fatigue, dizziness. 5.Do not watch long when hardship, fatigue or illness. ● Children watch in the guardian care. Please confirm when watching 3D 1.Please watch 3D image in effective audition angle and distance.
-
Page 12: List Of Items
ist of items Please unpack the box carefully, and check below items. If there is lack one or some of the them, please contact the distributor. -/-- a c t i v e TF card AV CABLE Projector Remote (optional) (optional) Adaptor Power Cable... -
Page 13: Projector Exterior View
2 Projector Exterior View Touch Panel(optional) Focus Lens Infrared receiver window Outlet Speaker Headphone/ Coaxial audio output HDMI Power ON/OFF Charging indicator TF card (optional) Support tripod Power Inlet Lifting screw... -
Page 14: Remote Instructions
Body touch keys instructions UP/Prev Right/V+(long press)/FF Return Input channel switching OK/Menu(long press) Left/V-(long press)/FB Down/Next 3 Remote control instructions Mute Power ON/OFF Movie Broadcast Audio broadcast Photo Broadcast Input channel switching Mode Selection 4:3/16:9 Exit OSD Menu Right Left Down Play/Pause Stop... -
Page 15: Projection Distance And Size
4 Projection size and distance table(just for reference) Turn the focal wheel to adjust the focal length to obtain a more clear picture. Distance(unit:m) Size(unit:inch) Series number with H Remark: The suggested projection is between 16:9 16:10 16:10 40 inches and 100 inches. 0.63-0.66 0.53-0.55 0.57-0.61... -
Page 16: Multimedia Function
This projector support the following signals, and output to display images: Multimedia------- built-in multimedia function; TV ----- connect to TV to receive analog signal(optional); AV ----- connect to external AV equipment; HDMI ---- connect to external HDMI device; VGA ----- connect to PC VGA port directly. 5.1Multimedia Operating the projector into multimedia system Connecting U-disk or TF card, insert U-disk or TF card into the marked direction of the... -
Page 17: Connecting To Video Device
5.2Connecting to video device Connect one end of the AV cable to the projector, the other end to the AV equipment corresponding hole. press on the panel or Source on the remote to change AV channel. The complete connection should be like shown below. DVD player/SAT Composite AV cable yellow... -
Page 18: Connecting To Audio Device
5.3 Connecting to Audio device Plug one end of the coaxial audio cable into the projector, the other end to the audio device that support AC-3/DTS decoding, you can enjoy 5.1 multi-channel surround sound, or plug in the stereo headphones to appreciate 2.0 stereo. The complete connection should be like shown below. -
Page 19: Connecting To Hdmi Device
5.3 Connecting to HDMI device Connect one end of the HDMI cable to the projector, the other end to the HDMI device. Press on the panel or Source on the remote to change to HDMI channel. The complete connection should be like shown below. DVD player HDMI Game console... -
Page 20: Connecting To Pc
5.4 Connecting to PC Connect one end of the VGA cable to the projector, the other end to the pc or laptop. Press on the panel or Source on the remote to change to VGA channel. The complete connection should be like shown below. Note: If the projector can not display the VGA when boot and select the VGA channel, please follow the following steps to check and set the computer. -
Page 21: Osd Menu
6 OSD menu operations 6.1 Set OSD menu Press【MENU】on the remote or long press 【 】on the panel, appear corresponding menu interface, press【 】【 】to select different adjustments, appear corresponding icon and options press 【 】【 】to enter the menu adjustments, press【OK】or【 】to confirm, now enter the option to adjust, press 【... - Page 22 *Keystone“-40~+40” *Projection“Front/Front Ceiling/Rear/Rear Ceiling”. 6.3.2 Select "Sound" Sub-menu Please refer to 6.1, settings include: Sound Mode Standard *Sound Mode“Standard/Treble/Bass”； SOUND *Balance “-50~+50”； *Auto Volume“On/Off”； *Surround Sound“Off/Surround” 图像模式 标准 *FM XT“On/Off”. (Please set to local none-use frequency) Balance Auto Volume 6.3.3 Select "Option" Sub-menu Surround Sound FM XT Please refer to 6.1, settings include:...
- Page 23 6.3.4 HDMI Menu Setting Please refer to 6.1, settings include: *Brightness “0~100” System Settings *Contrast “0~100” Brightness *"Brightness Mode" "Standard/Energy1/Energy2” Contrast Brightness Mode Standard *Projection “Front/Front Ceiling/Rear/Rear Ceiling” Projection Front *"Keystone” “-40~+40” Keystone *L/R Swap “left-right/right-left” L/R Swap Note: The language of the HDMI menu should select in other channel. The language of the HDMI menu only support Chinese/English.
-
Page 24: Multimedia Menu
6.4 Multimedia Menu The projector can play these media files(video/photo/music/text), and the support format includes: Video Format:(support video play with subtitle file. support file suffix:srt,idx,ssa,ass,smi,txt,ttx,sub.) Suffix Name Internal Code Max Resolution Max Baud Rate Video Format: MPEG1 DAT/MPG/MPEG 1920×1080/30P 20Mbps MPEG2 MPEG 1920×1080/30P... - Page 25 Please refer to 6.2 operations to enter multimedia interface, display as follows: PHOTO MUSIC MOVIE TEXT Insert the U-disk or TF card to the corresponding interface. Press 【 】or【 】to select the file type, when selected, the icon will become bigger, press 【Ok】to confirm, display as follows: Return...
- Page 26 Press 【 】or【 】to select the file need to play, press 【Ok】to confirm; or select the Return Icon, press 【Ok】to back to previous interface, display as follows when open the U-disk or TF card: Press the direcion key to move, select to file need to open, press 【Ok】to confirm,, press 【 】to play, press 【...
- Page 27 Multimedia shorcut menu: Pause Fast Back Fast Forward Pause Previous Next Stop Next. Prev. Stop Playlist Repeat Set A Repeat List Set A Slow Forward Step Forward Information Info Step FW Slow FW Zoom out Timing Zoom in Timing Zoom In ZoomOut Aspect Ratio Move...
- Page 28 7 PPT/PDF File Play Before playing PDF/PPT files, you need to convert the file to MPTG file to play. System requirements CPU: Intel Pentium processor M1.5G or higher Memory：above 256M OS： Windows XP Sp2、Windows Vista、Win7 Office： Offce2003.Offce2007 PDF Reader: Adobe Reader8、9、9.1 7.1 Install the convert program 1 insert the Tfcard to the computer, find the installer.
-
Page 29: Ppt/Pdf Document Play
3.Select the target location. * Input file: the full path to the selected PPT/PDF file. * Output driver: the target disk storage path. * Output file name: convert name the full path to the file. The convert file is same name as the source file and store in the same path. -
Page 30: Function
8 3D Function 8.1 Watching 3D Image Requirements Best viewing angle: Up/Down/Left/Right 9° Best viewing distance: 3-5m Suggest Projection Size: 60 inches * Usually, only to watch 3D video in a dark room. * Set the brightness mode to standard when watching 3D video. Notice 1.The pairing of the DLP-LINK glasses is impacted by the intensity of the reflected light of screen. - Page 31 8.2 Watching 3D Movie 1. Copy 3D movie to flash memory or TF card; 2. Press “Source” to select USB or TF flash; 3. Select “Movie” to play the 3D movie; 4. Press F1 or entering the system menu to select 3D mode, there are 5 mode: *By pass: Suitable for not need to watch 3D movie;...
- Page 32 8.2 Use DLP-LINK (DLP-Ready) type glasses 1 Press the button on the glasses when watching 3D images. 2 The glasses will flick after press the button, and synchronize with 3D images. (The flashing is a unique operation of DLP-LINK type glasses. This may be different due to the different types of glasses.
-
Page 33: Trouble Shooting
9 Trouble Shootings If you encounter any problem during using the projector, please refer to the below methods to solve the problem, if you still can not solve the problem, please contact the distributor. .1 Projector can not be powered on, no image 1 check the power connection, the power work normal or not Connect one end of the power cable to the projector, the other end to the socket. - Page 34 2 Projector does not aim the screen Adjust the angle and direction, or height if necessary. 3 Lens is dirty Clean the lens. 4 Light is strong Pull down the curtain or power off some bulbs to lower the light. 9.3 No image 1 Video sources does not power on or connect wrong Power on the video sources and inspect the connection.
-
Page 35: Technical Specification
10 Technical Specifications CS-LED projector Name Resolution 1280×800 Display Technology Lamp R,G,B LED DLP-LINK 3D Ready Color gamut ≥110％ Power 100V-240V 0.8A Power consumption Dimension(L×W×H) 180×110×28mm Weight 520g/450g(No battery) VGA input standard VGA input port AV input 3.5mm AV input port HDMI input standard HDMI input port Support storage device file system...
