(3) Scanner function specification
Type Flat bed color scanner
Scan system Document table/document feed unit
Light source White CCFL
Resolution Basic 600 x 1200dpi
Set range: 50 ~ 9600dpi
Document Sheet/Book
Effective scan range OC/SPF: Approx.297(V) x 431(H)
Scan speed OC/SPF: 2.8mm sec/line (Color)
Input data 1bit or 12bit
Output data 1bit or 8bit
Scan color Black and white binaryGray scaleFull color
Protocol TWAIN/WIA (XP only)/STI
Interface USB1.1
USB2.0 (It can be used according to conditions.)
(Option support: High speed mode)
(Supported when E-sort is installed)
Scanner utility Sharp Desk/Button Manager
Drop-out color Provided
Scanner button Provided (6)
Duplex scan Provided
Supported OS Windows98/ME/2000/XP
Void area Lead edge/rear edge (2.5mm) on the driver side
Left/right: 3.0mm
WHQL support Yes
Memory storage JPEG-compression by hardware.
method
(4) System requrement
Computer IBM PC/AT (Include compatible machine)
Operating system Windows 95/98/Me
Windows NT 4.0 Workstation (SP5 or later)
Windows 2000 Professional
Windows XP Home/Professional Edition
Note: Hardware requirements such as CPU and RAM for your operat-
ing system must be satisfied.
(5) Print quality
Resolution 600dpi
2 Gradation print On
*
Off
*Default
Print quality is selected from
*
Normal /Draft/Photo.
2-Gradation print function is ON.
2-Gradation print function is OFF.
AR-EB7 SPECIFICATIONS

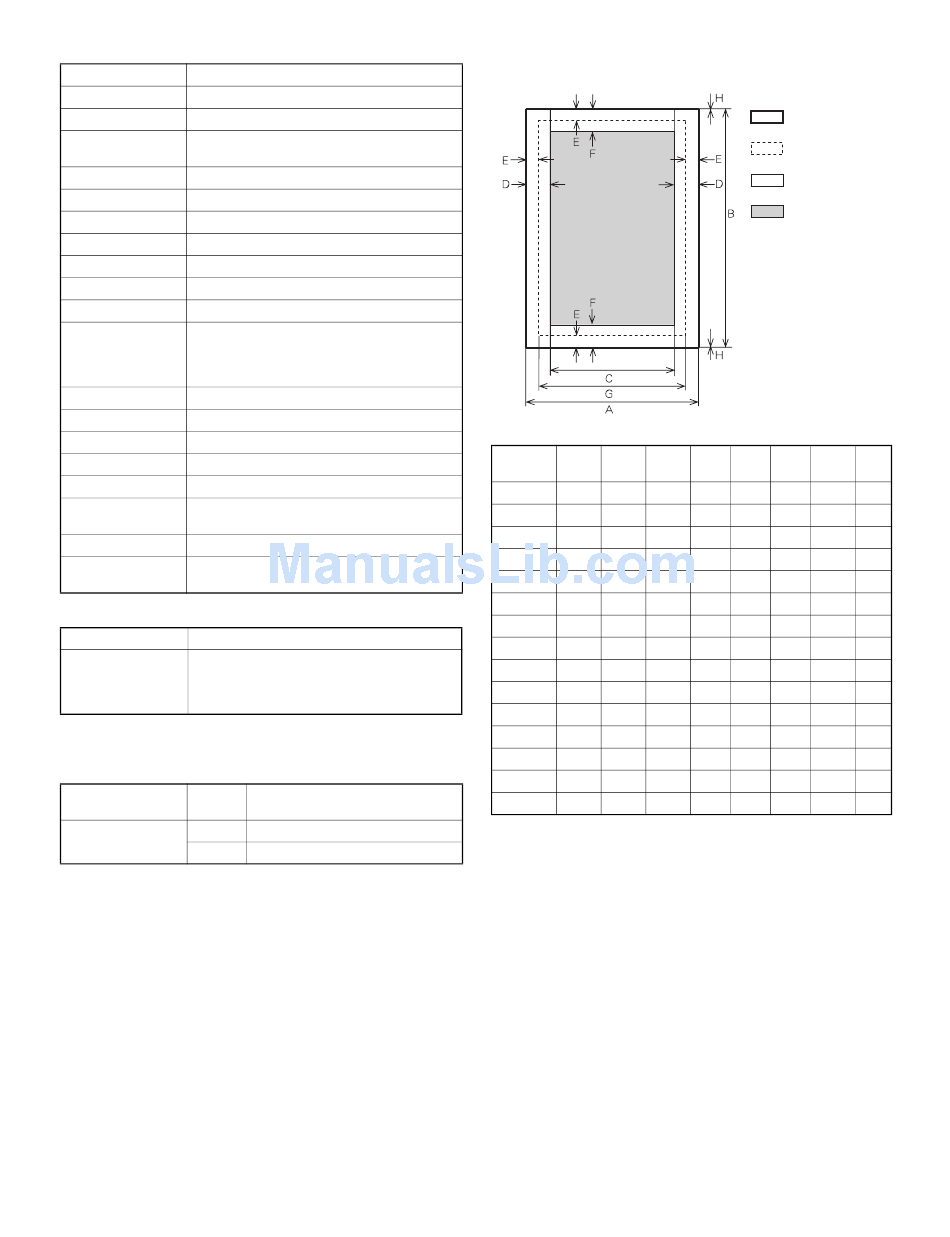

(6) Print area
Paper
A B
Size
A3 7014 9920
B4 6070 8597
A4 4960 7014
B5 4298 6070
A5 3508 4960
Ledger 6600 10200
Legal 5100 8400
Letter 5100 6600
Invoice 3300 5100
Foolscap 5100 7800
Folio 4980 7800
Executive 4350 6300
COM-10 2474 5700
C5 3826 5408
DL 2598 5196
– 2 –
Actual page size
Print area
Logic paper size
HP/GL
picture frame
C D E F G
6730 142 100 300 6814
5786 142 100 300 5870
4676 142 100 300 4760
5770 142 100 300 4098
3224 142 100 300 3308
6300 150 100 300 6400
4800 150 100 300 4900
4800 150 100 300 4900
3000 150 100 300 3100
4800 150 100 300 4900
4680 150 100 300 4780
4050 150 100 300 4150
2174 150 100 300 2274
3542 142 100 300 3626
2314 142 100 300 2398
H
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
