Typical wiring of the Digital Output

The T1100 opens and closes a triac contact to allow an external source to power
the load.
DO+
DO-

Typical Wiring of the Analog Output

The T1100 provides the control signal to the load, which is powered externally or
from the same power source as the T1100.
AO
COM
5
6
7
External Load
8
9
10

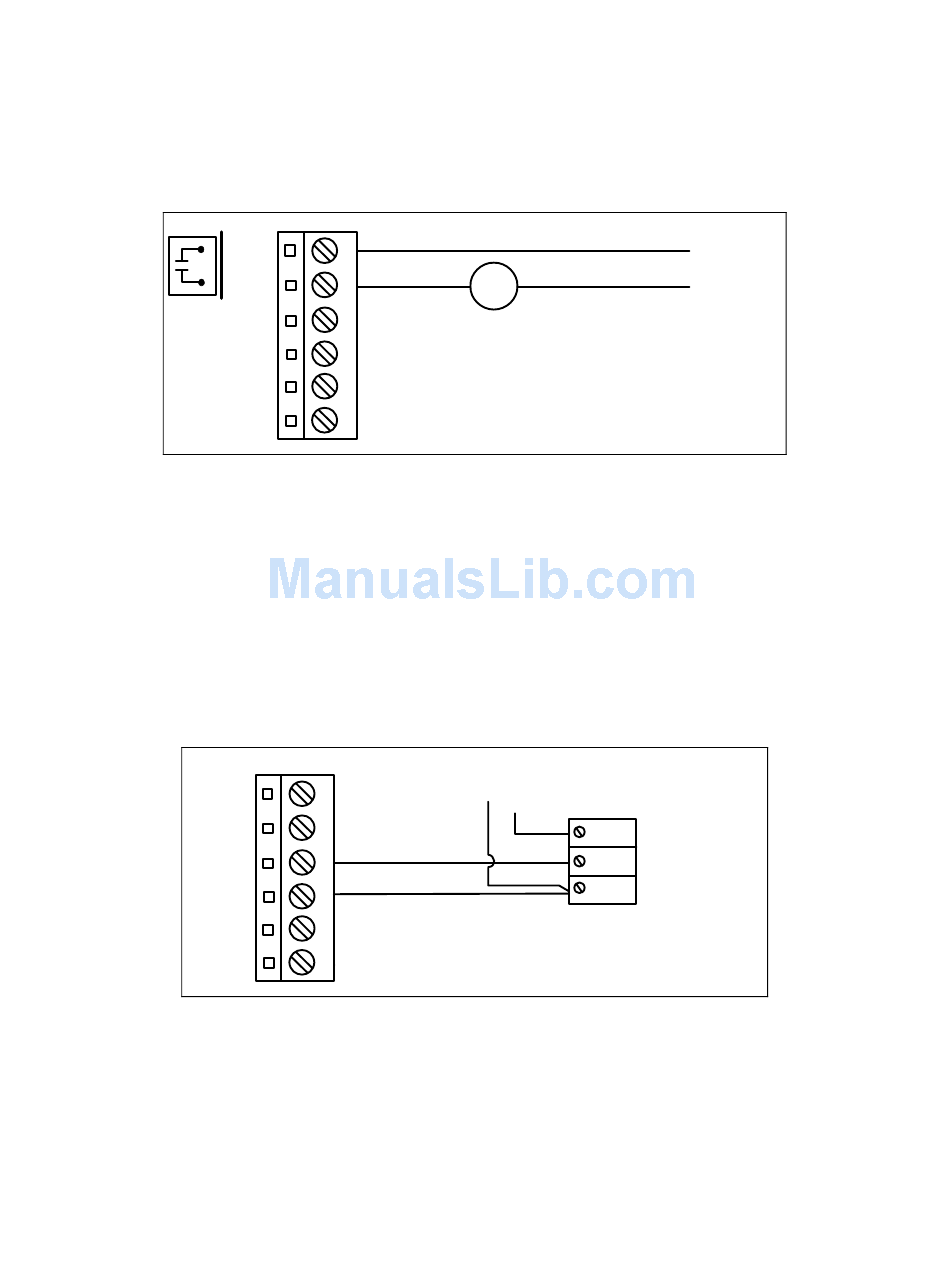

Figure 8: Typical wiring of digital output
N
5
6
7
8
9
10
Figure 9: Typical wiring of analog output
R
External
24 V
source
24 V
Controlled
0-10v
Com
External
24 VAC
N
Load
