Prolon T1000 User Manual

Introduction

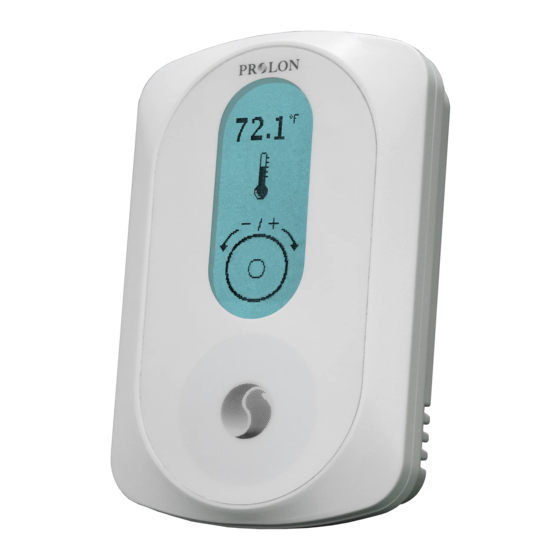

The T1000 digital thermostats are designed for operation in conjunction with
the ProLon VC1000 VAV zone controllers, to which they provide zone
temperature, setpoint and occupancy status override information. They also
provide an access point from which to visualize and configure any parameter on
the connected VC1000 through an on-screen menu system. The T1000 features
a circular capacitive touch pad, graphic LCD screen with backlighting and an
auxiliary analog input suitable for temperature averaging.

Installation

1. Open casing to remove back cover by
pushing on the tab located underneath the
thermostat. (Figure 1)
2. Pull wire(s) through central hole of back
cover.
3. Screw in the back cover to the wall.
4. Connect wires:
o If using twisted pair wires:
Pull out the screw terminal
blocks.
Remove 1 cm insulation from the
end of each wire.
Connect the wires to the terminal
blocks and re-connect the
terminal blocks. (Figure 2)
Reinstall terminal blocks.
o If using CAT5 cable:
Plug the cable into the RJ45 jack
5. Reconnect top cover
Important: Do not install the thermostat under the following conditions:
x Any location exposed to direct sunlight
x On an outside wall
x Near an air discharge grill
x In a location where vertical air circulation is restricted
x Near a dimmer switch
T1000
User Guide

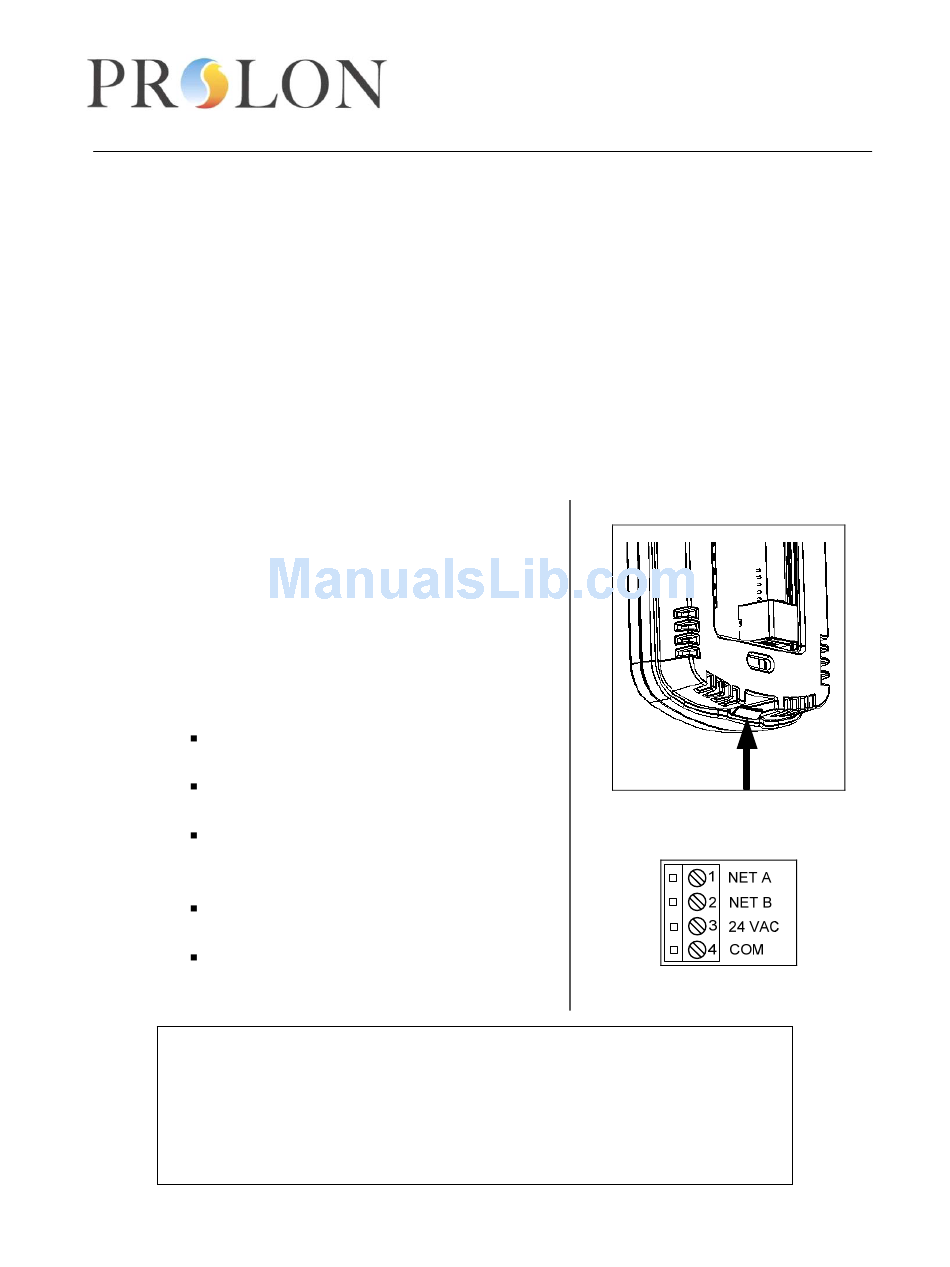

Figure 1
Figure 2
1
