Power source

The T1100 is powered by a 24 VAC
power source connected using the
"COM" pin and the "24 AC" pin (see
Figure 3). The common for the
power source is shared by the
auxiliary analog input and the analog
output.

Network Setup

The T1100 can work autonomously
or networked. When networked, it
will communicate in real-time with
other ProLon controllers. The T1100
uses the Modbus RTU protocol over
RS485. A unique network address
must be assigned to each device on
the network. For the T1100, this can
be done through the menu system.
The network connections are made
using the "NETA" (+) and "NETB" (-)
pins ( Figure 4). Bias and terminating
resistors can be
deactivated using jumpers on the
back of the PCB (see Figure 5). Bias
and terminating resistors are used to
improve signal quality in an RS485
network. For more
regarding application
resistors or shielding,
ProLon Network Guide.
activated or
information
of network
see the
1
2
3 24Vac
24 VAC
4
COM

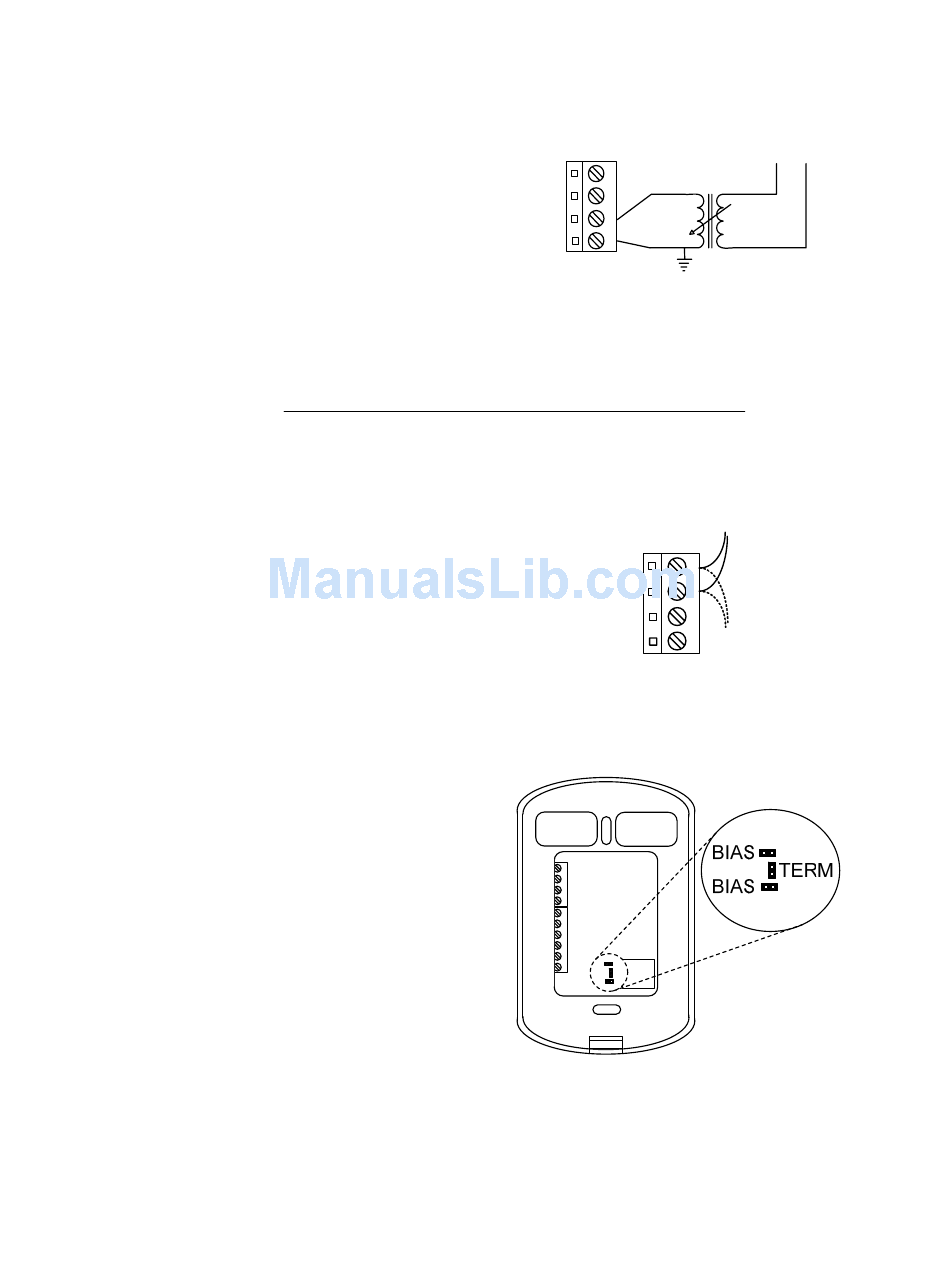

Figure 3: Power Source
1
NET A (+)
2
NET B (-)
3
4
Figure 4: Network Connection
Figure 5: Network Resistor Jumpers
L N
120Vac
RS485
Daisy
Chain
2
