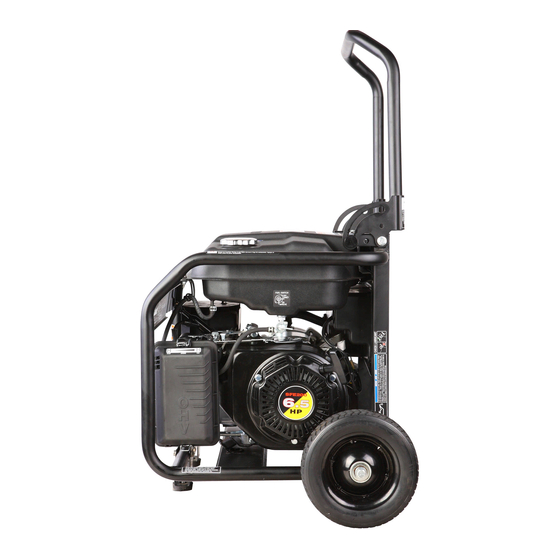

OWNER'S MANUAL
PORTABLE GENERATOR
Premium series:
ECO4000, ECO4000RE
ECO7000, ECO7000RE
ECO8000, ECO9000E, ECO9000RE
Read all safety precautions and instructions carefully
IMPORTANT:
before operating equipment.
Ensure engine is stopped and level before performing
any maintenance or service.
Record product information to reference when ordering parts or
obtaining warranty coverage.
Specification
Serial Number
Purchase Date
®
www.firmangenerators.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECO4000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Firman ECO4000

Summary of Contents for Firman ECO4000

  • Page 1 ® OWNER’S MANUAL PORTABLE GENERATOR Premium series: ECO4000, ECO4000RE ECO7000, ECO7000RE ECO8000, ECO9000E, ECO9000RE Read all safety precautions and instructions carefully IMPORTANT: before operating equipment. Ensure engine is stopped and level before performing any maintenance or service. Record product information to reference when ordering parts or obtaining warranty coverage.
  • Page 2 Thank you for purchasing a FIRMAN generator. This manual covers operation and maintenance of the FIRMAN generators. All information in this publication is based on the latest production information available at the time of approval for printing. Pay special attention to statements preceded by the following words:...

  • Page 3: Safe Operation Checklist

    Safe Operation Checklist Safe operation of the portable generator requires the completion of the following tasks: Carbon Monoxide (CO) Alarm Carbon monoxide (CO) alarm(s) in working order. Smoke Alarm Smoke alarm (s) in working order. Generator Location Generator placed in a Carbon Monoxide (CO) safe zone. See Generator Location to reduce the Risk of Carbon Monoxide Poisoning.

  • Page 4: Table Of Contents

    Table of Contents 1. SAFETY PRECAUTIONS .................04 2. SPECIFICATIONS..................08 3. COMPONENTS....................11 4. PRE-OPERATION CHECKS................12 5. OPERATING PROCEDURES................16 6. SERVICING THE GENERATOR...............20 7. “HOW-TO” MAINTENANCE................21 8. PREPARATION FOR STORAGE...............24 9. TROUBLE SHOOTING...................25 10. WARRANTY....................26 Page 03...

  • Page 5: Safety Precautions

    1. SAFETY PRECAUTIONS WARNING POISONOUS GAS HAZARD. Engine exhaust contains carbon monoxide, a poisonous gas that could kill you in minutes. You CANNOT smell it, see it, or taste it. Even if you do not smell exhaust fumes, you could still be exposed to carbon monoxide gas.
  • Page 6 WARNING Starter cord kickback (rapid retraction) will pull hand and arm toward engine faster than you can let go which could cause broken bones, fractures, bruises, or sprains resulting in serious injury. • When starting engine, pull cord slowly until resistance is felt and then pull rapidly to avoid kickback.
  • Page 7 WARNING • This generator does not meet U. S. Coast Guard Regulation 33CFR-183 and should not be used on marine applications. • Failure to use the appropriate U. S. Coast Guard approved generator could result in death or serious injury. WARNING Generator voltage could cause electrical shock or burn resulting in death or serious injury.
  • Page 8 WARNING Unintentional sparking could cause fire or electric shock resulting in death or serious injury. WHEN ADJUSTING OR MAKING REPAIRS TO YOUR GENERATOR • Disconnect the spark plug wire from the spark plug and place the wire where it cannot contact spark plug.

  • Page 9: Specifications

    2 . SPECIFICATIONS Model ECO 4000 ECO 4000RE Starting Watts 4000Watts@60Hz Running Watts 3500Watts@60Hz Rated AC Voltage 120V Single Phase Phase Voltage regulator Power Factor Alternator Type Brush Engine Model ST168FD-2-A7 ST168FDE-2-A7 Engine Type Single Cylinder, 4-Stroke OHV Air Cooled Displacement 193cc Maximum o...
  • Page 10 Model ECO 7000 ECO 7000RE Starting Watts 7000Watts@60Hz Running Watts 5500Watts@60Hz Rated AC Voltage 120/240V Single Phase Phase Voltage regulator Power Factor Alternator Type Brush Engine Model ST188FD-A6 ST188FDE-A6 Engine Type Single Cylinder, 4-Stroke OHV Air Cooled Displacement 389cc Maximum o utput 13HP Breakless Ignition Type, Flywheel Magneto...
  • Page 11 ECO 8000 Model ECO 9000E ECO 9000RE Starting Watts 8000Watts@60Hz 9000Watts@60Hz Running Watts 6000Watts@60Hz 7000Watts@60Hz Rated AC Voltage 120/240V Single Phase Phase Voltage regulator Power Factor Alternator Type Brush Engine Model ST188FDE-A6 ST188FD-A6 Engine Type Single Cylinder, 4-Stroke OHV Air Cooled Displacement 439cc Maximum o...

  • Page 12: Components

    3. COMPONENTS 1. SOCKET 2. CIRCUIT BREAKER 3. FUEL GAUGE 4. FUEL TANK CAP 5. ENGINE SWITCH 6. FUEL VALVE 7. CHOKE LEVER 8. RECOIL STARTER 9. OIL DRAIN PLUG 10. OIL FILLER CAP 11. GROUND TERMINAL 12. AIR CLEANER 13.

  • Page 13: Pre-Operation Checks

    4. PRE-OPERATION CHECKS Remove the Generator from the Shipping Carton 1. Set the shipping carton on a solid,flat surface. 2. Remove everything from the carton except the generator. 3. Carefully cut each corner of the box from top to bottom. Fold each side flat on the ground to provide a surface area to install the wheel kit and support leg.
  • Page 14 (see table below) to upper level line. Do not screw in the oil filler cap when checking oil level. Change oil if contaminated. (See “HOW-TO” MAINTENANCE) Oil capacity: Model....Upper level ECO4000/ECO4000RE.....20 oz ECO7000/ECO7000RE.....38 oz ECO8000/ECO9000RE.....38 oz Single grade 10W-30 Multigrade 10W-40...
  • Page 15 Check fuel level at fuel gauge. If fuel level is low, refill with unleaded automotive gasoline. Be sure to use the fuel filter screen on the fuel filter neck. Fuel tank capacity: ECO4000/ECO4000RE.....4 Gallon ECO7000/ECO7000RE.....7 Gallon ECO8000/ECO9000RE.....7 Gallon Fuel must meet these requirements: EMPTY FULL •...
  • Page 16 CHECKING GENERATOR SURROUNDINGS Move the generator to the desired location. The generator is very easy to move, take the handle up and then use your leg to make a fulcrum, it does not require great strength to make the generator tilt. Two wheels help you to move the generator very easily.

  • Page 17: Operating Procedures

    5. OPERATING PROCEDURES STARTING THE ENGINE (a) Make sure the AC circuit breaker is in the OFF position. The generator may be difficult to start if a load is connected. (b) Open the fuel switch. (c)Set the choke lever to the "START” (arrow mark)position.
  • Page 18 (a) Check the digital display for proper voltage. This generator is thoroughly tested and adjusted in the factory. If the generator does not produce the specified voltage, consult your nearest FIRMAN Generator dealer. (b) Turn off the switch(es) of the electrical appliance(s) before connecting to the generator.

  • Page 19: Operation At High Altitude

    Other high altitude issues can include hard starting, increased fuel consumption and spark plug fouling. To alleviate high altitude issues other than the natural power loss, FIRMAN can provide a high altitude carburetor main jet.The alternative main jet and installation instructions can be obtained by contacting Customer Support.
  • Page 20 STOPPING THE GENERATOR (a) Turn off the power switch of the electric equipment or unplug the cord from receptacle of the generator. (b) Allow the engine about 3 minutes to cool down at no-load before stopping. (c) Set the engine switch to "OFF" position. (d) Close (stop) the fuel lever.

  • Page 21: Servicing The Generator

    6. SERVICING THE GENERATOR MAINTENANCE SCHEDULE ● Check the air cleaner ● Check oil level and refill to the upper level before Daily starting the engine. ● Check all the points indicated in "PRE-OPERATION CHECKS". ● Clean and wash air-cleaner element. More often if used in dirty or dusty environments.

  • Page 22: How-To" Maintenance

    7. "HOW-TO" MAINTENANCE ENGINE OIL CHANGE Change engine oil every 50 hours. (for a new engine, change oil after 5 hours.) (a) Drain oil by removing the drain plug and the oil filler cap while the engine is warm. NOTE: Please use a container to dump the used oil for protecting the environment.
  • Page 23 CLEANING AND ADJUSTING THE SPARK PLUG (a) If the plug is contaminated with carbon, using a plug cleaner and wire brush. (b) Adjust the electrode gap to 0.7 to 0.8 mm (0.028” to 0.031”). SPARK PLUG: NGK BPR6HS equivalent. CLEANING FUEL STRAINER Dirt and water in the fuel are removed by the fuel strainer.
  • Page 24 Inspect Muffler and Spark Arrester Inspect the muffler for cracks, corrosion, or other damage. Remove the spark arrester, if equipped, and inspect for damage or carbon blockage. If replacement parts are required, make sure to use only original equipment replacement parts. WARNING Exhaust heat/gases could ignite combustibles, structures or damage fuel tank causing a fire, resulting in death or serious injury.

  • Page 25: Preparation For Storage

    8. STORAGE The following procedures should be followed prior to storage of your generator for periods of 3 months or longer. Drain fuel from fuel tank carefully. Gasoline left in the fuel tank will eventually deteriorate making engine-starting difficult. Loosen the drain screw on the bottom of the carburetor float chamber, and drain the fuel completely.

  • Page 26: Trouble Shooting

    9. TROUBLE SHOOTING Problem Cause Correction 1. Circuit breaker is open. 1. Reset circuit breaker. 2. Fault in generator. 2. Contact authorized service facility. Engine is running, but no 3. Poor connection or defective cord 3. Check and repair. AC output is available. set.

  • Page 27: Warranty

    Contact FIRMAN Service Center and FIRMAN will troubleshoot any issue via phone or e-mail. If the problem is not corrected by this method, FIRMAN will, at its option, authorize evaluation, repair or replacement of the defective part or component at a FIRMAN Service Center.

  • Page 28: Limits Of Implied Warranty And Consequential Damage

    Limits of Implied Warranty and Consequential Damage FIRMAN disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental or consequential claim by anyone from using this product. THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
  • Page 29 WWW.FIRMANGENERATORS.COM Toll Free:1-844-347-6261 P/N:335735000 Rev 00...
