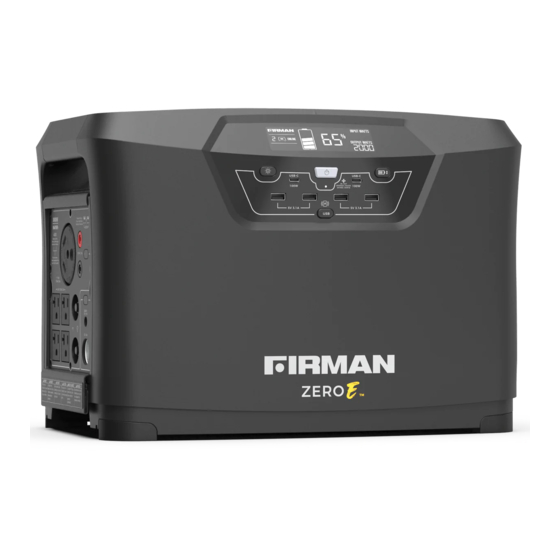

- Page 1 OPERATOR’S MANUAL ZERO E PORTABLE POWER STATION MODEL NUMBER E201001 Rev Level:00 Record Portable Power Station information to reference when ordering parts or obtaining warranty coverage. P/N:705747001 Rev:00...
- Page 2 Portable Power Station. NOTE: The FIRMAN ZERO E E201001 Portable Power Station has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 3: Table Of Contents
Register your FIRMAN Portable Power Station online at www.firmanpowerequipment.com INTRODUCTION Thank you for purchasing a FIRMAN Portable Power Station. You have selected a high-quality, precision engineered Portable Power Station designed and tested to give you years of satisfactory service. This manual contains safety information to make you aware of the hazards and risks associated with Portable Power Station products and how to avoid them. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS SIGNAL WORDS DANGER WARNING CAUTION NOTICE Indicates a hazard Indicates a hazard Indicates information Indicates a hazard which, if not avoided, which, if not avoided, considered Important, which, if not avoided, will result in death or could result in minor or but not hazard-related. - Page 5 Keep out of reach of children. d) Do not put fingers or hands into the Portable Power Station. e) Use of an attachment not recommended or sold by FIRMAN could result in fire, electric shock, or injury. f) To reduce risk of damage to the electric plug and cord, pull the plug rather than the cord when disconnecting the Portable Power Station.
- Page 6 IMPORTANT SAFETY INSTRUCTIONS GROUNDING INSTRUCTIONS If the Portable Power Station should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This Portable Power Station is equipped with a cord having an equipment grounding conductor and a grounding plug. The plug must be connected to an outlet that is properly installed and grounded in accordance with all local codes and regulations.
-
Page 7: What's In The Box
WHAT’S IN THE BOX What’s In the Box AC Charging Cable (5-15P to 5-15R) ZERO E Car Charging Cable (Cigarette Lighter to EC5) Operator’s Manual Solar Charging Cable (MC4 to EC5) Operator’s Manual Accessory Bag Quick Start Guide English Customer Service: 1-844-FIRMAN1... -
Page 8: Features
FEATURES English Customer Service: 1-844-FIRMAN1... - Page 9 4. Power ON/OFF Button Press the power button to turn FIRMAN ZERO E on. When FIRMAN ZERO E is turned on, the LCD Display Screen will light up. Press and hold the power button 3 seconds to turn FIRMAN ZERO E off.
- Page 10 Press the AC button again to turn off the AC output. 19. Parallel Operation Outlets These outlets are used for connecting two FIRMAN ZERO E Portable Power Stations for parallel operation. Any two FIRMAN Portable Power Stations can be paralleled to increase the total available electrical power to 4000 Watts.
- Page 11 (SoC%) will automatically change to show the average SoC% for the total expanded system. B. Parallel Mode Indicator Displays the parallel-connection status using two FIRMAN ZERO E Portable Power Stations. C. Uninterruptible Power Supply (UPS) When the Portable Power Station is connected to both the AC input and AC output ports, the Portable Power Station enters bypass mode, and the UPS function will be automatically activated.
- Page 12 FEATURES NOTICE 1. When the Portable Power Station is turned on for the first time, all icons on the LCD screen will be illuminated for 3s. After the first boot, if there is no output and no error detected, the LCD enters standby mode.
-
Page 13: Operation
Ensure that all devices in the same network and the Portable Power Station are integrated into the existing surge protection. AC Charging Cable Wall Outlet ZERO E English Customer Service: 1-844-FIRMAN1... - Page 14 AC Charging Cable Generator ZERO E 2000 NOTICE If the AC Outlet is overloaded or a short circuit occurs, the Portable Power Station circuit breaker may trip. When the source of overload or short circuit is cleared, press the circuit breaker to reset.
- Page 15 4. Turn on the solar panel output to start the charging process. Solar Charging Cable (EC5-MC4 Cable) ZERO E Solar Panel with MC4 Connector NOTICE Considering the radiation variability from the sun, the overall rated output of the solar panels needs to be more than 400W to achieve its best efficiency. When using solar panels to charge the Portable Power Station follow all solar panel manufacturers instructions.
- Page 16 2. Connect the cigarette lighter male connector of the EC5 - Cigarette Lighter Cable to the cigarette lighter socket of the car. 3. Ensure car cigarette lighter receptacle is on to start the charging process. Car Charging Cable (EC5-Cigarete Lighter Cable) ZERO E Automobile English Customer Service: 1-844-FIRMAN1...
- Page 17 OPERATION Connecting AC Electrical Loads This Portable Power Station has been pretested and adjusted to handle its full capacity. WARNING! Portable Power Station voltage could cause electrical shock or burn resulting in death or serious injury. Do not operate Portable Power Station in the rain or wet weather. Damaged or overloaded extension cords could overheat, arc, and burn resulting death or serious injury.
- Page 18 OPERATION 12V DC and USB Output 1. Press the Power Button to turn ON the Portable Power Station. 2. Connect the power cable of the device to a DC/USB outlet. 3. Press the USB Button to turn on. The button indicator will illuminate. 4.
- Page 19 OPERATION Parallel Operation Two ZERO E Power Stations can be connected to double its power (up to 4000W). 1. Connect the two parallel cables (one red, one black sold separately) to the corresponding parallel ports of two Portable Power Stations (red cable to red terminal, and black cable to black terminal).
- Page 20 ( 5 - 1 0 c m NOTICE The ZERO E Portable Power Station ON/OFF button will turn ON and OFF all connected Power Packs. Unstacking Make sure all Portable Power Stations and Power Packs are powered off before unstacking.
- Page 21 0ms switching. NOTICE Do not connect to products that require 0ms switching, such as workstations or data servers. Always test and confirm compatibility before using Portable Power Station. FIRMAN is not responsible for any loss caused by failure to follow instructions.
- Page 22 STORAGE AND MAINTENANCE STORAGE AND MAINTENANCE This Portable Power Station contains lithium-ion batteries. Lithium-Ion rechargeable batteries require routine maintenance and care in their use and handling. Read and follow the guidelines in this document to safely use Lithium-Ion batteries and achieve the maximum battery life span.
-
Page 23: Troubleshooting- Specifications
Under-voltage protection of the system all outputs. Overload protection of the system Over- Check whether the output power temperature protection of DC module exceeds the maximum allowable value. For all other issues, contact authorized dealer or Firman customer service. English Customer Service: 1-844-FIRMAN1... - Page 24 TROUBLESHOOTING – SPECIFICATIONS SPECIFICATIONS Model E201001 Net Weight 41.8lbs (19kg) Dimensions 16x10.6x11.2 in (408x269x284 mm) Capacity 1040Wh, 41.6V/25000mAh Input AC Charge Port 90V-140V~50Hz/60Hz (15A Max) EC5 DC Input 11V-50V⎓10A Max (Solar and Car Charging) USB-C (Bidirectional x 1) 5V⎓3A/9V⎓3A/12V⎓3A/15V⎓3A/20V⎓4.95A 99W Output AC Outlet (5-20R) x 4 2000W/4000W Surge total, 120V/60Hz,...
-
Page 25: Service - Warranty
FIRMAN 2 Years Limited Warranty Warranty Qualifications FIRMAN will register the warranty upon receipt of your Warranty Registration Card and a copy of your sales receipt from one of FIRMAN’s retail locations as proof of purchase. Please submit your warranty registration and your proof of purchase within ten(10) days of the date of purchase. You can also register your Portable Power Station online at www.firmanpowerequipment.com. - Page 26 – problems caused by parts that are not original FIRMAN parts Limits of Implied Warranty and Consequential Damage FIRMAN disclaims any obligation to cover any loss of time, use of this Portable Power Station, freight, or any incidental or consequential claim by anyone from using this Portable Power Station.
- Page 27 FIRMAN POWER EQUIPMENT INC. 8644 W. LUDLOW DR. PEORIA, AZ 85381 All rights reserved. Any reprinting or unauthorized use 1-844-347-6261 without the written permission is expressly prohibited. WWW.FIRMANPOWEREQUIPMENT.COM P/N:705747001 Rev:00...
