SPLIT-TYPE, HEAT PUMP AIR CONDITIONERS
TECHNICAL & SERVICE MANUAL
R22

Outdoor unit

[Model names]

PUMY-71VM
PUMY-125VM
PUMY-125YM
PUMY-125VMA
PUMY-125YMA
Model name
OUTDOOR UNIT
indication
[Service Ref.]
PUMY-71VM
PUMY-71VM
PUMY-71VM
PUMY-125VM
PUMY-125VM
PUMY-125VM
PUMY-125YM
PUMY-125YM
PUMY-125VMA
PUMY-125VMA
PUMY-125YMA
CONTENTS
1. TECHNICAL CHANGE ·····································2
2. OVERVIEW OF UNITS······································3
3. SPECIFICATIONS ·············································6
4. DATA ·······························································13
5. OUTLINES AND DIMENSIONS ······················35
6. WIRING DIAGRAM ·········································37
8. TROUBLESHOOTING ····································58
9. ELECTRICAL WIRING··································103
10. REFRIGERANT PIPING TASKS···················106
11. DISASSEMBLY ··············································111
12. PARTS LIST ··················································122
REVISED EDITION-E
Revision:
• "8-5.INTERNAL SWITCH
FUNCTION TABLE" has
been modified.
• "12. PARTS LIST" has
1
been modified.
2
• Please void OC183
REVISED EDITION-D.
1
2
1
1
May 2010
No.OC183

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PUMY-71VM and is the answer not in the manual?

Questions and answers

Related Manuals for Mitsubishi PUMY-71VM

Summary of Contents for Mitsubishi PUMY-71VM

  • Page 1: Table Of Contents

    May 2010 No.OC183 REVISED EDITION-E TECHNICAL & SERVICE MANUAL Outdoor unit Revision: [Model names] [Service Ref.] • “8-5.INTERNAL SWITCH PUMY-71VM FUNCTION TABLE” has PUMY-71VM been modified. PUMY-71VM • “12. PARTS LIST” has been modified. PUMY-71VM • Please void OC183 PUMY-125VM REVISED EDITION-D.

  • Page 2: Technical Change

    "12. PARTS LIST" has been modified on page 129, 131 and 133 Page Revise point Service Ref. Incorrect Correct FUNCTIONAL PARTS No.3 PUMY-71VM/VM R01 E29 202 R01 E31 202 THERMISTOR (OUTDOOR TEMPERATURE DETECTION) FUNCTIONAL PARTS No.19 PUMY-71VM/VM R01 E31 202...

  • Page 3: Overview Of Units

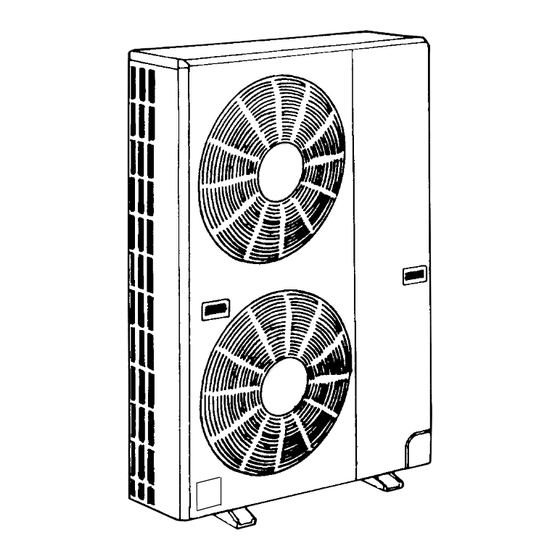

    OVERVIEW OF UNITS 2-1. UNIT CONSTRUCTION PUMY-71VM PUMY-125VM PUMY-125YM Outdoor unit Type 20~Type 125 Capacity Indoor unit that can be 2~4units 2~5units Number of units connected 50~130% of outdoor unit capacity Total systemwide capacity PUMY-125VM PUMY-125YM PUMY-71VM PUMY-125VM PUMY-125YM PUMY-71VM...

  • Page 4: Unit Specifications

    2-2. UNIT SPECIFICATIONS (1) Outdoor Unit PUMY-125VM PUMY-125VM PUMY-71VM PUMY-125YM PUMY-125VM PUMY-71VM Service Ref. PUMY-125VMA PUMY-71VM PUMY-125YM PUMY-125VMA PUMY-125YMA Cooling (kW) 14.5 14.0 Capacity Heating (kW) 16.3 16.0 Motor for compressor (kW) Cooling / Heating capacity indicates the maximum value at operation under the following condition.

  • Page 5: System Layout

    Note: When the total capacity of indoor units exceeds the capacity of the outdoor unit (more than 100%), the rated power of each indoor unit will be less when they are running simultaneously. PUMY-125VM Outdoor unit PUMY-125VM PUMY-125YM PUMY-71VM PUMY-125YM PUMY-71VM PUMY-125VM Indoor unit PUMY-125VMA...

  • Page 6: Specifications

    SPECIFICATIONS Service Ref Unit PUMY-71VM PUMY-125VM Item Rated Cooling capacity kcal/h 7,100 12,500 Rated power consumption 3.50 6.57 Operating current 17.5-16.7-16.0 34.9-33.5-32.2 Operating power factor Starting current 15.0 22.0 Rated Heating capacity 8,000 14,000 kcal/h Rated power consumption 3.65 6.10 Operating current 18.2-17.4-16.7...
  • Page 7 Service Ref Unit PUMY-71VM PUMY-125VM Item Rated Cooling capacity 7,100 12,500 kcal/h Rated power consumption 3.50 / 3.63 6.57 / 6.43 Operating current 17.5-16.7-16.0 / 18.1 34.9-33.5-32.2 / 33.6 Operating power factor 85 / 87 Starting current 15.0 22.0 Rated Heating capacity...
  • Page 8 Service Ref Unit PUMY-71VM PUMY-125VM Item Rated Cooling capacity 14.0 Rated power consumption 3.50 / 3.63 6.57 / 6.43 Operating current 17.5-16.7-16.0 / 18.1 34.9-33.5-32.2 / 33.6 Operating power factor 85 / 87 Starting current 15.0 22.0 Rated Heating capacity 16.0...
  • Page 9 Service Ref Unit PUMY-125YM Item Rated Cooling capacity kcal/h 12,500 Rated power consumption 5.95 Operating current 9.6-9.1-8.8 Operating power factor Starting current Rated Heating capacity 14,000 kcal/h Rated power consumption 5.58 Operating current 9.0-8.6-8.3 Operating power factor Starting current Rated power supply 3 phase 380-400-415V 50Hz External finish (Munsell colour-coded markings) Molten-galvanized steel plate (with polyester coating), ivory white <5Y 8/1>...
  • Page 10 Service Ref Unit PUMY-125YM Item Rated Cooling capacity 14.0 Rated power consumption 5.95 Operating current 9.6-9.1-8.8 / 9.6 Operating power factor Starting current Rated Heating capacity 16.0 Rated power consumption 5.58 Operating current 9.0-8.6-8.3 / 9.0 Operating power factor Starting current Rated power supply 3 phase 380-400-415V 50Hz / 380V 60Hz External finish (Munsell colour-coded markings)
  • Page 11 Service Ref PUMY-125VMA Unit Item PUMY-125VMA Rated Cooling capacity 14.0 Rated power consumption 6.10/6.04 Operating current 28.3-27.1-26.0/28.0 Operating power factor Starting current Rated Heating capacity 16.0 Rated power consumption 5.58/5.79 Operating current 27.2-26.0-24.9/26.9 Operating power factor Starting current Rated power supply Single phase 220-230-240V 50Hz / 220V 60Hz External finish (Munsell colour-coded markings) Molten-galvanized steel plate (with polyester coating), ivory white <5Y 8/1>...
  • Page 12 Service Ref Unit PUMY-125YMA Item Rated Cooling capacity 14.0 Rated power consumption 5.95 Operating current 9.6-9.1-8.8 Operating power factor Starting current Rated Heating capacity 16.0 Rated power consumption 5.58 Operating current 9.0-8.6-8.3 Operating power factor Starting current Rated power supply 3 phase 380-400-415V 50Hz External finish (Munsell colour-coded markings) Molten-galvanized steel plate (with polyester coating), ivory white <5Y 8/1>...

  • Page 13: Data

    Model 50 Model 63 Model 71 Model 80 Model 100 Model 125 Model Capacity As for PUMY-71VM , 125VM , 125YM , 125YMA, 125VMA and 125VMA , see the value here to check the stadard capaity. (2) Sample calculation 1System assembled from indoor and outdoor unit (in this example the total capacity of the indoor units is greater than that of the outdoor unit) •...
  • Page 14 4-2. STANDARD CAPACITY DIAGRAM • PUMY-71VM, PUMY-71VM STANDARD CAPACITY DIAGRAM 220V, 50Hz Capacity (kcal/h) Power consumption (kW) Current (A) Total capacity of Cooling Heating indoor units Cooling Heating Cooling Heating 12.0 4000 4500 2.02 2.41 10.1 4100 4610 2.07 2.45 10.4...
  • Page 15 • PUMY-71VM STANDARD CAPACITY DIAGRAM 220V, 60Hz Capacity (kcal/h) Power consumption (kW) Current (A) Total capacity of Cooling Heating Cooling Heating Cooling Heating indoor units 3500 3906 1.86 2.11 10.8 3600 4025 1.91 2.15 11.0 3700 4144 1.96 2.19 10.1 11.2...
  • Page 16 • PUMY-71VM STANDARD CAPACITY DIAGRAM Before calculating the sum of total capacity of indoor units, please convert the value into the kW model capacity following the table on page 13. 220V, 50Hz/60Hz 220V, 50Hz 220V, 60Hz Capacity (kW) Total capacity of...
  • Page 17 • PUMY-125VM, PUMY-125VM STANDARD CAPACITY DIAGRAM 220V, 50Hz Power consumption (kW) Current (A) Capacity (kcal/h) Total capacity of indoor units Cooling Heating Cooling Heating Cooling Heating 2.74 6300 7100 2.88 14.6 15.4 2.78 6400 7213 2.92 14.9 15.6 2.83 6500 7325 2.97 15.1...
  • Page 18 • PUMY-125VM, PUMY-125VM STANDARD CAPACITY DIAGRAM 220V, 50Hz Capacity (kcal/h) Power consumption (kW) Current (A) Total capacity of Cooling Heating Cooling Heating indoor units Cooling Heating 6.09 5.73 32.6 30.6 11900 13328 12000 13440 6.17 5.79 33.0 30.9 6.24 5.85 31.3 12100 13552...
  • Page 19 • PUMY-125VM STANDARD CAPACITY DIAGRAM 220V, 60Hz Capacity (kcal/h) Power consumption (kW) Current (A) Total capacity of Cooling Heating indoor units Cooling Heating Cooling Heating 6300 7100 2.68 2.85 14.2 15.1 6400 7213 2.72 2.89 14.4 15.3 6500 7325 2.77 2.94 14.6 15.5...
  • Page 20 • PUMY-125VM STANDARD CAPACITY DIAGRAM 220V, 60Hz Capacity (kcal/h) Power consumption (kW) Current (A) Total capacity of indoor units Cooling Heating Cooling Heating Cooling Heating 12000 13440 6.04 5.72 31.5 29.9 12100 13552 6.11 5.78 31.9 30.2 12200 13664 6.19 5.84 32.3 30.5...
  • Page 21 • PUMY-125VM STANDARD CAPACITY DIAGRAM Before calculating the sum of total capacity of indoor units, please convert the value into the kW model capacity following the table on page 13. 220V, 50Hz/60Hz 220V, 50Hz 220V, 60Hz Total capacity of Capacity (kW) Power consumption (kW) Current (A) Power consumption (kW)
  • Page 22 • PUMY-125VM STANDARD CAPACITY DIAGRAM Before calculating the sum of total capacity of indoor units, please convert the value into the kW model capacity following the table on page 13. 220V, 50Hz/60Hz 220V, 50Hz 220V, 60Hz Total capacity of Capacity (kW) Power consumption (kW) Current (A) Power consumption (kW)
  • Page 23 • PUMY-125YM STANDARD CAPACITY DIAGRAM 400V, 50Hz Power consumption (kW) Current (A) Capacity (kcal/h) Total capacity of Cooling Heating Cooling Heating Cooling Heating indoor units 6300 7100 2.48 2.64 6400 7213 2.52 2.67 6500 7325 2.56 2.72 6600 7438 2.60 2.76 2.65 6700...
  • Page 24 • PUMY-125YM STANDARD CAPACITY DIAGRAM 400V, 50Hz Capacity (kcal/h) Power consumption (kW) Current (A) Total capacity of indoor units Cooling Heating Cooling Heating Cooling Heating 5.52 5.24 11900 13328 5.59 5.29 12000 13440 5.65 5.35 12100 13552 5.73 5.40 12200 13664 5.79 5.46...
  • Page 25 • PUMY-125YM , PUMY-125YMA STANDARD CAPACITY DIAGRAM Before calculating the sum of total capacity of indoor units, please convert 415V, 50Hz the value into the kW model capacity following the table on page 13. Power consumption (kW) Current (A) Total capacity of Capacity (kW) indoor units Cooling...
  • Page 26 • PUMY-125YM , PUMY-125YMA STANDARD CAPACITY DIAGRAM Before calculating the sum of total capacity of indoor units, please convert the value into the kW model capacity following the table on page 13. 415V, 50Hz Power consumption (kW) Current (A) Capacity (kW) Total capacity of Cooling Cooling...
  • Page 27 • PUMY-125YM , PUMY-125YMA STANDARD CAPACITY DIAGRAM Before calculating the sum of total capacity of indoor units, please convert the value into the kW model capacity following the table on page 13. 380V, 50Hz/60Hz Power consumption (kW) Current (A) Capacity (kW) Total capacity of Cooling Heating...
  • Page 28 • PUMY-125YM , PUMY-125YMA STANDARD CAPACITY DIAGRAM Before calculating the sum of total capacity of indoor units, please convert the value into the kW model capacity following the table on page 13. 380V, 50Hz/60Hz Power consumption (kW) Current (A) Capacity (kW) Total capacity of Cooling Heating...
  • Page 29 • PUMY-125VMA, PUMY-125VMA STANDARD CAPACITY DIAGRAM Before calculating the sum of total capacity of indoor units, please convert the value into the kW model capacity following the table on page 13. 220V, 50Hz/60Hz 220V, 50Hz 220V, 60Hz Capacity (kW) Total capacity of Power consumption (kW) Current (A) Power consumption (kW)
  • Page 30 • PUMY-125VMA, PUMY-125VMA STANDARD CAPACITY DIAGRAM Before calculating the sum of total capacity of indoor units, please convert the value into the kW model capacity following the table on page 13. 220V, 50Hz/60Hz 220V, 50Hz 220V, 60Hz Capacity (kW) Total capacity of Power consumption (kW) Current (A) Power consumption (kW)

  • Page 31: Correcting Cooling And Heating Capacity

    4-3. CORRECTING COOLING AND HEATING CAPACITY 4-3-1. Correcting Changes in Air Conditions (1)The performance curve charts (Figure 1, 2, 3, 4) show the rated capacity (total capacity) under the stated conditions when standard length for piping (5m) is used. The rated power is derived from the capacity ratio and power ratio obtained for the indoor and outdoor intake temperatures at time 1.
  • Page 32 Figure 3. PUMY-VM Cooling performance curve Figure 4. PUMY-VM Heating performance curve PUMY-YM PUMY-YM PUMY-VMA PUMY-VMA PUMY-VMA PUMY-VMA PUMY-YMA PUMY-YMA Heating Cooling Capacity Capacity INDOOR (ratio) (ratio) <D.B. :> INDOOR <W.B. :> Heating Power Cooling consumption Power (ratio) consumption INDOOR (ratio) <D.B.
  • Page 33 (2) During heating, to find the equivalent piping length, first find the capacity ratio corresponding to standard piping length (5m) from Figure 7, and then multiply by the heating capacity from Figure 2 to obtain the actual capacity. (1) Cooling capacity correction factor Figure 5. PUMY-71VM, PUMY-71VM , PUMY-71VM Cooling capacity correction curve...
  • Page 34 PUMY-125VM PUMY-71VM NOTCH SPL(dB) LINE NOTCH SPL(dB) LINE PUMY-125VM PUMY-71VM PUMY-125VM PUMY-71VM PUMY-125YM PUMY-125YM PUMY-125VMA PUMY-125VMA PUMY-125YMA NC-70 NC-70 NC-60 NC-60 NC-50 NC-50 NC-40 NC-40 NC-30 NC-30 APPROXIMATE APPROXIMATE THRESHOLD OF THRESHOLD OF HEARING FOR HEARING FOR NC-20 NC-20 CONTINUOUS...

  • Page 35: Outlines And Dimensions

    OUTLINES AND DIMENSIONS OUTDOOR UNITS unit : mm PUMY-71VM PUMY-71VM PUMY-71VM...
  • Page 36 PUMY-125VM unit : mm PUMY-125VM PUMY-125VM PUMY-125YM PUMY-125YM PUMY-125VMA PUMY-125VMA PUMY-125YMA...

  • Page 37: Wiring Diagram

    WIRING DIAGRAM PUMY-71VM NAME NAME NAME SYMBOL SYMBOL SYMBOL AC,CT CURRENT DETECTION FAN CONTROL TERMINAL BLOCK <TRANSMISSION> CRANKCASE HEATER FUSE1 FUSE(2A) TERMINAL BLOCK CONNECTOR <POWER SUPPLY> FUSE2 FUSE(6A) <TRANSMISSION> (CENTRALIZED CONTROL) CONNECTOR <DC POWER SUPPLY> FUSE FUSE(30A) THHS THERMISTOR CNS1 CONNECTOR <MULTI SYSTEM>...
  • Page 38 PUMY-125VM SYMBOL NAME SYMBOL NAME SYMBOL NAME AC,CT CURRENT DETECTION REACTOR TERMINAL BLOCK <TRANSMISSION> SURGE ABSORBER FAN CONTROL TERMINAL BLOCK SMOOTHING CAPACITOR FUSE1 FUSE(2A) <TRANSMISSION> (CENTRALIZED CONTROL) CRANKCASE HEATER FUSE2 FUSE(6A) THHS THERMISTOR CONNECTOR <POWER SUPPLY> FUSE FUSE(60A) <IPM RADIATOR PANEL TEMPERATURE DETECTION> CONNECTOR <DC POWER SUPPLY>...
  • Page 39 PUMY-71VM SYMBOL NAME SYMBOL NAME SYMBOL NAME AC,CT CURRENT DETECTION FAN CONTROL TERMINAL BLOCK <POWER SUPPLY> CONNECTOR <POWER SUPPLY> FUSE1 FUSE(2A) TERMINAL BLOCK <TRANSMISSION> CONNECTOR <DC POWER SUPPLY> FUSE2 FUSE(6A) TERMINAL BLOCK CNS1 CONNECTOR <MULTI SYSTEM> FUSE FUSE(30A) <TRANSMISSION> (CENTRALIZED CONTROL) CNS2 CONNECTOR <CENTRALIZED CONTROL>...
  • Page 40 PUMY-125VM SYMBOL NAME SYMBOL NAME SYMBOL NAME AC,CT CURRENT DETECTION REACTOR TERMINAL BLOCK <POWER SUPPLY> SURGE ABSORBER FAN CONTROL TERMINAL BLOCK <TRANSMISSION> SMOOTHING CAPACITOR FUSE1 FUSE(2A) TERMINAL BLOCK CONNECTOR <POWER SUPPLY> FUSE2 FUSE(6A) <TRANSMISSION> (CENTRALIZED CONTROL) CONNECTOR <DC POWER SUPPLY> FUSE FUSE(60A) THHS...
  • Page 41 PUMY-71VM NAME SYMBOL SYMBOL NAME SYMBOL NAME AC,CT CURRENT DETECTION FUSE1 FUSE(2A) TERMINAL BLOCK CONNECTOR <POWER SUPPLY> FUSE2 FUSE(6A) <TRANSMISSION> (CENTRALIZED CONTROL) CONNECTOR <DC POWER SUPPLY> FUSE FUSE(30A) THHS THERMISTOR CNS1 CONNECTOR <MULTI SYSTEM> INTELLIGENT POWER MODULE <IPM RADIATOR PANEL TEMPERATUER DETECTION>...
  • Page 42 PUMY-125VM SYMBOL NAME SYMBOL NAME SYMBOL NAME AC,CT CURRENT DETECTION FAN CONTROL TERMINAL BLOCK SURGE ABSORBER FUSE1 FUSE(2A) <TRANSMISSION> (CENTRALIZED CONTROL) SMOOTHING CAPACITOR FUSE2 FUSE(6A) THHS THERMISTOR CONNECTOR <POWER SUPPLY> FUSE FUSE(60A) <IPM RADIATOR PANEL TEMPERATURE DETECTION> CONNECTOR <DC POWER SUPPLY> INTELLIGENT POWER MODULE THERMISTOR <DISCHARGE TEMPERATURE DETECTION>...
  • Page 43 PUMY-125YM NAME SYMBOL NAME SYMBOL NAME NAME SYMBOL SYMBOL ACCT CURRENT DETECTION C1,C2 FAN MOTOR CAPACITOR SOLENOID COIL <HOT GAS BYPASS> THERMISTOR CB1,CB2 DIODE MODULE <LOW PRESSURE SATURATED TEMP. DETECTION> SMOOTHING CAPACITOR SWITCH <DISPLAY SELECTION> REACTOR CONNECTOR <POWER SUPPLY> SWITCH <FUNCTION SELECTION> THERMISTOR FAN CONTROL SWITCH <TEST RUN>...
  • Page 44 PUMY-125VMA PUMY-125VMA SYMBOL NAME SYMBOL NAME SYMBOL NAME SYMBOL NAME Terminal Block(Power Supply) Magnetic Contactor N.F. Noise Filter Circuit Board CNS1 Connector(Multi system) Terminal Block(Transmission) 21S4 4-Way Valve Connection Lead(L-Phase) CNS2 LI/LO Connector(Centralized Control) Terminal Block(Centralized Control) Solenoide Valve(Hot Gas Bypass) Connection Lead(N-Phase) NI/NO Connector...
  • Page 45 PUMY-125YM PUMY-125YMA NAME SYMBOL NAME SYMBOL NAME SYMBOL NAME SYMBOL CURRENT DETECTION ACCT C1,C2 FAN MOTOR CAPACITOR SOLENOID COIL <HOT GAS BYPASS> THERMISTOR CB1,CB2 SMOOTHING CAPACITOR DIODE MODULE <LOW PRESSURE SATURATED TEMP. DETECTION> SWITCH <DISPLAY SELECTION> CONNECTOR <POWER SUPPLY> REACTOR SWITCH <FUNCTION SELECTION>...

  • Page 46: Necessary Conditions For System Construction

    NECESSARY CONDITIONS FOR SYSTEM CONSTRUCTION 7-1. TRANSMISSION SYSTEM SETUP [Example : PUMY-125VM...

  • Page 47: Refrigerant System Diagram

    Capillary tube 1(for return equilibrium between upper and (for Evaporating tempera- of oil from oil separator) lower coils) ture detection) PUMY-71VM {2.5 O {0.6 O 500r {2.5 O {0.6 O 500r ({4 O {3.0 O 500r) O 2 PUMY-71VM PUMY-71VM...

  • Page 48: System Control

    7-3. SYSTEM CONTROL 7-3-1. Operating a Single Refrigerant System When operating either alone or as part of a group, a M-NET remote controller (NR) may be used to control a single refrigerant system that does not overlap with any other system. <Example of system arrangement>...
  • Page 49 7-3-2. System Controller (SC) to Perform Centralized Control <Example of System Arrangement> The following diagram shows the use of system controller (SC) to control a system that includes the multiple outdoor unit. Indoor • outdoor transmission wire (Shielded wire) <Room A> <Room B>...
  • Page 50 7-3-3. Example for the System • Example for wiring control cables, wiring method and address setting, permissible lengths, and the prohibited items are listed in the standard system with detailed explanation. The explanation for the system in this section : Use one single outdoor unit and multiple outdoor units for M-NET remote control system.
  • Page 51 • Name, Symbol and the Maximum Units for Connection Symbol Name Maximum units for connection Outdoor unit One OC unit can be connect to 2-5 units (Type 71:2-4units) One OC unit can be connect to 1-8 units (Type 71:1-4units) Indoor unit /VMA/VMA One OC unit can be connect to 1-8 units YM/YM...
  • Page 52 B. Example of a group operation system with two or more outdoor units and a M-NET remote controller. (Shielding wires and address settings are necessary.) Between terminal blocks Group 1 Group 3 Group 5 CN40 (051) (001) (004) (005) (006) TB15 TB15 TB15...
  • Page 53 • Name, Symbol, and the Maximum Units for Connection • Max length via outdoor units : L [ 500 meters (1.25mm [ 200 meters (1.25mm • Max transmission cable length : L [ 10 meters (0.5 to 0.75mm • Remote controller cable length : R If the length exceeds 10 meters, use a 1.25 mm shielded wire.
  • Page 54 C. Example of a MA remote controller system (address setting is not necessary.) NOTE : In the case of same group operation, need to set the address that is only main indoor unit. Example of wiring control cables Wiring Method and Address Setting 1.
  • Page 55 Permissible Lengths Prohibited items The MA remote controller and the Longest transmission cable length [ 200m (1.25 mm M-NET remote controller cannot be used together with the indoor unit MA remote controller cable length [ 200m (0.3 ~ 1.25 mm the of the same group.
  • Page 56 D. Example of a group operation with two or more outdoor units and a MA remote controller. (Shielding wires and address settings are necessary.) Between terminal blocks Group 1 Group 5 Group 3 CN40 CN41 (051) (001) (004) (005) (006) TB5 TB15 TB5 TB15 TB5 TB15...
  • Page 57 • Name, Symbol, and the Maximum Units for Connection • Max length via outdoor units : L [ 500 meters (1.25mm [ 200 meters (1.25mm • Max transmission cable length : L [ 10 meters (0.5 to 0.75mm • Remote controller cable length : R If the length exceeds 10 meters, use a 1.25 mm shielded wire.

  • Page 58: Troubleshooting

    TROUBLESHOOTING 8-1. CHECK POINTS FOR TEST RUN 8-1-1. Procedures of test run (1) Before test run, make sure that following work is completed. • Installation related : Make sure that the panel of cassette type and electrical wiring is done. Otherwise electrical functions like auto vane will not operate normally.
  • Page 59 8-1-2. Special Function Operation and Settings for M-NET Remote Controller • It is necessary to perform “group settings” and “paired settings” at making group settings of different refrigerant systems (multiple outdoor unit). (A) Group settings: Enter the indoor unit controlled by the remote controller, check the content of entries, and clear entries, etc.
  • Page 60 (2) Address check: Refer to section (1) regarding address entry. a) In making group settings: • Turn off the remote controller: Press the remote controller's ON/OFF button to stop operation (the indicator light will go off). • Locate the indoor unit address display mode: Press the FILTER and k buttons on the remote controller simultaneously and hold for two seconds.
  • Page 61 Remote controller sensor trouble ACTM/IGBT Radiator panel thermistor trouble (THHS-A/B) Communication trouble with Power Board 0403 (PUMY-125VMA PUMY-125VMA (PUMY-125VMA PUMY-125VMA 5110 IPM Radiator panel thermistor trouble (THHS) PUMY-71VM PUMY-125VM PUMY-125YM PUMY-71VM PUMY-125VM PUMY-125YM PUMY-71VM PUMY-125VM PUMY-125YMA 5201 Pressure sensor trouble (63HS)
  • Page 62 Display Meaning and detecting method Check points Causes 1102 Discharge temperature abnormality 1) Gas leakage, Gas shortage When the discharge temperature thermistor Check the refrigerant amount. (TH1) detects 125 or more (1st detection), 2) Overloaded operation Check the indoor/outdoor unit operating the compressor stops and restarts operation condition and status.
  • Page 63 Display Meaning and detecting method Check points Causes 1302 5) Indoor fan motor lock Check the indoor fan motor. When the sensor detects 2.94MPa or more again (2nd detection) within 30 minutes 6) Indoor fan motor failure Check the indoor fan motor. since the compressor has stopped, the 7) 4-way valve performance failure Change COOL/HEAT operation mode...
  • Page 64 Display Meaning and detecting method Check points Causes 1500 2. The compressor has operated 4) Discharge super heat detection error consecutively 20 minutes or more, since High-pressure pressure sensor Check the high-pressure pressure the indoor unit operation capacity had failure sensor.
  • Page 65 3) Low-pressure over suction by Check the refrigerant amount. on, it stops abnormally. In this time, <1505> refrigerant shortage is displayed 4) Pipe clogging and broken PUMY-71VM PUMY-125VM PUMY-125YM Repair the defective points. PUMY-71VM PUMY-125VM PUMY-125YM 5) Indoor linear expansion valve...
  • Page 66 Display Meaning and detecting method Check points Causes 2502 Drain pump abnormality (Note) Address/Attribute displayed on the remote controller shows the indoor unit which is cause of trouble. <Detected timing> Always detecting regardless of the indoor unit status. <Abnormality clear> Abnormality is cleared by either of two of the following;...
  • Page 67 Display Meaning and detecting method Check points Causes 4116 Fan rotational frequency abnormality 1) Fan rotational frequency detecting Check whether the connector (CN33) (Detected only PKFY-P·VAM-A) connector (CN33) disconnection in the in the indoor controller board is indoor controller board. disconnected or not.
  • Page 68 Display Meaning and detecting method Check points Causes 4220 PUMY-71VM PUMY-125VM PUMY-125YM PUMY-71VM PUMY-125VM PUMY-125YM Measure the terminal voltage, and 1) Power supply terminal voltage is low. PUMY-71VM PUMY-125VM PUMY-125YMA check whether the voltage decreases Shortage abnormality of inverter bus-bar or not.
  • Page 69 Display Meaning and detecting method Check points Causes PUMY-71VM PUMY-125VM PUMY-125YM IPM abnormality 4250 The interruption happens by accident. PUMY-71VM PUMY-125VM PUMY-125YM Over current limited Since the interception only once PUMY-71VM PUMY-125VM PUMY-125YMA returns automatically after restarting in 1) Single interruption by external noise.
  • Page 70 From the preceding page. Display Meaning and detecting method Check points Causes When not applying from 4 to 7, it 4250 applies to 9) and 10). Check the compressor. In case of 10), recheck the compressor again after 12 hours with former power supply.
  • Page 71 Display Meaning and detecting method Check points Causes 5102 Liquid pipe temperature thermistor (TH22) abnormality When the thermistor detects short/open 1) Connector (CN21) contact failure Check whether the connector during the operation, the operation stops (CN21) in the indoor controller board and the operation changes to protect mode is connected or not.
  • Page 72 Display Meaning and detecting method Check points Causes 5103 Gas pipe temperature thermistor (TH23) abnormality 1) Connector (CN29) contact failure Check whether the connector (CN29) When the thermistor detects short/open in the indoor controller board is after 3minutes-continuous thermostat ON connected or not.
  • Page 73 -99.9: Open Short: 88; or more (0.4k') 999.9: Short Open: -39; or less (115k') 5110 PUMY-125VMA PUMY-125VMA Radiator panel temperature thermistor (THHS-A, THHS-B) abnormality PUMY-71VM PUMY-125VM PUMY-125YM PUMY-71VM PUMY-125VM PUMY-125YM PUMY-71VM PUMY-125VM PUMY-125YMA: IPM radiator panel temperature thermistor (THHS) abnormality...
  • Page 74 Display Meaning and detecting method Check points Causes 5201 Pressure sensor (63HS) abnormality When detected pressure in high-pressure 1) High-pressure pressure sensor Check the high-pressure pressure pressure sensor is 1MPa or less during the failure sensor. operation, the compressor stops and restarts operation in 3minutes.
  • Page 75 Display Meaning and detecting method Check points Causes 6603 Transmission bus busy error Over error by collision 1) The transmission processor cannot Check whether the transmission line be transmitted since a short cycle of the indoor unit, fresh master, Abnormality when the state, which cannot voltage of the noise etc.
  • Page 76 Display Meaning and detecting method Check points Causes No ACK (Acknowledgement) 6607 Factor that not related to origin Abnormality which controller of the 1) Since the address switch was Turn off power supply of outdoor unit, sending side detects when there is no changed with the current passed, the indoor unit fresh master and lossnay answer (ACK) from other side though data...
  • Page 77 From the preceding page. Display Meaning and detecting method Check points Causes 3) When the cause of displayed address 1) When operating with multi refrigerant 6607 and attribute is on the remote controller system indoor units, the indoor units side transmits the signal to the remote controller after the other refrigerant (The indoor unit detects when there is no...
  • Page 78 Display Meaning and detecting method Check points Causes 6607 2) When synchronized operating with other refrigerant system lossnay, the indoor units transmits the signal to the lossnay after the lossnay and same refrigerant system outdoor unit is turned off or turned on again in 2minutes, and detects abnormality 3) Contact failure of lossnay or indoor unit transmission line...
  • Page 79 Display Meaning and detecting method Check points Causes 6810 UR communication abnormality (UR: Unit Remote controller) Communications between the unit remote 1) Contact failure of the unit remote Check whether the transmission line controller and indoor unit is not normal. controller transmission line in the unit of the indoor unit or unit remote remote controller or indoor unit.
  • Page 80 Display Meaning and detecting method Check points Causes When connected total models of the 1) Connecting total models of the Check the total models of connected 7100 indoor units exceed the specified level indoor unit exceed the specified level. indoor unit. (130% of the outdoor unit models), error code <7100>...

  • Page 81: Remote Controller Diagnosis

    Display Meaning and detecting method Check points Causes 7111 Remote controller sensor abnormality When an old type remote controller for Replace the remote controller to net M-NET is used, and the remote work remote controller. In the case of network remote controller, it controller sensor is specified (SW1-1 is an abnormality when incapable is ON).
  • Page 82 From the preceding page. Potential problems other than those diagnosed for the remote controller. a) Single transmission is not possible if error display 2 (“6832 or 6833”) flashes. There is “noise” on the transmission line, or damage of other remote controller for the indoor units can be considered.
  • Page 83 (2) For MA remote controller systems Symptom or inspection code Cause Inspection method and solution Though the content of operation is • The power supply of the indoor unit is not on. • Check the part where the displayed on the remote controller, •...
  • Page 84 8-5. INTERNAL SWITCH FUNCTION TABLE 8-5-1. Outdoor unit internal switch function table (PUMY-71VM/VM , PUMY-125VM/VM , PUMY-125YM/YM /YMA) The black square ( ) indicates a switch position. Operation in Each Switch Setting Switch Step Function Remarks When to Set <Factory Settings>...
  • Page 85 8-5-2. Outdoor unit internal switch function table (PUMY-125VMA, PUMY-125VMA The black square ( ) indicates a switch position. Operation in Each Switch Setting Switch Step Function Remarks When to Set <Factory Settings> SW U1 1st digit Before turning W The address automatically becomes the power on SW U2 "100"...
  • Page 86 8-6. OUTDOOR UNIT INPUT/OUTPUT CONNECTOR State (CN51) Distant control External output board Relay circuit adapter Outdoor unit control board CN51 Preparations Maximum cable in the field length is 10m : Error display lamp : Compressor operation lamp X, Y : Relay (Coil standard of 0.9W or less for DC 12V) Comp ON/OFF (CN3D) Distant control External output...
  • Page 87 8-7. HOW TO CHECK THE PARTS PUMY-71VM PUMY-71VM PUMY-71VM PUMY-125VM PUMY-125VM PUMY-125VM PUMY-125YM PUMY-125YM PUMY-125VMA PUMY-125VMA PUMY-125YMA Parts name Check points •Thermistor (TH1) Disconnect the connector then measure the resistance using a tester. (Surrounding temperature 10:~30:) <Discharge temperature detection> •Thermistor (TH2)
  • Page 88 =15exp{3480( 273+t – 273 )} 15k' 4.3k' 9.6k' 3.0k' 6.3k' 5.2k' -20 -10 0 10 20 30 40 50 Temperature (:) PUMY-71VM PUMY-125VM PUMY-125YM <Medium temperature thermistor> PUMY-71VM PUMY-125VM PUMY-125YM PUMY-71VM PUMY-125VM PUMY-125YMA Medium temperature thermistor Radiator panel temperature thermistor (THHS) Thermistor R50 = 17k' ±...
  • Page 89 20: 250k' 34k' 30: 160k' 24k' 40: 104k' 17.5k' 70k' 100: 13.0k' 48k' 110: 9.8k' Temperature (:) <HIGH PRESSURE SENSOR> 1 PUMY-71VM 2 PUMY-71VM PUMY-71VM PUMY-125VM PUMY-125VM PUMY-125VM PUMY-125YM PUMY-125YM PUMY-125YMA PUMY-125VMA PUMY-125VMA Vout (V) MULTI CONTROLLER BOARD Vout (V)
  • Page 90 From the preceding page. Only PUMY-125VMA model w2 LEV(A) <Output pulse signal and valve action> Valve closing:1 2 3 4 1 Output Valve opening:4 3 2 1 4 Output(phase) The address of the pulse output is shifted using the procedures mentioned earlier.
  • Page 91 8-8. TEST POINT DIAGRAM Connect to the outdoor power supply board (CN1) 8-8-1. Outdoor multi controller board 1:52C relay output signal 2:4-way valve output signal PUMY-71VM PUMY-125VM PUMY-125YM 3:Bypass valve output signal AC,CT PUMY-71VM PUMY-125VM PUMY-125YM 4:OPEN Detection of PUMY-71VM...
  • Page 92 8-8-2. Outdoor power supply board PUMY-71VM PUMY-125VM PUMY-71VM PUMY-125VM PUMY-71VM PUMY-125VM MF1, MF2 21S4 Connect to Solenoid coil 4-way coil 52C Relay Power supply fan motor (220-230V AC) FUSE2 FUSE 250V AC – – 5V DC 4.75–5.25V – 30V DC 27.3–30V...
  • Page 93 8-8-3. Outdoor power supply board PUMY-125YM PUMY-125YM PUMY-125YMA U, V, W Connect to the compressor (MC) Voltage among Connect to Connect to phases: 5V-400V AC CB1(+) CB2 (+) Connect to 52C Connect to the outdoor resistor board (CNR) <Inverter sigunal> Connect to Connect CB2 (–)
  • Page 94 8-8-4. Outdoor resistor board PUMY-125YM PUMY-125YM PUMY-125YMA Connect to the outdoor 220-240V AC power supply board (CNR) Connect to the noise filter (CNA)
  • Page 95 8-8-5. Outdoor multi circuit board CNDC PUMY-125VMA 300-380V DC Connect to the outdoor PUMY-125VMA MF1, MF2 power circuit board (CNDC) Connect to – fan motor Signal wires Connect to the outdoor power circuit board (CN2) 52C Relay 21S4 4-way valve Solenoid valve CNAC CN51...
  • Page 96 Brief Check of POWER MODULE W Usually, they are in a state of being short-circuited if they are broken. 8-8-6. Outdoor power circuit board Measure the resistance in the following points (connectors, etc.). PUMY-125VMA If they are short-circuited, it means that they are broken. PUMY-125VMA 1.
  • Page 97 LO, NO 8-8-7. Outdoor noise filter circuit board Voltage of 220-240V AC is output PUMY-125VMA (Connect to the outdoor power PUMY-125VMA circuit board (SC-R, SC-S)) CNAC1, CNAC2 220-240V AC (Connect to the outdoor multi circuit board (CNAC)) Primary current (Connect to the outdoor power circuit board (CN5))
  • Page 98 SW:setting 0..OFF 8-9. OUTDOOR UNIT FUNCTIONS 1..ON...

  • Page 103: Electrical Wiring

    9-2-2. Power supply wire diameter and capacity Breaker Minimum wire cross section area(mm Main line Branch line Grounded Interrupting current Performance characteristic Model PUMY-71VM — 30A,30mA for 0.1 sec. or less PUMY-71VM PUMY-125VM — 100A PUMY-125VM 100A,100mA for 0.1 sec. or less...
  • Page 104 9-3. DESIGN FOR CONTROL WIRING Please note that the types and numbers of control wires needed by the Mr. SLIM MULTI-S series will depend on the remote controllers and whether they are linked with the system. 9-3-1. Selection number of control wires M-NET remote controller Remote controller used in system control operations.
  • Page 105 9-4. SYSTEM SWITCH SETTING In order to identify the destinations of signals to the outdoor units, indoor units, and remote controller of the MULTI-S series, each microprocessor must be assigned an identification number (address). The addresses of outdoor units, indoor units, and remote controller must be set using their settings switches.

  • Page 106: Refrigerant Piping Tasks

    REFRIGERANT PIPING TASKS 10-1. REFRIGERANT PIPING SYSTEM Line-Branch Method Connection Examples (Connecting to Four Indoor Units) Outdoor Unit First Branch Indoor unit Total Piping Length A+B+C+a+b+c+d is 100 meters or less (125 Type), 80 meters or less (71 Type) Permissible Farthest Piping Length A+B+C+d is 70 meters or less (125 Type), 50 meters (71 Type) Length...
  • Page 107 Header-Branch Method Connection Examples (Connecting to Four Indoor Units) Outdoor Unit First Branch Indoor unit Total Piping Length A+a+b+c+d is 100 meters or less (125 Type), 80 meters or less (71Type) Permissible Farthest Piping Length A+d is 70 meters or less (125 Type), 50 meters (71Type) Length Farthest Piping Length After First Branch d is 30 meters or less...
  • Page 108 Note: The total of downstream unit models in the table is the total of models as seen from point A in the figure above. Note: Pipe re-branching after the header branching is not possible. Method of Combined Branching of Lines and Headers Connection Examples (Connecting to Five Indoor Units)
  • Page 109 Multi-distribution piping on outdoor unit Connection Examples (Connecting up to Five Indoor Units) *If multi-distribution piping on outdoor unit is Outdoor Unit done, a maximum of 5 indoor units can be First Branch connected. Cannot redistribute the piping. Indoor unit Total Piping Length a+b+c+d+e is 100 meters or less Permissible...

  • Page 110: Precautions Against Refrigerant Leakage

    10-2. PRECAUTIONS AGAINST REFRIGERANT LEAKAGE 10-2-1. Introduction (2) Calculate room volumes (in K K ) and find the room with the smallest volume R-22 refrigerant of this air conditioner is non-toxic and non- flammable but leaking of large amount from an indoor unit The part with represents the room with the smallest into the room where the unit is installed may be deleterious.

  • Page 111: Disassembly

    DISASSEMBLY Model 1. Please pay attention to safety when assembling or disassembling heavy items. PUMY-71VM 2. The refrigerant system must be vacuum-pumped before performing piping maintenance. OPERATING PROCEDURE PHOTOS Photo 1 1. Side and top panel disassembly procedures: Top panel...
  • Page 112 OPERATING PROCEDURE PHOTOS Photo 4 4. Electrical box disassembly procedures: (1) Remove the side panel (Refer to 1) (2) Remove the top panel (Refer to 1) (3) Disconnect the following wires from the multi controller board. • Thermistor (discharge temperature detection):TH1 Electrical box Power supply board •...
  • Page 113 OPERATING PROCEDURE PHOTOS Photo 6 6. Thermistor disassembly procedures: Thermistor (1) Remove the side panel (Refer to 1) Oil separator (TH1) (2) Remove the top panel (Refer to 1) (3) Remove the electric box (Refer to 4) (4) Remove the Thermistor (discharge temperature detection: TH1), (Low saturated pressure temperature Band Thermistor (TH2)
  • Page 114 OPERATING PROCEDURE PHOTOS Photo 9 9. Four-way valve disassembly procedures: (1) Remove the side panel (Refer to 1). (2) Remove the top panel (Refer to 1). (3) Remove the electrical box (Refer to 4). (4) Remove the 4-way valve coil (Refer to 5). (5) Remove the mounting screws from the gas side ball valve (2 pcs : 5o16).
  • Page 115 OPERATING PROCEDURE PHOTOS Photo 12 12. High pressure sensor (63HS)disassembly procedures: (1) Remove the side panel (Refer to 1). (2) Remove the electrical box (Refer to 4). (3) Remove the high pressure sensor wire. Welding part (4) Remove the welded portion of high pressure sensor. (5) Remove the mounting screw fastening the high Separator pressure sensor mounting plate (1 pc : 4o10).
  • Page 116 Models PUMY-125VM PUMY-125YM PUMY-125VMA 1. Please pay attention to safety when assembling or disassembling heavy items. PUMY-125YMA 2. The refrigerant system must be vacuum-pumped before performing piping maintenance. OPERATING PROCEDURE PHOTOS Photo 1 Top panel 1. Side and top panel disassembly procedures: installation screws Top panel (1) Remove the side panel screws (3 pcs : 5o10 screws)
  • Page 117 OPERATING PROCEDURE PHOTOS Photo 4 3. Thermistor (TH6: outdoor air temperature sensor detection) disassembly procedures: Thermistor (1) Remove the side panel (Refer to 1) Thermistor holder screw (TH6) (2) Remove the top panel (Refer to 1) (3) Remove the thermistor holder fixing screw (1 pc : 4o10), and remove the thermistor holder.
  • Page 118 OPERATING PROCEDURE PHOTOS Photo 6 5. Electrical parts box disassembly procedures: PUMY-125VM, PUMY-P125YM, PUMY-P125YMA [PUMY-125VM, PUMY-125YM, PUMY-125YMA] (The electrical parts box in the picture below air for (1) Remove the side panel (Refer to 1) PUMY-125YM and PUMY-125YMA.) (2) Remove the top panel (Refer to 1) (3) Disconnect the following wires from the Power supply board Board plate...
  • Page 119 OPERATING PROCEDURE PHOTOS Photo 8 7. Thermistor disassembly procedures: separator (1) Remove the side panel (Refer to 1) Piping cover (2) Remove the top panel (Refer to 1) (3) Remove the electrical parts box (Refer to 4 or 5) Thermistor (4) Recover gas from the refrigerant circuit.
  • Page 120 OPERATING PROCEDURE PHOTOS Photo 11 Pipe of heat exchanger inlet (T connector) 10. 4-way valve disassembly procedures: (1) Remove the side panel (Refer to 1). (2) Remove the top panel (Refer to 1). (3) Remove the electrical parts box (Refer to 4 or 5). Accumulator inlet (4) Recover gas from the refrigerant circuit.
  • Page 121 OPERATING PROCEDURE PHOTOS Photo 14 13. High pressure sensor (63HS)disassembly procedures: (1) Remove the side panel (Refer to 1). fixing screw (2) Remove the high pressure sensor wire. (3) Recover gas from the refrigerant circuit. (4) Remove the welded portion of high pressure sensor. (5) Remove the mounting screw fastening the high pressure sensor mounting plate (1 pc : 4o10).

  • Page 122: Parts List

    PARTS LIST STRUCTURAL PARTS PUMY-71VM PUMY-71VM PUMY-71VM 1 14 13 SCREW ty/set Price Wiring Recom- Remarks PUMY-71 Part No. Part Name Specification Diagram mended (Drawing No.) Symbol Unit Amount VM,VM R01 KN4 675 FAN GUARD R01 35A 668 FRONT PANEL...
  • Page 123 STRUCTURAL PARTS PUMY-125VM PUMY-125VM PUMY-125VM PUMY-125VMA PUMY-125VMA PUMY-125YM PUMY-125YM PUMY-125YMA 13 SCREW ty/set Price Wiring Remarks Recom- PUMY-125 Part No. Part Name Specification Diagram mended (Drawing No.) VM,VM Symbol Unit Amount ,YMA R01 KN4 675 FAN GUARD R01 38A 668 FRONT PANEL R01 KL5 655 PANEL HANDLE...
  • Page 124 ELECTRICAL PARTS PUMY-71VM PUMY-71VM VARISTOR 7 PUMY-71VM Part numbers that are circled are not shown in the figure. ty/set Price Wiring Recom- Remarks PUMY-71 Part No. Part Name Specification Diagram mended (Drawing No.) Symbol Unit Amount 3.5µF 440VAC FAN MOTOR CAPACITOR...
  • Page 125 ELECTRICAL PARTS PUMY-125VM PUMY-125VM PUMY-125VM 21 VARISTOR Part numbers that are circled are not shown in the figure. ty/set Price Wiring Recom- Remarks PUMY-125 Part No. Part Name Specification Diagram mended (Drawing No.) Symbol Unit Amount R01 580 255 FAN MOTOR CAPACITOR 3.5µF 440VAC C1,2 FUSE...
  • Page 126 ELECTRICAL PARTS PUMY-125YM PUMY-125YM PUMY-125YMA 13 VARISTOR Part number that is circled is not shown in the figure. ty/set Price Wiring Recom- Remarks PUMY-125 Part No. Specification Part Name Diagram mended (Drawing No.) Symbol Unit Amount YM YM R01 580 255 FAN MOTOR CAPACITOR 3.5µF 440VAC C1,2...
  • Page 127 W The illustration below is of PUMY-125VMA ELECTRICAL PARTS PUMY-125VMA PUMY-125VMA ty/set Price Wiring Recom- Remarks PUMY-125 Part No. Part Name Specification Diagram mended (Drawing No.) Symbol Unit Amount VMA VMA R01 580 255 FAN MOTOR CAPACITOR 3.5µF 440VAC C1,2 T7W E19 315 MULTI CIRCUIT BOARD M.B.
  • Page 128 FUNCTIONAL PARTS PUMY-71VM PUMY-71VM PUMY-71VM 24 23 22...
  • Page 129 Part number that is circled is not shown in the figure. ty/set Price Wiring Recom- Remarks PUMY-71 Part No. Part Name Specification Diagram mended (Drawing No.) Symbol Unit Amount R01 KL5 115 PROPELLER R01 30L 097 R01 E31 202 THERMISTOR (OUTDOOR TEMPERATURE DETECTION) T7W A12 236 CRANKCASE HEATER 220V 25W...
  • Page 130 FUNCTIONAL PARTS PUMY-125VM PUMY-125VM PUMY-125VM...
  • Page 131 Part number that is circled is not shown in the figure. ty/set Wiring Recom- Price Remarks Part No. Part Name Specification PUMY-125 Diagram mended (Drawing No.) Symbol Unit Amount R01 KL5 115 PROPELLER R01 30L 097 THERMISTOR R01 35A 202 (DISCHARGE TEMPERATURE DETECTION) HIGH PRESSURE SENSOR 63HS...
  • Page 132 FUNCTIONAL PARTS PUMY-125YM PUMY-125YM PUMY-125YMA...
  • Page 133 Part number that is circled is not shown in the figure. ty/set Price Wiring Recom- Remarks PUMY-125 Part No. Part Name Specification Diagram mended (Drawing No.) Unit Amount Symbol R01 KL5 115 PROPELLER R01 30L 097 THERMISTOR R01 35A 202 (DISCHARGE TEMPERATURE DETECTION) R01 J01 268 HIGH PRESSURE SENSOR...
  • Page 134 FUNCTIONAL PARTS PUMY-125VMA PUMY-125VMA...
  • Page 135 ty/set Price Wiring Recom- Remarks PUMY- Part No. Part Name Specification Diagram mended (Drawing No.) 125VMA Symbol Unit Amount 125VMA R01 KL5 115 PROPELLER R01 30L 097 THERMISTOR R01 35A 202 (DISCHARGE TEMPERATURE DETECTION) HIGH PRESSURE SENSOR 63HS R01 E00 268 THERMISTOR (PIPE TEMPERATURE R01 E30 202 DETECTION / JUDGING DEFROST)
  • Page 136 HEAD OFFICE : MITSUBISHI DENKI BLDG., 2-2-3, MARUNOUCHI, CHIYODA-KU, TOKYO100-8310, JAPAN cCopyright 1999 MITSUBISHI ELECTRIC ENGINEERING CO., LTD. Distributed in May 2010 No.OC183 REVISED EDITION-E PDF 5 Distributed in Aug. 2004 No.OC183 REVISED EDITION-D PDF 9 Distributed in Mar. 2004 No.OC183 REVISED EDITION-C PDF 9 Reprinted in Mar.

This manual is also suitable for:

Pumy-125ymPumy-125vmPumy-125vmaPumy-125yma

Table of Contents
