SHARP

1. SPECIFICATIONS

Model:
CE-1600E
Product name:
Parallel and pocket disk interface
Power source:
7.5V DC supplied by five AA batleries or
optional AC adaptor (EA-160)
Power required:
2.8W
Batlery operating time:
approx. 50 minutes using manganese
batleries
alkaline batleries (at 20° C with a CE-1600F
connected while continuously writing and
reading a 4 K-byte prä g ram at 5 second
intervals)
Temperature:
1Q° C - 35° C
Dimensions:
320mm(W) x 123mm(D) x 40mm(H)
Weight:
approx. 640g (includes batleries)
Accessories:
AA batleries (5), screws (XBBSD20P
05000, PRICE RANK: AA) (2), Operation
Manual (1)
Optional Accessories:
EA-158C (printer cable)
EA-160 (AC adaptor)
CE-1600F (pocket disk drive)
Usable Printers:
SHARP CE-515P, CE-516P, CE-700P
EPSON FX-80
See the operation manual for your printer
for information on electrical requirements
and printable characters.
Be sure to confirm compatibility (e.g. by
referring to the printer's manual) before
use for any printer no listed above.
2. SYSTEM ORGANIZATION
The entire system is shown below.
CE-1600F
(optional)
SERVICE MANUAL
approx.
120 minutes using
Printer
(optional)
EA-158C
,
(optional)
"",,,,(,
pti~~
SHARP CORPORATION
CODE:
OOZCE1600f:SME
CE-1600E
MODEL
PARALLEL AND POCKET DISK INTERFACE
(FOR PC-1600)

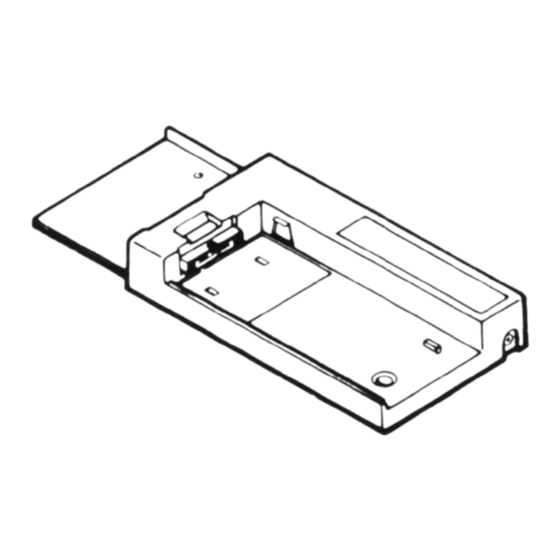

3. NAME OF EACH PART AND ITS
USE
®
Pocket disk drive
connector
(50-pin)
Note: The interface does not have apower switch. The power is
switched together with the power switch of the connected
computer. Disconnecting the computer turns off the power
for the interface.
CD
Computer connector
Connects the computer (PC-1600).
®
Printer connector
Connects a printer through the printer cable (EA-158C).
®
Pocket disk drive connector
Connects the pocket disk drive (CE-1600F)
@ Adaptor plug
Connects the AC adaptor (EA-160)

4. POWER SUPPLY

Size AA batleries (or an adaptor) are required in the interface to
operate the disk drive.
I
I
When the
symbol is shown on the top right of the computer's
BAIT
display, the batlery vohage is low. Replace the batleries in the
interface early.
Note: The interface and computer both supply power alternately.
Thus, operation is possible if power is available from either
one. However, the disk drive's motor operates from the power
supplied by the interface.

5. ERROR CODES

The interface issues error code 69 during an error.
ErrorCode
Printer is not connected. Printer is not on. Printer
69
is out of paper. Other printer related error
conditions.
-
CE-1600E
@
Adaptor plug
Description
