Replacing Consumables
Brake Roller
(Recommended after 200,000 sheets or 1 year)

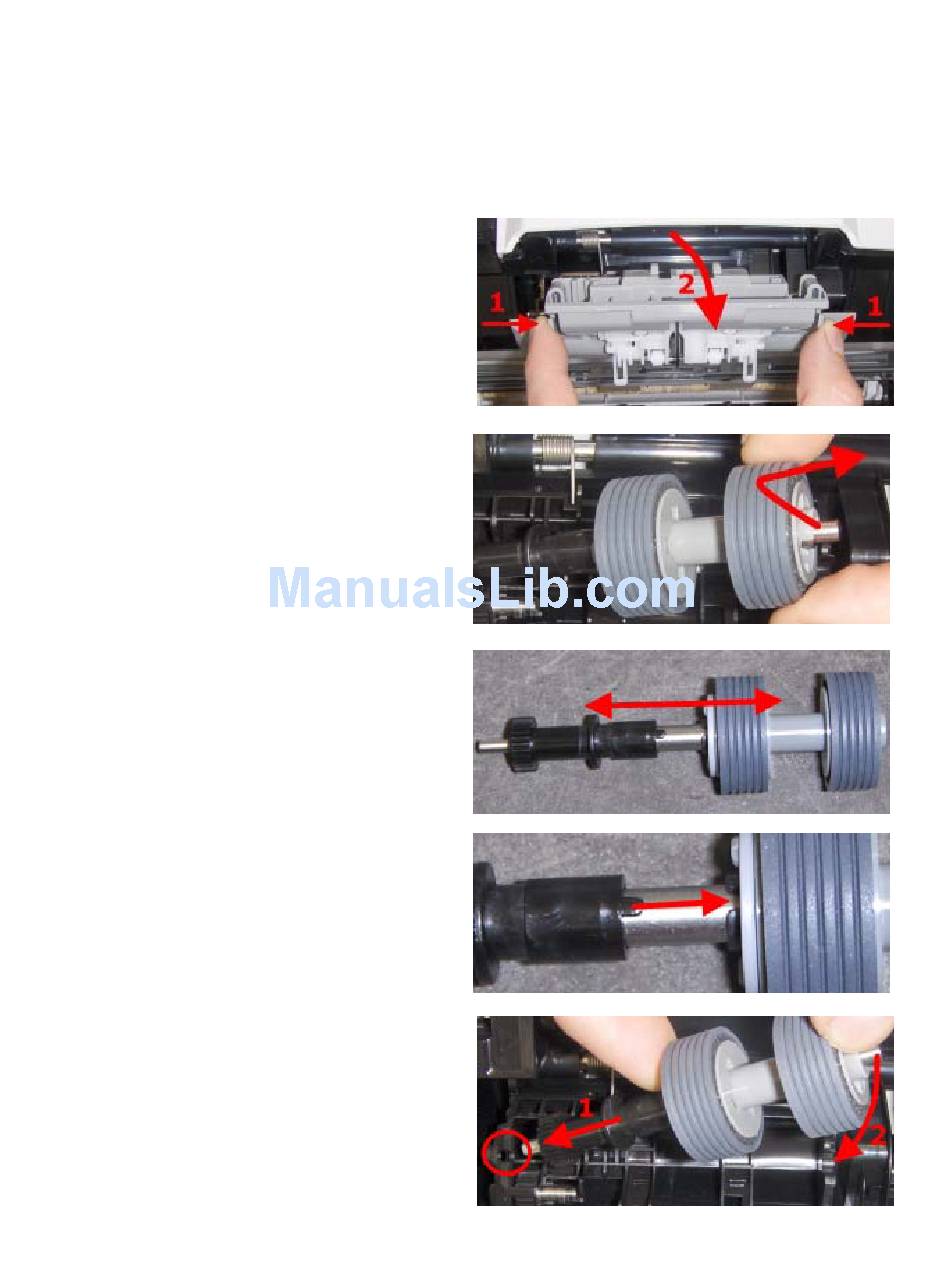

Squeeze tabs and pull down
brake roller cover.
Lift right side of brake roller
up and out to remove from
scanner
Remove brake roller from shaft
Install new roller. Make sure tab
on shaft fits into the slot on roller
Insert left end of shaft into hole
in scanner and right end of
shaft into slot. Close brake
roller cover.
