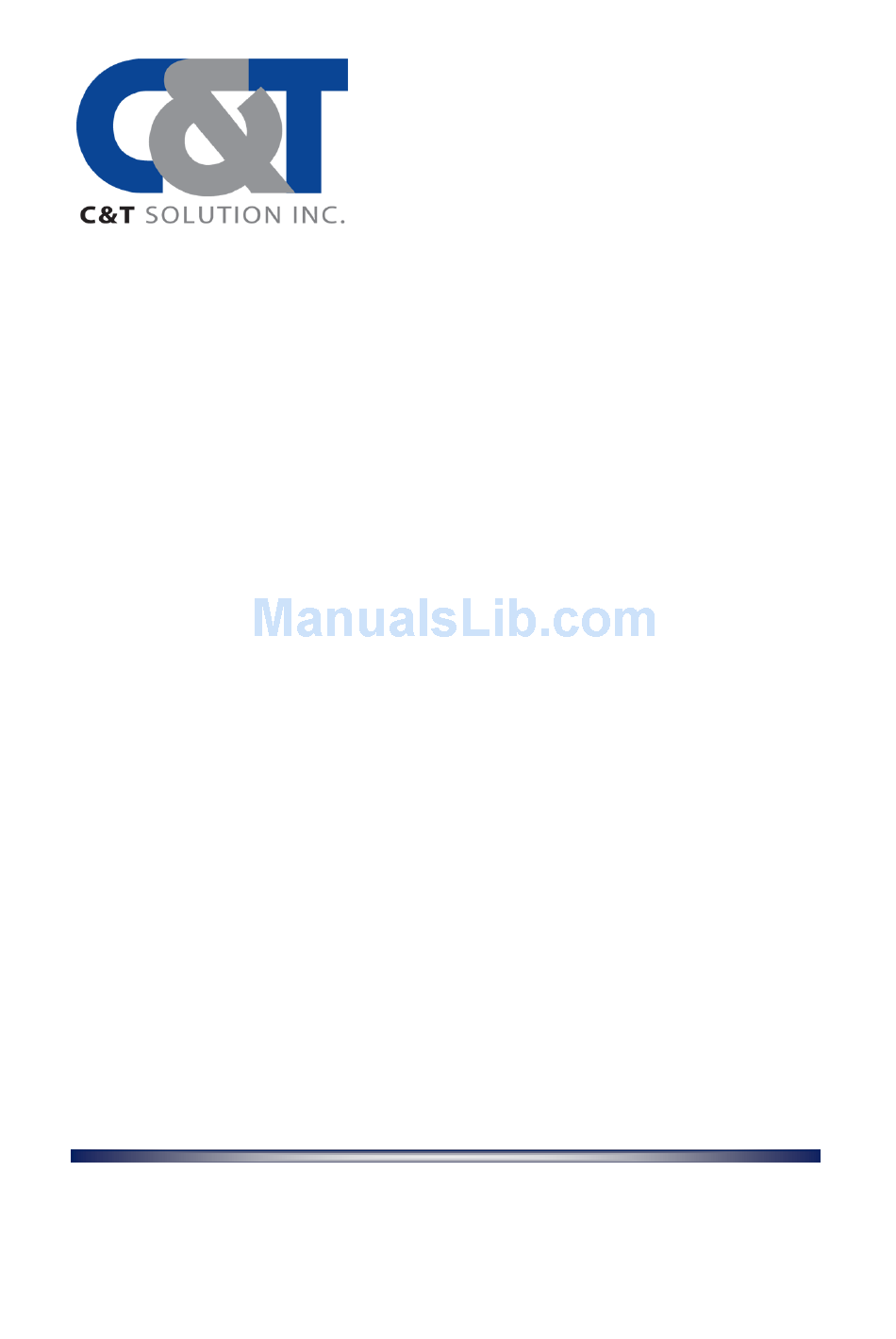

PS-H1701
Intel Atom D2550 17" HMI System
User's Manual
Version 1.0
C&T Solution Inc.
12F. -1, No.700, Zhongzheng Rd., Zhonghe Dist., New Taipei City 235, Taiwan
TEL: 886-2-77317888
http://www.candtsolution.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS-H1701 HMI and is the answer not in the manual?

Questions and answers

Related Manuals for C&T Solution PS-H1701 HMI

Summary of Contents for C&T Solution PS-H1701 HMI

  • Page 1 PS-H1701 Intel Atom D2550 17” HMI System User’s Manual Version 1.0 C&T Solution Inc. 12F. -1, No.700, Zhongzheng Rd., Zhonghe Dist., New Taipei City 235, Taiwan TEL: 886-2-77317888 http://www.candtsolution.com...

  • Page 2: Table Of Contents

    PS-H1701 Intel Atom D2550 17” HMI System Table of Contents Preface ....................５ Disclaimer ................. ５ Copyright Notice ............... ５ Trademarks Acknowledgment ..........５ Environmental Protection Announcement ........ ６ Safety Precautions ..............６ Introduction ..................... ８ Product Description ..............８ Specifications ................
  • Page 3 PS-H1701 Intel Atom D2550 17” HMI System External Connectors .............. ２９ DC12V Power Connector ..........２９ 5.4.1 USB 2.0 Connectors ............３０ 5.4.2 DVI-I Connector .............. ３０ 5.4.3 RJ-45 LAN Connector ............ ３１ 5.4.4 COM Connector: RS-232 ..........３１ 5.4.5 Internal Connectors ...............
  • Page 4 PS-H1701 Intel Atom D2550 17” HMI System South Bridge..............５１ 6.3.2 Boot ..................５２ Security ................. ５３ Save and Exit ................ ５４ Address Map ................５５ VII. I/O Port Address Map ............５５ Interrupt Controller (IRQ) Map ..........５７ Memory Map ................. ６０ ４...

  • Page 5: Preface

    PS-H1701 Intel Atom D2550 17” HMI System I. Preface Disclaimer All specifications and information in this User’s Manual are believed to be accurate and up to date. C&T Solution Inc. does not guarantee that the contents herein are complete, true, accurate or non-misleading. The information in this document is subject to change without notice and does not represent a commitment on the part of C&T Solution Inc.

  • Page 6: Environmental Protection Announcement

    PS-H1701 Intel Atom D2550 17” HMI System Environmental Protection Announcement Do not dispose this electronic device into the trash while discarding. Please recycle to minimize pollution and ensure environment protection. Safety Precautions Before installing and using the equipment, please read the following precautions: ...
  • Page 7 PS-H1701 Intel Atom D2550 17” HMI System  Do not place heavy objects on the equipment.  If the equipment is not used for long time, disconnect it from the power to avoid being damaged by transient over-voltage.  The storage temperature shall be above -20℃ and below 80℃. ...

  • Page 8: Ii. Introduction

    II. Introduction Product Description The PS-H1701 HMI (Human Machine Interface) is powered by Intel Atom D2550 1.86GHz dual core onboard processor with a 17” touch screen LCD. The thickness of this panel system is only 5.4cm which is ideal for limited space.

  • Page 9: Specifications

    PS-H1701 Intel Atom D2550 17” HMI System Specifications   Intel Atom D2550 1.86GHz  Chipset  Intel NM10  System Memory  One 204-pin DDR3 SODIMM socket  800MHz or 1066MHz  Up to 4GB  BIOS  AMI uEFI BIOS ...
  • Page 10 PS-H1701 Intel Atom D2550 17” HMI System  Audio  Realtek ALC662 HD audio codec  One Line-out  Serial Port  Two 9-pin D-sub male connector for RS-232  USB Interface  Five USB 2.0 connectors  Power Input ...

  • Page 11: Iii. Mechanical Specification

    PS-H1701 Intel Atom D2550 17” HMI System III. Mechanical Specification Dimensions １１...
  • Page 12 PS-H1701 Intel Atom D2550 17” HMI System reserved for antenna detachable １２...

  • Page 13: Mechanical Layout

    PS-H1701 Intel Atom D2550 17” HMI System Mechanical Layout 3.2.1 Front View Power LED: Indicates the power status of the system. HDD LED: Indicates the status of the hard drive. 3.2.2 Side View USB: Connects to USB2.0 devices. DVD-ROM:. Reserved for DVD-ROM option. １３...

  • Page 14: Bottom View

    PS-H1701 Intel Atom D2550 17” HMI System 3.2.3 Bottom View LAN: Connect to a local area network. COM: Connect RS232 compatible serial devices. DC +12V Input: Plug a DC power cord. USB: Connects to USB2.0 devices. DVI-I: Supports either VGA or LCD monitor. Line-out: Connects to a headphone or speakers.

  • Page 15: Iv. Hardware Installation

    PS-H1701 Intel Atom D2550 17” HMI System IV. Hardware Installation Make sure the system has been shut down and the power cord has been unplugged. Install Memory Module and SATA HDD Step 1: Place the system front-side down and remove the 12 screws “1”, 10 at the back and 2 at the bottom.
  • Page 16 PS-H1701 Intel Atom D2550 17” HMI System Step 7: Insert the plated side of the memory module into the socket. Step 8: Push the module down until it is firmly locked by two latches. Step 9: Put the SBC back and fasten all screws. Step 10: Close the cover and fasten all screws.

  • Page 17: Install Sata Hdd

    PS-H1701 Intel Atom D2550 17” HMI System 4.1.2 Install SATA HDD Step 3: After remove the rear cover, use four screws to install a pair of HDD brackets at two sides of a 2.5” SATA HDD as illustrated in the diagram below.

  • Page 18: Mounting Bracket Installation

    PS-H1701 Intel Atom D2550 17” HMI System Mounting Bracket Installation C&T offers two optional accessories for mounting the system. 3-DINR-0002 Din Rail kit 3-VESA-0001 VESA mount kit 4.2.1 Din Rail Installation Step 1: Use four screws to install the bracket “A” at the back as indicated in the diagram below.
  • Page 19 PS-H1701 Intel Atom D2550 17” HMI System Step 4: Insert the security screw at the bottom of the din-rail base as indicated in the diagram below. １９...

  • Page 20: Vesa Mount Installation

    PS-H1701 Intel Atom D2550 17” HMI System Step 5: Make sure the din-rail kit are properly installed on the system. Step 6: Before secure the panel with the rail, make sure the rail is solid and firm to hold the panel. 4.2.2 VESA Mount Installation Step 1: Use four screws to install the bracket “A”...
  • Page 21 PS-H1701 Intel Atom D2550 17” HMI System Step 4: After attaching the panel PC to the surface, make sure the security screw is properly inserted as illustrated below. ２１...

  • Page 22: Panel Mount Installation

    PS-H1701 Intel Atom D2550 17” HMI System Panel Mount Installation The Panel PC can be panel mounted. The cutout of the panel is a 387mm x 317mm square as shown below. Note the thickness of the panel and the Panel Mount Seal together is 9.3mm maximum.
  • Page 23 PS-H1701 Intel Atom D2550 17” HMI System Step 3: Place the Panel Mount Seal down inside the edge of the panel PC. ２３...
  • Page 24 PS-H1701 Intel Atom D2550 17” HMI System Step 4: Place the panel on top of the Seal. Step 5: Insert the eight brackets back into the panel PC as shown below. Step 5: Fasten eight screws on the brackets. ２４...

  • Page 25: Jumper Setting & Connectors

    PS-H1701 Intel Atom D2550 17” HMI System V. Jumper Setting & Connectors Jumper Position JBAT1 COPEN1 JCOMP1 JCOMP3 JCOMP2 JCOMP4 Jumper Name JBAT1 CMOS RAM Clear Function Setting LVDS1 5V/3.3V Select Inverter1 VCC 12V/5V Select LVDS2 5V/3.3V Select Inverter2 VCC 12V/5V Select JCOMP1 COM1 Header Pin9 Function Select JCOMP2...

  • Page 26: Jumper Setting

    PS-H1701 Intel Atom D2550 17” HMI System Jumper Setting 5.2.1 JBAT 1: CMOS Clear Jumper Function Setting Jumper Normal (Default) 1-2 closed Restore BIOS Defaults 2-3 closed 5.2.2 JP1/3: LVDS1/2 VCC 5V/3.3V Select Function Setting Jumper 5V (Default) 1-2 closed 3.3V 2-3 closed 5.2.3...

  • Page 27: Jp5: Com 4 Rs232/422/485 Function Select

    PS-H1701 Intel Atom D2550 17” HMI System 5.2.5 JP5: COM 4 RS232/422/485 Function Select Function Setting Jumper RS232 (Default) 1-2 closed RS485 3-4 closed RS422 5-6 closed 5.2.6 COPEN: Case Open Message Display Function Select Function Setting Jumper Normal (Default) 1-2 open Case Open 1-2 short...

  • Page 28: Connector Position

    PS-H1701 Intel Atom D2550 17” HMI System Connector Position INVERTER2 INVERTER1 DC 12V Power-in Power Switch Button Connector Reset Button USB 2.0 Ports SODIMM Slot DVI-I Port LVDS2 Header CPUFAN1 Header Front Panel Header Mini PCIE slot RJ-45 LAN Port CIR Header RJ-45 LAN Port CFast Card Slot...

  • Page 29: External Connectors

    PS-H1701 Intel Atom D2550 17” HMI System 5.3.2 Internal Connectors Header Name SATA1/SATA2 Serial ATA II Connector PWOUT1 SATA Disk Power Connector COM1/COM2/COM3/COM4 Serial Port Headers TX-RXCOM1 RS422/485 Header USB3/USB4 USB Headers GPIO1 GPIO Header AUDIO1 Front Panel Audio Header JW_FP1 Front Panel Header (PWR LED/ HDD LED/ Power Button/ Reset)

  • Page 30: Usb 2.0 Connectors

    PS-H1701 Intel Atom D2550 17” HMI System 5.4.2 USB 2.0 Connectors Signal Signal USB Port 0 USB Port 1 USB +5 VCC USB +5 VCC USB#0_D- USB#1_D- USB#0_D+ USB#1_D+ 5.4.3 DVI-I Connector The DVI-I interface is the solution for either digital or analog signals. The DVI-I connector could be used for an LCD or CRT monitor display.

  • Page 31: Lan Connector

    PS-H1701 Intel Atom D2550 17” HMI System 5.4.4 RJ-45 LAN Connector The RJ-45 connectors are for Ethernet. Signal Signal MDI0+ MDI2+ MDI0- MDI2- MDI1+ MDI3+ MDI1- MDI3- Active LED 10 LAN LED (OFF) (Yellow) 100 LAN LED (Green) 1000 LAN LED (Orange) 5.4.5 COM Connector: RS-232 Signal...

  • Page 32: Internal Connectors

    PS-H1701 Intel Atom D2550 17” HMI System Internal Connectors 5.5.1 SATA II Connectors Signal SATA_TX+ SATA_TX- SATA_RX- SATA_RX+ 5.5.2 5.5.3 SATA Disc Power Connector: PWOUT1 Signal 5VSB CIR_RX CIR LED 5.5.4 Serial Port Headers: COM1/COM2/COM3/COM4 Signal Signal DCD, Data Carrier Detect RXD, Receive Data TXD, Transmit Data DTR, Data Terminal Ready...

  • Page 33: Usb Port Headers: Usb3/Usb4

    PS-H1701 Intel Atom D2550 17” HMI System 5.5.6 USB Port Headers: USB3/USB4 Signal Signal DATA- DATA- DATA+ DATA+ 5.5.7 GPIO Header: GPIO Signal Signal GPIO0 GPIO1 GPIO2 GPIO3 GPIO5 GPIO7 GPIO32 GPIO33 5.5.8 Front Panel Header: JW_FP1 Signal Signal VCC5 HDD LED VCC5 PWR LED...

  • Page 34: Cir Header: Cir

    PS-H1701 Intel Atom D2550 17” HMI System 5.5.10 CIR Header: CIR Signal 5VSB CIR Learn 5.5.11 CPU FAN Header: CPUFAN1 Signal +12V Fan Power Fan Speed Dec 5.5.12 LVDS Inverter: INVERTER1 Signal Backlight Enable Backlight Duty PVCC PVCC Backlight +SW Backlight -SW 5.5.13 LVDS Inverter: INVERTER2...

  • Page 35: Vi. System Bios

    PS-H1701 Intel Atom D2550 17” HMI System VI. SYSTEM BIOS The system BIOS software is stored on EEPROM. The BIOS provides an interface to modify the configuration. When the battery is removed, all the parameters will be reset. Turn on the computer and press <DEL> or <F2> to enter the setup screen. There are six menu bars on top of BIOS screen: ...

  • Page 36: Main

    PS-H1701 Intel Atom D2550 17” HMI System Main The Main setup screen is showed as following when the setup utility is entered. System Date/Time is set up in the Main Menu. System Date: MM/DD/YYYY System Time: HH:MM:SS Use Tab to switch between Date and Time elements. ３６...

  • Page 37: Advanced

    PS-H1701 Intel Atom D2550 17” HMI System Advanced Launch LAN1/LAN2 PXE OpROM: Enable or Disable Boot Option for Legacy Network Devices Launch Storage OpROM: Enable or Disable Boot Option for Legacy Mass Storage Devices with Option ROM. Onboard LAN 1 Controller: Enable or Disable PCI Express Root Port 1. Onboard LAN 2 Controller: Enable or Disable Mini-PCIE Control.

  • Page 38: Acpi Settings

    PS-H1701 Intel Atom D2550 17” HMI System 6.2.1 ACPI Settings ACPI Sleep State: Select the highest ACPI sleep state the system will enter when the SUSPEND button is pressed. Select between [Suspend Disabled] or [S3 (Suspend to RAM)]. ３８...

  • Page 39: Wakeup Function Settings

    PS-H1701 Intel Atom D2550 17” HMI System 6.2.2 Wakeup Function Settings Wake System with Fixed Time: Enable or disable System wake on alarm event. When enabled, System will wake on the hr::min::sec specified. CIR Wake: Enable or Disable CIR Wakeup. This function is supported only when ERP Function is disabled.

  • Page 40: Cpu Configuration

    PS-H1701 Intel Atom D2550 17” HMI System 6.2.3 CPU Configuration Hyper-Threading: Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). Execute Disable Bit: XP can prevent certain classes of malicious buffer overflow attacks when combined with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux 9.2, RedHat Enterprise 3 Update 3.)

  • Page 41: Sata Configuration

    PS-H1701 Intel Atom D2550 17” HMI System 6.2.4 SATA Configuration SATA Controller(s): SATA Ports (0-3) Device Names if Present and Enabled. Configure SATA as: Select a configuration for SATA Controller, [IDE] or [AHCI]. ４１...

  • Page 42: Usb Configuration

    PS-H1701 Intel Atom D2550 17” HMI System 6.2.5 USB Configuration Legacy USB Support: Enables Legacy USB support. AUTO option disabled legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications. EHCI Hand-off: This is a workaround for OSes without EHCI hand-off support.

  • Page 43: Super Io Configuration

    PS-H1701 Intel Atom D2550 17” HMI System 6.2.6 Super IO Configuration CIR Controller: Enable or Disable CIR Controller Case Open Detect: Detect Case has already open or not. Show message in POST. ４３...

  • Page 44: Pc Health Status

    PS-H1701 Intel Atom D2550 17” HMI System 6.2.7 PC Health Status SmartFAN Configuration: CPUFAN1 SmartFan Mode: SmartFan Mode enabled or disabled. When enabled, the following sub-items shall appear: CPUFAN1 Full Speed Temp: Set a temperature for CPUFAN1 to run at full speed when above this specific temperature. CPUFAN1 Idle Temp: Set a temperature for CPUFAN1 to idle speed when below this specific temperature.

  • Page 45: Serial Port Configuration

    PS-H1701 Intel Atom D2550 17” HMI System 6.2.8 Serial Port Configuration ► COM 1 /2/3 Configuration Serial Port: Enable or Disable Serial Port. Change Settings: Select an optimal setting for Super IO device. ► Serial Port 4 Configuration Serial Port: Enable or Disable serial port (COM). Change Settings: Select an optimal setting for super IO device.

  • Page 46: Clock Generator Configuration

    PS-H1701 Intel Atom D2550 17” HMI System 6.2.9 Clock Generator Configuration Clockgen Spread Spectrum: Enable or Disable Spread Spectrum Function IO Output Voltage: IO Output Voltage Setting. Select from [0.3V], [0.4V], [0.5V], [0.6V], [0.7V], [0.8V], [0.9V] and [1.0V] 6.2.10 Watchdog Configuration WatchDog Timer Control: Used to enable or disable WatchDog Timer.

  • Page 47: Shutdown Temperature Configuration

    PS-H1701 Intel Atom D2550 17” HMI System 6.2.11 Shutdown Temperature Configuration Select the system shutdown temperature. Select from [Disabled], [60C/140F], [65C/149F], [70C/158F], [75C/167F]]. ４７...

  • Page 48: Ppm Configuration

    PS-H1701 Intel Atom D2550 17” HMI System 6.2.12 PPM Configuration EIST: Enable or Disable Intel SpeedStep. CPU C state Report: Enable or Disable CPU C state report to OS. Enhanced C state: Enable or Disable Enhanced CPU C state. CPU Hard C4E: Enable or Disable CPU Hard C4E function. CPU C6 state: Enable or disable CPU C6 state.

  • Page 49: Chipset

    PS-H1701 Intel Atom D2550 17” HMI System Chipset ４９...

  • Page 50: Host Bridge

    PS-H1701 Intel Atom D2550 17” HMI System 6.3.1 Host Bridge Internal Graphics: Keep IGD enabled based on the setup options. IGFX-Boot Type: Select the Video Device which will be activated during POST. This has no effect if external graphics present. Select from: [VBIOS Default], [DVI ->...

  • Page 51: South Bridge

    PS-H1701 Intel Atom D2550 17” HMI System 6.3.2 South Bridge Azalia Controller: Enable/ Disable Azalia Controller. UHCI #1/#2/#3/#4: Control the USB UHCI (USB1.1) functions. Disable from highest to lowest controller. USB 2.0 (EHCI) Support: Enable or Disable USB2.0 (EHCI) Support. High Precision Timer: Enable or Disable the High Precision Event Timer.

  • Page 52: Boot

    PS-H1701 Intel Atom D2550 17” HMI System Boot Setup Prompt Timeout: Set number of seconds to wait for setup activation key. 65535 (0xFFFF) means indefinite waiting. Bootup NumLock State: Select the keyboard NumLock state, [On] or [Off]. Quiet Boot: Enables or disables Quiet Boot option. GateA20 Active: Select between [Upon Request] and [ Always].

  • Page 53: Security

    PS-H1701 Intel Atom D2550 17” HMI System Security Administrator’s and User’s passwords could be set. If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup.

  • Page 54: Save And Exit

    PS-H1701 Intel Atom D2550 17” HMI System Save and Exit Save Changes and Reset: Reset the system after saving the changes. Discard Changes and Reset: Reset system setup without saving any changes. Restore Defaults: Restore/Load Default values for all the setup options. Save as User Defaults: Save the changes done so far as user Defaults.

  • Page 55: Vii. Address Map

    PS-H1701 Intel Atom D2550 17” HMI System VII. Address Map I/O Port Address Map The assignment of the I/O port addresses of the PS-H1701 under Windows® 7 Ultimate/32bit is shown below. ５５...
  • Page 56 PS-H1701 Intel Atom D2550 17” HMI System ５６...

  • Page 57: Interrupt Controller (Irq) Map

    PS-H1701 Intel Atom D2550 17” HMI System Interrupt Controller (IRQ) Map The interrupt controller map of PS-H1701 under Windows® 7 Ultimate/32bit is as shown below. ５７...
  • Page 58 PS-H1701 Intel Atom D2550 17” HMI System ５８...
  • Page 59 PS-H1701 Intel Atom D2550 17” HMI System ５９...

  • Page 60: Memory Map

    PS-H1701 Intel Atom D2550 17” HMI System Memory Map The memory map of DRAM of PS-H1701 under Windows® 7 Ultimate/32bit is shown below. ６０...
