C&T Solution VIO-200-PC100-EHL Series User Manual

Industrial panel pcs
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VIO-200-PC100-EHL Series
VIO-100-PC100-EHL Series
Industrial Panel PCs

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VIO-200-PC100-EHL Series and is the answer not in the manual?

Questions and answers

Related Manuals for C&T Solution VIO-200-PC100-EHL Series

Summary of Contents for C&T Solution VIO-200-PC100-EHL Series

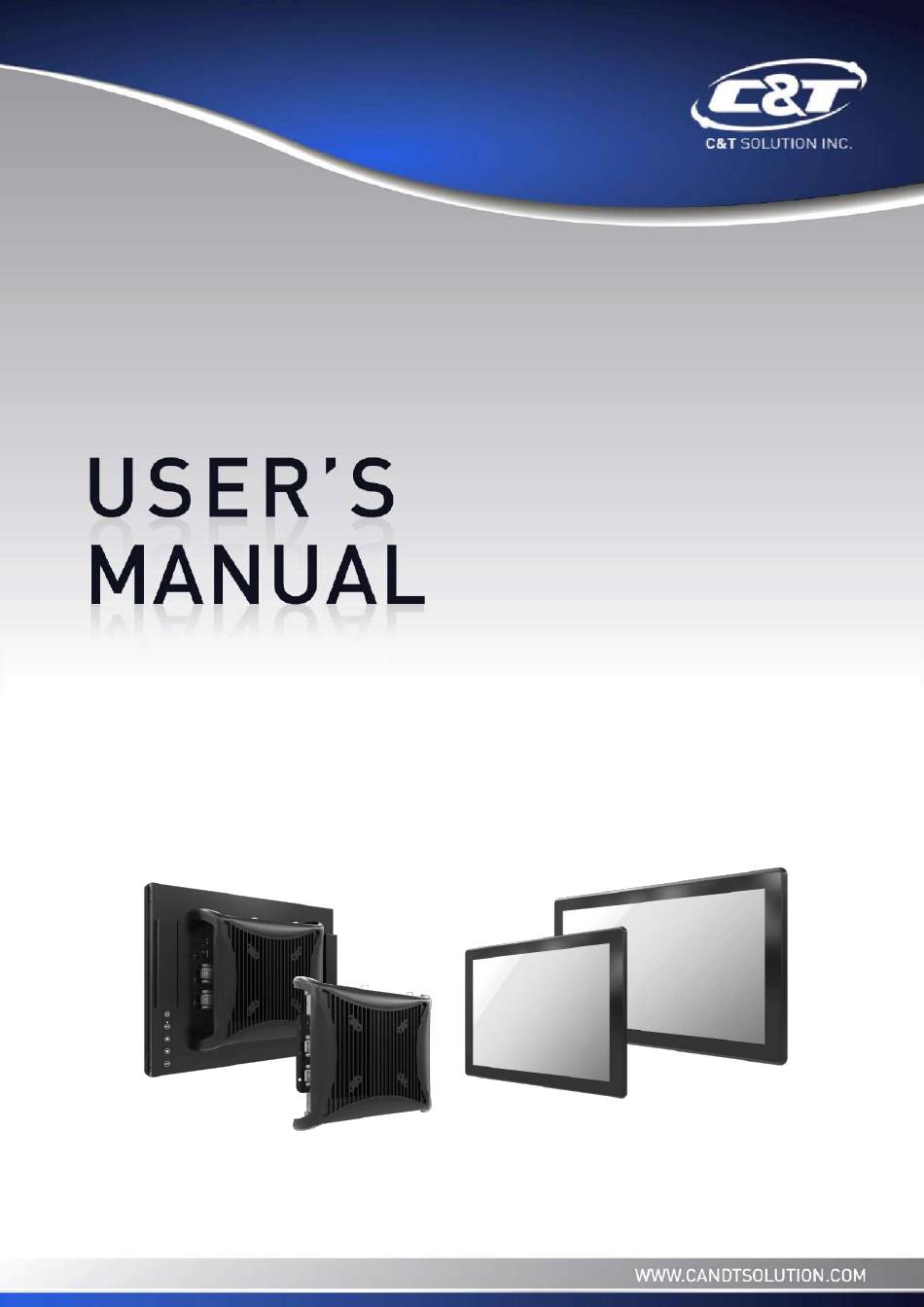

  • Page 1 VIO-200-PC100-EHL Series VIO-100-PC100-EHL Series Industrial Panel PCs...

  • Page 2: Table Of Contents

    l User’s Manual VIO-PC100-EHL Table of Contents Prefaces …………………………………………………….……………………………………………. 04 Revision …………………………………………………………………………………………..……………….……….. 04 Disclaimer ………………………………………………………..…….…….………………………….……………….. 04 Copyright Notice …………………………………….…………………….…………………………………………… 04 Trademarks Acknowledgment …………..………………………………………………………....04 Environmental Protection Announcement …………………………….………………….……………….. 04 Safety Precautions ………………………………………….……………………………….…………….………….. 05 Technical Support and Assistance …………………………………….…………….…………….…………….06 Conventions Used in this Manual ………………………………………………………………….….………..06 Package Contents …………………………………………………………………………………………….…………...
  • Page 3 l User’s Manual VIO-PC100-EHL Installing HDD on removable SATA HDD bay …………………………….……………... 55 Installing SIM card ………………………………………………………………………………… 56 Removing chassis top cover …………………….………………………….………………….. 58 Installing antenna ……………………………………………………………….…….…………….. 59 Assembling chassis top cover …………………………………………….………..………….. 62 Connecting PC module with VIO display module ……………………..……………... 64 4.10 PC100-EHL-1E Installing PCIe expansion card ……………………..…………………...

  • Page 4: Prefaces

    l User’s Manual Preface VIO-PC100-EHL Prefaces Revision Revision Description Date Manual Released 2023/08/25 Disclaimer All specifications and information in this User’s Manual are believed to be accurate and up to date. C&T Solution Inc. does not guarantee that the contents herein are complete, true, accurate or non-misleading. The information in this document is subject to change without notice and does not represent a commitment on the part of C&T Solution Inc.

  • Page 5: Safety Precautions

    Preface l User’s Manual VIO-PC100-EHL Safety Precautions Before installing and using the equipment, please read the following precautions: ⚫ Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause damage. ⚫ The power outlet shall be installed near the equipment and shall be easily accessible. ⚫...

  • Page 6: Technical Support And Assistance

    l User’s Manual Preface VIO-PC100-EHL Technical Support and Assistance 1. Visit the C&T Solution Inc website at https://www.candtsolution.com where you can find the latest information about the product. 2. Contact your distributor, our technical support team or sales representative for technical support if you need additional assistance.

  • Page 7: Package Contents

    l User’s Manual Preface VIO-PC100-EHL Package Contents Before installation, please ensure all the items listed in the following table are included in the package. VIO-212-PC100-EHL | VIO-212-PC100-EHL-1E VIO-110-PC100-EHL | VIO-110-PC100-EHL-1E Item Description Q’ty Item Description Q’ty VIO-110-PC100-EHL Series VIO-212-PC100-EHL Series Panel PC Panel PC Panel Mount Kit...

  • Page 8: Ordering Information

    l User’s Manual Preface VIO-PC100-EHL Ordering Information Product Description 10.4" SVGA Panel PC VIO-110R-PC100-EHL 10.4" SVGA Resistive Touch Panel PC with Intel® Celeron® Processor J6413 VIO-110C-PC100-EHL 10.4" SVGA Capacitive Touch Panel PC with Intel® Celeron® Processor J6413 10.4" SVGA Resistive Touch Panel PC with Intel® Celeron® Processor J6413, VIO-110R-PC100-EHL-1E 1x Universal I/O Bracket, 1x PCIe 10.4"...
  • Page 9 l User’s Manual Preface VIO-PC100-EHL 19" SXGA Thin Frame Product Description Panel PC VIO-219R-PC100-EHL 19" SXGA Resistive Touch Thin Frame Panel PC with Intel® Celeron® Processor J6413 VIO-219C-PC100-EHL 19" SXGA Capacitive Touch Thin Frame Panel PC with Intel® Celeron® Processor J6413 19"...

  • Page 10: Optional Accessory

    l User’s Manual Preface VIO-PC100-EHL Optional Accessories Model No. Product Description 1-E09A06008 Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch SFICBL022 Power Cord, 3-pin US Type, 180cm 1-TPCD00002 Power Cord, European Type, 180cm 1-TPCD00001 Power Cord, 3-pin UK Type, 180cm 3-DINR-0003 DIN-Rail Mount Kit...

  • Page 11: Chapter 1 Product Introductions

    Chapter 1 Product Introductions...

  • Page 12: Overview

    VIO-PC100-EHL 1.1 Overview The VIO-100-PC100-EHL and VIO-200-PC100-EHL series Panel PC is based on Intel® Celeron® Processor J6413. Designed with flat surface, IP 65 dust / waterproof front panel, and aluminum die-casting front frame with rugged body structure, it is a versatile I/O connections, and rugged reliability industrial panel PC.

  • Page 13: Hardware Specification

    l User’s Manual Chapter 1: Product Introductions VIO-PC100-EHL 1.2 Hardware Specification Hardware Specification Viewing Display Max. Brightness Contrast Pixel Pitch Backlight Angle Size Resolution (cd/m2): Ratio Color (mm): MTBF (Model No.) (H-V): VIO-110-PC100-EHL 10.4” 800 x 600 0.264 (H) x 160 / 130 (4:3) (SVGA)
  • Page 14 l User’s Manual Chapter 1: Product Introductions VIO-PC100-EHL Hardware Specification System Intel® Celeron® J6413 Processor Quad core (1.5M Cache,1.8GHz up to 3.00 GHz) Processor FC-BGA16F, Tray 10W System Chipset SoC Integrated GbE1: Intel® I210 (Support Wake-on-LAN and PXE) LAN Chipset 2.5 GbE2: Intel®...
  • Page 15 l User’s Manual Chapter 1: Product Introductions VIO-PC100-EHL Hardware Specification Audio 1x Mic-in, 1x Line-out 2x CAN 2.0 A/B 2-pin Header (Internal) 4x RS-232/422/485 2x RS-232/422/485 (internal) 8 in / 8 out (Isolated) 2x RJ45 VIO-xxx-PC100-EHL VIO-xxx-PC100-EHL-1E Universal I/O Bracket 1x Universal I/O Bracket (By mini PCIe interface) 2x USB 3.2 Gen 2 (10 Gbps)
  • Page 16 l User’s Manual Chapter 1: Product Introductions VIO-PC100-EHL Hardware Specification Power Power Adapter Optional AC/DC 12V/5A, 60W Power Management Power Ignition Management (by Optional Module) Power Mode AT, ATX Power Supply Voltage 9~36 VDC Power Connector 3-Pin Terminal Blcok OVP (Over Voltage Protection) Power Protection OCP (Over Current Protection) Reserve Protection...

  • Page 17: System I/O

    l User’s Manual Chapter 1: Product Introductions VIO-PC100-EHL 1.3 System I/O 1.3.1 PC100-EHL (Top & Bottom) Removable HDD Bay SIM Card Socket Used to inserts a 2.5” HDD device Used to insert SIM card Antenna hole Used to connect an antenna for optional Mini- PCIe WiFi module DC IN 4x USB port...
  • Page 18 l User’s Manual Chapter 1: Product Introductions VIO-PC100-EHL PC100-EHL (Left & Right) ATX power on/off switch Line-out Press to power-on or power-off the system Used to connect a speaker Power LED Mic-in Indicates the power status of the system Used to connect a microphone HDD LED Remote Power on/off Terminal Block Indicates the status of the hard drive...

  • Page 19: Pc100-Ehl-1E

    l User’s Manual Chapter 1: Product Introductions VIO-PC100-EHL 1.3.2 PC100-EHL-1E (Top & Bottom) Removable HDD Bay SIM Card Socket Used to inserts a 2.5” HDD device Used to insert SIM card Antenna hole Used to connect an antenna for optional Mini- PCIe WiFi module DC IN 4x USB port...
  • Page 20 l User’s Manual Chapter 1: Product Introductions VIO-PC100-EHL PC100-EHL-1E (Left & Right) ATX power on/off switch Line-out Press to power-on or power-off the system Used to connect a speaker Power LED Mic-in Indicates the power status of the system Used to connect a microphone HDD LED Remote Power on/off Terminal Block Indicates the status of the hard drive...

  • Page 21: Vesa Mounting Hole

    l User’s Manual Chapter 1: Product Introductions VIO-PC100-EHL 1.3.3 VESA Mounting Hole These are mounting holes for VESA mount (75x75mm and 100x100mm)

  • Page 22: Mechanical Dimension

    l User’s Manual Chapter 1: Product Introductions VIO-PC100-EHL 1.4 Mechanical Dimensions 1.4.1 VIO-110-PC100-EHL Unit: mm VIO-110-PC100-EHL-1E Unit: mm...

  • Page 23: Vio-212-Pc100-Ehl Series

    l User’s Manual Chapter 1: Product Introductions VIO-PC100-EHL 1.4.2 VIO-212-PC100-EHL Unit: mm VIO-212-PC100-EHL -1E Unit: mm...

  • Page 24: Vio-215-Pc100-Ehl Series

    l User’s Manual Chapter 1: Product Introductions VIO-PC100-EHL 1.4.3 VIO-215-PC100-EHL Unit: mm VIO-215-PC100-EHL-1E Unit: mm...

  • Page 25: Vio-217-Pc100-Ehl Series

    l User’s Manual Chapter 1: Product Introductions VIO-PC100-EHL 1.4.4 VIO-217-PC100-EHL Unit: mm VIO-217-PC100-EHL-1E Unit: mm...

  • Page 26: Vio-219-Pc100-Ehl Series

    l User’s Manual Chapter 1: Product Introductions VIO-PC100-EHL 1.4.5 VIO-219-PC100-EHL Unit: mm VIO-219-PC100-EHL-1E Unit: mm...

  • Page 27: Vio-W215-Pc100-Ehl Series

    l User’s Manual Chapter 1: Product Introductions VIO-PC100-EHL 1.4.6 VIO-W215-PC100-EHL Unit: mm VIO-W215-PC100-EHL-1E Unit: mm...

  • Page 28: Vio-W221-Pc100-Ehl Series

    l User’s Manual Chapter 1: Product Introductions VIO-PC100-EHL 1.4.7 VIO-W221-PC100-EHL Unit: mm VIO-W221-PC100-EHL-1E Unit: mm...

  • Page 29: Vio-W224-Pc100-Ehl Series

    l User’s Manual Chapter 1: Product Introductions VIO-PC100-EHL 1.4.8 VIO-W224-PC100-EHL Unit: mm VIO-W224-PC100-EHL-1E Unit: mm...

  • Page 30: Chapter 2 Switches And Connectors

    Chapter 2 Switches and Connectors...

  • Page 31: Switch And Connector Locations

    l User’s Manual Chapter 2: Switches and Connectors VIO-PC100-EHL 2.1 Switch and Connector Locations 2.1.1 Top View CLR_CMOS1 AT_ATX1 COM4 COM3 COM5 LAN2 M2_KB LAN1 USB2 USB1 SIM2 SATA1 HDMI1 SIM1 DC_IN1 PCIE1 COM6 PWR_SW1 PWR_SW2 COM1 COM2 LINE_OUT1 MIC_IN1...

  • Page 32: Bottom View

    l User’s Manual Chapter 2: Switches and Connectors VIO-PC100-EHL 2.1.2 Bottom View RESET1 BAT1 SIG_OUT1 MPCIE1 M2 KE SODMM1...

  • Page 33: Connector / Switch Definition

    l User’s Manual Chapter 2: Switches and Connectors VIO-PC100-EHL 2.2 Connector / Switch Definition List of Connector / Switch Connector Location Definition AT_ATX1 AT / ATX Power Mode Switch CLR_CMOS1 Clear BIOS Switch PWR_SW1 Power Switch RESET1 Reset Switch USB2, USB1 USB Port (3.2 Gen 2 and 2.0) SIM1, SIM2 SIM Card Socket...
  • Page 34 l User’s Manual Chapter 2: Switches and Connectors VIO-PC100-EHL LAN Port i225 LAN1 Signal LAN2_MDI0_P LAN2_MDI0_N LAN2_MDI1_P LAN2_MDI1_N R5_CT R6_CT LAN2_MDI2_P LAN2_MDI2_N LAN2_MDI3_P LAN2_MDI3_N L1_1 LAN2_SPD_2500# L2_! L2 LINK1000J L3_1 +V3.3A_LAN2 L4_1 LAN2_LINK_ACT# LAN Port i210 LAN2 Signal LAN1_MDI0_P LAN1_MDI0_N LAN1_MDI1_P LAN1_MDI1_N R5_CT...
  • Page 35 l User’s Manual Chapter 2: Switches and Connectors VIO-PC100-EHL USB1 USB Port 2.0 Signal Signal USB2_VCC1 USB2_VCC1 USB2_P5_N USB2_P6_N USB2_P5_P USB2_P6_P USB2 USB Port 3.2 Gen 2 Signal Signal +V5A_USBP12 +V5A_USBP12 USB2_P1_N USB2_P2_N USB2_P1_P USB2_P2_P P1_SSRX_N P2_SSRX_N P1_SSRX_P P2_SSRX_P P1_SSTX_N P2_SSTX_N P1_SSTX_P P2_SSTX_P...
  • Page 36 l User’s Manual Chapter 2: Switches and Connectors VIO-PC100-EHL Display Port Signal Signal DP1_TXP0 DP1_TXN3 DP1_TXN0 DP1_CFG1 DP1_TXP1 DP1_AUX+_HDMI_ DDCCLK DP1_TXN1 DP1_AUX- DP1_TXP2 _HDMI_DDCDAT DP1_HPD DP1_TXN2 DP_PWR Return DP1_TXP3 DP_PWR HDMI1 (Optional) High Definition Multimedia Interface Signal Signal HDMI_TX2+_C HDMI_TXC-_C HDMI_TX2-_C HDMI_TX1+_C HDMI_SCL...
  • Page 37 l User’s Manual Chapter 2: Switches and Connectors VIO-PC100-EHL DC_IN1 Power Input DC 9~36V Signal Power 9-36V_IN ACC Ignition GND_IN PWR_SW1 Power Button Signal PWRBT_IN# Digital I/O Signal Signal IN1_1 OUT1_1 IN2_1 OUT2_1 IN3_1 OUT3_1 IN4_1 OUT4_1 IN5_1 OUT5_1 IN6_1 OUT6_1 IN7_1 OUT7_1...
  • Page 38 l User’s Manual Chapter 2: Switches and Connectors VIO-PC100-EHL LINE-OUT1 Line-out Jack Signal AGND LINEOUT_RIGHT AGND AGND LINEOUT_LEFT MIC-IN1 Mic-in Jack Signal AGND MIC_IN_R AGND AGND MIC_IN_L COM1 RS232 / RS422 / RS485 Connector Signal Signal NDCD1 NDSR1 NRXD1 NRTS1 NTXD1 NCTS1 NDTR1...
  • Page 39 l User’s Manual Chapter 2: Switches and Connectors VIO-PC100-EHL COM2 RS232 / RS422 / RS485 Connector Signal Signal NDCD2 NDSR2 NRXD2 NRTS2 NTXD2 NCTS2 NDTR2 NRI2 COM3 RS232 / RS422 / RS485 Connector Signal Signal NDCD3 NDSR3 NRXD3 NRTS3 NTXD3 NCTS3 NDTR3 NRI3...
  • Page 40 l User’s Manual Chapter 2: Switches and Connectors VIO-PC100-EHL COM5 RS232 / RS422 / RS485 Connector Signal Signal CM5_DCD CM5_CTS CM5_DSR CM5_DTR CM5_RXD CM5_RI CM5_RTS CM5_TXD COM6 RS232 / RS422 / RS485 Connector Signal Signal CM6_DCD CM6_CTS CM6_DSR CM6_DTR CM6_RXD CM6_RI CM6_RTS CM6_TXD...
  • Page 41 l User’s Manual Chapter 2: Switches and Connectors VIO-PC100-EHL SIM1 SIM Card Socket Signal Signal P_UIM_PWR P_UIM_RST P_UIM_VPP P_UIM_CLK P_UIM_DATA SIM2 SIM Card Socket Signal Signal P1_UIM_VDD P1_UIM_RST P1_UIM_VPP P1_UIM_CLK P1_UIM_DATA P_UIM_CD ATX1 AT / ATX Power Mode Switch Switch Signal 1-2 (Left) ATX Power Mode...
  • Page 42 l User’s Manual Chapter 2: Switches and Connectors VIO-PC100-EHL PCIE1 Signal Signal Pull down SMB_CLK SMB_DATA 3.3V 3.3V 3.3V 3.3V PCIE_X4_RST# PCIE_X4_WAKE_N CLKOUT_PCIE_P0 CLKOUT_PCIE_N0 B14 X4SLOT_PCIE_6_TX_P B15 X4SLOT_PCIE_6_TX_N X4SLOT_PCIE_6_RX_P X4SLOT_PCIE_6_RX_N PCIEX4_PRSNT# A19- B19- SATA1 SATA with Power Connector Signal Signal SATA_TXP1 SATA_TXN1 SATA_RXN1...
  • Page 43 l User’s Manual Chapter 2: Switches and Connectors VIO-PC100-EHL M2_KB M.2 B-Key Socket Signal Signal CONFIG_3 VCC1 VCC2 FULL_CARD_POWER_O USB_D+ W_DISABLE1# USB_D- WWAN_LED# NOTCH NOTCH NOTCH NOTCH NOTCH NOTCH NOTCH NOTCH GPIO_5(O/1.8V) CONFIG_0 GPIO_6(O/1.8V) GPIO_11(0/1.8V) GPIO_7(O/1.8V) GPIO_10(O/1.8V) GPIO_8(O/1.8V) PERn1/USB3.0-Rx- USIM1_RST PERp1/USB3.0-Rx+ USIM1_CLK USIM1_DATA...
  • Page 44 l User’s Manual Chapter 2: Switches and Connectors VIO-PC100-EHL CLR_CMOS1 Clear BIOS Switch Switch Signal Clear CMOS Default Buzzer Signal Positive Negative...
  • Page 45 l User’s Manual Chapter 2: Switches and Connectors VIO-PC100-EHL MPCIE1 Signal Signal WAKE# +3.3V Reserved Reserved +1.5V CLKREQ# UIM_PWR UIM_DATA REFCLK- UIM_CLK REFCLK+ UIM_RESET UIM_VPP Reserved Reserved Reserved PERST# PERn0 +3.3Vaux PERp0 +1.5V SMB_CLK PETn0 SMB_DATA PETp0 USB_D- Reserved USB_D+ Reserved Reserved LED_WWAN#...
  • Page 46 l User’s Manual Chapter 2: Switches and Connectors VIO-PC100-EHL BAT1 Battery Signal +VBAT SIG_OUT1 VIO Display Module Connector Signal Signal PE1_TX+ PE3_RX- PE1_TX- PE4_TX+ PE1_RX+ PE4_TX- PE1_RX- PE4_RX+ PE2_TX+ PE4_RX- PE2_TX- USB_0P USB_0N PE2_RX+ Power_BTN...
  • Page 47 l User’s Manual Chapter 2: Switches and Connectors VIO-PC100-EHL M2_KE M.2 E Key Socket Signal Signal +V3.3A USB_D+ +V3.3A USB_D- NOTCH NOTCH NOTCH NOTCH NOTCH NOTCH NOTCH NOTCH NOTCH PCIE_1_TX_DP PCIE_1_TX_DN PCIE_1_RX_DP PCIE_1_RX_DN CLKOUT_PCIE_P1 CLKOUT_PCIE_N1 M.2_E_RST# SRCCLKREQ1_N M.2_E_WAKE_L M.2_E_RST# M.2_E1_WAKE_L +V3.3A +V3.3A...

  • Page 48: Chapter 3 Front Panel Controls

    Chapter 3 Front Panel Controls...

  • Page 49: Users Controls

    l User’s Manual Chapter 3: Front Panel Controls VIO-PC100-EHL 3.1 Users Controls POWER MENU INCREASE DECREASE AUTO ◼ Power Button Turns the monitor on or off. ◼ 1. Blue indicates power on. 2. Yellow indicates HDD access status. ◼ MENU / Enter Button Press to view the OSD menu.

  • Page 50: Osd Operation

    l User’s Manual Chapter 3: Front Panel Controls VIO-PC100-EHL 3.2 OSD Operation 3.2.1 Luminance ■ Brightness Adjust the luminance level of the screen. ■ Contrast Adjusts the contrast level of the screen. ■ Gamma This item allows you to on or off the Gamma function. ■...

  • Page 51: Color

    l User’s Manual Chapter 3: Front Panel Controls VIO-PC100-EHL 3.2.3 Color ■ Color Temperature 6500K: Select the setting of screen color to be reddish white. 7500K: Select the setting of screen color to be bluish white. 9300K: Select the setting of screen color to be bluish white. sRGB: Set the screen color to fit the sRGB standard color specification.

  • Page 52: Chapter 4 System Setup

    Chapter 4 System Setup...

  • Page 53: Set Torque Force To 3.5 Kgf-Cm To Execute All The Screwing And Unscrewing

    l User’s Manual Chapter 4: System Setup VIO-PC100-EHL 4.1 Set torque force to 3.5 kgf-cm to execute all the screwing and unscrewing In order to prevent electric shock or system damage, before removing the chassis cover, must turn off power and disconnect the unit from power source. 4.2 Installing SODIMM Remove the SODIMM cover in the below circled area.

  • Page 54: Installing Mini Pcie Card / Msata / M.2 E Key

    l User’s Manual Chapter 4: System Setup VIO-PC100-EHL 4.3 Installing mini PCIe card / mSATA / M.2 E Key. Two mini PCIe slots with M.2 E Key Support is available on PC100 Series. M.2 E Key MiniPCIE1 / mSATA Insert mini PCIe card/mSATA module at a 45 degree angle. Press the mini PCIe card or mSATA module down and ensure it is secure before screwing the cover back on.

  • Page 55: Installing Hdd On Removable Sata Hdd Bay

    l User’s Manual Chapter 4: System Setup VIO-PC100-EHL 4.4 Installing HDD on removable STAT HDD bay 1. To unlock the tray lock press the location highlighted at the red circle below and pull the tray towards you to remove the SATA HDD/SSD bay. Unlock the drive lock by lifting the plastic insert up, 3.

  • Page 56: Installing Sim Card

    l User’s Manual Chapter 4: System Setup VIO-PC100-EHL 4.5 Installing SIM card There are two SIM card slots are available on system chassis located next to the removable HDD bay, as shown below. Place the SIM card inside the SIM slot until you hear a click.
  • Page 57 l User’s Manual Chapter 4: System Setup VIO-PC100-EHL 3. Please refer to the table below to note which SIM slot to insert your SIM card into according to the matching Mini PCIe type. SIM Card Socket Number Matching Mini PCIe Slot SIM 1 M.2 B Key SIM 2...

  • Page 58: Removing Chassis Top Cover

    l User’s Manual Chapter 4: System Setup VIO-PC100-EHL 4.6 Removing chassis top cover 1. To remove the chassis top cover, there are 6 screws to be unscrewed at the locations highlighted by the red circles below. 2. Once all six screws are removed, the chassis top cover can be lifted up as shown below.

  • Page 59: Installing Antenna

    l User’s Manual Chapter 4: System Setup VIO-PC100-EHL 4.7 Installing antenna 1. Remove 3 screws located at the back of the system as pictured below. The screw locations are highlighted in red. 2. Remove 4 screws located at the front and side face of the system as pictured below. The screw locations are highlighted in red.
  • Page 60 l User’s Manual Chapter 4: System Setup VIO-PC100-EHL 4. Pass the RF connector at the end of the cable around the gap between the iron piece and the motherboard and connect it to the communication module。 5. Put on washer and fasten the nut with antenna jack as indicated below. 6.
  • Page 61 l User’s Manual Chapter 4: System Setup VIO-PC100-EHL 7. Fasten the 4 screws located at the front and side face of the system as pictured below. The screw locations are highlighted in red. 8. Assemble the antenna and antenna jack together.

  • Page 62: Assembling Chassis Top Cover

    l User’s Manual Chapter 4: System Setup VIO-PC100-EHL 4.8 Assembling chassis top cover 1. Ensure thermal pad is in place on the CPU thermal block. 2. Close the chassis top cover following the below direction and make sure the aluminum part on the top cover is touching the thermal pad on CPU thermal block.
  • Page 63 l User’s Manual Chapter 4: System Setup VIO-PC100-EHL 3. Fasten the 6 screws to lock the system body with top cover. The locations are highlighted by the red circles below.

  • Page 64: Connecting Pc Module With Vio Display Module

    l User’s Manual Chapter 4: System Setup VIO-PC100-EHL 4.9 Connecting PC module with VIO display module 1. Place the PC module with its connector facing the back of VIO display module as shown in the picture below. 2. Ensure the PC Module is aligned with the VIO Display Module and push it down gently. 3.

  • Page 65: Pc100-Ehl-1E Installing Pcie Expansion Card

    l User’s Manual Chapter 4: System Setup VIO-PC100-EHL 4.10 PC100-EHL-1E Installing PCIe expansion card 1. Unscrew the 6 screws indicated at the circles in the photos below. 2. Once unscrewed, remove the top cover of PC module as shown below.
  • Page 66 l User’s Manual Chapter 4: System Setup VIO-PC100-EHL 3. Unscrew the 3 screws below indicated at the locations highlighted below. 4. Then, unscrew the screw indicated in the red circle below. 5. Attach the PCIe expansion card and then fasten the screw in the circle indicated below.
  • Page 67 l User’s Manual Chapter 4: System Setup VIO-PC100-EHL 6. Install the PCIe/PCI card according to direction indicated in the picture below. 7. Ensure the gold fingers are inserted properly into the slot. 8. Fasten the 3 screws indicated at the locations in the red circles below.
  • Page 68 l User’s Manual Chapter 4: System Setup VIO-PC100-EHL 9. Replace the chassis top cover and make sure the aluminum part on the top cover is touching the thermal pad on CPU thermal block. 10. Fasten the 6 screws indicated by the red circles in the pictures below.

  • Page 69: Chapter 5 Bios Setup

    Chapter 5 BIOS Setup...

  • Page 70: Bios Introduction

    l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL 5.1 BIOS Introduction The BIOS provides an interface to modify the configuration. When the battery is removed, all the parameters will be reset. BIOS Setup Power on the embedded system and by pressing <Del> immediately allows you to enter the setup screens.

  • Page 71: Main Setup

    l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL 5.2 Main Setup Press <Del> to enter BIOS CMOS Setup Utility. The Main setup screen is showed as following when the setup utility is entered. System Date/Time is set up in the Main Menu. ■...

  • Page 72: Advanced Setup

    l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL 5.3 Advanced Setup...

  • Page 73: Cpu Configuration

    l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL 5.3.1 CPU Configuration Item Options Description Intel (VMX) Virtualization Disabled, When enabled, a VMM can utilize the Technology Enabled[Default] additional hardware capabilities provided by Virtualization Technology. Active Processor Cores All[Default] Number of cores to enable in each processor package.

  • Page 74: Pch-Fw Configuration

    l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL 5.3.2 PCH-FW Configuration...

  • Page 75: Sata And Rst Configuration

    l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL 5.3.3 SATA and RST Configuration Item Options Description Port0 ~1 Disabled, Enable or Disable SATA Port. Enabled[Default] Hot Plug Disabled, Designates this port as Hot Pluggable. Enabled[Default] SATA Device Type Hard Disk Drive[Default] , Identify the SATA port is connected to Solid Solid State Drive State Drive or Hard Disk Drive.

  • Page 76: Trusted Computing

    l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL 5.3.4 Trusted Computing Item Options Description Security Device Support Enabled[Default] , Enable/Disable BIOS support for security Disabled, device. O.S. will not show Security Device.TCG EFI protocol and INT1A interface will not be available. Pending operation None[Default] , Schedule an Operation for the Security Device.

  • Page 77: Acpi Setttings

    l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL 5.3.5 ACPI Settings Item Options Description Enable Hibernation Disabled , Enables or Disables System ability to Enabled[Default], Hibernate (OS/S4 Sleep State). This option may not be effective with some operating systems. ACPI Sleep State Suspend Disabled, Select the highest ACPI sleep state the S3 (Suspend to RAM)[Default]...

  • Page 78: Super Io Configuration

    l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL 5.3.6 Super IO Configuration This setting allows you to select options for the Super IO Configuration, and change the value of the selected option. Item Description Serial Port 1 Configuration Set Parameters of Serial Port 1 (COMA). Serial Port 2 Configuration Set Parameters of Serial Port 2 (COMB).
  • Page 79 l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL ◼ Serial Port 1 Configuration Item Options Description Serial Port Disabled, Enable or Disable Serial Port (COM). Enabled[Default] Change Settings Auto[Default], This item allows you to change the address & IO=3F8h; IRQ=4; , IRQ settings of the specified serial port.
  • Page 80 l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL ◼ Serial Port 2 Configuration Item Options Description Serial Port Disabled, Enable or Disable Serial Port (COM). Enabled[Default] Change Settings Auto[Default], This item allows you to change the address & IO=2F8h; IRQ=3; , IRQ settings of the specified serial port.
  • Page 81 l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL ◼ Serial Port 3 Configuration Item Options Description Serial Port Disabled, Enable or Disable Serial Port (COM). Enabled[Default] Change Settings Auto[Default], This item allows you to change the address & IO=3E8h; IRQ=7; , IRQ settings of the specified serial port.
  • Page 82 l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL ◼ Serial Port 4 Configuration Item Options Description Serial Port Disabled, Enable or Disable Serial Port (COM). Enabled[Default] Change Settings Auto[Default], This item allows you to change the address & IO=2E8h; IRQ=7; , IRQ settings of the specified serial port.
  • Page 83 l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL ◼ Serial Port 5 Configuration Item Options Description Serial Port Disabled, Enable or Disable Serial Port (COM). Enabled[Default] Change Settings Auto[Default], This item allows you to change the address & IO=2F0h; IRQ=7; , IRQ settings of the specified serial port.
  • Page 84 l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL ◼ Serial Port 6 Configuration Item Options Description Serial Port Disabled, Enable or Disable Serial Port (COM). Enabled[Default] Change Settings Auto[Default], This item allows you to change the address & IO=2E0h; IRQ=7; , IRQ settings of the specified serial port.

  • Page 85: Hardware Monitor

    l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL 5.3.7 Hardware Monitor These items display the current status of all monitored hardware devices/ components such as voltages and temperatures. Item Options Description Smart Fan Function Disabled[Default], Enabled or Disable Smart Fan Enabled...
  • Page 86 l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL ◼ Smart Fan Mode Configuration Item Options Description Fan1 SmartFan Control Manual Duty Mode, Smart Fan Mode Select Auto Duty-Cycle Mode[Default], Temperature 1~4 1~100 Auto fan speed control. SMART FAN IV Duty Cycle 1~4 20~100 Auto fan speed control.

  • Page 87: Power Ign Mode

    l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL 5.3.8 Power IGN Mode Item Options Description IGN Setting Bypass mode[Default] Bypass: BIOS will not control IGN Module, Write IGN Write IGN: BIOS will write setting to IGN module Power On Delay 10 Sec[Default] Power On Delay Select 20 Sec...

  • Page 88: Wake System From S5

    l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL 5.3.9 Wake system from S5 Item Options Description Wake system from S5 Disabled[Default] , Enable or disable System wake on alarm event. Fixed Time, Select FixedTime, system will wake on the Dynamic Time, hr::min::sec specified.

  • Page 89: Serial Port Console Redirection

    l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL 5.3.10 Serial Port Console Redirection Item Options Description Console Redirection Disabled[Default], These items allows you to enable or disable Enabled COM1 console redirection...

  • Page 90: Usb Configuration

    l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL 5.3.11 USB Configuration Item Options Description Legacy USB Support Enabled[Default] Enables Legacy USB support. AUTO option Disabled disables legacy support if no USB devices are Auto connected. DISABLE option will keep USB devices available only for EFI applications.

  • Page 91: Network Stack Configuration

    l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL 5.3.12 Network Stack Configuration Item Options Description Network Stack Disabled[Default] , Enable/Disable UEFI Network Stack. Enabled IPv4 PXE Support Disabled[Default] , Enable/Disable IPv4 PXE boot support. If Enabled disabled, IPv4 PXE boot support will not be available.

  • Page 92: Chipset

    l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL 5.4 Chipset This section allows you to configure and improve your system and allows you to set up some system features according to your preference.

  • Page 93: System Agent (Sa) Configuration

    l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL 5.4.1 System Agent (SA) Configuration Item Options Description VT-d Disabled, VT-d capability. Enabled [Default] Above 4GB MMIO BIOS Enabled[Default] , Enable/Disable above 4GB assignment Disabled MemoryMappedIO BIOS assignment\n\nThis is enabled automatically when Aperture Size is set to 2048MB.
  • Page 94 l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL ◼ Memory Configuration Item Options Description Max TOLUD Dynamic[Default], Maximum Value of TOLUD. Dynamic 1GB, assignment would adjust TOLUD 1.25GB, automatically based on largest MMIO length 1.5 GB, of installed graphic controller 1.75 GB, 2 GB, 2.25 GB,...
  • Page 95 l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL ◼ Graphic Configuration Item Options Description GTT Size 2MB, Select the GTT Size . 4MB, 8MB[Default] Aperture Size 128MB, Select the Aperture Size. 256MB[Default] , Note : Above 4GB MMIO BIOS assignment is 512MB, automatically enabled when selecting 2048MB 1024MB...

  • Page 96: Pch-Io Configuration

    l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL 5.4.2 PCH-IO Configuration Item Options Description Restore AC Power Loss Power On, Specify what state to go to when power is re- Power Off [Default] , applied after a power failure (G3 state). Lase State M.2 B-Key Selection USB + PCIe x1 [Default] ,...
  • Page 97 l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL ◼ PCI Express Configuration...
  • Page 98 l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL ◼ PCI Express Root Port 3 /4 /5 /7 Item Options Description PCI Express Root Port Disabled, Control the PCI Express Root Port. Enabled [Default] 3 /4 /5 /7 ASPM Disabled [Default] , Set the ASPM Level: L0s, Force L0s - Force all links to L0s State,...
  • Page 99 l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL ◼ HD Audio Configuration Item Options Description HD Audio Disabled, Control Detection of the HD-Audio device. Enabled [Default] Disabled = HDA will be unconditionally disabled Enabled = HDA will be unconditionally enabled.

  • Page 100: Security

    l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL 5.5 Security Security menu allow users to change administrator password and user password settings. ◼ Administrator Password This item allows you to set Administrator Password. ◼ User Password This item allows you to set User Password.
  • Page 101 l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL ◼ Security Boot Item Options Description Secure Boot Disabled [Default] , Secure Boot feature is Active if Secure Boot is Enabled Enabled,Platform Key(PK) is enrolled and the System is in User mode. The mode change requires platform reset Secure Boot Mode Standard,...
  • Page 102 l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL ◼ Key Management Item Options Description Factory Key Provision Disabled [Default] , Install factory default Secure Boot keys after Enabled the platform reset and while the System is in Setup mode...

  • Page 103: Boot

    l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL 5.6 Boot This menu allows you to setup the system boot options. Item Options Description Setup Prompt Timeout 1[Default] Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting. Bootup NumLock State On[Default] , Select the Keyboard NumLock state.

  • Page 104: Save & Exit

    l User’s Manual Chapter 5: BIOS Setup VIO-PC100-EHL 5.7 Save & Exit This setting allows users to configure the boot settings. ■ Save Changes and Reset This item allows user to reset the system after saving the changes. This item allows user to reset the system after saving the changes.

  • Page 105: Appendix Wdt & Gpio

    Appendix WDT & GPIO This appendix provides the sample codes of WDT (Watch Dog Timer) and GPIO (General Purpose Input/ Output).

  • Page 106: Wdt Sample Code

    l User’s Manual Appendix – WDT & GPIO VIO-PC100-EHL WDT Sample Code WDT Setting Psuedo Code // IO Address 0xA16 is time value // IO Address 0xA15 is WDT enable and configuration Example, Set 0xA16=-0x03, 0xA15=0x31, it will reset after 3 seconds #define TimePort 0xA16 #define TimeEnablePort 0xA15...

  • Page 107: Gpio Sample Code

    l User’s Manual Appendix – WDT & GPIO VIO-PC100-EHL GPIO Sample Code GPIO Setting IO_DI8 I/O 0xA03h Bit7 IO_DO8 I/O 0xA02h Bit7 IO_DI7 I/O 0xA03h Bit6 IO_DO7 I/O 0xA02h Bit6 IO_DI6 I/O 0xA03h Bit5 IO_DO6 I/O 0xA02h Bit5 IO_DI5 I/O 0xA03h Bit4 IO_DO5 I/O 0xA02h Bit4 IO_DI4...
  • Page 108 Copyright © C&T Solution Inc. All Rights Reserved www.candtsolution.com...
