Pump And Parts List - Landa XPERT-HD 3.8/35 P Service Manual

8.751-195.0 KS4040GR.3
8.751-177.0 LS4040GR.3
8.751-184.0 HS4040GR.3
S.3 PUMP EXPLODED VIEW PARTS LIST
ITEM PART NO. DESCRIPTION
1 8.751-217.0 Crankcase
See Kit Below
2* Plunger Oil Seal
3* See Kit Below O-Ring Ø1.78 x 31.47
See Kit Below
4* Pressure Ring
5* See Kit Below U-Seal, 15mm
6* See Kit Below Intermed. Ring 15mm
See Kit Below
7* U-Seal, 15mm
8 9.803-199.0 Copper Washer 1/2"
9 9.802-926.0 Brass Plug, 1/2"
10 8.751-218.0 Manifold Housing
11* 9.803-191.0 O-Ring Ø2.62 x 17.13
12* See Kit Below Valve Assembly
13* 9.803-193.0 O-Ring Ø2.62 x 20.29
14 9.802-928.0 Valve Plug
15 9.802-938.0 Manifold Stud Bolt
16 9.802-884.0 Washer 8
17 9.803-198.0 Copper Washer 3/8"
18 9.802-925.0 Brass Plug 3/8"
23 9.803-201.0 Washer, M6 x 16
24 9.802-939.0 Hexagonal Screw
25 9.803-184.0 Closed Bearing Housing

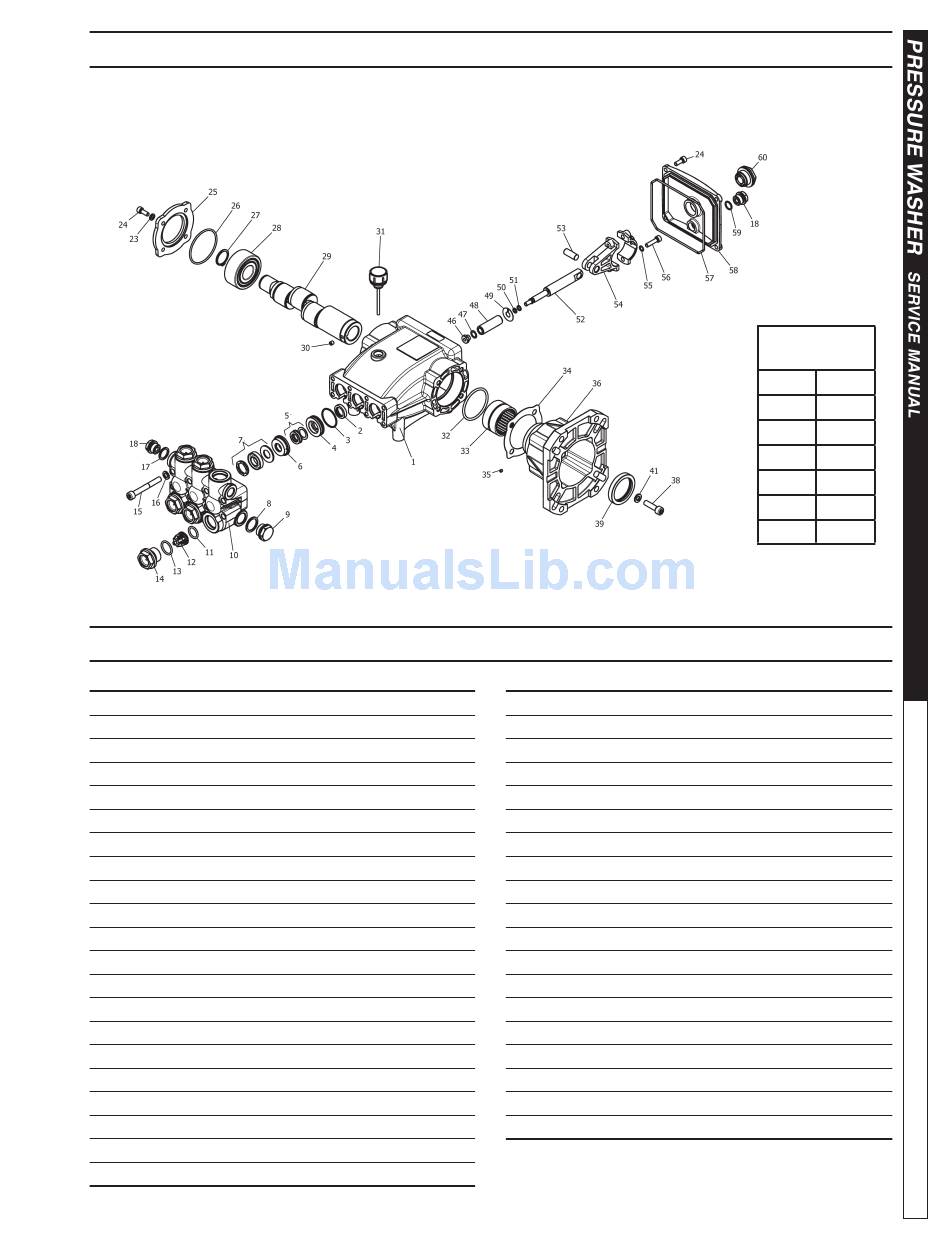

S.3 PUMP EXPLODED VIEW
8.751-194.0 KS3540GR.3
8.751-176.0 LS3540GR.3
8.751-183.0 HS3540GR.3
8.921-766.0 SS3540GR.3
QTY
1
3
3
3
3
3
3
1
1
1
6
6
6
6
8
1
2
4
9
1
8.780-001.0 • Xpert HD-DD-PD-DA-RG • Rev. 07/13
ITEM PART NO. DESCRIPTION
26 8.717-225.0 O-Ring Ø 2.62 x61.6
27 9.802-914.0 Snap Ring
28 9.803-168.0 Double Row Ball Bearing
29 9.803-151.0 Crankshaft (3540G.3)
9.803-152.0 Crankshaft (4040G.3)
30 9.802-945.0 Set Screw
31 9.802-921.0 Oil Dip Stick
32 9.804-581.0 O-Ring Ø 3.53 x 55.56
33 9.803-161.0 Needle Roller Bearing
34 8.751-230.0 Gasket 1
35 8.717-544.0 Screw, Set
36 9.803-183.0 Engine Flange
38 9.803-240.0 Flange Screw
39 9.803-142.0 Crankshaft Seal
41 9.803-221.0 Spring Washer
46* See Kit Below Plunger Nut, M6
See Kit Below
47* Washer, Copper, 9.2 x 13.5 3
48* See Kit Below Plunger, 15mm
See Kit Below
49* Copper Spacer
TORQUE
SPECS
Item # Ft.-lbs
14 75
15 30
24 7.6
38 10
46 7
56 13
QTY
1
1
1
1
1
1
1
1
1
1
1
4
1
4
3
3
3
7
