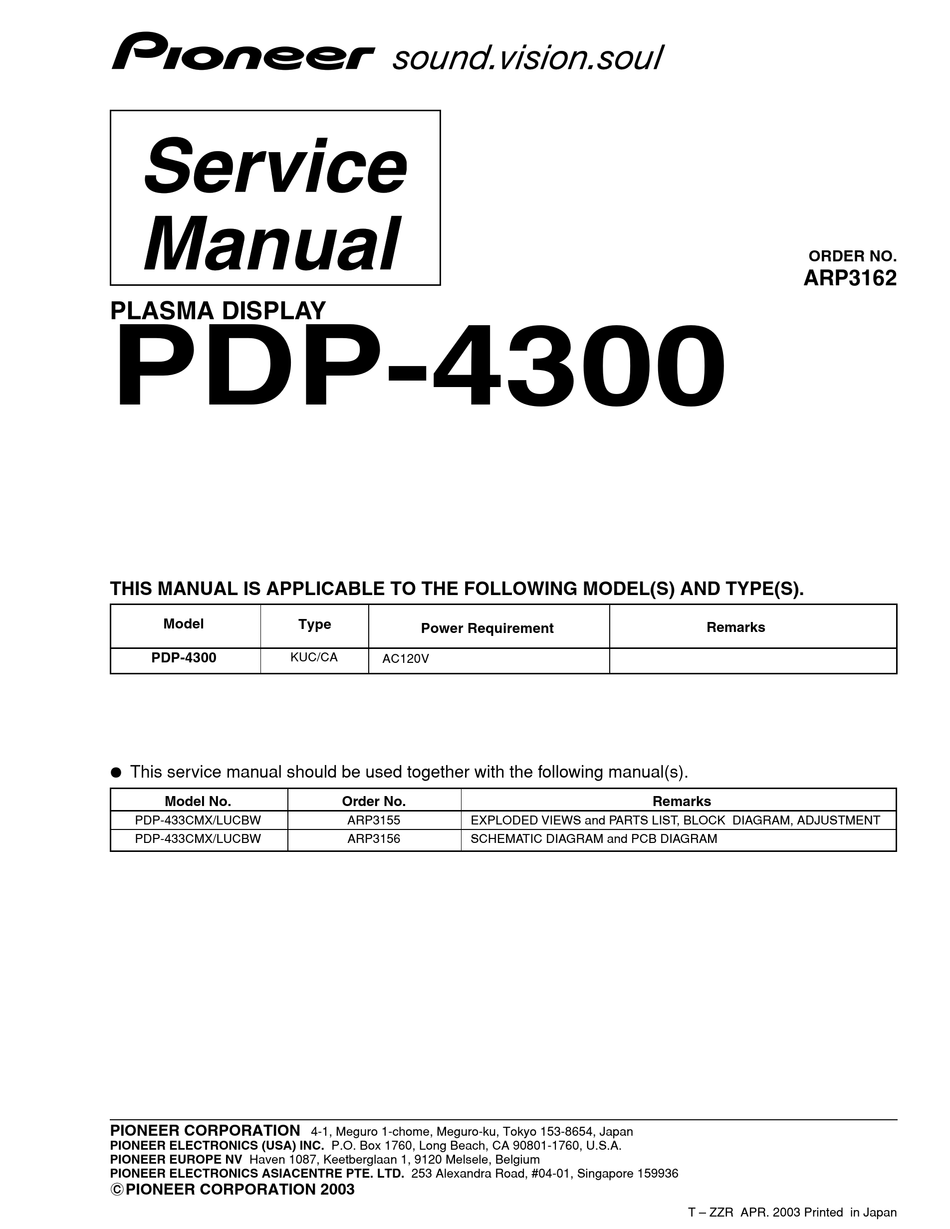

PLASMA DISPLAY

PDP-4300
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model
PDP-4300
¶ This service manual should be used together with the following manual(s).
Model No.
PDP-433CMX/LUCBW
PDP-433CMX/LUCBW
PIONEER CORPORATION
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2003
Type
Power Requirement
KUC/CA
AC120V
Order No.
ARP3155
ARP3156
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
EXPLODED VIEWS and PARTS LIST, BLOCK DIAGRAM, ADJUSTMENT
SCHEMATIC DIAGRAM and PCB DIAGRAM
ORDER NO.
ARP3162
Remarks
Remarks
T – ZZR APR. 2003 Printed in Japan

Advertisement

   Also See for Pioneer PDP-4300

   Related Manuals for Pioneer PDP-4300

   Summary of Contents for Pioneer PDP-4300

  • Page 1: Plasma Display

    PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936 PIONEER CORPORATION 2003 T –...
  • Page 2: Contrast Of Miscellaneous Parts

    Ex.2 When there are 3 effective digits (such as in high precision metal film resistors). 5.62k 562 x 10 5621 RN1/4PC 5 6 2 1 CONTRAST TABLE PDP-4300/KUC/CA and PDP-433CMX/LUCBW are constructed the same except for the following : Part No. Ref. No. Mark Symbol and Description PDP-433CMX PDP-4300 Remarks...
  • Page 3: Exploded Views

    ÷ VIDEO SLOT US ASSY (No.2) (No.2) • VIDEO SLOT US Parts List Mark No. Description Part No. VIDEO SLOT US Assy AWV1907 Video Terminal Panel PRO ANG2540 Screw ABA1300 • • • • • Screw BPZ30P080FZK Rivet AEP-211 Sheet AMR3282 PDP-4300...
  • Page 4: Pcb Parts List

    IC7303 TC7WH04FU C7103,C7104 CEAT220M50 Q7301,Q7302 2SA1037K Q7303-Q7306 2SC2412K C7110,C7133 CEAT221M16 C7105 CKSQYB105K10 Q7307 HN1C01FU C7109 CKSRYB104K16 D7301 1SS355 C7113 CKSRYB223K50 C7106,C7123,C7129 CKSRYF104Z16 CAPACITORS C7305 CCSRCH8R0D50 C7340 CCSRCH390J50 RESISTORS C7302,C7316,C7337 CEAT100M50 R7148,R7161 RAB4C470J C7341 CEAT220M50 Other Resistors RS1/16S C7333 CEAT2R2M50 PDP-4300...
  • Page 5 R7401,R7402,R7408,R7409 RAB4C680J R7413-R7416,R7423,R7429,R7432 RAB4C680J R7438 RAB4C680J R7417,R7418 RN1/16SE1001D Other Resistors RS1/16S OTHERS CN7402 24P DVI SOCKET AKP1216 [CONNECTOR BLOCK] RESISTORS R7430 RS1/16S101J R7439, R7440 RS1/16S103J R7433 RS1/16S182J R7435 RS1/16S223J R7434 RS1/16S332J [VIDEO REG BLOCK] SEMICONDUCTORS IC7501 PQ05DZ11 IC7504 PQ3DZ13 PDP-4300...
  • Page 6: Schematic Diagram

    2. SCHEMATIC DIAGRAM 2.1 VIDEO SLOT US ASSY(1/6) • VIDEO I/O BLOCK VIDEO OUT DRIVER VIDEO SIGNAL SELECTOR AUDIO SIGNAL SELECTOR AUDIO PDP-4300...
  • Page 7 SIGNAL DETECTION AUDIO BUFFER PDP-4300...
  • Page 8 2.2 VIDEO SLOT US ASSY(2/6) • Y/C SEPA BLOCK 3L Y/C SEP. PDP-4300...
  • Page 9 B-Y LEVEL CONTROL R-Y LEVEL CONTROL PDP-4300...
  • Page 10 2.3 VIDEO SLOT US ASSY(3/6) • 3D Y/C BLOCK 3DY OUTPUT ANTI-AREA THING 3DYC GAIN COMPEMSATION AMP 3DC OUTPUT ANTI-AREA THING 3D Y/C 3DYC SYNC SEP. 3DY INPUT ANTI-AREA THING 3DC INPUT ANTI-AREA THING PDP-4300...
  • Page 11 3D Y/C SEP. PDP-4300...
  • Page 12 2.4 VIDEO SLOT US ASSY(4/6) • CHROMA DECODE BLOCK CHROMA PROCESS (COLOR DIFFERENCE CONVERSION) CHROMA PROCESS IC VY INPUT C INPUT S INPUT: Select "∗" at NTSC only Others are the same as BW AFC INPUT SYNC CHIP CLAMP PDP-4300...
  • Page 13 COLOR DIFFERENCE LEVEL CONTROL PDP-4300...
  • Page 14 2.5 VIDEO SLOT US ASSY(5/6) • DVI BLOCK Large size SCH diagram PDP-4300...
  • Page 15 PDP-4300...
  • Page 16 Large size SCH diagram PDP-4300...
  • Page 17 PDP-4300...
  • Page 18 2.6 VIDEO SLOT US ASSY(6/6) • VIDEO RGB BLOCK PDP-4300...
  • Page 19 PDP-4300...
  • Page 20: Pcb Connection Diagram

    3. PCB CONNECTION DIAGRAM 3.1 VIDEO SLOT US ASSY VIDEO SLOT US ASSY SIDE A (ANP1988-B) PDP-4300...
