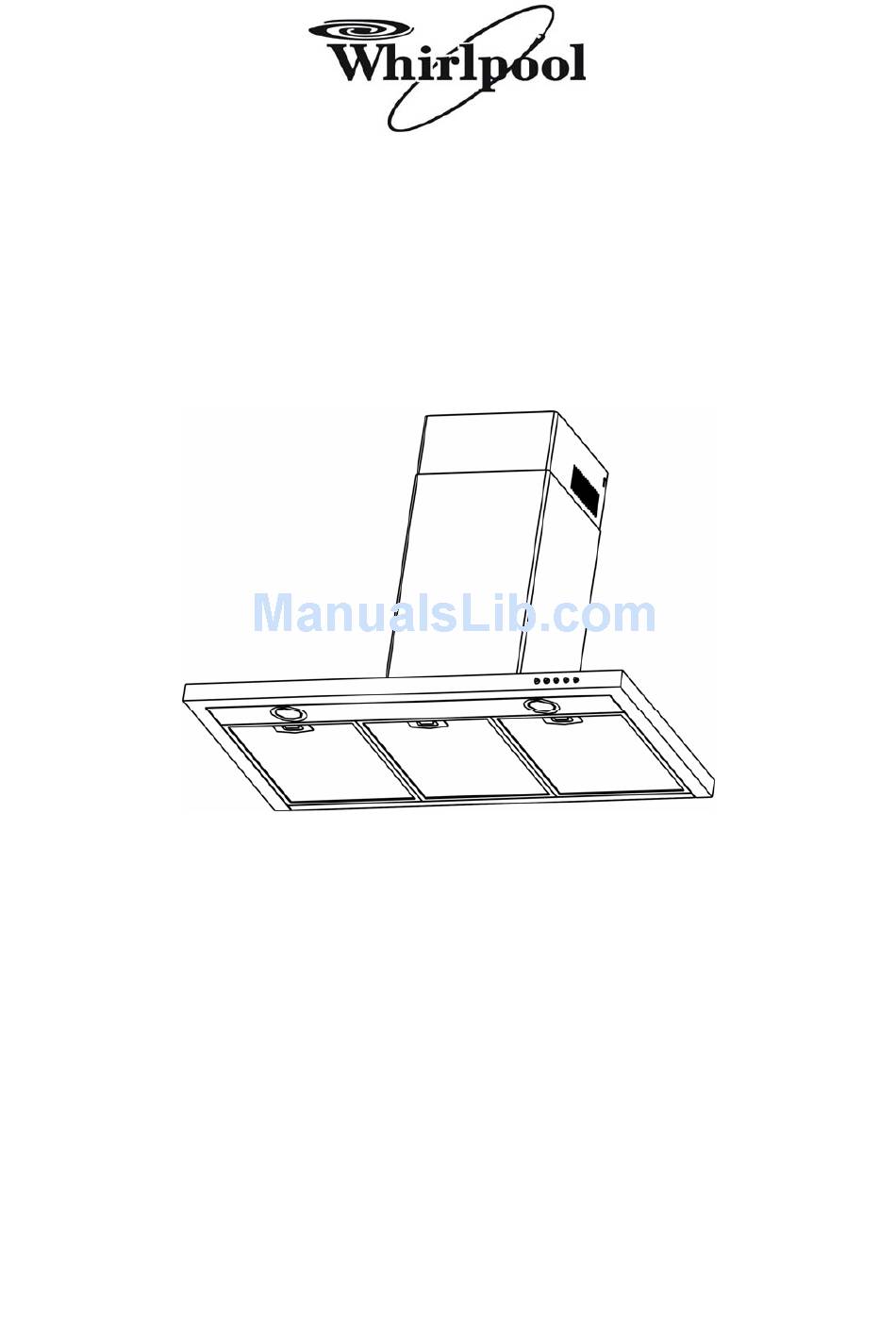

- Page 1 T-BOX COOKER HOOD AKR1985/IX INSTRUCTION MANUAL...
- Page 2 CONTENTS RECOMMENDATIONS AND SUGGESTIONS CHARACTERISTICS INSTALLATION & USE MAINTENANCE Product Specification & Technical Parameters Model AKR1985/IX Rated Voltage 220-240V~ Rated Power Frequency 50Hz Light Power 2x20W 12V Motor Power 270W...
- Page 3 RECOMMENDATIONS AND SUGGESTIONS INSTALLATION * The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. * Please read this instruction manual before installing and using this cooker hood. Properly keep this instruction manual in a safe place for future reference. * This cooker hood can be used in the Ducted Mode (ducting fumes to the outside).
- Page 4 MAINTENANCE * Proper maintenance of the Range Hood will assure proper performance of the unit. * Disconnect the hood from the main supply before carrying out any maintenance work. * Clean and/or replace aluminum grease filters and activated charcoal filters after specified period of time.
- Page 5 CHARACTERISTICS DIMENSIONS COMPONENTS Q’ty Product Components Hood body, complete with: controls, lights, blower, filters, air outlet adapter 1set Telescopic Chimney comprising Decorative Chimney Top Decorative Chimney Bottom Aluminum Exhaust Duct (source locally, not supplied) Wall or Roof Cap (source locally, not supplied) Q’ty Installation Components Chimney Mounting Bracket...
- Page 6 Q’ty Documentations Instruction Manual Warranty Card...
- Page 7 INSTALLATION & USE Note 1 : On stainless steel hoods, carefully remove the plastic protective film from all exterior surfaces of the hood and chimney prior to final installation. Note 2: At least two people will be required to mount the hood. WALL DRILLING AND BRACKETS FIXING (X=Y-240) Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed.
- Page 8 DAMPER (FLAPS) FIXING Fix the damper (flaps) into the air outlet adapter. To be sure that the damper (flaps) is locked well on the air outlet adapter, it should be flexible in opening and closing. DUCT FIXING Caution: To reduce the risk of fire, use metal ductwork only. φ...
- Page 9 before wiring. * If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. * Do not use the plug and an extension cord other than the ones initially supplied with the hood.
- Page 10 MAINTENANCE GREASE FILTER * The grease filters should be cleaned frequently (every two months of operation, or more frequently for heavy use). Use a warm detergent solution. * Grease filters are washable. Remove the grease filter one by one by pulling out each latch.
- Page 11 CAUTION: THE SURFACE, THE COVER OF THE HALOGEN BULBS MAY BE HOT. TAKE CARE WHEN TAKING THE REPLACEMENT. BULBS MAY BE HOT. TAKE CARE WHEN TAKING THE REPLACEMENT. HOOD CLEANING Stainless steel is one of the easiest materials to keep clean. Occasional care will help preserve its fine appearance.
- Page 12 TROUBLE SHOOTING The cooker hood may not work or work improperly. Before calling the After-sales service, switch off the appliance, unplug the power supply and refer to this guide to determine the problem. Status Reasons Solutions The plug is off from Ensure that the plug is put into the power socket.
- Page 13 WARRANTY CARD At the purchase of the appliance properly fill out the product warranty card and properly keep it after having it signed and stamped by the dealer in order to use it in case of need of maintenance service.
