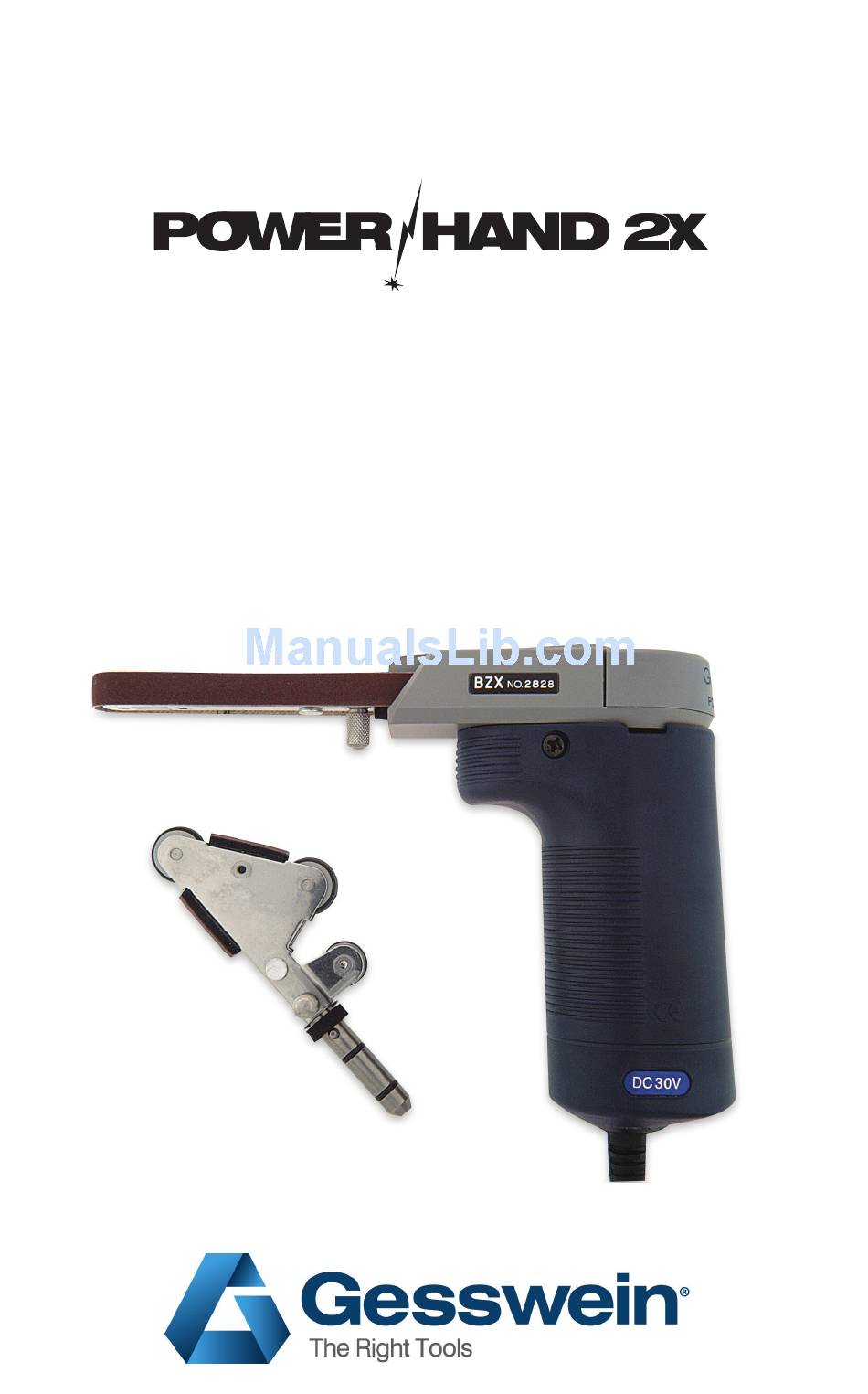

- Page 1 Instruction Manual ® Belt Sander Handpiece Model: BZX #510-2130...
-
Page 2: Specifications
Introduction The Gesswein Power Hand 2X BZX Belt Sander is manufactured to the highest standards available to provide many years of trouble-free service. Backed by a limited warranty that covers wear parts for 90 days and overall balance of parts for six months. -
Page 3: Included Accessories
Accessories Included Accessories A. Six Abrasive Belts (one each: 6 and 8mm wide in 120, 180 and 320 grits) B. One Straight Belt Arm (for 6 and 8mm belts) C. One 45°-Angle Belt Arm (for 6 and 8mm belts) D. One Belt Arm Pulley E. -
Page 4: Parts Nomenclature
Parts Nomenclature 1. Belt Arm Pulley 8. Protection Cover 2. Belt Arm Screw 9. Handgrip Fixing Screw 3. Belt Arm Support Pad 10. Handgrip 4. Straight Belt Arm 11. Handgrip Retaining Nut 5. Release Knob 12. Strain Relief 6. Belt Holder 13. -
Page 5: General Use
General Use The Gesswein Belt Sander is designed to use sanding belts of 4, 6, and 8mm widths. Select a 6mm or 8mm wide belt for the Straight Belt Arm supplied with the Belt Sander. Hold the Belt Sander in your hand with your index finger on the Release Knob, and pull back the spring-loaded arm. - Page 6 Operating Procedure with Standard Controller With your Belt Sander fitted with a selected belt, connect the Gesswein Power Hand Controller to an electrical supply and the Belt Sander to the Controller. Set the Slide Rheostat on the Controller to “Low” or the “0” position. Put the Controller Main Switch to the “ON”...
- Page 7 During use, avoid pushing too hard on the work tool or exceeding torque capacity of Belt Sander motor. Always disconnect the Belt Sander from your Gesswein Controller by the plug, not the cord. Do not use oil or lubricants of any kind. Doing so will cause damage to the handpiece bearings.
-
Page 8: Maintenance
Maintenance Changing the Belt Arm To change Belt Arms, you must first remove the belt that is in place on the Belt Arm (see General Use). Once the belt has been removed, pull the Belt Arm out of the Belt Sander main body (see fig. 4) and replace with selected Belt Arm and appropriate belt. - Page 9 Lubrication It is not necessary to lubricate the Gesswein Belt Sander. Cleaning It may be necessary on occasion to blow accumulated dirt and grit away from the area surrounding the Drive Pulley. This can be facilitated by first removing the Protection Cover (squeeze sides with thumb and forefinger to remove).
- Page 10 BZX Belt Sander Parts List When ordering spare parts, always specify part# (or item# if applicable) and description. Part# Part# Item# Description 5100494 BZX-100-1 BS1-100-1 Belt Straight Arm Complete (4mm) 5100496 BZX-100-2 BS1-100-2 Belt Straight Arm Complete (7mm) BZX-102-1 BS1-130 8960183 Belt Arm Pulley for 4mm Arm 8960184...
- Page 12 BZX Belt Sander 45°-Angle Arm Parts List When ordering spare parts, always specify part# (or item# if applicable) and description. Part# Item# Description 5100495 BZX-100-3 Belt 45° Arm Complete (7mm) 8960184 BZX-102-2 Belt Arm Pulley for 7mm Arm 8960187 BZX-103-3 Belt Arm Support Pad 8960188 BZX-104...
-
Page 14: Motor Parts List
Motor Parts List When ordering spare parts, always specify part# (or item# if applicable) and description. Part# Item# Description 8960208 BZX-110 Motor Housing BZX-112 8960160 O-Ring BZX-113 8960161 METAL Spacer 8960163 METAL Spacer 8960162 BZX-114 Wave Washer 8960165 FIBER SPACER 8960209 C TYPE CLIP RING 8960167... - Page 16 Power Hand 2X controllers and handpieces combine to create the most versatile finishing system in the industry, offering rotary, profiling and belt sanding action. Power Hand 2X component selection: • Three controllers • Six straight (four standard, two slimline) and two angle rotaries •...
