How to Disassemble the Body
Pull back belt arm knob with index finger and remove belt.
Pull out the belt arm from body.
How to Disassemble & Assemble the Motor
(Fig 2.)
Disassemble & assemble with the opposite procedure refer-
ring to the paragraph enclosed:
1.
Loosen screws (2) (part #YS131-02 handgrip screw) and
remove.
2.
Loosen handgrip nut (part #BS33-114) and remove.
3.
Pull out the handgrip (part #BS33-766) and remove.
4.
Remove protection cover (part #BS1-277)
5.
Remove belt holder body from the motor (part #BS33-200)
Fig. 2

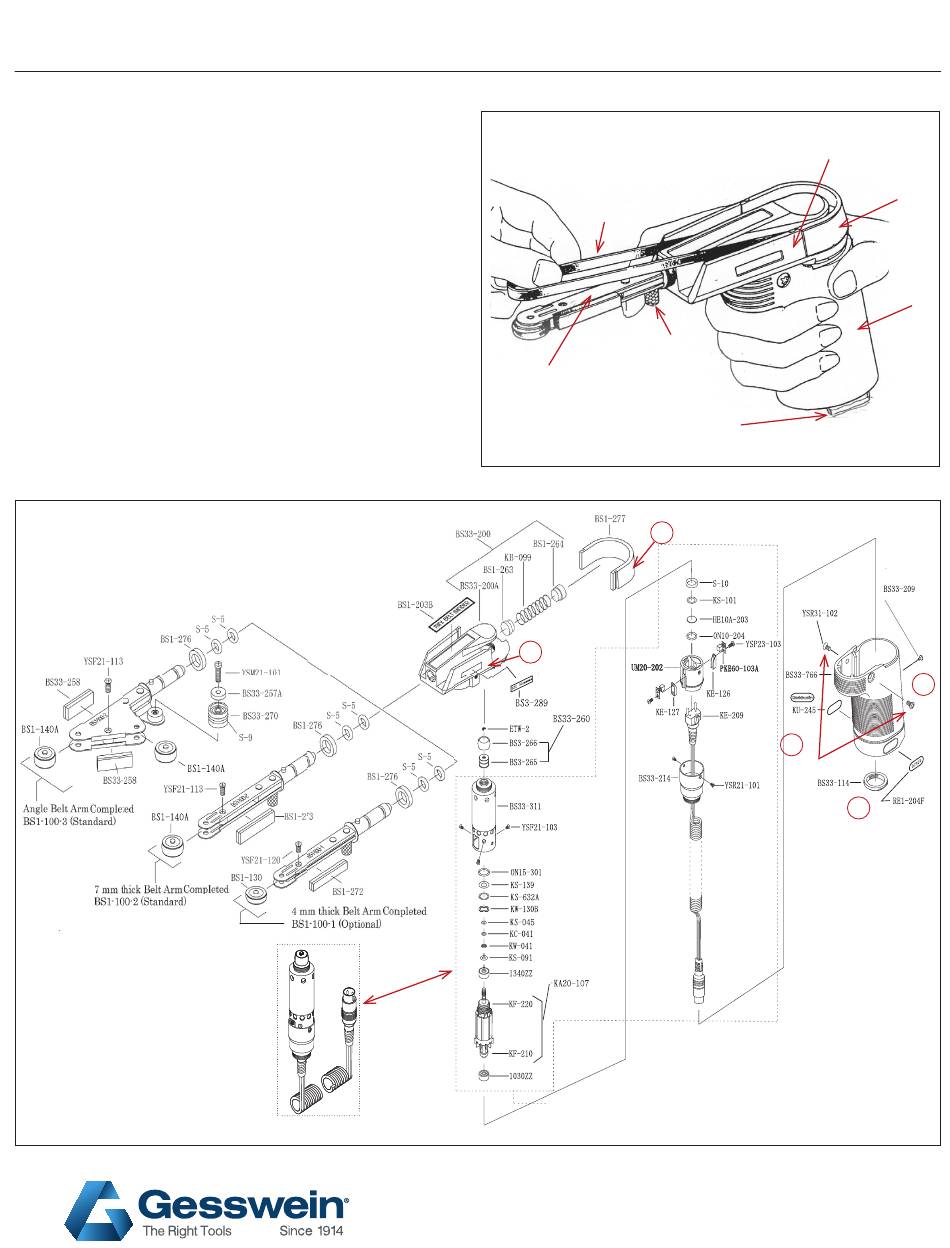

Instructions for Repairing
Powerhand BZX Sander
(Fig. 1)
MOTOR COMPLETE
201 Hancock Ave. Bridgeport, CT 06605, USA
email info@gesswein.com
BELT
BELT
BELT ARM KNOB
BELT ARM COMPLETE
BELT ARM KNOB
BELT ARM COMPLETE
HANDGRIP NUT
HANDGRIP NUT
Fig. 1
4
5
|
203.366.5400
|
www.gesswein.com
BELT HOLDER BODY
PROTECTION
BELT HOLDER BODY
COVER
PROTECTION
COVER
HANDGRIP
HANDGRIP
3
1
Screws (2)
2
See page 3 for key
Page 1
