Ultrasonic polishing system

Advertisement

Specifications:

Power Pack
Power Output                               39W
Vibration Frequency                     18~25kHz
Stroke Amplitude                        10~35µm
Frequency Adjustment     Automatic feedback system
Power Supply                 AC90~240V, 50/60Hz
Power Consumption                          46W
Output Level                            Two-level
1
Dimensions                  7
"W x 5
2
Net Wt                               1 lb, 9 oz
Handpiece
Cord Length                         59" (straight)
Screw Thread                              8mm
3
Dimensions        5"L x 1
" dia, tapering to
16
Net Wt                                  65 oz
Tracing Light
Power Pack
On/Off Switch
Handpiece
Connector
Foot Switch
Connector
On/Off
Foot Switch
Tool Holders
Insert Tools
201 Hancock Ave. Bridgeport, CT 06605, USA
orders 800.243.4466 | 203.366.5400 | fax 203.366.3953
email info@gesswein.com | www.gesswein.com

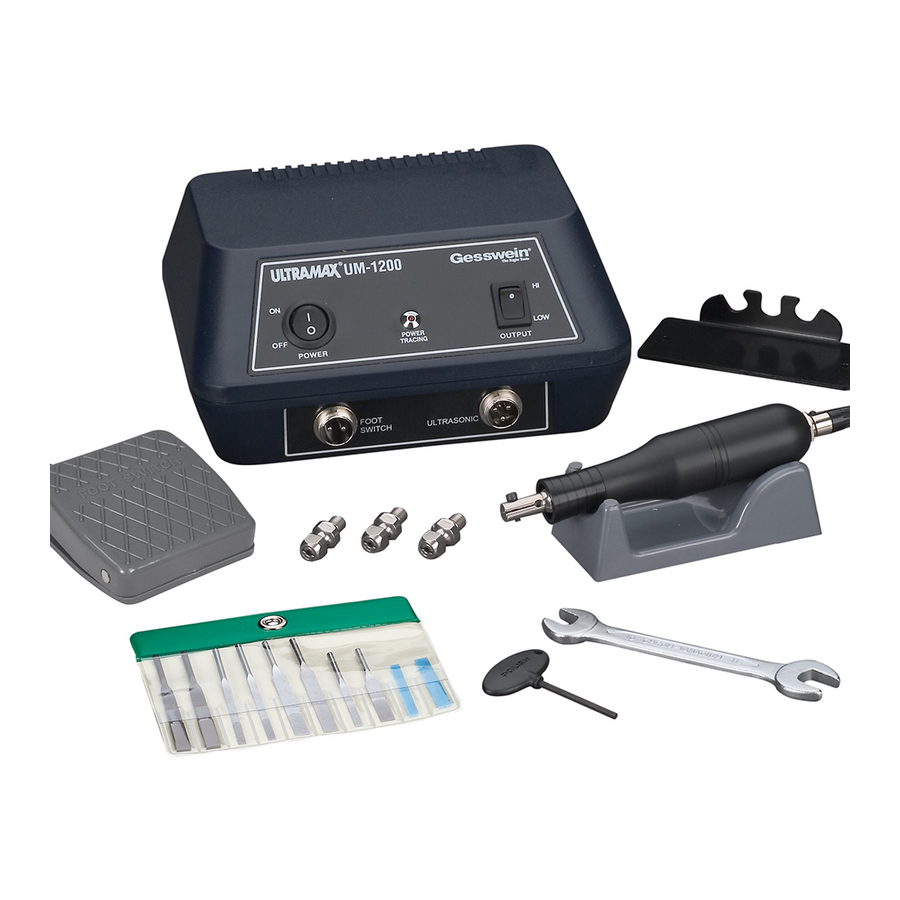

Components:

1 Power Pack
2 Power Pack AC Cord
3 Ultrasonic Handpiece
4 Handpiece Cord
5 Handpiece Cradle Rest
6 On/Off Foot Switch
7 Insert Tools (see inside)
8 Two ø3mm Tool Holders
9 One 11mm Tool Holder
1
1
"D x 3
"H
2
2
10 Bench Jig
11 Spanner
12 Hex Key
13 20A Fuse
3
" dia
4
Power
Output
Bench
Switch
Jig
Ultrasonic Polishing System
Ultrasonic
Handpiece
Front
Body Cover
Handpiece
Cradle Rest
Spanner
Hex Key
Instruction Manual
for
UM-1200
#500-1200
