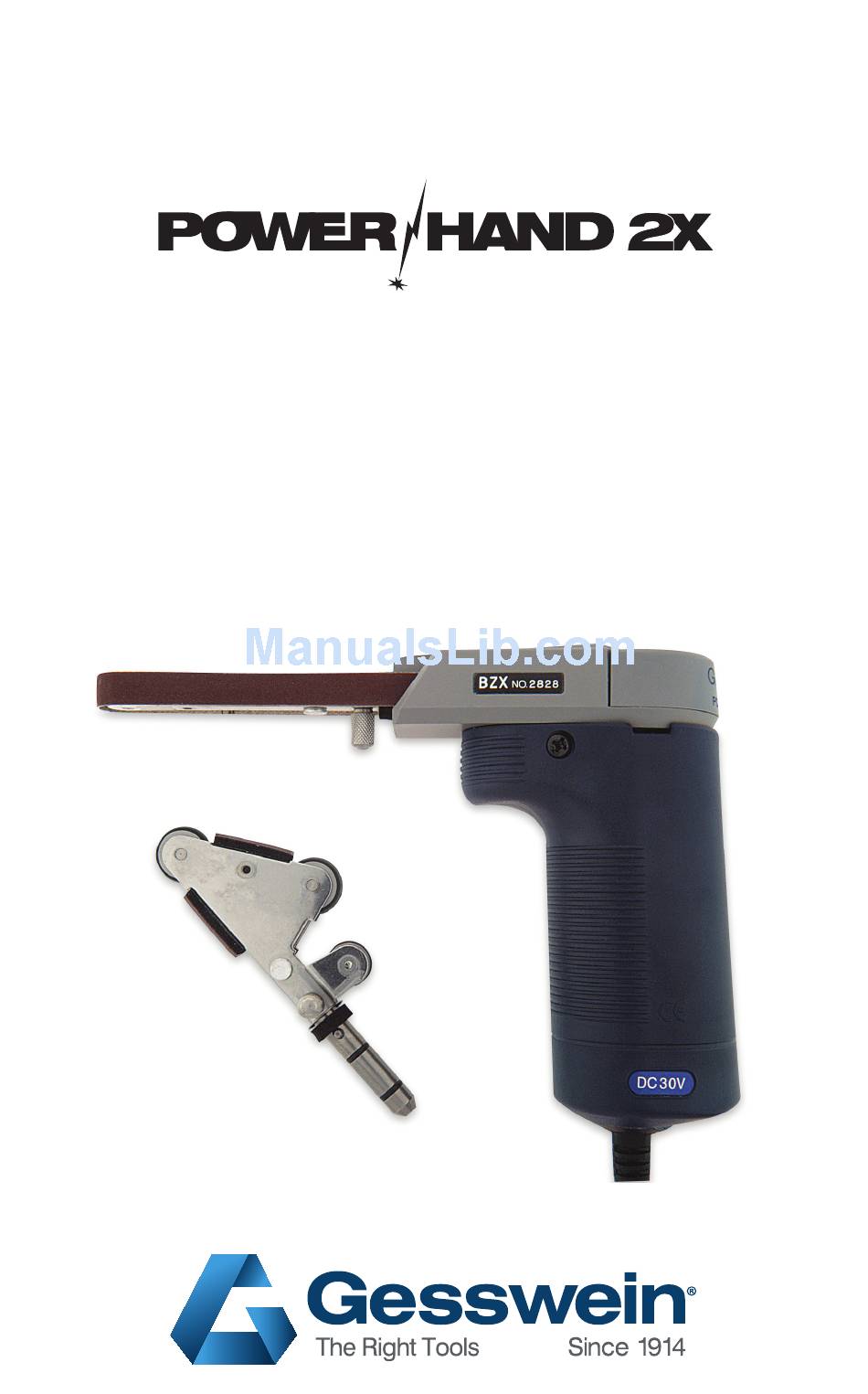

  • Page 1 Instruction Manual ® Belt Sander Handpiece Model: BZX #510-2131...

  • Page 2: Included Accessories

    Introduction Accessories The Gesswein Power Hand 2X BZX Belt Sander is manufactured to the highest Included Accessories standards available to provide many years of trouble-free service. Backed by a A. Six Abrasive Belts limited warranty that covers wear parts for 90 days and overall balance of parts (one each: 6 and 8mm wide in 120, 180 and 320 grits) for six months.
  • Page 3 Operating Procedure with Standard Controller Precautions With your Belt Sander fitted with a selected belt, connect the Gesswein Power Before operating your Belt Sander, be sure the desired belt is properly Hand Controller to an electrical supply and the Belt Sander to the Controller.
  • Page 4 896-0167 Wave Washer YSR31-102 896-0119 Handgrip Locking Screw BS33-200 896-0196 Belt Holder Body KS-091 896-0210 Spacer KU-245 896-0122 Gesswein Name Plate Completed YSF21-103 896-0002 Countersunk Head Screw RE1-204F 896-0121 DC30V Name Plate BS33-200A 896-0197 Belt Holder Body KA20-107 896-0356 Armature...

  • Page 5: Parts Nomenclature

    1. Belt Arm Pulley 8. Protection Cover The Gesswein Belt Sander is designed to use sanding belts of 4, 6, and 8mm widths. Select a 6mm or 8mm wide belt for the Straight Belt Arm supplied with the Belt 2. Belt Arm Screw 9.

  • Page 6: Maintenance

    Lubrication Changing the Belt Arm It is not necessary to lubricate the Gesswein Belt Sander. To change Belt Arms, you must first remove the belt that is in place on the Belt Arm (see General Use). Once the belt has been removed, pull the Belt Arm out Cleaning of the Belt Sander main body (see fig.

  • Page 7: Component Selection

    • A selection of 8 heads • Two reciprocating profilers • One side-to-side profiler • Belt Sander 201 Hancock Ave. Bridgeport, CT 06605, USA orders 800.243.4466 | 203.366.5400 | fax 203.366.3953 email info@gesswein.com | www.gesswein.com...
