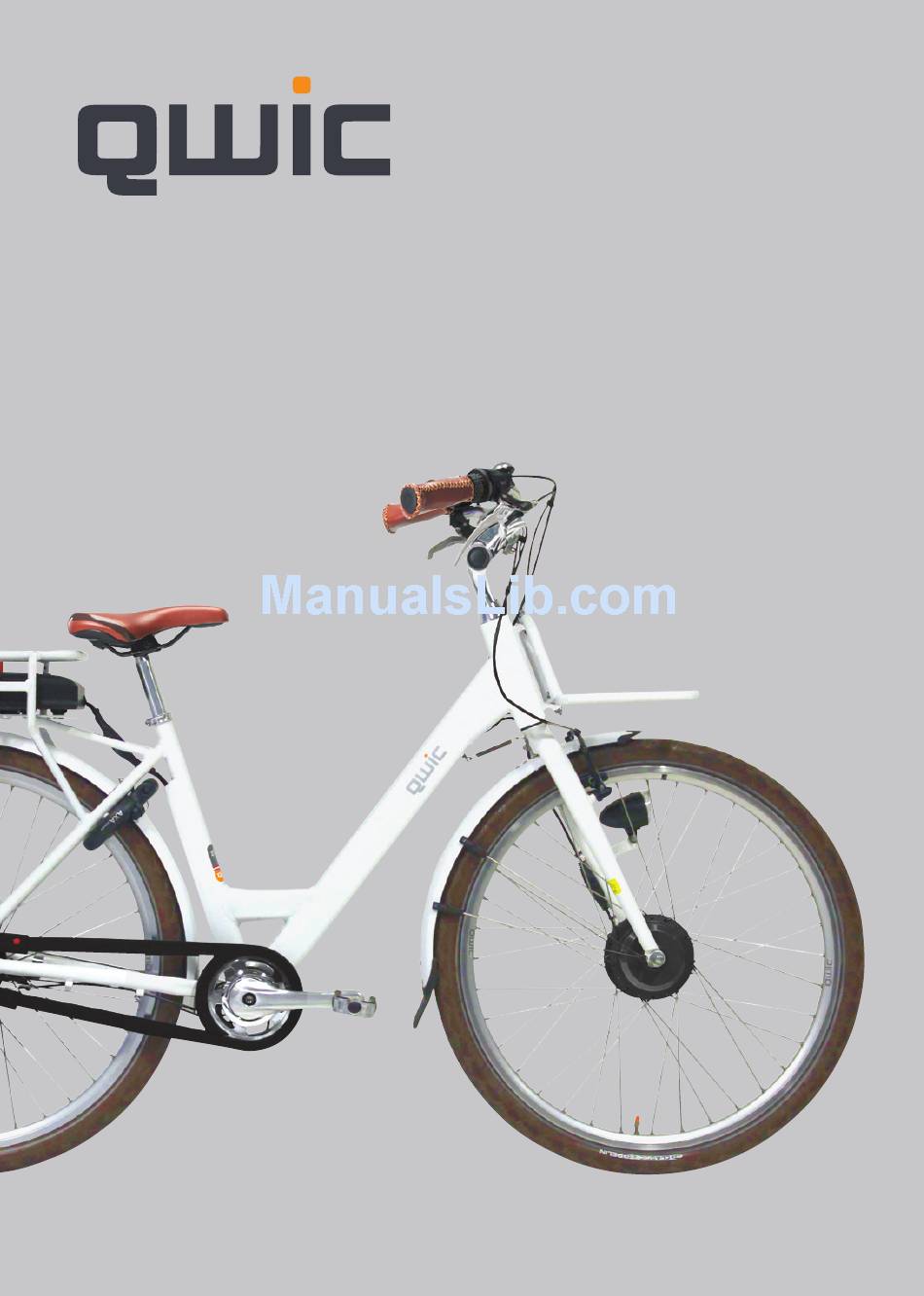

- Page 1 USER MANUAL ELECTRIC BICYCLES...
- Page 2 Your bike may differ from the illustrations in this manual. Colophon Manual electric bicycles QWIC reserves the right to make changes in specifications and / or prices without notice. This manual has been compiled with great care. QWIC can not be held responsible for any inaccuracies whatsoever.
- Page 3 Congratulations! You have just become the proud owner of a QWIC electric bike. You probably only want one thing right now: Get out and ride! Before you jump in your seat, we encourage you to take a moment to read through this manual. Then you know everything that is needed for many carefree cycling tours.
- Page 4 Setting pedal assistance on and off Further information on pedal assistance 4 Folding Smart-e 5 Seatpost & Saddle Saddle height Adjusting saddle height 6 Steering wheel Steering wheel height Adjusting steering wheel height 7 Lightning Setting lighning on and off QWIC Electric Bicycle Manual...
-
Page 5: Table Of Contents
10.1 Shifting gears 11 Lock 11.1 Additional information lock 12 Maintenance 12.1 General maintenance 12.2 Cleaning 12.3 Treatment 12.4 general inspection 12.5 Roadworthy inspection 12.6 Service check-up 12.7 Big maintenance check-up 12.8 Service chart 13 Warnings 14 Warranty QWIC Electric Bicycle Manual... -
Page 6: Menu
Keep ‘SET’ 10 sec. pressed and then set with ‘PLUS’ and ‘MINUS’ the desired Trip afstand Driven distance since last reset tiresize. (see table 1.9) Reset: ‘MINUS’ 3 sec. pressed Failure See 1.3 for failure codes overview QWIC Electric Bicycle Manual... - Page 7 Code 05: Malfunction in brake sensor(signal) Code 06: Battery voltage too low Code 07: Motorcable is connected incorrectly Code 08: Malfunction in display cable Code 09: Malfunction in pedalsensor(signal) Code 10: Malfunction in display cable QWIC Electric Bicycle Manual...
-
Page 8: Wheel Sizes (Mm
*The pre-set sizes can have a small deviation. This means that the amount of driven kilometers deviates maximum 5%. E-bike ETRTO setting Smart-e foldable bike 53-406 20x1.95 1590* Trend 3+ / Trend 3 Lite 40-622 28x1.5 2224* Urban 3 50-622 28x2.00 2268* QWIC Electric Bicycle Manual... -
Page 9: Range
Volts. This battery delivers: 10 Ah x 36V = 360 Wh. QWIC provides bikes with 216 Wh, 360 Wh and 432 Wh batteries. Which battery you have, you can read at the bottom of the battery. The following chart is an indication of the expected range per battery type. - Page 10 Range of QWIC electric bicycles Factors influencing range: * The total weight (weight of bike + rider + cargo) * The resistance (wind, tire pressure, speed, road conditions and altitude differences) * Your driving behavior (timely shifting up and down and driven speed)
-
Page 11: Charging The Battery
* Attention! Use only the supplied charger. * Attention! Use your charger only in dry, well-ventilated places. * Attention! The battery charger is not resistant against moisture and / or drop down shocks. QWIC Electric Bicycle Manual... - Page 12 * Attention! The battery without luggage is only suitable for small loads such as bages, up to max 10 kg. * Attention! Child seats or heavy load (up to max 20 kg) can only be connected to the carrier, which can be ordered optionally. QWIC Electric Bicycle Manual...
- Page 13 (fig 3.1) * Also the tire pressure, the mass of the user, the surroundings, the temperature and the cycling behavior can have a major impact on the range. QWIC Electric Bicycle Manual...
-
Page 14: Further Information On Pedal Assistance
* Attention! Turn the assistance off when you step off the bicycle. Never walk with enabled assistance. * Attention! Keep the left brake lever (if present and possibly also supplied with brake circuit-breaker) pressed in when you are stationary with enabled power assistance. QWIC Electric Bicycle Manual... - Page 15 Be aware of any cables getting stuck behind the saddle Lower the saddle to its lowest position Lower the steering wheel to its lowest position fig. 5.2 fig. 5.3 fig. 5.4 fig. 5.5 fig. 5.6 QWIC Electric Bicycle Manual...
-
Page 16: Seat Adjustment
By the saddle connection you can tilt the seat and adjust it to front as well as to the back. To adjust the saddle use an Allen key to loosen the Allen bolt on the underside of the saddle connection. fig 5.4 fig. 5.3 fig. 5.4 QWIC Electric Bicycle Manual... - Page 17 The height of the handlebars can be adjusted by turning the Allen Bolt on the top. These bolts can be potentially covered by protective caps. *Attention! Do not forget to tighten the bolts after adjustments and make sure that your handlebars are attached firmly again. QWIC Electric Bicycle Manual...
-
Page 18: Brakes
With the cable adjuster at the brake lever, you can fine tune the brake sensitivity. By turning the adjuster closer you increase the slack of the cable and by rotating it open, you chuck the cable right on. fig. 8.5 QWIC Electric Bicycle Manual... -
Page 19: Additional Information V-Brakes
The tire pressure has a strong influence on the range and comfort of your bicycle. QWIC advises you to always keep your tires at the right pressure. On the side of all tires the maximum tire pressure can be found. -
Page 20: Gears
To purchase ensurance for the electric bicycle the following specifications are requested: - Brand and type name: QWIC, electric bicycle, type of model (D9.1 / N7.1 / A2.1) - Frame number: your unique framenumber (page 2), Starting with E F Y... -
Page 21: Maintenance
Maintenance QWIC advises you to take a quick check-up at the QWIC dealer on a regular basis. QWIC advises you to submit your electric bicycle to a mayor overhaul at least once a year. The first maintenance visit is recommended after 250 km or after 3 months from purchasing. -
Page 22: Treatment
Rotation parts need grease or oil. QWIC recommends you to grease the chain, cassette and axels on a regular basis. - Page 23 When some points are not taken care of properly, please contact your QWIC dealer. 12.6 Maintenance Service QWIC advises you to submit your electric bicycle to a mayor overhaul at least once a year. The first maintenance visit is recommended after 250 km or after 3 months from purchasing.
- Page 24 12.7 Mayor maintenance check QWIC advised you to submit your electric bicycle to a mayor overhaul at least once a year. The points below are additional to normal service: * Deassembly, degrease, lubricate and assembly the chain and cassette back together.
- Page 25 12.8 Servicetable QWIC Electric Bicycle Manual...
-
Page 26: Warnings
* Both lights will work only when there’s energy provided from the battery. Without the battery, the lightning won’t work. * Go to your QWIC dealer to provide maintenance to all our electric bicycles QWIC Electric Bicycle Manual... - Page 27 Nevertheless, an excessive wear of the battery is covered by a limited guarantee for up to 2 years after production date (under normal operating conditions). Any guarantee is limited with the general terms and conditions. These can be found at our website: www.qwic.eu/warranty. QWIC Electric Bicycle Manual...
- Page 28 Your dealer...
