Commando Combo Installation Manual page 6

Green/Black -Trunk
Blue - Unlock
Red - Factory Disarm
Red -12V+ Out
Yellow - Vacuum Sys. (FIG.2)
Green - Lock
Swtch
White/Yellow -Horn Out (-)
Shock
Red/Black -Dome Light (-)
Sensor Plug
LED
Dip Switchs
FIG. 1
COMBO
ALARM&START
MADE IN USA
DIP SWITCH SETTINGS
1-ON= GASOLINE ENGINES
2-ON= NON VACUUM SENSE
3-ON= CRANK TIME NORMAL
4-ON= SMART SENSE
Ground
YELLOW
Vacuum

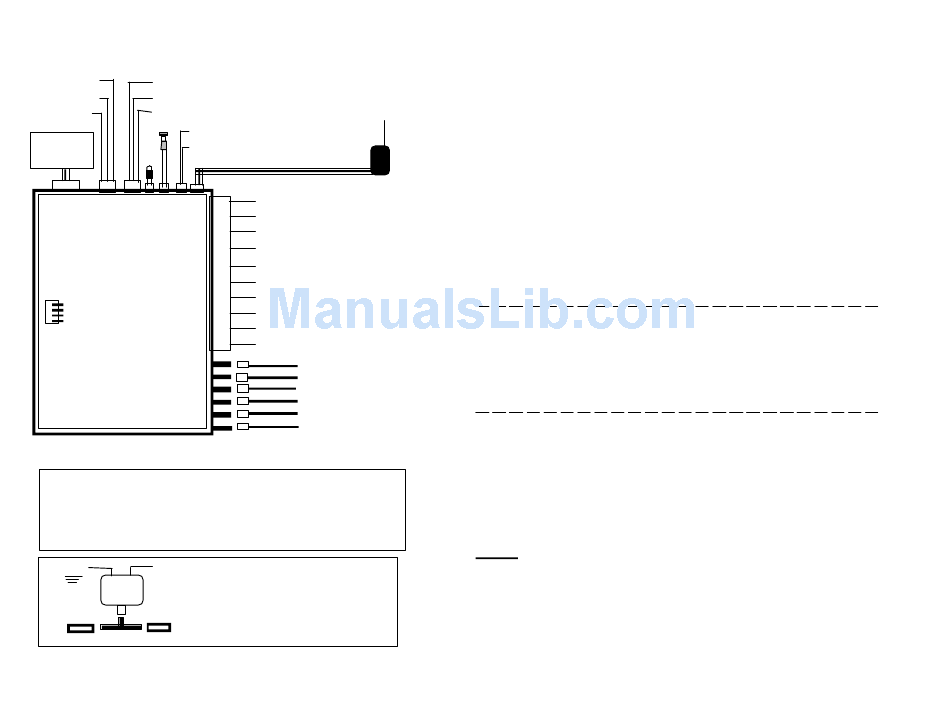

VACUUM SYSTEM HOOK-UP
Switch
An additional Vacuum Kit can be added
That includes: Vacuum Switch, Hose,
VACUUM TEE
5
REMOTE ALARM & STARTER WIRING
RF
Receiver
Parking Lights
White-----
-------12V + Battery Power
Red
Alarm Siren Wire
Brown----
Ground
Black-----
(-) Armd Output
Orange---
Spark Plug Sense
Gray-------
(-) Door Trigger
Green-----
Blue------ (-) Trigger
Violet---- (+) Door Trigger
Yellow---- Brake Light Switch
Violet - Starter
Orange - Accessory
Yellow - Ignition 1
Ignition 2
Brown -
12V + BATTERY
Red -
12V + BATTERY
Red -
FIG. 1
OFF= DIESEL ENGINES
OFF= VACUUM SWITCH SENSE
OFF= CRANK TIME LONGER
OFF= SPARK PLUG OR TACH
Optional
FIG. 2
"YELLOW WIRE"
If Vacuum Hook-Up is required
Vacuum "T", Connectors.
WHITE:------------ Connect to the (+) side of parking lights.
RED:----------------
Connect to Battery constant 12V.+ power.
BROWN:----------
Connect to the red wire of Siren (+) Output.
BLACK:----------- Connect to a Good Ground.
ORANGE:--------- Connect to a 30 Amp. Relay for Starter Kill (-) Output.
GRAY: ------------- Wrap around a Any Spark Plug cable or Tachometer.
GREEN:------------
Door pin (-) Trigger.
BLUE:--------------
Hood pin or extra Sensors (-) Trigger.
VIOLET:----------- Door pin (+) Trigger.
Connect to the Brake light switch (+) when Brake is pressed.
YELLOW:---------
RED: ---------
Connect to Battery constant 12V. (+) POWER.
RED: ---------
Connect to Battery constant 12V. (+) POWER.
BROWN:----
Connect to Ignition switch #2 if needed.
YELLOW:---
Connect to Ignition switch wire which is powered 12V.+ even on cranking.
ORANGE:---
Connect to Ignition switch ACC circuit (Air Cond./Heater).
VIOLET: ----
Connect to Starter wire witch is powered ONLY on cranking position.
Plug in Shock Sensor.
4- PIN WHITE CONNECTOR:---------
Plug in Door Lock Unlock Wire.
3- PIN WHITE CONNECTOR:---------
Plug in LED and mount in a desirable location.
2- PIN RED CONNECTOR:------------
2- PIN BLUE CONNECTOR:----------
Plug in PROGRAM/VALET Switch.
2- PIN BLUE CONNECTOR:----------
Plug in Horn / Dome Light Wire.
4- PIN WHITE CONNECTOR:--------
Plug in R/F RECEIVER.
YELLOW VACUUM (optional)
:
A. Find the existing Vacuum Hose at the intake manifold. Cut hose and install the Vacuum
Tee included in the optional kit. (See FIG. 2).
B. Connect to one of the pin on the Vacuum switch , and Ground the other Pin.
Please note that Vacuum Hose other than the manifold and less than 10"
vacuum may cause starter damage.
NOTE
1- Factory disarm pulse will be activated any time alarm disarms
2- The horn output will trigger with all triggers
3- Door lock when start, Relock when engine shut down
4- Ground output wire will supply ground when starter is engaged no matter if alarm is
armed or disarmed.
