  • Page 1 HS80/MX575C User Manual ENGLISH...
  • Page 2 Annex A.1 - 4.50 DGPS equipment See also “Certifications” on page 35, For more information please refer to our website: pro.simrad-yachting.com. The Wheelmark The HS80 / MX575C systems are produced and tested in accordance with the European Marine Equipment Directive 2010/68/EU. This means that the systems comply with the highest level of tests for nonmilitary marine electronic navigation equipment existing today.
  • Page 3 About this manual This manual is a reference guide for installing and using the HS80 / MX575C systems. The latest available manual version can be downloaded from our web sites. Important text that requires special attention from the reader is emphasized as follows: ¼...

  • Page 4: Table Of Contents

    Contents Introduction Overview Parts list Installation Mounting location Mounting orientation Mounting options Ports Powering the HS80/MX575C Connecting the HS80/MX575C to external devices Default parameters Operation GPS overview HS80/MX575C overview Common commands and messages Troubleshooting Technical specifications Specifications Certifications Output messages...

  • Page 5: Introduction

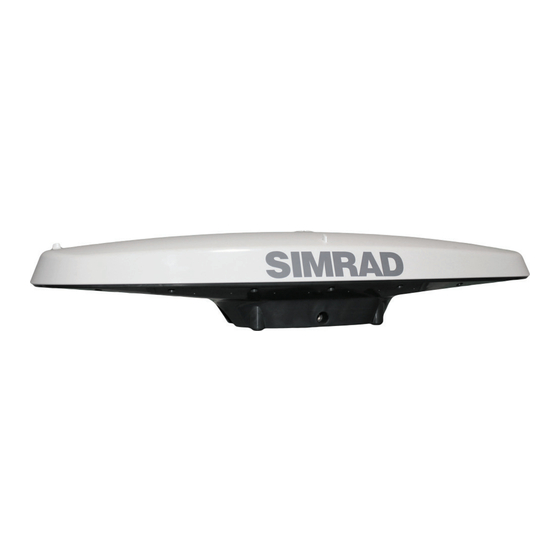

    ¼ Note: When referring to both the HS80 GPS Compass and the MX575C DGPS Compass this manual uses the term HS80/MX575C. When referring to either product, this manual uses either HS80 or MX575C, respectively. The HS/80/MX575C is a complete GPS compass and positioning system in a single enclosure that requires only one power/data cable connection.

  • Page 6: Parts List

    Parts list ¼ Note: The HS80/MX575C’s parts comply with IEC 60945 Section 4.4: “exposed to the weather.” The sections below list parts included in your HS80 kit and the MX575C kit. HS80 Parts list Part Name Part number HS80 GPS Compass...

  • Page 7: Installation

    • Consider GPS (and hence SBAS) reception, ensuring there is a clear view of the sky available to the HS80/MX575C so the GPS and SBAS satellites are not masked by obstructions that may reduce system performance • Since the HS80/MX575C computes a position based on the internal primary GPS antenna...

  • Page 8: Vhf Interference

    Handheld 5W VHF radios may not provide suitable filtering and may interfere with the HS80/ MX575C’s operation if too close. Before installing the HS80/MX575C use the following diagram to ensure there are no nearby devices that may cause VHF interference.

  • Page 9: Mounting Orientation

    This provides a true heading. In this orientation: • If you use a gyrocompass, you can enter a heading bias in the HS80/MX575C to calibrate the physical heading to the true heading of the vessel.

  • Page 10: Mounting Options

    If you have another accurate source of heading data on your vessel, such as a gyrocompass, you may use its data to correct for a bias in HS80/MX575C alignment within the HS80/ MX575C software configuration. Alternatively, you can physically adjust the heading of the HS80/MX575C so that it renders the correct heading measurement;...
  • Page 11 HS80/MX575C dimensions Figure 2-6 illustrates the physical dimensions of the HS80/MX575C. Figure 2-6: HS80/MX575C dimensions 10 | Installation | HS80/MX575C User Manual...
  • Page 12 Flush mounting the HS80/MX575C The bottom of the HS80/MX575C contains eight holes (two sets of four holes) for flush mounting the unit to a flat surface (Figure 2-7). The flat surface may be something you fabricate per your installation, an off-the-shelf item (such as a radar mounting plate), or an existing surface on your vessel.
  • Page 13 Determine the desired location and proper orientation for the HS80/MX575C. See “Mounting orientation” on page 8“ for information on determining the desired orientation. Hand tighten the HS80/MX575C on the pole until snug (unit is stable on pole) while ensuring correct orientation.
  • Page 14 Connecting the serial cable or Serial-to-NMEA 2000 adapter to the HS80/ MX575C After you mount the HS80/MX575C connect either the serial power/data cable or the serial- to-NMEA 2000 adapter to the HS80/MX575C. Connecting the serial Power/Data cable Align the cable connector keyway with the HS80/MX575C connector key Connect cable here Rotate the cable ring clockwise until it locks.
  • Page 15 “click” when it has locked. Cable ring Cable connector keyway Connector key Fasten the adapter to the body of the HS80/MX575C using the provided screws and the two slots in the adapter. Attach the cable cover. 14 | Installation |...

  • Page 16: Ports

    ¼ Note: For successful communications use the 8-N-1 protocol and set the baud rate of the HS80/MX575C’s serial ports to match that of the devices to which they are connected. Flow control is not supported. Selecting Baud rates and message types...

  • Page 17: Nmea 2000 Port

    There is likely little reason to connect the receive data input of the HS80/MX575C to another device unless it is able to send configuration commands to the HS80/MX575C. Since the...
  • Page 18 1000 Provides a single transmission that describes the position of a vessel relative to both horizontal and vertical planes. This would typically be used for vessel stabilization, vessel control and onboard platform stabilization. | 17 Installation | HS80/MX575C User Manual...
  • Page 19 GNSS Position Data 1000 Conveys a comprehensive set of Global Navigation Satellite System (GNSS) parameters, including position information. 129033 Time & Date 1000 Single transmission that provides UTC time, UTC Date, and Local Offset. 18 | Installation | HS80/MX575C User Manual...

  • Page 20: Powering The Hs80/Mx575C

    HS80 power is taken from the NMEA 2000 main buss. Follow the standard procedure for powering up via NMEA 2000. Before you power up the HS80/MX575C you must terminate the wires of the power cable as required. There are a variety of power connectors and terminals on the market from which to choose, depending on your specific requirements.

  • Page 21: Connecting The Hs80/Mx575C To External Devices

    • When lengthening the power input leads to the HS80/MX575C, ensure the additional voltage drop is small enough that your power system can continue to power the system above the minimum voltage of the system. Wire of 18-gauge or larger should also be used.

  • Page 22: Default Parameters

    The table below provides details on certain default parameters. Contact your dealer for default port settings for your unit. ¼ Note: Use the $JSAVE command to save changes you make to the HS80/MX575C’s configuration for the changes to be present in subsequent power cycles. Unit...

  • Page 23: Operation

    Receiver performance The HS80/MX575C works by finding four or more GPS satellites in the visible sky. It uses information from these satellites to compute a position within 4.0 m. Since there is some error in the GPS data calculations, the HS80/MX575C also tracks a differential correction.

  • Page 24: Hs80/Mx575C Overview

    Fixed baseline moving base station RTK The HS80/MX575C’s internal GPS receiver uses both the L1 GPS C/A code and carrier phase data to compute the location of the secondary GPS antenna in relation to the primary GPS antenna with a very high sub-centimeter level of precision.

  • Page 25: Supplemental Sensors

    Supplemental sensors The HS80/MX575C has three supplemental sensors (gyro and two tilt sensors) that are integrated into the unit’s main PCB. The supplemental sensors are enabled by default. You can enable/disable the gyro and both tilt sensors (you cannot enable/disable each tilt sensor separately).

  • Page 26: Time Constants

    GPS loss for either antenna. If the outage lasts longer than three minutes, the gyro will have drifted too far and the HS80/MX575C begins outputting null fields in the heading output messages. There is no user control over the timeout period of the gyro.
  • Page 27 THD loses power or heading, the coil voltage is lost and the relay opens and activates the notification method employed by the user. When the heading is output, the relay contacts remain closed, completing the circuit as an indication that the HS80/MX575C is operational. ¼ Note: Alarm pins must be connected to an IMO type-approved device.

  • Page 28: Common Commands And Messages

    Query or specify differential correction mode Query or specify SBAS for current location and SBAS $JGEO satellites Query unit’s serial number and firmware versions $JOFF Turn off all data messages $JQUERY,GUIDE Query accuracy suitability for navigation | 27 Operation | HS80/MX575C User Manual...
  • Page 29 *see last bullet in Note at end of this table GPS-derived true heading *$GPHDT 20 Hz *see last bullet in Note at end of this table $GPHEV 20 Hz Heave value (in meters) 28 | Operation | HS80/MX575C User Manual...
  • Page 30 $JATT,NMEAHE,1<CR><LF> Binary messages $JBIN Message Description GPS position GPS DOPs SBAS SBAS ephemeris data Ionosphere and UTC conversion parameters Satellite ephemeris data Code and carrier phase Processor statistics Satellites and almanac GPS diagnostics | 29 Operation | HS80/MX575C User Manual...
  • Page 31 Configure for roll or pitch GPS orientation SEARCH Force a new GPS heading search SPDTAU Set/query speed time constant (0.0 to 3600.0 sec) SUMMARY Display current Crescent Vector settings summary TILTAID Enable/disable accelerometer, pre-calibrated TILTCAL Calibrate accelerometers 30 | Operation | HS80/MX575C User Manual...

  • Page 32: Troubleshooting

    • No GPS lock Verify the HS80/MX575C has a clear view of the sky • Verify the lock status of GPS satellites (this can be done with using the MFD or CDU) •...
  • Page 33 • Potentially, the volume of data requested to be output by the HS80/MX575C could be higher than the current baud rate supports (try using 19200 as the baud rate for all devices or reduce the amount of data being output) •...

  • Page 34: Technical Specifications

    2 RS-422 (1 full duplex, 1 half duplex) Baud rates HS80: 4800, 9600, 19200, 38400, 57600, 115200 MX575C: 4800, 9600, 19200, 38400 Correction I/O protocol RTCM SC-104 Data I/O protocol NMEA 0183, NMEA 2000 | 33 Technical specifications | HS80/MX575C User Manual...
  • Page 35 Specification Operating temperature -30°C to +70°C (-22°F to +158°F) Storage temperature -40°C to +85°C (-40°F to +185°F) Humidity 95% non-condensing Vibration IEC 60945 FCC Part 15, Subpart B; CISPR22; IEC 60945 (CE) 34 | Technical specifications | HS80/MX575C User Manual...

  • Page 36: Certifications

    Depends on multipath environment, number of satellites in view, satellite geometry, ionospheric activity, and use of SBAS Depends on multipath environment, number of satellites in view, satellite geometry, and ionospheric activity * SIMRAD GPS proprietary IEC 60945 Standard Based on a 40 second time constant | 35...

  • Page 37: Output Messages

    Number of Satellites in use, 00-12, may be different from the number in view Horizontal Dilution of Precision (HDOP) Antenna altitude/mean-sea-level (geoid) Units of antenna altitude, Meters 11, 12 Geoidal Height, Meters Age of Differential GPS Data Differential Reference Station ID 36 | Technical specifications | HS80/MX575C User Manual...
  • Page 38 Mode: 1 = Fix not available 2 = 2D 3 = 3D 3-14 PRN numbers of satellites used in solution (null for unused fields) PDOP HDOP VDOP Signal type 1 for L1/CA | 37 Technical specifications | HS80/MX575C User Manual...
  • Page 39 Elevation, degrees, 90 degrees maximum Azimuth, degrees True, 000 to 359 SNR (C/No) 00-99 dB, null when not tracking 2nd and 3rd SV 9, 10, 11, 12 4th SV Signal type 1 for L1/CA 38 | Technical specifications | HS80/MX575C User Manual...
  • Page 40 D = Differential mode E = Estimated (DR) M = Manual input mode S = Simulator mode N = Data not valid RAIM Status: S=RAIM Safe U=RAIM Unsafe C= Caution V=Not Valid | 39 Technical specifications | HS80/MX575C User Manual...
  • Page 41 Speed over ground, km/hr Mode indicator: A = Autonomous mode D = Differential mode E = Estimated (DR) M = Manual input mode S = Simulator mode N = Data not valid 40 | Technical specifications | HS80/MX575C User Manual...
  • Page 42 Quality number {0-25} - number of successive good 30 bit RTCM words received Beacon ID to which the receiver’s primary channel is tuned Health of the tuned beacon [0-7] $PCSI,1 status output period {0-99} | 41 Technical specifications | HS80/MX575C User Manual...

  • Page 43: Proprietary Input Data Messages

    Default settings, User I/O Settings Reset Control Remain Resets GPS Parameters to Factory Default Settings, I/O Settings Return to Factory Defaults. Reset All Parameters Except the Oscillator Model NULL Example: $PMVXG,303,3*57 $PMVXG,303,4*50 42 | Technical specifications | HS80/MX575C User Manual...
  • Page 44 >0 = Output Period Sentence Output Float Rate -1 = When new Data is Available Position Precision (number of decimal units in position Default = 2 output) Null Example: $PMVXG,026,HDT,0,1,1,,,* $PMVXG,026,ROT,0,1,1,,,* $PMVXG,026,VTG,0,1,5,5,* | 43 Technical specifications | HS80/MX575C User Manual...
  • Page 45 11 = Auxiliary NMEA Default: 1 = MX LB2 2 = Aux. LB2 4 = RTCM Input Serial Port Input Format 10 = NMEA Input 11 = Aux NMEA Default: Example: $PMVXG,200,1,6,,,,10,10*61 $PMVXG,200,1,7,,,,,*60 44 | Technical specifications | HS80/MX575C User Manual...
  • Page 46 Frequency in kHz (283.5 to 325) Designates manual frequency selection MSK bit rate (100 or 200 bps) Designates Automatic MSK bit rate selection Period of output of performance status message, 0 to 100 seconds ($CRMSS) | 45 Technical specifications | HS80/MX575C User Manual...
  • Page 47 Word error rate (WER) drops below 10% Station becomes unhealthy or unmonitored Background channel finds a closer station Position changes enough to affect station list. This command has the following format: $GPMSK,305,D,,D<CR><LF> 46 | Technical specifications | HS80/MX575C User Manual...
  • Page 48 This line indicates the current elevation mask cutoff angle, in degrees This line indicates the current seed position used for startup, in decimal degrees This line indicates the current status of the AIR mode | 47 Technical specifications | HS80/MX575C User Manual...
  • Page 49 When GP is specified for ‘subset’ , the following is an example response provided: $>JSHOW,GP,GGA,1.0 This response will provide the >$JSHOW,GP message header, followed by each message currently being output through the current port and also the update rate for that message. 48 | Technical specifications | HS80/MX575C User Manual...
  • Page 50 Specifying AUTODIFF instructs the receiver to use eDif mode In order for the receiver to operate in autonomous mode, the NONE NONE argument may be specified in this command. Example: $JDIFF,BEACON* $JDIFF,LBAND* $JDIFF,WAAS* | 49 Technical specifications | HS80/MX575C User Manual...

  • Page 51: Wiring Diagrams

    BLK (NEG) GRN (NMEA3 RX+) YEL/BLK ORG (NMEA3 RX-) BRN (NMEA3 TX+) BLK/BRN BLU (NMEA3 TX -) WHT (BEACON IN +) GRN/BLK YEL (BEACON IN -) *ORG (1 PPS+) *ORG/BLK (1 PPS-) 50 | Wiring Diagrams | HS80/MX575C User Manual...

  • Page 52: Hs80/Mx575C Interface Via Mx510 Junction Box

    HS80/MX575C interface via MX510 junction Box Mx510 J-BOX for MX500/MX510 P/N 500 100 1002 HS80/MX575C Upper Lower B out B out Lower Upper A out A out B out B out A out A out B out B out B out...

  • Page 53: Mx512 To Mx575C Interface Diagram Via Mx512 Junction Box

    CH8_OU T- CH8_IN- CH8_IN+ CH5_GN D CH8_GN D CH5_OU T+ CH5_OU T- CH5_IN+ CH5_IN- CH4_OU T+ CH4_OU T- CH4_I N- CH3_GND CH4_GND CH3_IN+ CH3_IN- CH2_IN- CH2_IN+ CH2_GN D CH1_GND CH1_IN+ CH1_IN- UPPER 52 | Wiring Diagrams | HS80/MX575C User Manual...

  • Page 54: 1Pps Output Of Mx575C

    BLK (-) dB-9 G ND Connector YEL/BLK (Port B TX-) YEL (Port B TX+ ) BLK/BRN (Port B RX-) BRN (Port B RX+ BLK/G RN (Port A TX-) G RY (G ND) | 53 Wiring Diagrams | HS80/MX575C User Manual...
