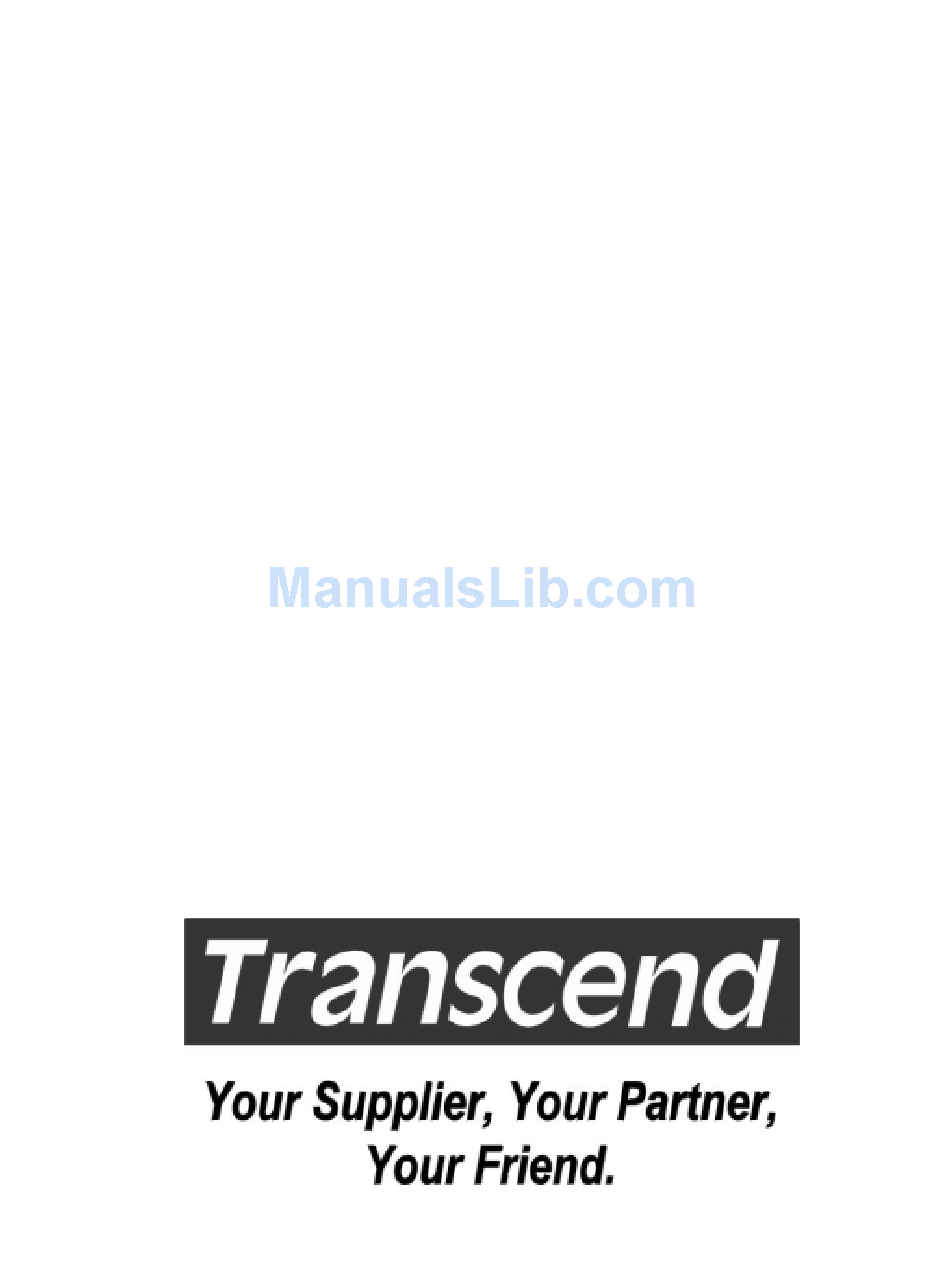

- Page 1 TS-ASL3 TS-ASP3 USER’S MANUAL ® Intel Socket 370 Celeron ® Pentium III FC-PGA Series...
- Page 2 This freedom from liability remains in effect even if Transcend has been advised of the possibility of such damages arising from any defect or error in this manual or product.
-
Page 3: Table Of Contents
Package Contents ....................2 Specifications and Features ................2 CHAPTER 2 HARDWARE INSTALLATION Transcend TS-ASL3/TS-ASP3 Motherboard .............5 Layout of Transcend TS-ASL3/TS-ASP3 Motherboard ........6 Jumper Setup ....................7 2.3.1 66/100/133MHz System Configuration ...........7 2.3.2 Using Jumper JP1 to clear CMOS ............8 2.3.3 Onboard Audio Setting ................9 2.3.4 Keyboard Wake Up ................10... - Page 4 2.4.11 USB 3/4 Connector ................23 External Back Panel I/O Ports ................24 CHAPTER 3 BIOS SETUP BIOS Setup ....................... 2 5 The Main Menu ....................2 5 Standard CMOS Features ................. 2 7 Advanced BIOS Features .................. 3 0 Advanced Chipset Features ................
-
Page 5: Chapter 1 Introduction
INTRODUCTION CHAPTER 1 INTRODUCTION 1.1 Essential Handling Precautions IMPORTANT. Read this page before unpacking your motherboard! • • • • • Power Supply Be careful! Always ensure that the computer is disconnected from the power supply when working on the motherboard and its components. •... -
Page 6: Package Contents
815E (GMCH, ICH2); FSB: 66/100/133 MHz ® - TS-ASP3: Intel 815EP (MCH, ICH2); FSB: 66/100/133 MHz • • • • • Display Cache Memory (TS-ASL3 Only) - AIMM (AGP Inline Memory Module) Card (Optional) • • • • • DRAM Memory - Supports Synchronous DRAM... -
Page 7: Award Bios
INTRODUCTION • • • • • On Board VGA (TS-ASL3 only) - Full 2D/3D/Direct X acceleration - Texture-mapped 3D with point-sampled, bilinear, trilinear, and anisotropic filtering - Supports 640 by 480 (16, 256, High, True color) - Supports 800 by 600 (256, High, True color) -
Page 8: Other Features
INTRODUCTION • Other Features - Year 2000 compliant - Power failure resume - FWH (Firmware Hub) supports security manageability - BIOS Virus protection (warning) - PS/2 Mouse and Keyboard Wake-Up - Supports Wake-on-LAN function - Remote Ring Wake-Up - Time Wake-Up - Board voltage monitors for CPU core, +3.3V, +/-5.0V, +/-12.0V, VTT, 3.3VSB/5VSB - CPU overheat alarm - CPU fan auto-off in sleep mode... -
Page 9: Chapter 2 Hardware Installation

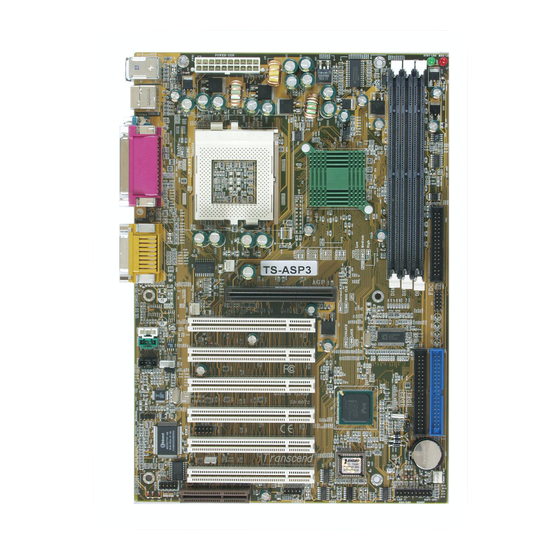

HARDWARE INSTALLATION CHAPTER 2 HARDWARE INSTALLATION 2.1 Transcend’s TS-ASL3/TS-ASP3 Motherboard Back panel I/O ports Main Memory · Game/ MIDI port & Audio Jack · Game/ MIDI port & Audio Jack · · 3 x 1 6 8 - p i n S D R A M D I M M ®... -
Page 10: Layout Of Transcend Ts-Asl3/Ts-Asp3 Motherboard
HARDWARE INSTALLATION 2.2 Layout of Transcend TS-ASL3/TS-ASP3 Motherboard S T B Y - L E D M E M - L E D K B M O U S E U S B T:Port 1 B:Port 2 F C - P G A... -
Page 11: Jumper Setup
HARDWARE INSTALLATION 2.3 Jumper Setup 2.3.1 66/100/133 MHz System Configuration The JP4 Jumper allows you to set the FSB (Front Side Bus) to 66/100/133MHz configuration. When the Jumper is set to “Auto”, the freqency range depends on your CPU type. When you set the FSB to 66MHz, you can select a system bus frequency from 66MHz to 99MHz through “CPU Host/PCI Clock”... -
Page 12: Using Jumper Jp1 To Clear Cmos
HARDWARE INSTALLATION 2.3.2 Using Jumper JP1 to clear CMOS To clear the CMOS data, you should turn off your computer’s power and short pin1 and pin2 in JP1. J P 1 C M O S _ C L R C L E A R N O R M A L Clear COMS Jumper... -
Page 13: Onboard Audio Setting
HARDWARE INSTALLATION 2.3.3 Onboard Audio Setting (JP2 ON-BOARD AUDIO) To use an external CNR card, the onboard audio CODEC can be enabled or disabled via this jumper. Please disable the onboard audio CODEC if you want to use a PCI Sound Card or an CNR Audio Card. -
Page 14: Keyboard Wake Up
HARDWARE INSTALLATION 2.3.4 Keyboard Wake-Up (3-pin KB-AWK This function makes the Keyboard Power Up the system. Set this jumper to “Enable” if you’d like your Keyboard to Power Up your computer. Then, go to the”Power On Function” in the “Integrated Peripherals” in BIOS to choose the setting you prefer. K B - A W K Disable Enable... -
Page 15: Vcc3 Adjust
HARDWARE INSTALLATION 2.3.5 VCC3 Adjust Keep this selection fixed unless you are familiar with the system. Default is “Medium”. J P 2 8 V C C 3 Low Load M e d i u m L o a d High Load VCC3 Adjust... -
Page 16: Connector Description
HARDWARE INSTALLATION 2.4 Connector Description 2.4.1 Primary/Secondary IDE Connectors (Two 40-pin IDE) This motherboard supports two 40-pin IDE connectors marked as IDE1 (primary channel) and IDE2 (secondary channel). Each channel supports two IDE devices for a total of four devices. Connect your Hard Disk Drive (the main hard disk drive (HDD) if you are using more than one) to the “Master”... -
Page 17: Floppy Disk Drive Connector
HARDWARE INSTALLATION 2.4.2 Floppy Disk Drive Connector (34-pin FDC) This connector supports the floppy disk drive ribbon cable which is one of the items in your motherboard package. After connecting the single end to the board, connect the two plugs at the other end to the floppy drive(s). -
Page 18: Fan Power Connectors
HARDWARE INSTALLATION 2.4.3 Fan Power Connectors There are three fan power connectors on the motherboard: CPU-FAN, POWER-FAN, and CASE- FAN. Each connector provides +12V power. The cables can only be attached a certain way. If you try to put them in the wrong way, they won’t fit. These connectors support cooling fans of 500 mA (6W) or less. -
Page 19: Memory Configuration
HARDWARE INSTALLATION 2.4.4 Memory Configuration This motherboard must be installed with PC100/PC133 SDRAM DIMM. You can install either single-sided or double-sided memory modules in any combination of memory capacities (listed below) in any socket, but never exceed 512MB total memory capacity. NOTE: This motherboard supports memory modules with 8/16/32/64/128/256/512MB. -
Page 20: Panel Connectors
HARDWARE INSTALLATION 2.4.5 Panel Connectors S _ L E D P O W E R L E D H D D _ L E D K E Y L O C K R E S E T S P E A K E R S O F T _ O F F Panel Connector Power LED Lead (3-pin POWER LED) -
Page 21: Hardware Installation
HARDWARE INSTALLATION Suspend Mode LED Lead (2-pin S_LED) The S_LED will light when the system is in suspend mode. Pin2 : Pin4 : Hard Disk LED Lead (2-pin HDD_LED) This 2-pin connector connects to the LED of the hard disk. The LED lights up when a HDD is active. -
Page 22: Wake-On-Lan Connector
HARDWARE INSTALLATION 2.4.6 Wake-on-LAN Connector (3-pin WOL) This connector connects to LAN cards with a Wake-on-LAN output. The system can be Powered Up when a wake-up packet or signal is received from the LAN card. NOTE: This function requires that the “Wake-Up by PCI & WOL” function in the “Power Management Setup”... -
Page 23: Power Connector
HARDWARE INSTALLATION 2.4.7 Power Connector (20-pin PWR-CONN) Make sure you plug the ATX power supply connector in properly. The pin definition is shown below. Make sure that your ATX power supply can support at least 720mA +5V standby power for the Advanced Configuration and Power Interface (ACPI) functions. P W R - C O N N +3.3V +3.3V... -
Page 24: Irda-Compliant Infrared Module Connector
HARDWARE INSTALLATION 2.4.8 IrDA-Compliant Infrared Module Connector (10-pin IrDA) The IrDA connector can be configured to support a wireless infrared module. With this module and application software such as Laplink or Win95 Direct Cable Connection, users can transfer files to or from laptops (notebooks), PDAs and printers. You must also configure the setting through “UART Mode Select”... -
Page 25: Internal Serial Port Connector Comb
HARDWARE INSTALLATION 2.4.9 Internal Serial Port Connector COMB You can use the provided serial port bracket to add a serial port for additional serial devices. C O M B G N D D T R C T S S O U T R T S S I N D S R... -
Page 26: Internal Audio Connector
HARDWARE INSTALLATION 2.4.10 Internal Audio Connector These connectors allow you to receive stereo audio input from sound sources such as a CD- ROM, TV tuner, or MPEG card. The MODEM connector allows the onboard audio to interface a voice modem card with a matched connector. It also allows the sharing of mono_in (such as a phone) and mono_out (such as a speaker) between the onboard audio and the voice modem card. -
Page 27: Usb 3/4 Connector
HARDWARE INSTALLATION 2.4.11 USB 3/4 Connector U S B U S B P o w e r P o w e r U S B P 2 - U S B P 3 - U S B P 2 + U S B P 3 + G N D G N D... -
Page 28: External Back Panel I/O Ports
3. USB (Universal Serial Bus) Ports 1 & 2 (Black two 4-pin USBs) 4. Parallel Port (Burgundy 25-pin PRN) 5. Serial Port COMA (Turquoise 9-pin COMA) 6. Display VGA Port (Blue 15-pin VGA) (TS-ASL3 Only) 7. Game Port/MIDI Port (Gold 15-pin GAME) 8. Line_out (Lime Green 1/8” LINE_OUT) 9. -
Page 29: Chapter 3 Bios Setup
BIOS SETUP CHAPTER 3 BIOS SETUP 3.1 BIOS Setup Award BIOS has a built-in Setup program that allows users to modify the basic system configuration. This information is stored in CMOS RAM, so it can retain the Setup information when the power is turned off. When the battery for CMOS fails, it will cause the data to be lost. If that happens, please set up your configuration parameters again after replacing the battery. -
Page 30: Standard Cmos Features
BIOS SETUP Increase the numeric value or make changes Decrease the numeric value or make changes [F1] General help on Setup navigation keys [F5] Load previous values from CMOS [F6] Load the Fail-Safe Defaults from the BIOS default table [F7] Load the Optimized Defaults [F10] Save all the CMOS changes, and exit... -
Page 31: Exit Without Saving 5
BIOS SETUP • Set Supervisor/User Password To change, set, or disable a password • Save & Exit Setup To save settings in nonvolatile CMOS RAM and exit Setup • Exit Without Saving To abandon all changes and exit Setup 3.3 Standard CMOS Features •... - Page 32 BIOS SETUP • IDE HDD Auto-Detection: Detect the HDD on this channel. If the detection is successful, it fills the remaining fields on this menu. • IDE Primary/Secondary Master/Slave: We recommand that you select “AUTO” for all drives. The BIOS can automatically detect the specifications during POST while the system boots.
- Page 33 BIOS SETUP • Precomp: Write precompensation cylinder • Landing Zone: Landing zone • Sector: Number of sectors • Drive A/Drive B Select the correct types of diskette drive(s) installed in the computer. - None: No diskette drive installed - 360K, 5.25 in.: 5-1/4 inch standard drive; 360 kilobyte capacity - 1.2M, 5.25 in.: 5-1/4 inch high-density drive;...
-
Page 34: Virus Warning
BIOS SETUP - All, But Diskette: If the BIOS detects any non-fatal error except floppy disk drive, POST stops and prompts you to take corrective action. - All, But Disk/Key: If the BIOS detects any non-fatal error except floppy disk drive or keyboard, POST stops and prompts you to take corrective action. -
Page 35: Cpu L2 Cache Ecc Checking
BIOS SETUP • CPU Internal Cache/External Cache Cache memory is additional memory that is much faster than conventional DRAM (system memory). CPUs from 486-type and higher contain internal cache memory. Most, but not all, modern PCs have additional (external) cache memory. When the CPU requests data, the system transfers the requested data from the main DRAM into cache memory for even faster access by the CPU. -
Page 36: Boot Up Numlock Status
BIOS SETUP • Boot Up NumLock Status Toggle between “On” and “Off” to control the state of the NumLock key when the system boots. When toggled “On”, the numeric keypad generates numbers instead of controlling cursor operations. • Gate A20 Option Choose “Fast”... -
Page 37: System Bios Cacheable
BIOS SETUP 3.5 Advanced Chipset Features This option will change the values of the chipset registers and the system settings will alter. Do not change any values if you are unfamiliar with the chipset. • SDRAM CAS Latency Time This controls the SDRAM performance: default is “AUTO”. BIOS will auto detect the SPD information of the Memory Module and choose the proper setting. -
Page 38: Delayed Transaction
BIOS SETUP • Video BIOS Cacheable Selecting “Enabled” allows caching of the video BIOS. This action can increase system performance. • Memory Hole at 15M-16M Enabling this feature reserves memory address space (between 15 and 16MB) to ISA expansion cards that specifically require this setting. This makes between 15 and 16MB of memory unavailable to the system. - Page 39 BIOS SETUP • CAS# Latency Set the CAS Latency of the onboard display memory. • Paging Mode Control Open or close the paging mode control of the onboard display cache memory. • RAS-to-CAS Override The default value, “by CAS# LT”, will let this field have the same configuration as the value of the field “CAS# Latency”.
-
Page 40: Integrated Peripherals
BIOS SETUP 3.6 Integrated Peripherals Choose this option and the following display appears. • • • • • On-Chip Primary/Secondary PCI IDE The chipset contains a PCI IDE interface which supports two IDE channels. Select “Enabled” to activate the first and/or second IDE interface. Select “Disabled” to deactivate this interface, when you install a primary and/or secondary add-in IDE interface. -
Page 41: Init Display First
BIOS SETUP • • • • • IDE Primary/Secondary Master/Slave UDMA Ultra DMA/33/66/100 implementation is possible only if your IDE hard drive can support it, and if the operating environment includes a DMA driver (Windows 95 OSR2 or higher or a third-party IDE bus master driver). - Page 42 BIOS SETUP - Any Key: Press any key to Power On the system. - Button only: Power On only by pushing the button on the case (Default). - Keyboard 98: You can Power On system by pushing the [Power-On] key of Keyboard 98. •...
- Page 43 BIOS SETUP • • • • • Use IR Pins This option selects IR transmission routing. Two choices are: RxD2,TxD2 -> COMB Connector IR-Rx2Tx2 -> IR Connector • • • • • Onboard Parallel Port Select a logical LPT port name and matching address for the physical parallel (printer) port. The choices are: “378/IRQ7”, “278/IRQ5”, “3BC/IRQ7”...
-
Page 44: Power Management Setup
BIOS SETUP 3.7 Power Management Setup The Power Management Setup allows you to configure your system to minimize energy consumption, according to your own style of computer use. • ACPI Function This item allows you to enable/disable the Advanced Configuration and Power Interface (ACPI). -
Page 45: Video Off Method
BIOS SETUP 1. Suspend Mode 2. HDD Power Down There are three selections for Power Management. Two of them have fixed mode settings. 1. Min. Power Saving: Minimum power management mode. Inactivity period is defined below: Suspend Mode = 1 hr. HDD Power Down = 15 min. -
Page 46: Suspend Mode
BIOS SETUP • Suspend Mode After the selected period of system inactivity (1 minute to 1 hour), all devices except the CPU will be shut down. • HDD Power Down After the selected period of system inactivity (1 to 15 minutes), the hard disk drive powers down while all other devices remain active. -
Page 47: Pnp/Pci Configuration Setup
BIOS SETUP The settings in these fields enable or disable the detection of Primary IDE 0 IDE, floppy, serial and parallel port activities for powering down Primary IDE 1 state transition. Actually, it detects read/write to/from I/O ports. Secondary IDE 0 Secondary IDE 1 FDD, COM, LPT Port PCI PIRQ[A-D]#... -
Page 48: Irq Resources
BIOS SETUP • IRQ Resources • IRQ-n Assigned to When the resources are controlled manually, assign each System Interrupt to one of the following, depending on which type of device is using the interrupt. - Legacy ISA Devices requiring a specific interrupt (such as IRQ4 for serial port1), compliant with the original PC AT bus specification. -
Page 49: Pc Health Status
BIOS SETUP 3.9 PC Health Status This menu provides two thermo-protect functions (CPU warning temperature and shutdown temperature) and a hardware monitor center. These features let you know the health status of your PC. • CPU Warning Temperature This field allows you to set the CPU warning temperature. You can choose from “50°C/ 122°F”... -
Page 50: Frequency/Voltage Control
BIOS SETUP • Shutdown Temperature This field allows you to set the CPU shutdown temperature. The choices are: “60°C/140°F”, “65°C/149°F”, “70°C/158°F” and “75°C/167°F”. 3.10 Frequency/Voltage Control • CPU Vcore Select This option adjusts the CPU voltage. Available selections are Default /+0.05V/+0.1V/+0.2V/ +0.3V/+0.4V/-0.05V/-0.1V •... -
Page 51: Cpu Clock Ratio
BIOS SETUP • CPU Clock Ratio This function allows you to set the CPU internal frequency ratio. It determines the CPU internal frequency according to the following formula: CPU internal frequency = frequency ratio x system bus frequency.* * System bus frequency is set in the previous field (“CPU Host/PCI Clock”). The choices are: “3”, “3.5”, “4”, “4.5”, “5”, “5.5”, “6”, “6.5”, “7”, “7.5”, and “8”... -
Page 52: Load Fail-Safe Defaults
BIOS SETUP 3.11 Load Fail-Safe Defaults This option allows you to load the troubleshooting default values permanently stored in the BIOS ROM. NOTE: These default settings are non-optimal and disable all high performance features. 3.12 Load Optimized Defaults This option allows you to load the default values to the system configuration fields. These default values are the optimized configuration settings for the system. -
Page 53: Supervisor Password
BIOS SETUP 3.13 Supervisor Password This option allows you to set a password to prevent others from changing the BIOS settings of your system. The password prevents any unauthorized use of your computer. If you set a password, the system prompts for the correct password before you boot or access “Setup”. -
Page 54: User Password
BIOS SETUP 3.14 User Password This option allows you to set a password to prevent others from changing the BIOS settings of your system. This operation is the same as Supervisor Password. 3.15 Save & Exit Setup Save the settings and exit the BIOS utility. -
Page 55: Exit Without Saving
BIOS SETUP 3.16 Exit Without Saving Abort current changes and exit the BIOS utility. -
Page 56: Chapter 4 Software Setup
SOFTWARE SETUP CHAPTER 4 SOFTWARE SETUP Insert the CD-ROM enclosed with your motherboard into the CD-ROM drive. After the Autorun program has executed, please check the model name shown on the screen. If the model name doesn’t match your motherboard, please select the correct one. 4.1 INF Update for 815E Chipset This section introduces INF files in Windows 95/98 for the following items: System and Graphics, LPS Interface, SM Bus, PCI Bridge, Bus master IDE, USB Host, and Controllers. -
Page 57: Vga Driver Setup
SOFTWARE SETUP Click here Click here 4.2 VGA Driver Setup This section introduces Intel 815 system and graphics controller driver. Click VGA Driver Setup, and the follow the figures as below: Click here Click here... -
Page 58: Intel Security Controller Driver
SOFTWARE SETUP Click here Click here 4.3 Intel Security Controller Driver This section helps you to install a security controller for Windows 95/98. Click Security Driver Setup, and then follow the figures as below: Click here Click here... -
Page 59: Audio Driver Setup
SOFTWARE SETUP Click here Click here Click here 4.4 Audio Driver Setup This section helps you to setup the onboard audio device. Click Audio Driver Setup, and choose the operating system you use. A. Audio Driver for Windows 95/98/2000 The following figures are captured from Windows 98SE. You can setup the Audio CODEC in almost the same way in Windows 95 and Windows 2000. - Page 60 SOFTWARE SETUP Click here Click here Click here Click here Click here...
- Page 61 SOFTWARE SETUP B. Audio Driver for Windows NT Click here Click here Click here Click here Click here...
-
Page 62: Chapter 5 Bios Upgrade
BIOS.) 5.2 How to Download the Correct BIOS File from the Web Please enter the Transcend website on: http://www.transcendusa.com/ On the front page, click on the ”Motherboard” icon, which is the second one down. On the Motherboard page, click on the “BIOS”... -
Page 63: How To Update Your Motherboard Bios
Your system could be damaged if the wrong BIOS version is accidently used. If you are not sure what version you should choose, please contact us at: techsupport@transcend.com.tw 5.3 How to Upgrade Your Motherboard BIOS Please follow the 5 steps listed below to upgrade your BIOS.
