Summary of Contents for Macrom M-DVD5562R

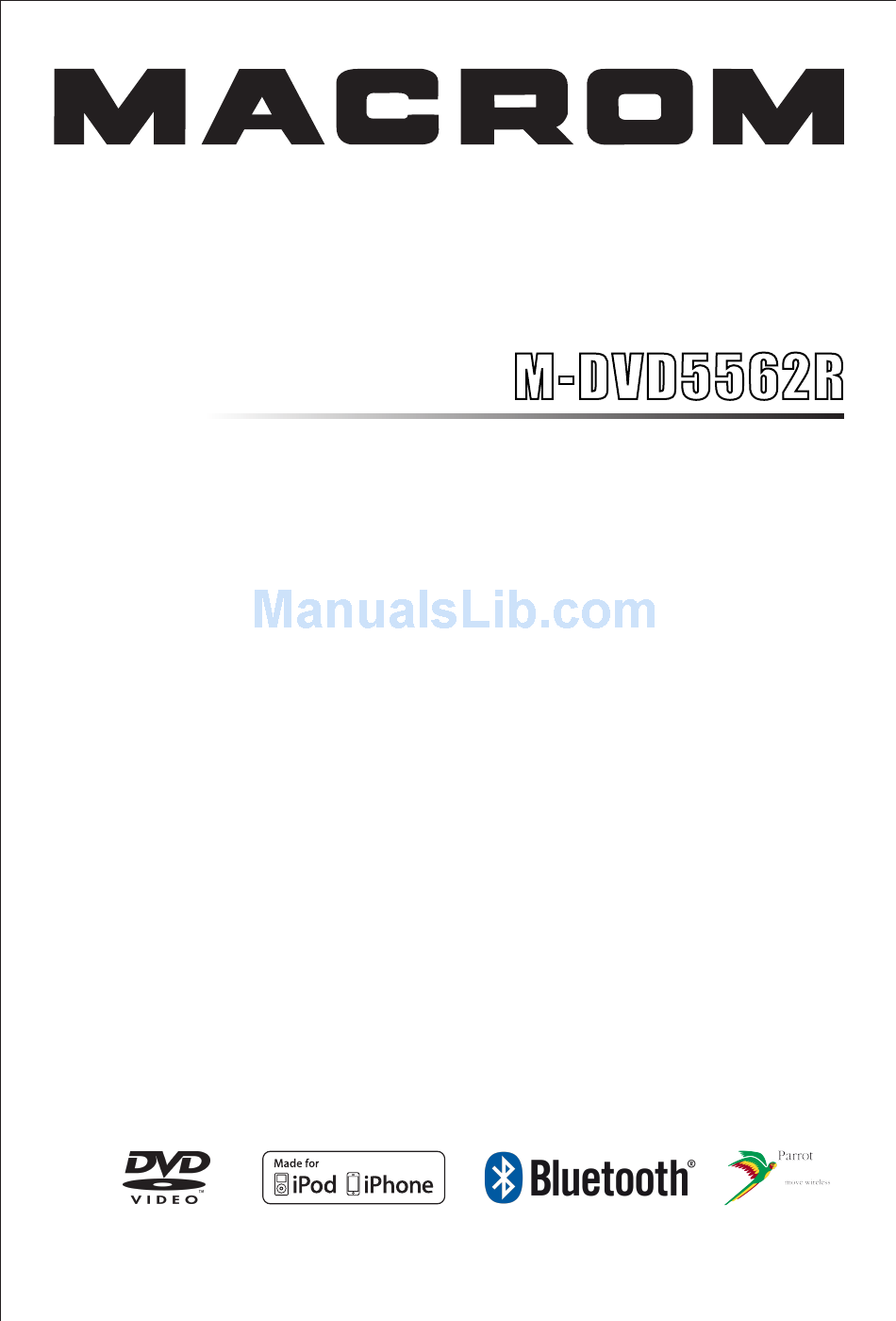

  • Page 1 NAVIGATION MULTIMEDIA RECEIVER INSTRUCTION MANUALS...

  • Page 2: Safety Precautions

    Safety Precautions Thank you for purchasing this product. P l e a s e d o n ' t c h a n g e t h e f u s e o n Please read through these operating the power cord without professional instructions so you will know how to guidance, using improper fuse may operate your model properly.

  • Page 3: Precautions

    Precautions 1. Never disassemble or adjust the unit without any professional guide. For details, please consult any professional car shop / dealer for inquiry. 2. If the front panel or TFT monitor is squalid, please use a clean silicone cloth and neutral detergent to wipe off the spot.

  • Page 4: Table Of Contents

    Contents Safety Precautions ........1 Search phone number ......15 Receive call ..........15 Precautions ..........2 Switch Phone Call to the Mobile ...15 Mute the volume ........15 Contents ............3 Adjust Bluetooth Settings......15 Before using ..........4 Select iPod as playing source....16 Front Panel ..........4 Play ............16 Remote Control........5 DVB-T mode ..........17...

  • Page 5: Before Using

    Before using Front Panel Notice: The graphic in this manual is for reference only, and may be different from that in real unit. Reference to real unit is suggested. 1. [ ] Key: Eject disc 2. [MENU] Key: Return to the home menu. 3.

  • Page 6: Remote Control

    Before using Remote Control 1. Return to the home menu. 2. Eject the disc 3. Select DVD dialogue language Show music catalog 4. Display information 5. Zoom 6. Select radio band 7. Call out 8. Goto search 9. A-B Repeat 10.

  • Page 7: Notes Of Remote Control Using

    Before using Notes of remote control using 1) Aim the remote control at the remote sensor on the unit. 2) Remove the battery from the remote control or insert a battery insulator if the battery has not been used for a month or longer. 3) DO NOT store the remote control under direct sunlight or in high temperature environment, or it may not function properly.

  • Page 8: Basic Operations

    Basic operations Power On/Off Turn on: Short-press [ VOLUME / ] knob on the front panel or [POWER] key on the remote control. Turn off: When on, long press [ VOLUME / ] on the panel or press [POWER] key on the remote control.

  • Page 9: Radio Mode

    Radio mode Select radio as playing source Open the SOURCE MENU and then touch [Radio]. Select one radio band Press the [BAND] key to select one radio band among FM1, FM2, FM3, AM1 and AM2. Tune Auto tuning Press the [ ] / [ ] key on the remote control briefly or press [ ] icon on the user interface to seek a higher / lower station.

  • Page 10: Local Seeking

    Radio mode Local Seeking Touch the [LOC] icon and choose the Radio Local or Distance. When the [LOC] icon turns red, only stations with sufficient signal strength will be detected. EQ Selection Press the [ ] icon and enter the EQ setup. RDS Basics RDS service availability varies with areas.

  • Page 11: Play

    PLAY Load Disc You can play video, audio or images stored on the following discs: • DVD Video, DVD-R, DVD-RW • VCD • Audio CD, CD-R, CD-RW Note: Ensure that the disc contains playable content. Eject the Disc Press the [ ] key on the front panel or remote control to eject the disc.

  • Page 12: Play/Pause

    PLAY Play/Pause 1. Once a disc,USB or SD/MMC card is inserted, play starts automatically. For DVD movie, if a menu appears, press [ ] to start play. 2. To pause, touch [ To resume play, touch [ 3. Skip to previous/next track/chapter, press [ ] / [ ] key.

  • Page 13: Repeat A-B

    PLAY For MP3/WMA files: 1. Touch anywhere except the upper left corner to display menu on the screen, if necessary. 2. Touch [ ] to select: ]: Play the current chapter repeatedly. ]: Play all the tracks in the folder repeatedly. ]: Cancel repeat play You can also press REPEAT on the remote control to select repeated play mode.

  • Page 14: Rotate Pictures

    PLAY Rotate Pictures 1. When you view pictures,touch bottom half of the screen to display menu on the screen, if necessary. 2. Touch [ Rotate ] repeatedly to rotate the picture. Zoom You can zoom in pictures for a close view. 1.

  • Page 15: Bluetooth Mode

    You can pair up to five devices. 1. Turn on the Bluetooth function on the device. 2. Search for Bluetooth device with the device. 3. Select “M-DVD5562R” in the pairing list. 4. Enter default password“0000”. If pairing succeeds,phone call record is displayed.

  • Page 16: Search Phone Number

    Bluetooth mode Search phone number 1. Select “Phone book” after sync phone book successful. 2. Touch [ ] to show the dial number menu. 3 Touch [ ABC ] on the top right of the screen to show the searching menu. 4.

  • Page 17: Select Ipod As Playing Source

    iPod Select iPod as playing source Turn on the unit’s power, and connect an iPod to the unit via a iPod cable, the unit will load the iPod automatically. Play On the iPod main menu, operate the iPod via touch panel. For audio les 1.

  • Page 18: Dvb-T Mode

    DVB-T mode When you connect DVB-T box to the unit (see <Electronic Connections>), press select DVB-T in the main menu to switch to TV mode, touch the center of the screen to show control buttons. Volume Setting Touch [ ] or [ ] button on the screen to adjust volume level, besides in DVB-T memu mode.

  • Page 19: Adjust Sound

    Adjust sound Adjust volume To adjust volume, rotate the volume knob on the host car audio. Mute When playback, press the VOLUME knob on the panel, the sound is cut off. To resume sound, press the button again. Select preset equalizer You can select preset equalizer: ∙...

  • Page 20: Setup

    SETUP Display System 1. Touch the upper left corner to display main menu. 2. Touch [ ] in the nether right corner of the screen. The second main menu is displayed. 3. Touch [Settings]. The settings menu is displayed. General Settings 1.

  • Page 21: Adjust Video Settings

    SETUP Sound settings Options Description Turn on the subwoofer. Subwoofer Turn off the subwoofer 80Hz Subwoofer filter 120Hz Select subwoofer filter criteria. 160Hz The dynamic Bass Boost functions is on. Loudness The loudness function is off. Adjust video settings 1. Touch [Video]. 2.

  • Page 22: Adjust Language Settings

    SETUP Adjust language settings 1. Touch [Language]. 2. Touch an option repeatedly to select. 3. Touch the upper left corner of the screen to exit. Language settings Description Select on-screen display language. DVD audio Select DVD audio language. Options available are depends on DVD disc. DVD subtitle Select DVD subtitle language.

  • Page 23: Other Modes

    Other modes Listen to other devices You can connect an external audio/video device to be unit. 1. Connect the car audio to the device with the supplied AV cable. 2. Touch the upper left corner to display the main menu. 3.

  • Page 24: User-Defined Wallpaper

    Other modes User-Defined Wallpaper 1. Entry Method 1: Touch the [ ] icon on the nether left of main menu to change wallpaper. Method 2: Select Setting mode on the Source menu, touch [wallpaper] in the General setting, then touch the downwards button of the listed submenu until you find [user defined], touch it to enter user- defined wallpaper management.

  • Page 25: Device Connections

    Device connections Parking Brake Cable Connections Reverse Driving Cable Connections...

  • Page 26: Installation Guide

    Device connections Installation Guide Installation and uninstall 1. If relevant, remove any other audio system from the car. 2. Perform the required electrical connections: - If necessary, connect the hand brake wire to your hand brake contact in order to activate the Notes of installation video display when playing a DVD (when the car is parked).

  • Page 27: Specifications

    Specifications Geneal Reference Supply Voltage ..............12V(DC) Operating Voltage Range ............10.5 - 15.8V(DC) Max Operating Current .................15A Grounding System ............ Car Battery Negative Pole Dimensions(WXHXD) ............178X100X173mm Weight(main unit) ..................2.5kg Signal Noise Ratio ................≥55dB Residual Noise Sensitivity(S/N=30dB) ..........18dBμV Frequency Response(±3dB) ............20Hz~12.5KHz Station Seeking Level ..............

  • Page 28: Region Code

    Specifications Supported formats: ·USB or memory file format:FAT16,FAT32 ·Mp3 bit rate(date rate):32-320 Kbps and variable bit rate ·WMA v9 or earlier ·Directory nesting up to a maximum of 8 levels ·Number of albums/folders:maximum 99 ·Number of tracks/titles:maximum 999 ·ID3 tag v2.0 or later ·File name in Unicode UTF8(maximum length:128 bytes) Unsupported formates: ·Empty albums:an empty album is an album that does not contain MP3/WMA...

  • Page 29: Troubleshooting

    Troubleshooting Warning Never remove the casing of this apparatus. To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, please contact your dealer. No power ∙...

  • Page 30: Fuse Is Broken

    Troubleshooting Fuse is broken ∙ The Fuse type is incorrect. Replace it with a 15A fuse. ∙ Speaker wire or power wire is grounded. Check the connections. Display show ERR-12 ∙ USB date error. Check the USB device. About Bluetooth device Music playback is unavailable on the system even after successful Bluetooth connection.

  • Page 31: Appendix

    Appendix...
  • Page 32 The BLUETOOTH ® world mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by ALDINET S.p.A. is under license. The MACROM brand is a registered trade mark of MACROM SA and any use of such marks by ALDINET S.p.A. is under license.
