Summary of Contents for Macrom DAB+ M-DL6800DAB

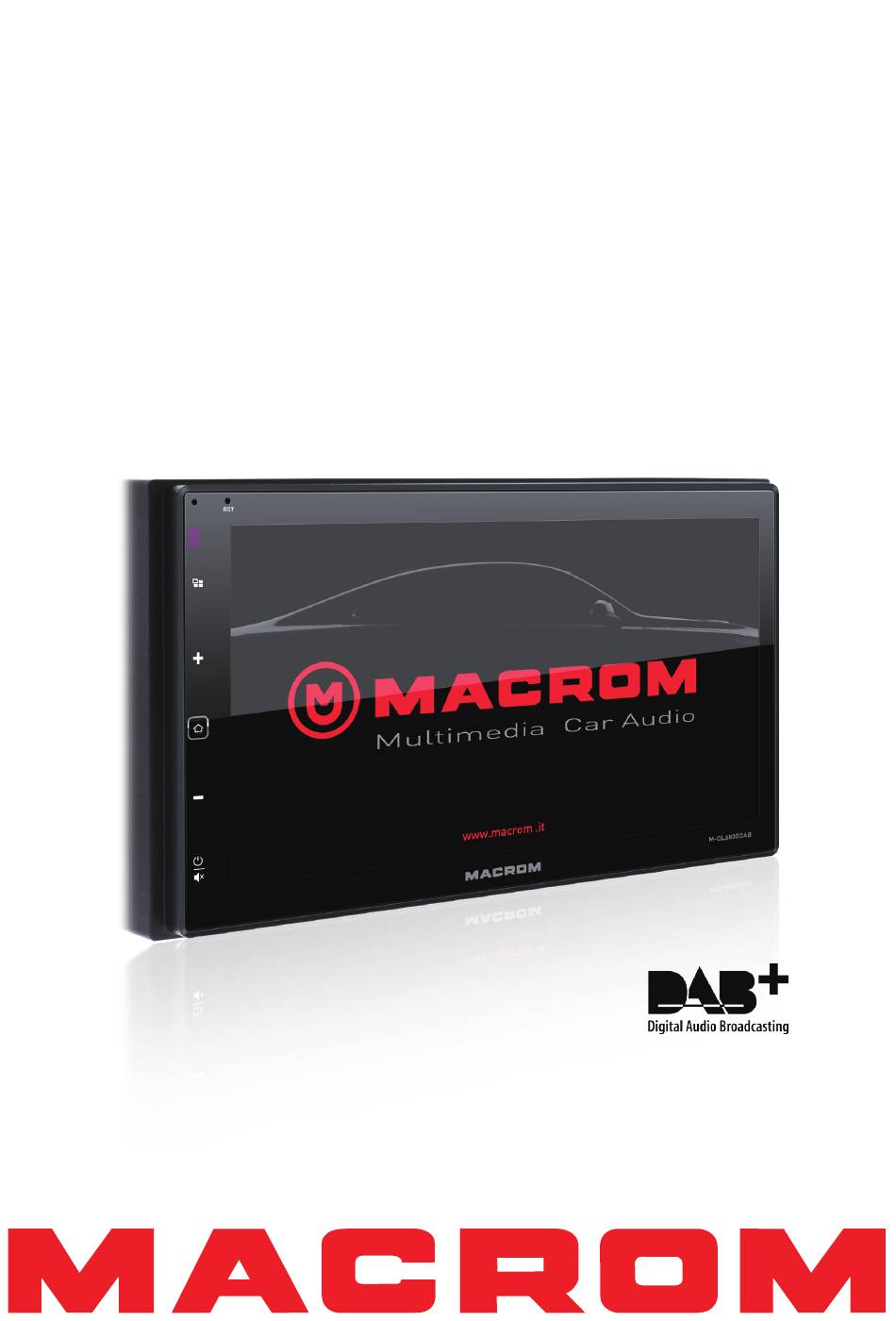

- Page 1 RECEIVER RECEIVER MULTIMEDIA MULTIMEDIA USER MANUAL M-DL6800DAB...
-
Page 2: Table Of Contents
Contents Contents ............2 iPod / iPhone ..........11 Connections ........... 11 Safety Precautions ........3 UI overview ..........11 Bluetooth ........... 12 Installation / Removal ......... 4 Device association ......... 12 Microphone ..........4 Radio unit installation ......4 USB ............ -
Page 3: Safety Precautions
Safety Precautions Thank you for purchasing this product. Please Please don't change the fuse on the power read through these operating instructions cord without professional guidance, using so you will know how to operate your model improper fuse may cause damage to this unit properly. -
Page 4: Installation / Removal
Installation / Removal Microphone installation 1. Place the microphone on the side of the rear view mirror or on the side of the sun visor. 2. Connect the microphone jack to the unit by fixingthe cable in multiple positions using adhesive tape or cable ties to an existing wiring to ensure correct routing. -
Page 5: Warning
Warning Precautions 1. Never disassemble or adjust the unit without any professional guidance. For details, please consult any professional car shop / dealer for inquiry. 2. If the front panel or TFT monitor is dirty, please use a clean silicone cloth and neutral detergent to wipe off the spot. -
Page 6: Product Overview

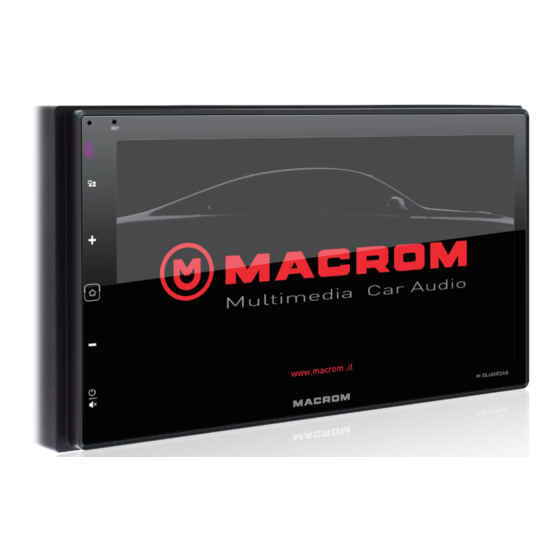

Product overview Front panel M-DL6800DAB Notice: The graphic in this manual is for reference only, and may be different from the actual unit. 1. IR sensor for remote control receiver 2. [ ] Sources button Press the source button to switch modes. 3. -
Page 7: Basic Operations
Basic Operations Power On / Off Press the [ ] button on the unit to turn on the unit. The buttons on the front of the unit light up and the status of the current mode is displayed on the LCD. Press and hold [ ] to turn off the unit. -
Page 8: Am/Fm/Dab Radio
AM/FM/DAB radio Radio overview 1. Current radio frequency / name 2. Radio presets stored. Press and hold for two seconds to store the desired station. 3. Keyboard to directly type the frequency of the desired station. 4. Press to tune to the next or previous station. 5. -
Page 9: Dab Radio
DAB radio Tuning Automatic tuning is required for the first installation. Touch the [ ] / [ ] key on the user interface to tune in a previous or next station. Note: When a station is received, the search stops and the station is played. FM service following If the DAB frequency is not present it will automatically switch to the corresponding station in the FM range. -
Page 10: Autolink Android
AutoLink Android The AutoLink function allows you to connect an Android mobile phone via the USB line, using the mirror method, the mobile phone screen will be displayed on the vehicle. The device can be managed from the screen of the radio unit and the connection is made automatically, convenient and safe, to use the mobile phone. -
Page 11: Ipod/Iphone
iPod/iPhone Connections To connect, use the Lightning USB cable supplied with the iPod / iPhone package, or an Apple- certified USB audio / data cable. USB Lightning iPod / iPhone USB radio unit iPod / iPhone overview 1. Cover (shown if contained in the audio track) 2. -
Page 12: Bluetooth
Bluetooth Through the unit, you can make or receive calls with Bluetooth-enabled phones. You can also listen to music from a Bluetooth device, the source is stopped and the call menu is displayed. Bluetooth device pairing If you want to connect a device to the audio system for the first time, you need to access the Bluetooth function of your device. -
Page 13: Usb
Content search 1. Audio files / tracks. Press [ ] to view all available audio files. Press [D: /] to view all available audio folders. 2. Pictures Press [ ] to view all available images. Press [D: /] to view all available picture folders. 3. -
Page 14: Settings
Settings Audio Audio Settings Options Description Sound effects Equalizzatore - Fader / Balace Access to Audio settings Activate / deactivate the Beep at the touch of the Acoustic touch On - Off screen Loudness On - Off Turn the Loudness effect On / Off 80Hz - 120Hz - 160Hz - Off Subwoofer output crossover frequency settings Subwoofer... -
Page 15: Swc Programming
SWC programming Enter settings and select SWC. Press and hold the steering wheel button you wish to pair (for example Volume) so that an ADC: xxxx code appears on the screen Pair the desired function by holding down the function icon and the steering wheel button at the ADC: xxxx same time until [Checking ...] appears, keep it pressed until [Saved] appears, indicating completion of the... -
Page 16: Audio Control
Audio control Equalizer menu The equalizer function allows you to easily adjust your audio system to the acoustic characteristics of your vehicle. Audio Effects Preset 1. Touch the [ ] icon in the user interface to open the EQ mode. 2. -
Page 17: Specifications
Specifications General Reference Supply Voltage ......................12V Operating Voltage Range ....................10.5 - 15.8V Max Operating Current ........................15A Grounding System ..................Car Battery Negative Pole Dimensions(WXHXD)....................178x100x75mm Weight(main unit) ......................... 1.1kg Signal Noise Ratio ........................≥55dB Residual Noise Sensitivity (S/N=30dB) ................≤10dBµV Frequency Response (±3dB) .................. -
Page 18: Connections
2. Pay attention to the power cord. 3. In case the battery lead and ignition lead do not match, change the position accordingly. 4. In case the car is not equipped with the ignition service, use a Macrom interface to obtain the missing service or services. - Page 19 M-DL6800DAB, brand Macrom - complies with the 2014/53 / EU Directive. The full text of the EU Declaration of conformity is available at the following internet address: www.macrom.it, or at GMA ITALIA s.r.l. - V. Di Vittorio, 7/33 Rho - 20017 (MI) Italy Made in China by GMA ITALIA s.r.l.
