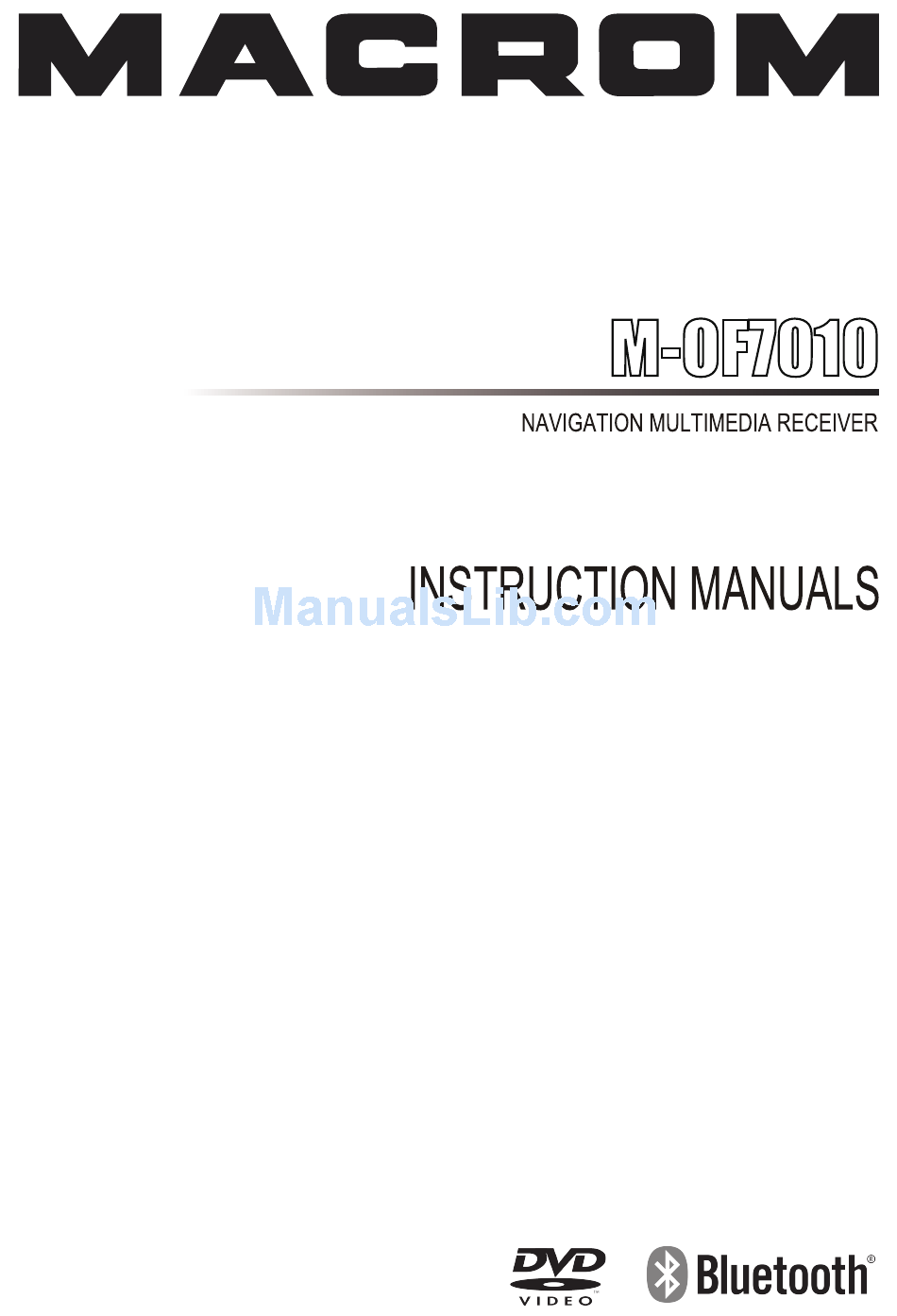

Macrom M-0F7010 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Macrom M-0F7010

Summary of Contents for Macrom M-0F7010

  • Page 2: Quick Guide

    CAUTION Texts with this symbol draw your attention to potential sources of damage to your vehicle. CAUTION Short Press: press no more than 2 seconds Long Press: press more than 2 seconds Hard Key: buttons on the front panel Soft Key: buttons on the touch screen. QUICK GUIDE Product Overview This overview will help you to quickly know more about the control elements.
  • Page 3 “0” , the unit volume is muted ( display Function Buttons: Short press the function button to get into the different function: − RADIO : Switch back to radio mode or changes the waveband (FM/ MW / LW) during radio mode. −...

  • Page 4: Using Touch Screen

    CAUTION − Inserting a second CD/DVD while an inserted CD/DVD is being ejected can destroy the CD/DVD drive in the unit. Note that it takes a few seconds to eject the CD/DVD after pressing the Eject button . The protective barrier in front of the CD/DVD slot is opened while this is happening.

  • Page 5: Selecting Radio Stations

    RADIO Press “RADIO” button to get into the radio mode. You can search you wanted station by manually or automatically seeking. You can store the station, and then you can quick switch to the station by shortcut button. Img3 – Radio main menu All radio stations with strong reception are automatically stored in the station list.
  • Page 6 Img4 – Radio main menu – Band switch Changing radio stations Short pressing the arrow keys on the panel. Or pressing the arrow keys on the steering wheel . Or touching the arrow keys on the screen of the “RADIO” main menu takes you to the previous or next station. Setting radio stations manually Turning the knob to set a radio station manually via its frequency.

  • Page 7: Storing Radio Stations

    Img5 – Update station list Storing radio stations Radio stations can be stored directly on the displayed “station buttons”or in the memory list. Storing radio stations on a displayed station button Press and hold one of the six station buttons 1 to 6 displayed in the “RADIO” main menu until you hear a beep.

  • Page 8: Extra Function

    Img7 – Memory list Storing radio stations into memory list Press the button to get into the memory list. Enter the button to store a new station into the memory list. And press the button to delete a stored station. EXTRA Function In the FM band, you can use the RDS functions.
  • Page 9 this pop up window. Scan all receivable radio stations Img9 – Radio main menu – scan − Touch the settings knob at the bottom right of screen . A new window pops up with two items. − Touch soft key , the icon changes from All radio stations with strong reception are scanned for about 10 seconds each in the sequence in which they appear in the station list.
  • Page 10 Open the radio text window NOTICE This function is only available in FM band. Img10 – Radio main menu – scan − Touch the settings knob at the bottom right of screen . A new window pops up with three items. −...
  • Page 11 This function is only available in FM band. Transmitters broadcast the same station in different countries, areas with different frequency. To ensure users always can listen to the best quality radio programme. If the quality of current frequency goes bad, radio will automatically switch to a new frequency in the same station which has better reception.
  • Page 12 Incoming traffic announcement If there is a traffic announcement come be received, a new window will pop up with traffic information. Img13– Traffic announcement If you wish to interrupt the announcement, touch in the traffic announcement popup window. The TP function remains in standby and the next traffic announcement will be made in the current audio mode.
  • Page 13 MEDIA Overview of the MEDIA main menu Press “MEDIA” button to enter into the multimedia system. In the media function, you can select the USB player mode, SD card player mode. You can switch back to the media mode from navigation mode or DVD mode at anytime.

  • Page 14: Usb Mode

    USB Mode − Press the soft key to enter the USB selection menu. − In the USB selection menu, you can choose “Music”、”Picture”、”Text” to play by 、 、 touching the soft key Plug / Unplug USB − Using the attach switch cable for USB connection. −...
  • Page 15 Img16 – MEDIA main menu – USB Music Mode Track selecting − Press the soft key at the left bottom of screen to enter the folder selection menu. − You can find all the music track and folders in the list. You can select the track and folder by touching the name on screen.
  • Page 16 Repeat / Random / Scan − Touching the soft key buttons the bottom of screen to open and close the “Repeat”, “Random”, “Scan” function. After the function is opened, the status word will be display at the right top of the screen.

  • Page 17: Sd Card Mode

    CAUTION If the picture bigger than 2M,the system can’t view. Some warning :”Can not view image bigger than 2M”. Img19 – MEDIA main menu – USB Picture Viewer warning USB Text Read Mode Press the soft key enter the text read window. You can read the text file.
  • Page 18 Playing control − Pause: press the soft key to pause or play again the music. − Track select: Short press the soft key to select the previous or next track. − Fast playback: Long press the soft key to fast forward or fast backward.
  • Page 19 SD card might have a complicated folder structures, the control function is a little different with USB mode. SD Card Video Mode Img22 – MEDIA main menu – SD card video mode Playing control – Pause: Press the soft key to pause or play again the video.

  • Page 20: Audio Input Aux

    Audio Input Aux 1 - 2- 3 Connect an external audio source (MP3 or MP4 player, etc) to the head unit. Inputs available: − AUX 1 audio input, jack on the front of unit. − AUX 2 audio input, original jack on the vehicle (if equipped). −...
  • Page 21 the CD/DVD after pressing the Eject button. You must wait until the CD/DVD is ejected before trying to insert a new CD/DVD. If the CD/DVD drive has a mechanical fault or if a CD/DVD has been – incorrectly or not fully loaded, the message “CD error. Please check CD.” and then “DVD drive error”...
  • Page 22 point where it is automatically pulled in. – The DVD starts automatically. It can take a few seconds for the DVD to be read; the screen stays dark while this is happening, so please be patient. The “Intro” stored on the video DVD (a short introductory sequence) is played. Wait until the Intro has finished and the film's menu options appear with the unit's own menu prompts.
  • Page 23 – Once you have highlighted the required option, select the Enter function key to activate it. – Make all the desired settings available in the film's menu. – Start the film by selecting the required option from the film's menu selection. –...
  • Page 24 Function keys used to control the current audio or video source – Pause: Press the soft key to pause or play again the video. – Fast playback : Touch the soft key to fast forward or fast backward. – Video select : Touch the soft key to select the previous or next video.
  • Page 25 Opening chapter selection Img30 –Disc– DVD Chapter selection – In the video DVD menu, touch the function key while a film is running to view a list of chapters on the video DVD. The current chapter is at the top, with all the following chapters underneath.
  • Page 26 Inserting a CD/MP3 disc – Insert a disc in to the disc slot, the screen displays “Reading disc...”. If the disc is loaded successfully, the system will change to CD/MP3 menu and play the disc at the same time. Ejecting a CD disc –...
  • Page 27 Repeat / Random / Scan – Touching the soft key buttons at the bottom of screen to open and close the “Repeat”, “Random”, “Scan” function. After the function is opened, the status word will be display at the right top of the screen.
  • Page 28 – Fast playback: Long press the soft key to fast forward or fast backward. Track selecting – Press the soft key at the left bottom of screen to enter the track selection menu. – You can find all the tracks and folders in the list. You can select the track and folder by touching the name on screen.
  • Page 29 Data disc Video Mode Img35 – Disc – Data disc video mode Playing control – Pause: Press the soft key to pause or play again the video. – -Fast playback : Touch the soft key to fast forward or fast backward.

  • Page 30: Bluetooth Handsfree

    BLUETOOTH Handsfree Warning Your attention must always be concentrated on road traffic as an absolute priority! The telephone should only be used if the road traffic situation allows. Accidents and injuries can occur if the driver is distracted. − Please only use the telephone when the road, weather and traffic conditions are such that it is safe to do so.
  • Page 31 Img38– Bluetooth setting In the “BT setting” menu, all bounded mobile phone names are displayed in the list. You can press the button to remove the bounded mobile phone name from the list. Pressing the button to bound a new mobile phone, and the button change to until the connecting finished.
  • Page 32 Img40 – Bluetooth setting – Phone list The Contact List download remind will jump out during the connection. Touch the botton to download the Contact List. Img41 – Bluetooth setting – Contact list download CAUTION Few brand of mobiles don’t support this function because of the compatibility. After the mobile phone established the connection with Built-In Bluetooth, an icon with be display at the start of list item.
  • Page 33 Make a phone call You can dial a number via touching the keyboard and press the green button to call the number. System will record the dialed number in the memory. Img42 – Dial a call During a telephone call −...
  • Page 34 CAUTION Few brand of mobiles will disconnected the bluetooth after pressing because of the compatibility. − If you touch function key during a call, The voice will only be outputted from the ear phone and the voice will never be heard by others. −...
  • Page 35 Img45 – Incoming a call Img46 – Receive a call During the call, you can turn the left knob to adjust the telephone volume. Img47 – Adjust the volume during the call...
  • Page 36 TONE You can adjust the sound character and the volume of different audio sources to suit your individual needs. Img48 – Tone setup main menu Treble - Bass Press the soft key to get into the “Treble-Bass” setting. − Short press the soft key to enlarge the “Treble”...
  • Page 37 Balance-Fader – Press the soft key to adjust the balance, the cursor moves. – Press the soft key to adjust the fader, the cursor moves. – Press to go back the tone setup main menu. Img50 – “Balance – Fader” setting Volume Settings –...
  • Page 38 Img51 – Volume settings Volume Settings Press the soft key to get into the “GALA” setting. – Short press the soft key to enlarge the “GALA”, the cursor moves to the right. – Short press the soft key to reduce the “GALA”, the cursor moves to the left. –...

  • Page 39: Radio Setup

    SETUP Press “SETUP” button to enter the setup main menu after system started up. You can set the system settings in the menu. Img53 – Setup main menu Radio Setup Press soft key to enter into radio setup main menu. Img54 –...
  • Page 40 Select preset band There are 30 presets reserved for FM, MW and LW bands. You can select different section of presets to store the radio station from the pull-down menu. RDS Regional Mode Press the soft key and select an item in the pull-down menu to change the RDS regional mode setting.

  • Page 41: Display Setup

    Display setup Press soft key to enter into display setup main menu. Img56– Display setup main menu Set brightness – Short press the soft key to enlarge the “Brightness”, the cursor moves to the right. – Short press the soft key to reduce the “Brightness”, the cursor moves to the left.

  • Page 42: System Setup

    System Setup Press soft key to enter into system setup main menu. Img57 – System setup main menu System language Touch to choose the language from the pull-down menu. Such as English, Italian. Factory settings Press soft key to enter into the factory setting main menu. In this menu, you can clear all the user’s personal settings.
  • Page 43 – In the Factory settings menu, activate the checkboxes in front of the entries by touching the appropriate function key. Touch the function key again to deactivate the checkbox. – In this way, you can select settings you would like to reset. –...
  • Page 44 Configuration Press soft key to enter into the configuration menu. Configuration menu include Reverse assistant、Assistant type and Car type for customer select.

  • Page 45: Connections Diagram

    Connections diagram...
  • Page 46 The BLUETOOTH ® world mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by ALDINET S.p.A. is under license. The MACROM brand is a registered trade mark of MACROM SA and any use of such marks by ALDINET S.p.A. is under license.
