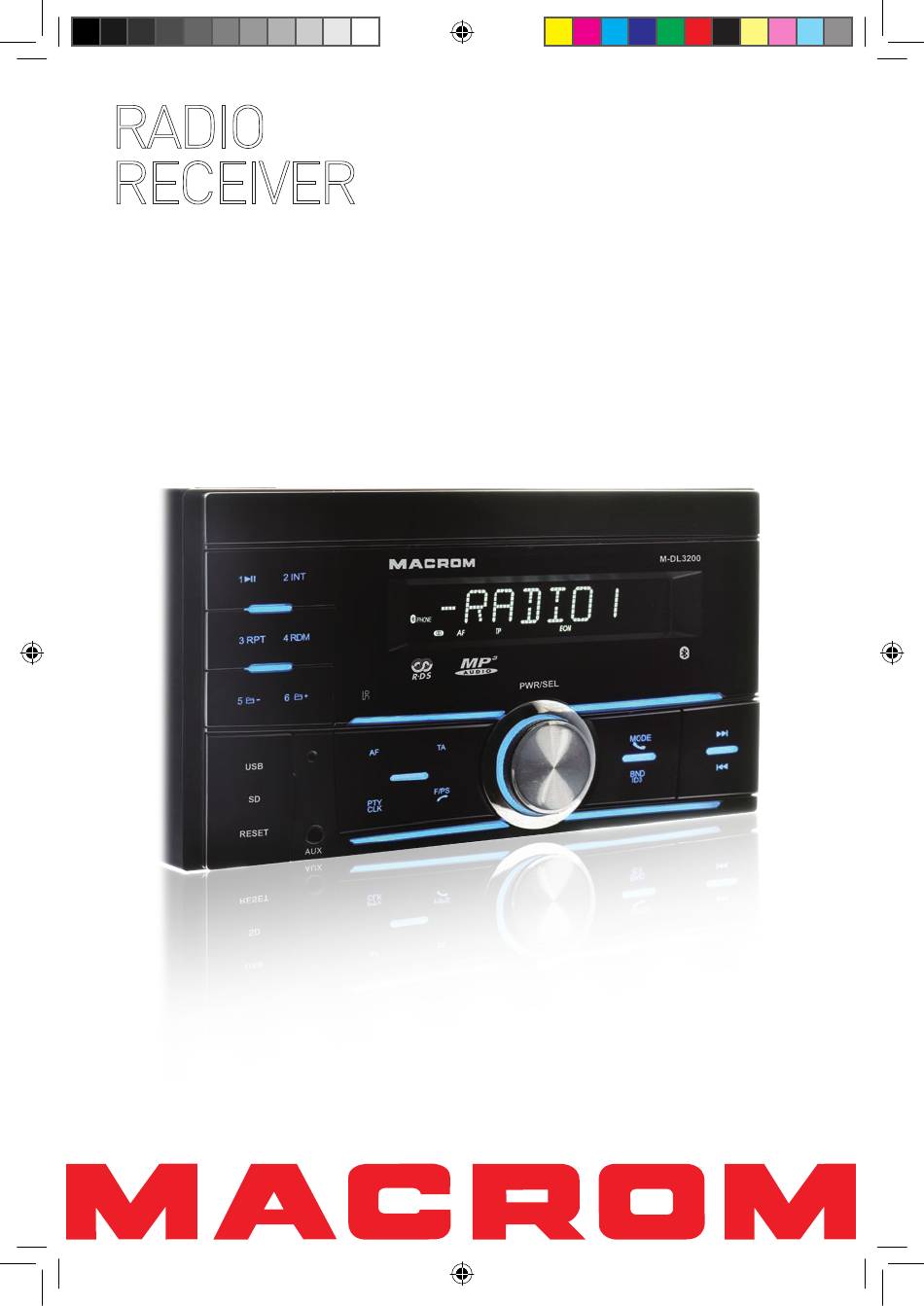

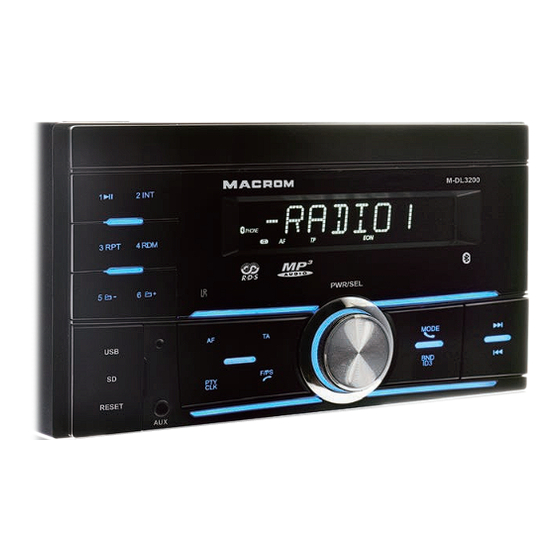

- Page 1 RADIO RECEIVER USER MANUAL M-DL3200 M-DL3200 User manual_ENG.indd 1 23/07/2018 15:29:17...
-
Page 2: Safety Precautions
& regulations and also to reduce the risk of traffic accident except for using rear view video camera. MUTE MUTE Never expose this unit, amplifier, and speakers to moisture or water to prevent electric sparks or fire. - 1 - M-DL3200 User manual_ENG.indd 1 23/07/2018 15:29:18... -
Page 3: Installation
Insert the levers supplied with the unit into the grooves at both sides of the unit as shown in figure until they click. Pulling the levers makes it possible to remove the unit from the dashboard. - 2 - M-DL3200 User manual_ENG.indd 2 23/07/2018 15:29:18... -
Page 4: Product Overview
7. Folder previous / Preset 5 17. Mode selector / Phone call reception 8. USB slot 18. Band selector 9. SD slot 19. Next selector 10. Reset button 20. Previous selector - 3 - M-DL3200 User manual_ENG.indd 3 23/07/2018 15:29:18... -
Page 5: Remote Overview
Disposal notes Do not dispose of your old unit in the household trash! Use the return and collection systems available to dispose of the old device, the remote control and exhausted batteries. - 4 - M-DL3200 User manual_ENG.indd 4 23/07/2018 15:29:18... -
Page 6: General Operations
The unit is equipped with memory for settings even when the battery power is disconnected. To reset the unit for default settings, press and hold the MOD + BND buttons when the unit is off. - 5 - M-DL3200 User manual_ENG.indd 5 23/07/2018 15:29:18... -
Page 7: Rds Operation
In FM mode, press the volume knob repeatedly until AF SETTING appears on the display. Turn the volume knob to select AF LOW, AF MID, AF HIGH. According to the FM radio signal in your area you can customize the search for alternative frequencies. - 6 - M-DL3200 User manual_ENG.indd 6 23/07/2018 15:29:18... -
Page 8: Auxiliary Input
Press the Mode button to choose AUX. Connect, any portable audio device such as a DVD player or VCD player to the AUX IN cable. Use the volume control to adjust volume. PWR/SEL MODE F/PS RESET - 7 - M-DL3200 User manual_ENG.indd 7 23/07/2018 15:29:18... - Page 9 4 RDM Folder Down Press the “ ” button once to go back one folder. PWR/SEL Folder Up Press the “ ” button once to advance PWR/SEL - 8 - MODE MODE M-DL3200 User manual_ENG.indd 8 23/07/2018 15:29:19 F/PS...
-
Page 10: Bluetooth Mode
PAIR OK. Proceed to the next function until all desired functions are set. Note: During the SWC setup, if the unit is idle for 5 seconds, the unit will return to the main GUI and user has to repeat the above actions again. - 9 - M-DL3200 User manual_ENG.indd 9 23/07/2018 15:29:19... -
Page 11: Wire Connections
Frequency range (EUR) ..................... 522 - 1620 KHz Sensitivity ....................... Better than 45 dB S/N ratio ............................. 40 dB Frequency ......................2,402 - 2,480 GHz EIRP power ...........................3.0 dBm Software Version MCU ............................Ver V5A - 10 - M-DL3200 User manual_ENG.indd 10 23/07/2018 15:29:19... -
Page 12: Declaration Of Conformity
The manufacturer Aldinet S.p.A declares that the type of radio equipment- AM/FM/radio receiver and USB/SD card reader, model M-DL3200, brand Macrom - complies with the 2014/53 / EU Directive. The full text of the EU Declaration of conformity is available at the following internet address: www.macrom.it, or at...
