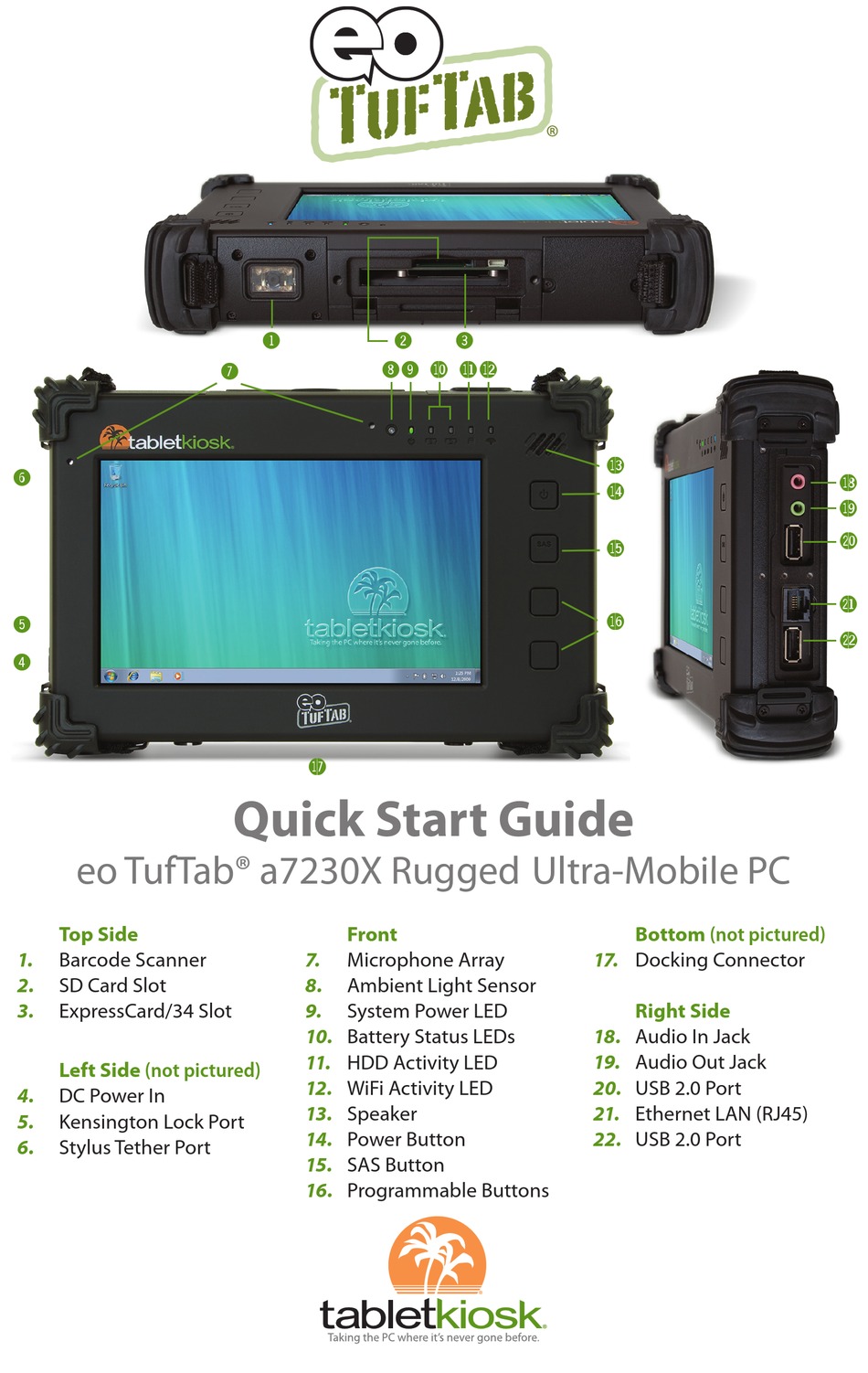

eo TufTab® a7230X Rugged Ultra-Mobile PC
Top Side
1.
Barcode Scanner
2.
SD Card Slot
3.
ExpressCard/34 Slot
Left Side (not pictured)
4.
DC Power In
5.
Kensington Lock Port
6.
Stylus Tether Port
!
*( BL
&
BS
Quick Start Guide
Front
7.
Microphone Array
8.
Ambient Light Sensor
9.
System Power LED
10.
Battery Status LEDs
11.
HDD Activity LED
12.
WiFi Activity LED
13.
Speaker
14.
Power Button
15.
SAS Button
16.
Programmable Buttons
@
#
BM BN
BO
BP
BQ
BR
Bottom (not pictured)
17.
Docking Connector
Right Side
18.
Audio In Jack
19.
Audio Out Jack
20.
USB 2.0 Port
21.
Ethernet LAN (RJ45)
22.
USB 2.0 Port
BT
BU
CL
CM
