TabletKiosk Sahara Slate PC i500 Quick Start Manual

Hide thumbs Also See for Sahara Slate PC i500:

Advertisement

Quick Links

Download this manual See also: User Manual
Top Side
BQ
Left Side
!
@
CN
#
$
BM
BN
%
BO
^
BP
Z &
*
(
BL
Left Side
1.
Carry Strap Attachment
2.
DisplayPort++
3.
Ethernet Port (RJ45)
4.
Firewire 400 (6-pin)
5-6.
USB 2.0
7.
eSATA+USB 2.0
8.
Headphone Jack
9.
Audio In Jack
10.
Stylus Pen Holder
11.
SAS Button
12.
Screen Rotation Buttons
13-14.
Volume or Brightness
Control Buttons (user
assignable in BIOS)
BRBS BT BU CL

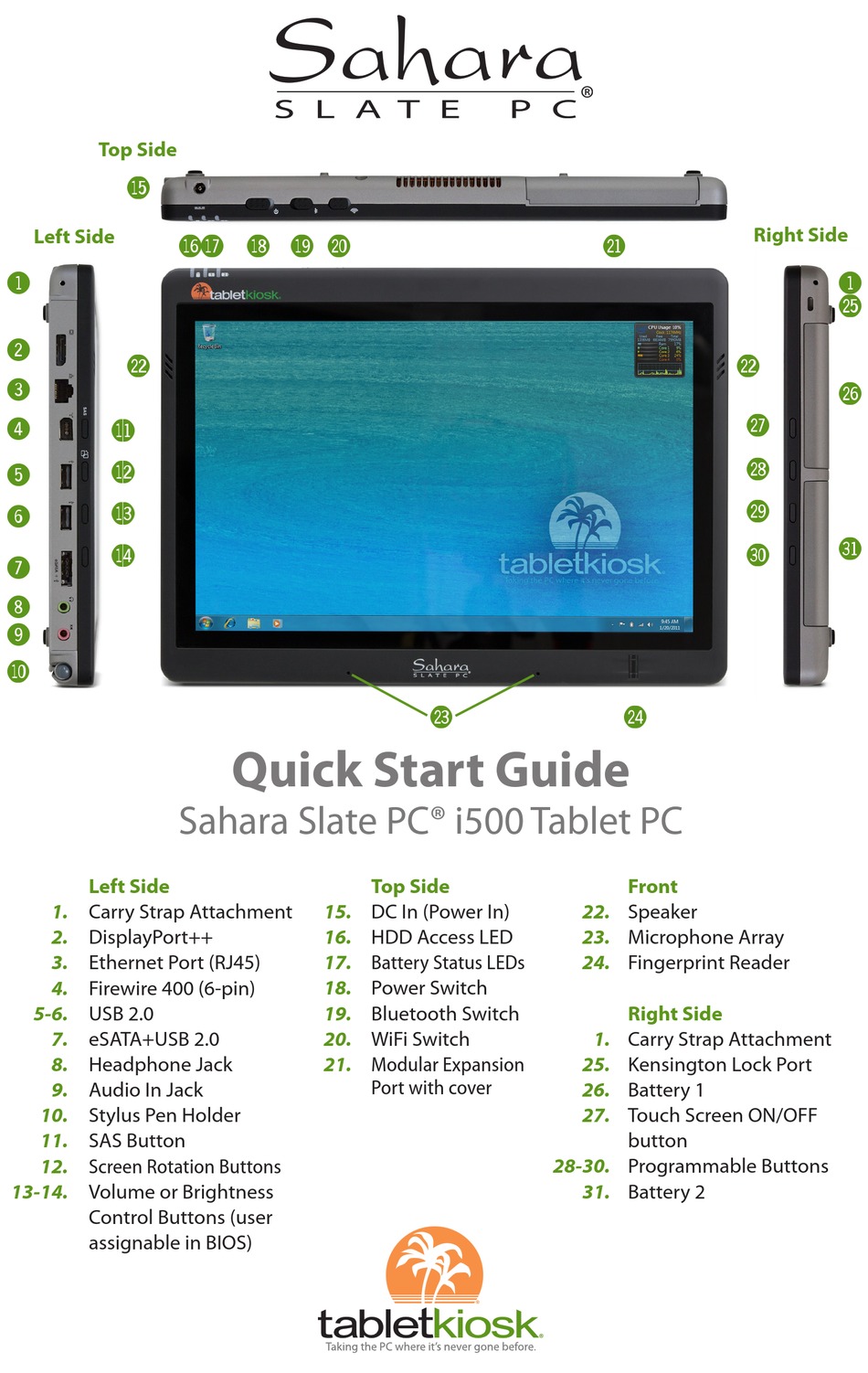

Quick Start Guide

Sahara Slate PC® i500 Tablet PC
15.
16.
17.
18.
19.
20.
21.
CO
Top Side
DC In (Power In)
HDD Access LED
Battery Status LEDs
Power Switch
Bluetooth Switch
WiFi Switch
Modular Expansion
Port with cover
CM
CP
Front
22.
Speaker
23.
Microphone Array
24.
Fingerprint Reader
Right Side
1.
Carry Strap Attachment
25.
Kensington Lock Port
26.
Battery 1
27.
Touch Screen ON/OFF
button
28-30.
Programmable Buttons
31.
Battery 2
Right Side
!
CQ
CN
CR
CS
CT
CU
DM
DL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sahara Slate PC i500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TabletKiosk Sahara Slate PC i500

Summary of Contents for TabletKiosk Sahara Slate PC i500

  • Page 1: Quick Start Guide

    Top Side BRBS BT BU CL Right Side Left Side Z & Quick Start Guide Sahara Slate PC® i500 Tablet PC Front Left Side Top Side Carry Strap Attachment DC In (Power In) Speaker DisplayPort++ HDD Access LED Microphone Array Ethernet Port (RJ45) Battery Status LEDs Fingerprint Reader...
  • Page 2 Stylus Pen (may not be included with capacitive touch only configurations) Setting Up Your Sahara Slate PC The following steps will help you power up and get running with your new Sahara Slate PC i500 Tablet PC as quickly and effortlessly as possible. These steps might change slightly over time with newer revisions of the installed operating system, or when your tablet is purchased from a systems integrator or solutions provider.
  • Page 3 Step 2: Connect the Sahara Slate PC to an External Power Source Locate the AC adapter and the power cord. Plug the power cord securely into the AC adapter. Plug the AC adapter’s connection cable into the “DC In” port on the top side of the Sahara Slate PC. Once the adapter plug is securely in place, plug the power cord into an external power socket.
  • Page 4 When using a digitizer, you may only navigate using the pen. On a dual mode Sahara Slate PC i500 Tablet PC, the screen will intelligently sense the tip of the stylus pen when it draws near and automatically switch on the digitizer. Now the pen's tip doesn’t even need to touch the screen to activate and move the pointer.
  • Page 5 In the "Display" tab, tap on the “Calibrate... ” button. If a Window appears asking you which If your Sahara Slate PC i500 has a dual mode type of screen you to want to calibrate ("Touch screen, you will see this window asking you to choose an input panel to calibrate.
  • Page 6 NOTE: If you find the “Standard Calibration” to be too imprecise, the “Advanced Calibration” mode offers 9, 16 or 25 points for calibrating. We suggest starting at 9 points. For both modes, it is highly recommended that you use the stylus, rather than your finger, to produce to most accurate results. Follow the on-screen instructions by pressing and holding on each red square that appears until you are...
  • Page 7 "X Delete" button to remove it. Then tap on the "New Connection" button to re-setup the device again. Using the TabletKiosk Modular Expansion System Your Sahara Slate PC features the TabletKiosk Modular Expansion System. This systems allows for the easy integration of feature modules that enhance the capabilities of your Tablet PC.

  • Page 8: Programming The Function Buttons

    To remove or swap a module, simple follow the same procedure, except replace the module you are removing with either another module, or the Expansion cover plate. NOTE: If your module contains, or is attached to, a media card reader, external hard drive or other such removable media device, be sure to eject the device as you would a standard USB attached data storage device before removing it in order to prevent possible data loss/...
  • Page 9 NOTE: The easiest way to enter the Advanced Boot Menu is by repeatedly pressing the [F8] key as soon as you see the TabletKiosk logo screen and not stopping until the Advanced Boot Options menu screen appears. When the Advanced Boot Options menu appears, select “Repair Your Computer”...
  • Page 10 Battery Usage Running your system plugged in all the time, or conversely, until the batteries are almost totally drained on a regular basis is not recommended as they can damage the battery’s ability to hold a charge. In general, running the system until both battery indicators are blinking, typically this is when the batteries are down to just below 10% charged, and then fully charging the batteries (full discharge/charge cycle) will ensure the accuracy of the battery status gauges and prolong the batteries' charge efficiency.

  • Page 11: Important Safety Instructions

    Storing the System Long-Term If you don’t plan on using your Sahara Slate PC for more than four months, TabletKiosk recommends that you remove the two Lithium-Ion batteries and store them with approximately a 50% charge. If you store a Lithium-Ion battery when it’s fully discharged, it could fall into a deeply discharged state which renders it incapable of holding any charge.
  • Page 12 ©2011 Sand Dune Ventures, Inc. d/b/a TabletKiosk. All Rights Reserved. Sahara Slate PC and TabletKiosk are registered trademarks of TabletKiosk in the United States and other countries. Windows, the Windows logo, and Windows 7 are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries.
