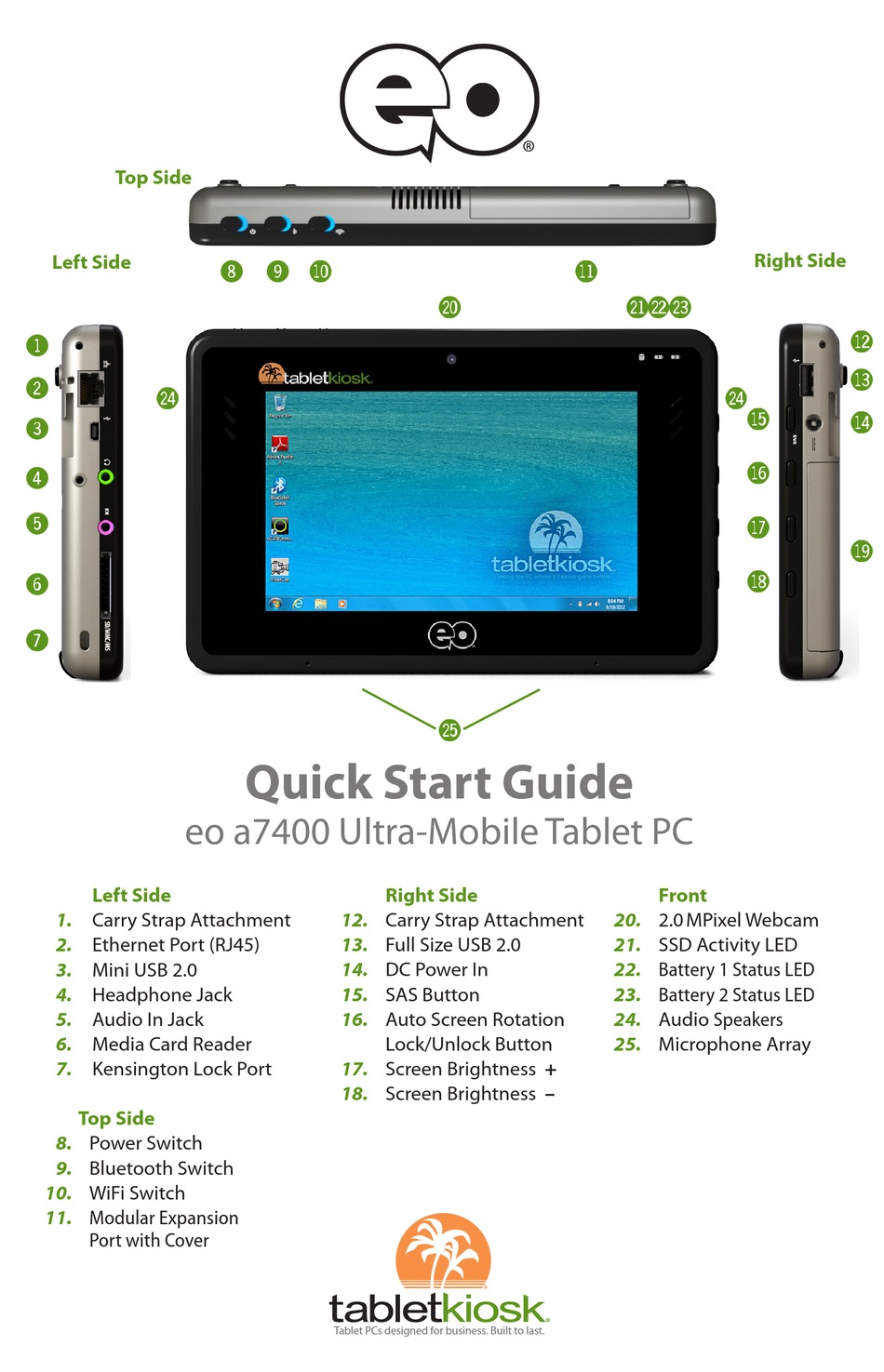

eo a7400 Ultra-Mobile Tablet PC
Left Side
1.
Carry Strap Attachment
2.
Ethernet Port (RJ45)
3.
Mini USB 2.0
4.
Headphone Jack
5.
Audio In Jack
6.
Media Card Reader
7.
Kensington Lock Port
Top Side
8.
Power Switch
9.
Bluetooth Switch
10.
WiFi Switch
11.
Modular Expansion
Port with Cover
* ( BL
Quick Start Guide
Right Side
12.
Carry Strap Attachment
13.
Full Size USB 2.0
14.
DC Power In
15.
SAS Button
16.
Auto Screen Rotation
Lock/Unlock Button
17.
Screen Brightness +
18.
Screen Brightness –
Tablet PCs designed for business. Built to last.
BM
CL
CQ
Right Side
CM CN CO
CP
BQ
BR
BS
BT
Front
20.
2.0 MPixel Webcam
21.
SSD Activity LED
22.
Battery 1 Status LED
23.
Battery 2 Status LED
24.
Audio Speakers
25.
Microphone Array
BN
BO
BP
BU
Advertisement
Related Manuals for TabletKiosk eo a7400
Summary of Contents for TabletKiosk eo a7400
-
Page 1: Quick Start Guide
Top Side Right Side * ( BL Left Side CM CN CO Z & Quick Start Guide eo a7400 Ultra-Mobile Tablet PC Left Side Right Side Front Carry Strap Attachment Carry Strap Attachment 2.0 MPixel Webcam Ethernet Port (RJ45) Full Size USB 2.0 SSD Activity LED Mini USB 2.0... - Page 2 Turn the tablet over so the back of the system is facing toward you. CAUTION: When turning over the eo a7400, be careful not to place it on a surface that could scratch or damage the LCD screen. You can place the included slip case on the surface before carefully setting the computer down to protect the screen.
- Page 3 Locate the AC adapter and the power cord. Plug the power cord securely into the AC adapter. Plug the AC adapter’s connection cable into the “DC In” port on the right side of the eo a7400. Once the adapter plug is securely in place, plug the power cord into an external power socket.
- Page 4 When using a digitizer, you may only navigate using the pen. On a dual mode eo a7400 Tablet PC, the screen will intelligently sense the tip of the stylus pen when it draws near and automatically switch on the digitizer. Now the pen's tip doesn’t even need to touch the screen to activate and move the pointer.
- Page 5 PC Input Panel" from the pop-up menu that appears. For more information on using the input panels, see the digital User's Guide on your system's desktop (you can also download it from www.tabletkiosk.com) or check out the Tablet PC Tutorials in Windows.
- Page 6 If the wireless network you are attempt- ing to connect to is security-enabled, you will see a dialog box requesting a network key or password. The key/password (your network administrator should be able to supply this to you) must be entered correctly or you will not be able to successfully connect to the network.
- Page 7 Using the Built-in Cameras Your eo a7400 comes with two built-in digital cameras. The front facing 2.0 Megapixel webcam is designed for video conferencing and chatting, while the back facing 5.0 Megapixel camera is for shooting still photos and videos.
- Page 8 Main Interface Controls (right) Tap this icon to swap the active camera between the front and rear facing camera. Enable/Disable the LED flash for the rear camera. Flash on Flash off Switch between still Photo and Video recording modes. Photo mode Video mode Cycle through the information screen overlays.
- Page 9 Restoring Your System Using the System Recovery Partition There may be times where you’ll encounter errors that may prevent you from booting into Windows normally. Your eo a7400 has a hidden partition on the data storage drive that contains the files you’ll need to restore your system.
- Page 10 Using the Batteries for the First Time Before using your eo a7400 on battery power for the first time, it's best if the batteries are fully charged. On the front of the eo a7400 are two battery status indicators just above the LCD display.
- Page 11 Acetone, Ethyl Alcohol, Ethyl Acid, Ammonia, or Methyl Chloride. Storing the System Long-Term If you don’t plan on using your eo a7400 for more than four months, TabletKiosk recommends that you remove the Lithium-Ion battery and store it with approximately a 50-70% charge. If you store a Lithium-Ion battery when it’s fully discharged, it could fall into a deeply discharged...
