Top Side
Left Side
!
@
#
$
%
^
Z &
*
(
BL

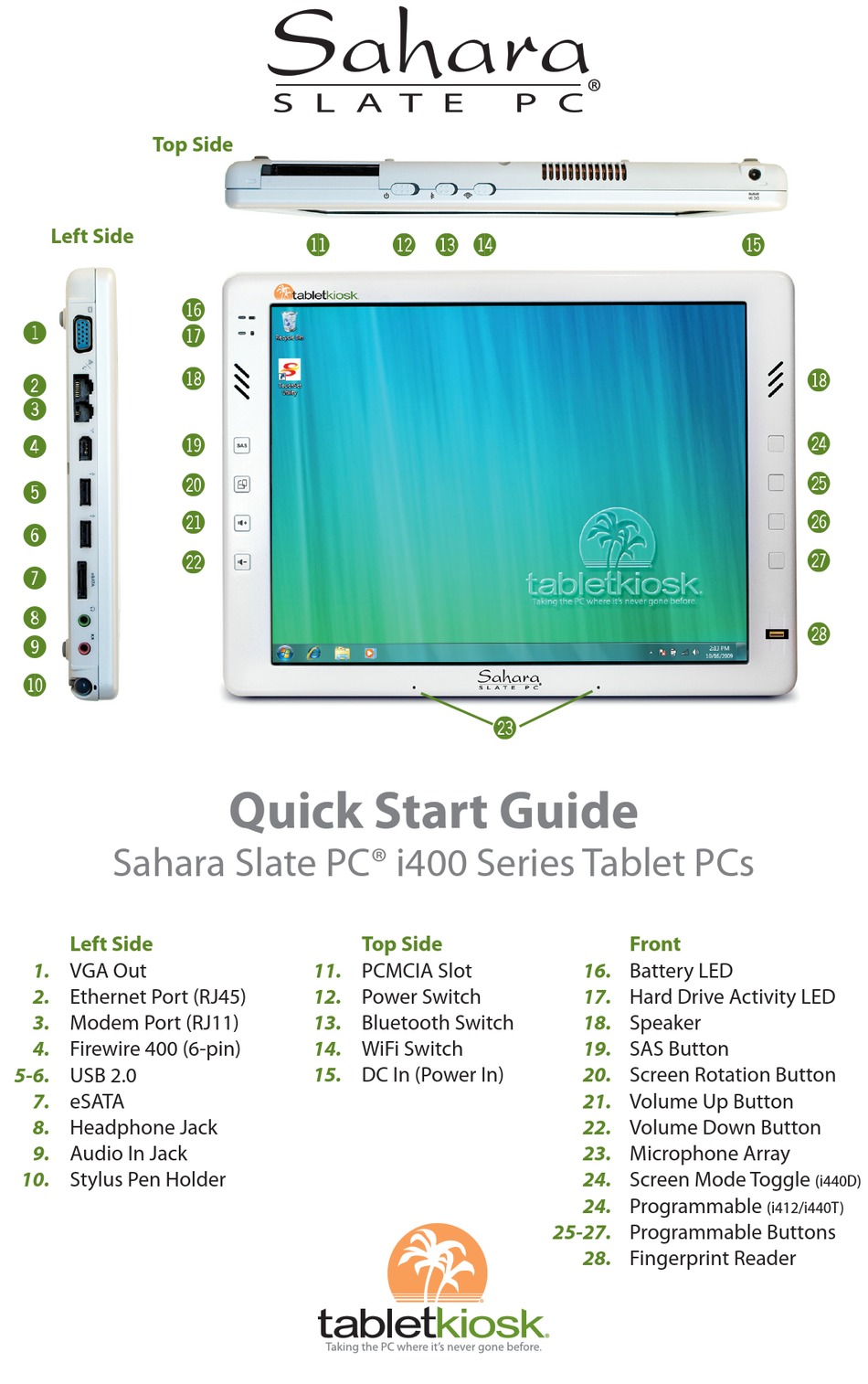

Sahara Slate PC® i400 Series Tablet PCs
Left Side
1.
VGA Out
2.
Ethernet Port (RJ45)
3.
Modem Port (RJ11)
4.
Firewire 400 (6-pin)
5-6.
USB 2.0
7.
eSATA
8.
Headphone Jack
9.
Audio In Jack
10.
Stylus Pen Holder
BM
BR
BS
BT
BU
CL
CM
CN
Quick Start Guide
11.
12.
13.
14.
15.
BN BO BP
CO
Top Side
PCMCIA Slot
Power Switch
Bluetooth Switch
WiFi Switch
DC In (Power In)
Front
16.
Battery LED
17.
Hard Drive Activity LED
18.
Speaker
19.
SAS Button
20.
Screen Rotation Button
21.
Volume Up Button
22.
Volume Down Button
23.
Microphone Array
24.
Screen Mode Toggle
24.
Programmable
25-27.
Programmable Buttons
28.
Fingerprint Reader
BQ
BT
CP
CQ
CR
CS
CT
(i440D)
(i412/i440T)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TabletKiosk Sahara Slate PC i400 Series
Summary of Contents for TabletKiosk Sahara Slate PC i400 Series
- Page 1 Top Side BN BO BP Left Side Z & Quick Start Guide Sahara Slate PC® i400 Series Tablet PCs Left Side Top Side Front Battery LED VGA Out PCMCIA Slot Ethernet Port (RJ45) Power Switch Hard Drive Activity LED Modem Port (RJ11) Bluetooth Switch Speaker Firewire 400 (6-pin)
- Page 2 Standard Lithium-Ion Battery Pack Stylus Pen Setting Up Your Sahara Slate PC Please read the following steps to help you begin using your new Sahara Slate PC i400 series Tablet PC as quickly and easily as possible. Step 1: Insert the Battery Pack Turn the tablet over and place it, screen down on a solid, clean, flat surface.
- Page 3 IMPORTANT: You should allow the battery to charge fully before disconnecting the Sahara Slate PC and running it on battery power for the first time. NOTE: When you first connect the Sahara Slate PC into an external power source, the battery charge indicator will begin to glow amber.
-
Page 4: Inputting Data
Another option for inputting data is the Eyesboard™ Virtual Keyboard application included with all Sahara Slate PC i400 series Tablet PCs (may not be included on systems with Windows 7). This resizable, on-screen virtual keyboard will allow you to type on the screen as you would with a standard laptop keyboard. - Page 5 NOTE: If you find that you cannot drag elements around the screen, or you cannot write in the input panels, your touch screen is most likely set to “Point” mode. In the TouchSet Utility, tap on the “Configuration” tab to get to the “Operation Mode” selector. Tap on the “Stream Mode” option and then tap the “Apply”...
- Page 6 What you will need before you begin: A Windows 7 Professional, Windows XP Professional or Windows XP Tablet PC Edition System Restore DVD for the Sahara Slate PC i400 series Tablet PCs. External USB DVD drive with its own power supply (not USB Bus powered)
- Page 7 To Restore Using the Windows 7 Restore Disc: Step 2: Booting the Sahara Slate PC to the Recovery Application Power up your i400 series Tablet PC. If your drive has an existing partition (overwriting existing OS): When prompted press any key to boot to the recovery DVD. If your drive doesn’t have an existing partition (new drive, no OS): It will automatically load the recovery application.
- Page 8 ©2009 Sand Dune Ventures, Inc. All Rights Reserved. Sahara Slate PC and TabletKiosk are registered trademarks of Sand Dune Ventures, Inc. in the United States and other countries. Windows, the Windows logo, Windows XP and Windows 7 are registered trademarks or trademarks of Microsoft Corporation in the United States and other countries.
