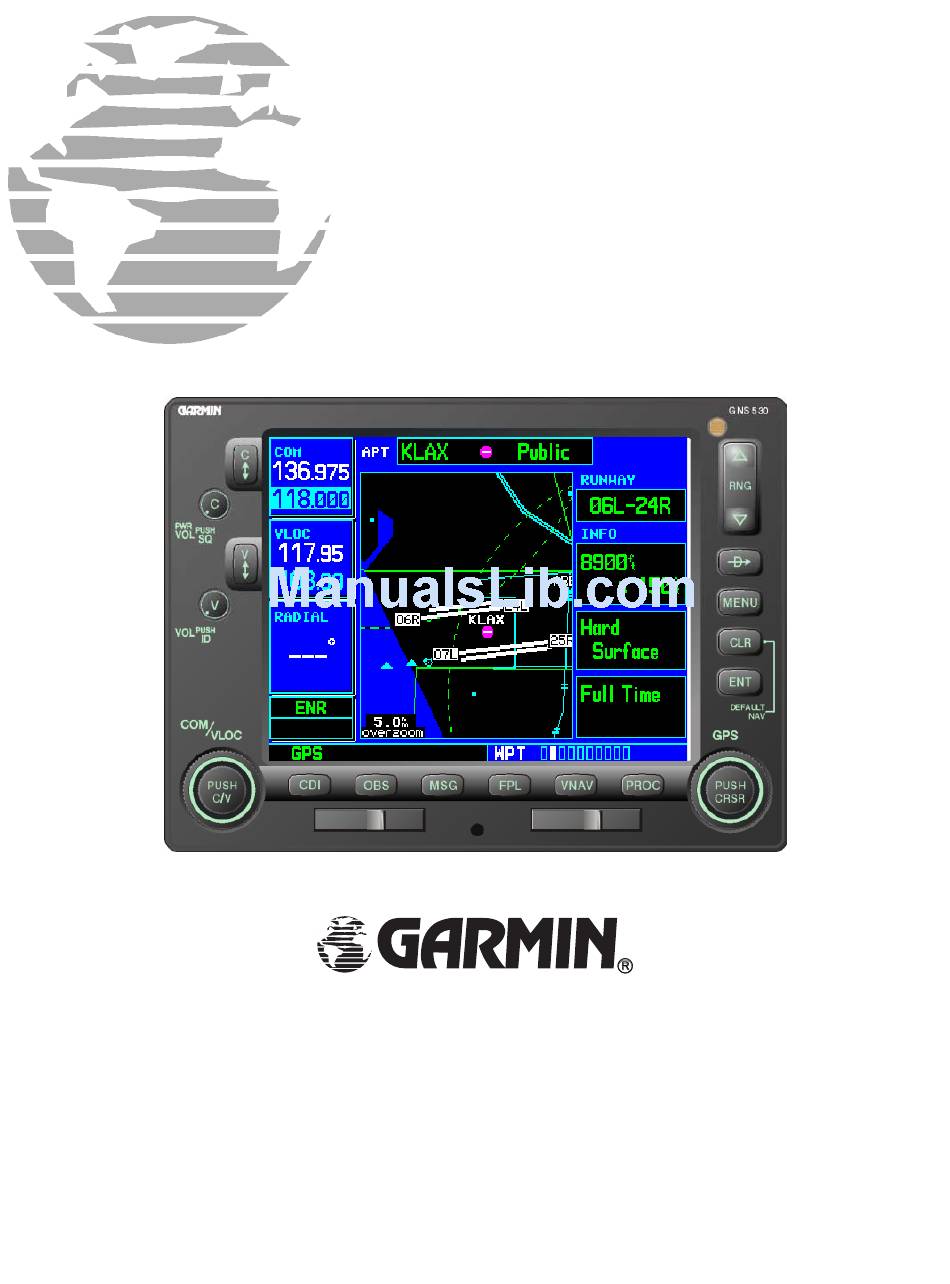

500 SERIES

INSTALLATION MANUAL

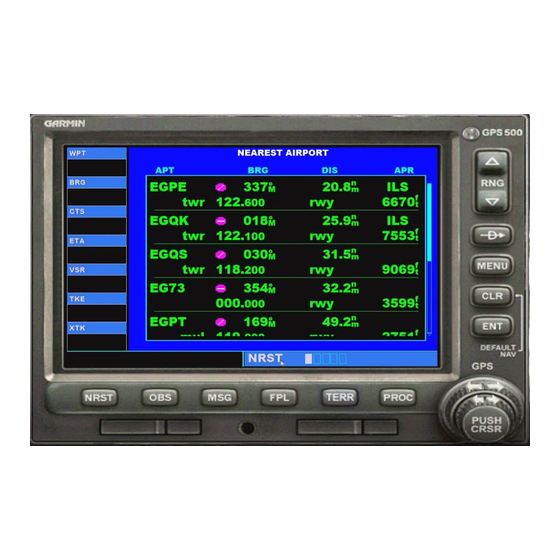

GPS 500 and GNS
530/530A/TAWS
TM
GNS is a trademark of Garmin Ltd. or its subsidiaries and
may not be used without the express permission of Garmin.
TM
(GNS
530 Shown)
Garmin International, Inc.
190-00181-02, Revision Q
November 2005
