Information in this document is subject to change without notice. Garmin reserves the right to change or improve their products and to make changes in the content of this material without obligation to notify any person or organization of such changes or improvements.

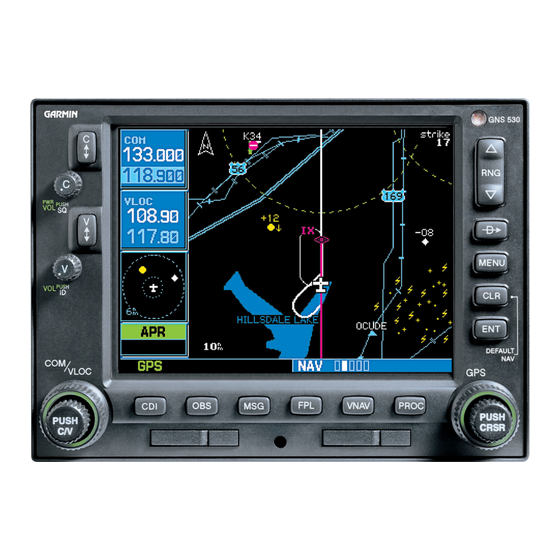

(FITS). This information is designed to be incorporated into existing flight training/aircraft checkout/recurrent qualifica- tion programs. The syllabi and lesson plans are valid for both GNS 530 and GNS 430 series Garmin avionics. There are 3 main train- ing types that this material may be used for: home study, flight checkout and recurrent.
Objective: To develop a basic level of knowledge surrounding the operation of Garmin GNS 530/430 avionics prior to the com- mencement of actual flight training. Elements: • Terminology Review • Review of requirements for the use of GPS in lieu of other avionics equipment •...
10. On some approaches, the heading information portrayed on the GPS is slightly different than the heading shown on the chart; why does this happen? 190-00334-00 Rev. A HOME STUDY GNS 530/430 Home Study 1 Garmin GNS 530/430 Sample Training Syllabus and Flight Lessons...
12. The term SUA is used as a general reference to what data contained in the Jeppesen aviation database? 13. Define FDE and explain in what types of operations it is required to be used. HOME STUDY GNS 530/430 Home Study 2 Garmin GNS 530/430 Sample Training Syllabus and Flight Lessons 190-00334-00 Rev. A...
Worksheet – COM and VLOC Operation After reviewing the GNS 430 or GNS 530 Pilot’ s Guide, complete the following exercises using the Garmin 400 or 500 series PC simulation device. Exercise 1 Use the simulation device to manually tune the COM radio to the CTAF of 122.7 and make it the active frequency.
Worksheet – Direct-to and Flight Plan Navigation After reviewing the GNS 430 or GNS 530 Pilot’ s Guide, complete the following exercises using the Garmin 400 or 500 series PC simulation device. Exercise 1 Using the simulation device, initialize the simulation device position at KOSH (Oshkosh WI). Once the position is initialized, enter a Direct-To navigation to KMSN (Madison, WI).
Worksheet – Arrival, Departure and Approach Procedure Operation After reviewing the GNS 430 or GNS 530 Pilot’ s Guide, complete the following exercises using the Garmin 400 or 500 series PC simulation device. Exercise 1 Using the simulation device, initialize the simulation device position at KPNC (Ponca City, OK). Create a flight plan going direct to KICT (Wichita Mid-Continent, Wichita, KS).
TCAD 9900B and 9900BX Traffic. Please refer to the manufacturer’s documentation for the proper use and limitations of this additional equipment. HOME STUDY GNS 530/430 Home Study 6 Garmin GNS 530/430 Sample Training Syllabus and Flight Lessons 190-00334-00 Rev. A...
Note: The GNS 530/430 series units will also display L3 (formerly Goodrich) WX-500 derived lightning detection. Please refer to the manufacturer’s documentation for proper use of this additional equip- ment. 190-00334-00 Rev. A HOME STUDY GNS 530/430 Home Study 7 Garmin GNS 530/430 Sample Training Syllabus and Flight Lessons...
NEXRAD will come to enhance his or her decision making process and further the safety of flight. HOME STUDY GNS 530/430 Home Study 8 Resource Management Garmin GNS 530/430 Sample Training Syllabus and Flight Lessons 190-00334-00 Rev. A...
Page 15
As the old saying goes, “follow the six P’ s ; Proper Prior Planning Prevents Poor Performance.” 190-00334-00 Rev. A HOME STUDY Garmin GNS 530/430 Sample Training Syllabus and Flight Lessons...
Has completed all ground lessons prior to arriving for training/checkout flight(s). Completion standards: a Satisfactory completion of all flight training as determined by instructor. FLIGHT ORIENTATION GNS 530/430 Flight Orientation Garmin GNS 530/430 Sample Training Syllabus and Flight Lessons 190-00334-00 Rev. A...
Improper CDI output selection in GNS 530/430 (GPS when should be VLOC and vice versa) a Use of Direct-To navigation when Flight Plan is more appropriate for long route clearances Garmin GNS 530/430 Sample Training Syllabus and Flight Lessons Date:...
Improper CDI output selection in GNS 430 (GPS when should be VLOC) a Use of Direct-To navigation when Flight Plan is more appropriate for long route clearances Garmin GNS 530/430 Sample Training Syllabus and Flight Lessons Date: 190-00334-00 Rev. A...
Not enabling cross-fill function a Failure to use VNAV/VSR information to help plan descent a Not setting up displays to maximize the amount of data presented without overlapping data Garmin GNS 530/430 Sample Training Syllabus and Flight Lessons Date:...
Delayed reaction to warning messages for terrain and traffic and not taking correct action to avoid dangerous conditions a Not verifying successful self-test of remote equipment Garmin GNS 530/430 Sample Training Syllabus and Flight Lessons Date: 190-00334-00 Rev. A...
Page 21
190-00334-00 Rev. A Garmin GNS 530/430 Sample Training Syllabus and Flight Lessons...
Page 22
Garmin (Europe) Ltd. Unit 5, The Quadrangle, Abbey Park Industrial Estate, Romsey, SO51 9DL, U.K. Garmin Corporation No. 68, Jangshu 2 Road, Shijr, Taipei County, Taiwan www.garmin.com Part Number 190-00334-00 Rev. A Garmin GNS 530/430 Sample Training Syllabus and Flight Lessons...
