Summary of Contents for Konica Minolta magicolor 5440 DL

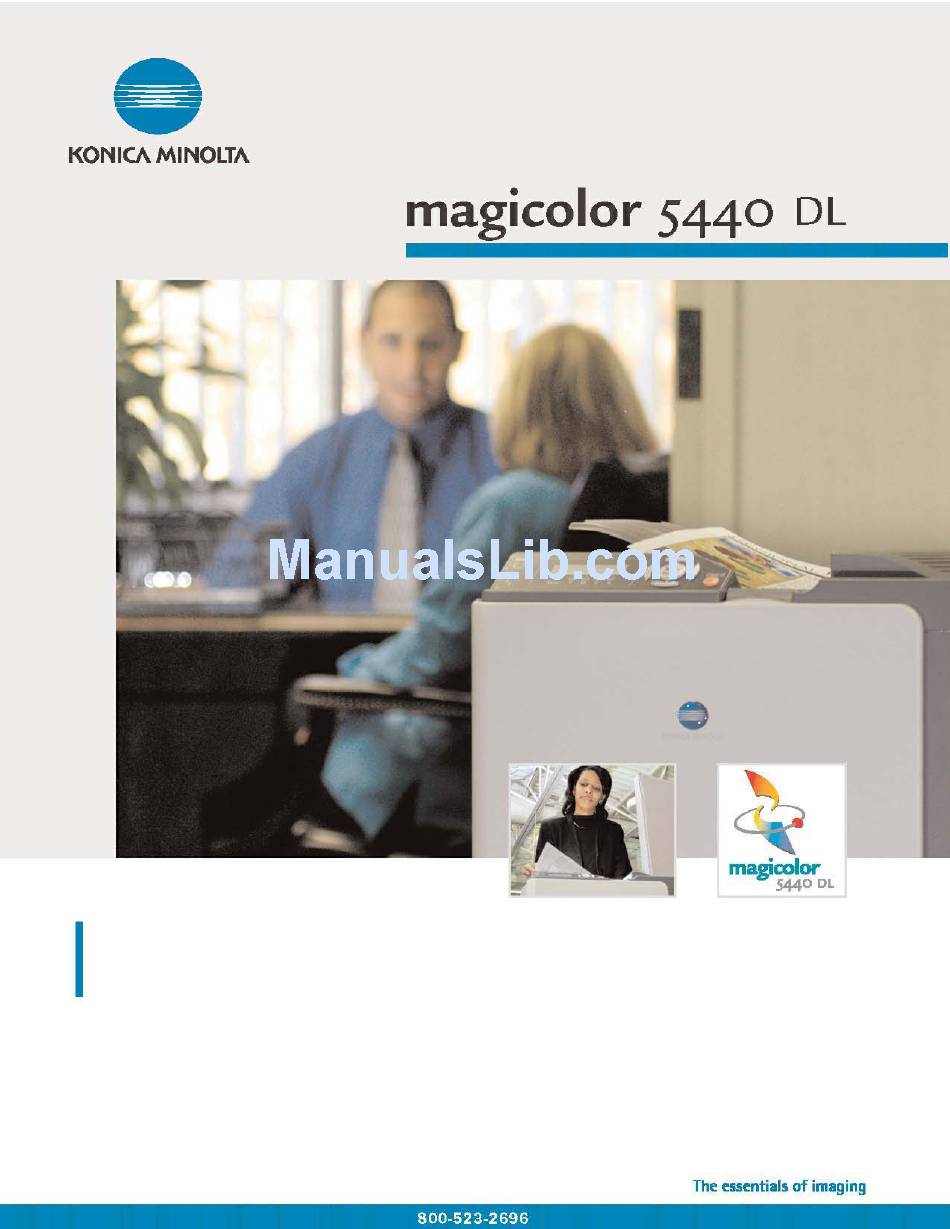

  • Page 1 Sales and Technical Guide...
  • Page 2 Copyright ©2005 KONICA MINOLTA PRINTING SOLUTIONS U.S.A, INC. KONICA MINOLTA and the KONICA MINOLTA logo are trademarks or registered trademarks of KONICA MINOLTA HOLD- INGS, INC. magicolor is a trademark or registered trademark of KONICA MINOLTA PRINTING SOLUTIONS U.S.A., INC.
  • Page 3: Table Of Contents

    Contents Introduction ........1 Specs at a Glance ......2 Key Selling Features.
  • Page 4 Printer Drivers ........
  • Page 5: Introduction

    This Sales and Technical Guide is intended for use by KONICA MINOLTA sales personnel and reseller partners. It includes complete information about the magicolor 5440 DL and provides useful data that can help sales personnel explain the features of the printer to cus- tomers.
  • Page 6: Specs At A Glance

    Specs at a Glance An overview of the magicolor 5440 DL printer features. Print Method Electrophotographic tandem color laser Processor ARM9, 200 MHz Print Speed Up to 27 ppm color (letter) Up to 27 ppm b&w (letter) Resolution 600 x 600 dpi, 1200 x 600 dpi (default),...
  • Page 7: Key Selling Features

    Able to print on plain paper, labels, transparancies, glossy, and thick paper, the magicolor 5440 DL is a true multi-media artist. It supports up to 110 lb. index paper, in sizes from 3.6" x 5.8" to 8.5" x 14". And, its camera-direct photo printing option allows customers to print directly from their digital cameras.
  • Page 8 Front-access to supplies makes for easy replacement. Auto-install software guides the user through set-up. Simplicity Like all KONICA MINOLTA printing products, the magicolor 5440 DL is designed for ease of use. From set up to every day operation, this printer’s equipped to keep it simple.
  • Page 9: Target Markets

    Target Markets The latest model in KONICA MINOLTA’s line of workgroup color laser printers, the magicolor 5440 DL is made for small-to-medium sized businesses that require high performance at an affordable price. It is a perfect fit for: Real estate offices...
  • Page 10: Competitive Overview

    Consumables (# items) Consumables installed? Duty cycle (prints/month) Footprint (sq. in.) Weight (lbs.) Automatic Duplex * mfgr. Web pricing as of 05/17/05 magicolor 5440 DL $1,299 27 ppm 27 ppm 2400 x 600 ImageRet 3600 USB 2.0 10/100BaseTX Ethernet 1,600 8.5"...
  • Page 11 Consumables (# items) Consumables installed? Duty cycle (prints/month) Footprint (sq. in.) Weight (lbs.) Automatic Duplex * mfgr. Web pricing as of 01/05/05 magicolor Xerox 5440 DL $1,299 27 ppm 27 ppm 2400 x 600 USB 2.0 10/100BaseTX Ethernet 1,600 8.5" x 14"...
  • Page 12: Engine

    Engine The magicolor 5440 DL features KONICA MINOLTA’s single- pass imaging technology. Type The magicolor 5440 DL features KONICA MINOLTA’s single-pass engine technology. The tandem design delivers fast, accurate and reli- able color. Speed Page Size Color Simplex Duplex Letter 27 ppm 15.5 ppm...
  • Page 13: Weights And Dimensions

    Printer Width Depth 17.9" 20.5" 455 mm 520 mm Weight 17.3" Shipping Printer w/consumables Printer w/o consumables Duty Cycle 60,000 prints (letter size) per months maximum Operating Environment Conditions Power supply Power consumption Temperature Humidity Noise Height 26.37" 670 mm Height 17.3"...
  • Page 14: Controller

    Standard RAM: 64 MB on board Maximum RAM: 576 MB The magicolor 5440 DL has one open DIMM slot that accepts up to 512 MB RAM available exclusively from KONICA MINOLTA. Memory is available in 128 MB, 256 MB, or 512 MB increments. This additional memory can improve the printer’s performance, especially when used in...
  • Page 15: Resolution

    The magicolor 5440 DL’s print quality is further enhanced by the printer’s unique polymer toner technology. See “Consumables and Supplies” for more information. With the 64 MB of RAM installed, the magicolor 5440 DL can print sim- plex and duplex pages at all available resolutions. Compatibility and System Requirements Windows Server 2003/XP/2000/NT4/Me/98SE Macintosh OS X (v10.2+)
  • Page 16: Control Panel

    400 MHz Pentium II-class minimum; 500 MHz Pentium III-class recommended Operating System Red Hat 8.0+ SuSE 8.1+ Control Panel To convey printer status and select configurations and options, the magicolor 5440 DL has an easy-to-navigate control panel that features: ® G3 minimum;...
  • Page 17 2 LEDs The LCD window serves three primary purposes. It displays a status message indicating the current state of the printer or a printer idle status; shows users their options when reviewing or altering settings through the printer’s control panel menu; conveniently displays toner supply levels.
  • Page 18: Connectivity

    Play” interface supports Windows Server 2003, XP, 2000, NT4, Me, and 98SE operating systems, as well as Linux and Macintosh OS X systems. The magicolor 5440 DL also features a USB 1.1 host port for optional camera direct photo printing. Hi-Speed USB Interface 10/100BaseTX Ethernet Interface USB 1.1 Interface...
  • Page 19: Paper Handling

    Paper Handling The magicolor 5440 DL supports a variety of paper sizes and paper handling options to meet the needs of every office. Multipurpose tray 500-sheet cassette The standard cassette holds up to 500 sheets of paper up to letter (8.5" x 11") size. It features a convenient paper-level indicator.
  • Page 20: Print Media

    Labels Supported Envelopes Supported Print Media The magicolor 5440 DL supports a range of print media to handle a variety of applications. All media types are supported through the printer’s standard input cassette and multipurpose tray. Driver Setting 500-Sheet Std. Cassette/...
  • Page 21: Paper Path

    Indicated by the red line, the magicolor 5440 DL supports a straight paper path for faster speed and heavier media support. Paper Path The straight paper path of the magicolor 5440 DL allows it to print pages more quickly and enables it to support heavier media types.
  • Page 22: Supported

    “X” “Y” The table at right refers to X and Y dimensions of the media as diagrammed above. Define custom sizes from the magicolor 5440 DL driver. Supported Paper Sizes Standard 100-Sheet Multipurpose Tray Cut Sheet x-Dimension Letter 8.5" 210 mm Legal 8.5"...
  • Page 23 The optional feeder can accept up to legal-size media. Duplex pages up to legal in size. Optional 500-Sheet Input Feeder Cut Sheet x-Dimension Letter 8.5" 210 mm Legal 8.5" Executive 7.25" Letter Plus 8.5" Govt. Letter 8" Govt. Legal 8.5" Foolscap 203 mm Folio...
  • Page 24: Imageable Regions

    Imageable Regions Non-printable area: 0.16" (4 mm) from all edges Guaranteed print length - standard: 10.68" (271 mm) Guaranteed print length - maximum: 13.68" (348 mm) using optional lower feeder Page Size Dimension Letter 8.5" x 11" 210 x 297 mm Legal 8.5"...
  • Page 25: Advanced Document Processing

    N-up Printing: Print a multiple page document with up to 16 pages of that document on one sheet. Advanced Document Processing The magicolor 5440 DL’s driver offers a means of activating additional document handling functions, including: Printer-based electronic collation Watermarks...
  • Page 26: Consumables

    Transfer belt Waste toner box The magicolor 5440 DL uses four (CMYK) all-in-one cartridges that include toner and OPC in one easy to install, easy to store unit. Each cartridge is color coded for error-free installation and features an intelli- gent chip that stores information on toner levels for accurate supplies monitoring (See “Supplies Monitoring”...
  • Page 27: Consumable Yields

    The magicolor 5440 DL includes starter cartridges that hold enough toner for an average of 3,000 prints (5% coverage, letter-size, contin- uous printing). It also includes a full-capacity transfer belt unit and waste toner box.
  • Page 28: Supplies Monitoring

    The quickest way to review supply levels is through the printer’s front keypad. Supplies Monitoring The magicolor 5440 DL uses its intelligent all-in-one cartridges to com- municate remaining supply levels to consumers. With a smart tracking chip installed, it accurately measures remaining toner and displays its findings in four locations (see below) for evaluation.
  • Page 29 For individuals who do not sit near the printer, PageScope Web Connection offers a convenient way to review supply levels. Simply type in the magicolor 5440 DL’s Internet Protocol (IP) address into the address field of any Web browser. PageScope Web Connection offers a snapshot of this and other printer information, including print job status and the printer’s current configuration.
  • Page 30: Printer Management

    5440 DL. The installation wizard finds the printer and quickly and installs the driver in minutes. For Macintosh users, the magicolor 5440 DL offers a driver for Mac OS X (v10.2+) that supports the Rendezvous networking technology built into this operating system.
  • Page 31 The magicolor 5440 DL driver for Windows fea- tures a tabbed layout that conforms to Microsoft standards, making it very simple to understand. The magicolor 5440 DL driver for Macintosh offers easy-to-navigate drop-down selections. The Windows, Macintosh, and Linux drivers provide a graphical method...
  • Page 32: Status Display

    Windows operating systems only. PageScope Web Connection The magicolor 5440 DL includes an embedded web page that allows users to easily retrieve real-time information about the status of the printer. This feature is called PageScope Web Connection and requires no additional software application on users’...
  • Page 33 PageScope Web Connection also provides a convenient Internet link to the support pages for KONICA MINOLTA in the event of a problem with the printer. PageScope Web Connection is another example of the com- mitment of KONICA MINOLTA to making color printing as simple as possible for everyone.
  • Page 34: Electronic Documentation

    Another advantage of the on-line documentation is the audio/video clips of installation, operation, and troubleshooting actions, that give users a step-by-step visual of common printer procedures.
  • Page 35: Camera-Direct Photo Printing

    Camera-Direct Photo Printing The magicolor 5440 DL showing the USB 1.1 port. USB Host Port with PictBridge Compatibility The camera-direct photo printing feature is accessed through an optional card that plugs into the controller. When added, this card acti- vates the USB 1.1 port and direct print menu options, enabling the user to print pictures directly from a PictBridge-compatible digital camera.
  • Page 36: Color Control

    Color Control Get great color without great effort. The magicolor 5440 DL is designed with the color novice in mind. The printer features an internal color matching system that automatically selects the proper color model based on the specific elements on any given page.
  • Page 37: Icc Device Profiles

    ICC Device Profiles For hands-on color management, nine (9) ICC color profiles are included with the magicolor 5440 DL—three for each available resolu- tion (2400 x 600 dpi, 1200 x 600 dpi, and 600 x 600 dpi), one for each rendering method (Perceptual, Colorimetric, and Saturation).
  • Page 38: Enhanced Automatic Image Density Control (Eaidc)

    From day to day, and from one consumable change to the next, toner density may change, ultimately affecting color consistency. To help maintain color consistency and ensure predictable color without user intervention, the magicolor 5440 DL automatically performs enhanced Automatic Image Density Control (eAIDC). eAIDC occurs during these states:...
  • Page 39: Options & Accessories

    Accessories Configure the magicolor 5440 DL how you want it. The magicolor 5440 DL is flexible in design with these available options: Automatic Duplexer: The magicolor 5440 DL can perform manual duplexing by printing on one side of a page, turning it over and printing on the other side.
  • Page 40 KONICA MINOLTA PRINTING SOLUTIONS U.S.A., INC. One Magnum Pass Mobile, AL 36618 www.buymagicolor.com...
