THE COMPONENTS IDENTIFIED BY THE MARK "
DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR SAFETY.
PLEASE REPLACE ONLY BY THE COMPONENTS SPECIFIED ON THE SCHE-
MATIC
DIAGRAM AND IN THE PARTS LIST.
IF YOU USE PARTS NOT SPECIFIED, IT MAY RESULT IN A FIRE AND AN
ELECTORICAL SHOCK.
FUJI PHOTO FILM CO.,LTD.
WARNING

DIGITAL CAMERA

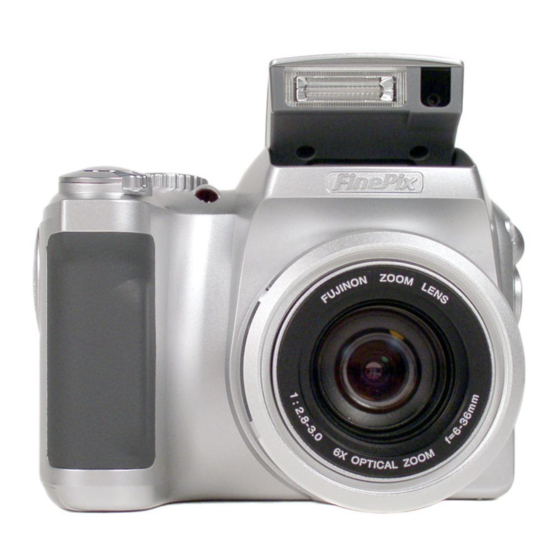

FinePix S3000
SERVICE MANUAL
" ON THE SCHEMATIC
Ref.No.:ZM518-104
Printed in Japan 2004.08

Advertisement

Table of Contents

   Related Manuals for FujiFilm FinePix S3000

   Summary of Contents for FujiFilm FinePix S3000

  • Page 1: Digital Camera

    DIGITAL CAMERA FinePix S3000 SERVICE MANUAL WARNING THE COMPONENTS IDENTIFIED BY THE MARK “ ” ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR SAFETY. PLEASE REPLACE ONLY BY THE COMPONENTS SPECIFIED ON THE SCHE- MATIC DIAGRAM AND IN THE PARTS LIST.
  • Page 2 FinePix S3000 Service Manual SAFETY CHECK-OUT 2. Check the interboard wiring to ensure that no wires are “pinched” or contact high-wattage resistors. RISK OF FIRE- REPLACE FUSE 2.5A 125V AS MARKED 2.5A 125V WARNING! HIGH VOLTAGE...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1.General .......... 5 4.Adjustment ........37 1-1. Product specification .......... 5 4-1.Important point Adjustment when Replacing Major Parts ..37 1-2. Explanation of Terms .......... 7 4-2.The order of adjustment when Major Parts are replaced ..37 1-3.Names of External Components ......
  • Page 4: General

    FinePix S3000 Service Manual 1.General 1-1. Product specification System Model Digital Camera FinePix S3000 Effective pixels 3.2 million pixels 1/2.7-inch square pixel CCD with RGB Filter Number of total pixels: 3.34 million pixels Storage media xD-Picture Card (16/32/64/128/256/512 MB) File format Still image: JPEG (Exif Ver.2.2), DPOF-compatible...
  • Page 5 DPC-16 (16 MB)/DPC-32 (32 MB)/DPC-64 (64 MB)/DPC-128 (128 MB)/ DPC-256 (256 MB)/DPC-512 (512 MB) AC Power Adapter AC-5VH/AC-5VHS Fujifilm Rechargeable Battery 2HR-3UF Fujifilm Battery charger with Battery BK-NH/BK-NH2 (With Euro type or UK type plug) SC-FX304 Image Memory Card Reader DPC-R1 •...
  • Page 6: Explanation Of Terms

    FinePix S3000 Service Manual 1-2. Explanation of Terms DPOF: Digital Print Order Format DPOF is a format used for recording information on a storage media (image memory card, etc.) that allows you to specify which of the frames shot using a digital camera are printed and how many prints are made of each image.
  • Page 7: 1-3.names Of External Components

    1-3.Names of External Components...
  • Page 8: Disassembly

    FinePix S3000 Service Manual 2. Disassembly 2-1.Names of Internal Parts CABI REAR ASSY KEY PWB ASSY EVF CONST STROBE CONST LCD CONST MSW PWB ASSY RSW PWB ASSY BATTERY HOLDER ASSY LCD FRAME MAIN PWB ASSY DCST PWB ASSY VCON PWB ASSY...
  • Page 9: 2-2.how To Disassemble The Cabi R Assy

    2-2.How to Disassemble the CABI R ASSY. Remove in the order indicated by circled numbers. <Step1> (1) Change to the Manual camera mode. (2) Remove three screws. (3) Remove two special shape screws.(3ULR 1.5X5.0) *Because the screws are special shape,use the exclusive use jig driver(ZJ00583-100).
  • Page 10: 2-3.removing Lcd Assy / Lcd Frame

    FinePix S3000 Service Manual 2-3.Removing LCD ASSY / LCD FRAME. Remove in the order indicated by circled numbers. <Step1> (1) Remove two screws. (2) Remove the hook of LCD FRAME (two places), and raise LCD ASSY in the direction of the arrow.
  • Page 11: 2-5.removing Main Pwb Assy

    2-5.Removing MAIN PWB ASSY. Remove in the order indicated by circled numbers. <Step1> (1) Remove CN101 CN203, CN301, CN350and CN502. (2) Remove MAIN PWB ASSY in the direction of the arrow while removing the connector in A part. 2-6.Removing BATTERY HOLDER ASSY. Remove in the order indicated by circled numbers.
  • Page 12: 2-7.removing Dcst Pwb Assy

    FinePix S3000 Service Manual 2-7.Removing DCST PWB ASSY. Remove in the order indicated by circled numbers. <Step1> (1) Remove two screws. (2) Remove CN701, CN702. (3) Raise DCST PWB ASSY in the direction of the arrow. <Step2> (4) Remove FPC of LENS CONST in the direction of the arrow.
  • Page 13: 2-9.removing Strobe Const/st Top

    2-9.Removing STROBE CONST/ST TOP. Remove in the order indicated by circled numbers. <Step1> (1) Remove one screws. (2) Remove STRAP BASE(R) in the direction of the arrow. <Step2> (4) Remove one screws. (5) Remove the hook of ST BUTTON, and pull out ST BUTTON in the direction of the arrow.
  • Page 14: 2-10.removing Msw Pwb Assy And Rsw Pwb Assy

    FinePix S3000 Service Manual 2-10.Removing MSW PWB ASSY and RSW PWB ASSY. hook Remove in the order indicated by circled numbers. <Step1> (1) Remove one screw. (2) Remove the hook of BATTERY HOLDER, and remove RSW PWB ASSY and MSW PWB ASSY.
  • Page 15: 2-12.removing Ccd Pwb Const

    2-12.Removing CCD PWB CONST Remove in the order indicated by circled numbers. (1) Remove tow screw. (2) Remove the hook of CCD PWB CONST. CCD PWB LPF RUBBER OPTICAL LPF LPF MASK LENS UNIT [Attention when CCD PWB CONST is exchanged. ] Solder the WIRE HARNESS with new parts when you ex change CCD PWB CONST.
  • Page 16: 2-13.location Of Sheet Parts

    FinePix S3000 Service Manual 2-13.Location of Sheet parts. 2-13-1.FFC (CCD-MAIN) MAIN PWB FERRITE BEADS fixed to FFC. Position at 15mm from MAINPWB side. EMI SHEET (FZ05597-100) [Note] Do not exceed Fold-Line of FFC. 15mm Fold line FERRITE BEADS (FLBZ120-100) CAPTON TAPE EMI SHEET fixed to FFC.
  • Page 17: Circuit Diagrams

    3.Schematics 3. Circuit Diagrams 3-1.Cautions Precautions in parts replacement Do not reuse detached electronic components. Use only new components. The negative side of tantalum capacitors is weak against heat. Handle with care. With the exception of Chemical capacitor and tantalum capacitors, the voltage of capacitors of a 50V or lower withstand voltage is not labeled.
  • Page 18: 3-3.explanation Of Functions Of Important Blocks

    FinePix S3000 Service Manual 3-3.Explanation of Functions of Important Blocks 3-3-1.Technical Overview The FinePix S3000 incorporates a 1/2.7 -inch square pixel, primary color interline CCD of 3.34 million pixels(total). An [xD picture card] is adopted as the recording media. Change point from S304/3800.
  • Page 19: 3-4.block Diagram

    3.Schematics 3-4.Block Diagram...
  • Page 20: 3-5.overall

    3.Schematics FinePix S3000 Service Manual 3-5.Overall STRB_SW UNIT STRB_SW UNIT LCD UNIT LCD UNIT xD CARD xD CARD 1.NC 2.NC STROBE CONST STROBE CONST 3.STRB_SW VBUS 4.GND 5.NC 6.NC FGND KSW PWB KSW PWB LCD_3 .3V LCD_ON A3.3V 1.FULL 3.3V LCD_BL_ON 2.GND...
  • Page 21: 3-6.mounted Parts Diagrams

    3.Schematics 3-6.Mounted Parts Diagrams 3-6-1.MAIN PWB ASSY Component Location <SIDE-A> <SIDE-B>...
  • Page 22: 3-6-2.dcdc Pwb Assy Component Location

    3.Schematics FinePix S3000 Service Manual 3-6-2.DCDC PWB ASSY Component Location <SIDE-A> <SIDE-B>...
  • Page 23: 3-6-3.ccd Pwb Const Component Location

    3.Schematics 3-6-3.CCD PWB CONST Component Location <SIDE-A> <SIDE-B> 3-6-4.MSW PWB UNIT Component Location <SIDE-A> <SIDE-B> 3-6-5.RSW PWB UNIT Component Location <SIDE-B> <SIDE-A>...
  • Page 24: 3-6-6.vcon Pwb Unit Component Location

    3.Schematics FinePix S3000 Service Manual 3-6-6.VCON PWB UNIT Component Location <SIDE-A> <SIDE-B> 3-6-7.KEY PWB UNIT Component Location <SIDE-A> <SIDE-B>...
  • Page 25: 3-7.circuit Diagrams

    3.Schematics 3-7.Circuit Diagrams 3-7-1.DCDC Block Circuit...
  • Page 26: 3-7-2.process Block Circuit

    3.Schematics FinePix S3000 Service Manual 3-7-2.PROCESS Block Circuit...
  • Page 27: 3-7-3.cam Block Circuit

    3.Schematics 3-7-3.CAM Block Circuit...
  • Page 28: 3-7-4.evf Block Circuit

    3.Schematics FinePix S3000 Service Manual 3-7-4.EVF Block Circuit...
  • Page 29: 3-7-5.strob Block Circuit

    3.Schematics 3-7-5.STROB Block Circuit...
  • Page 30: 3-7-6.lcd Block Circuit

    3.Schematics FinePix S3000 Service Manual 3-7-6.LCD Block Circuit...
  • Page 31: 3-7-7.motor Block Circuit

    3.Schematics 3-7-7.MOTOR Block Circuit...
  • Page 32: 3-7-8.key-io Block Circuit

    3.Schematics FinePix S3000 Service Manual 3-7-8.KEY-IO Block Circuit...
  • Page 33: 3-7-9.key-ic Block Circuit

    3.Schematics 3-7-9.KEY-IC Block Circuit...
  • Page 34: 3-7-10.ccd Block Circuit

    3.Schematics FinePix S3000 Service Manual 3-7-10.CCD Block Circuit 3-7-11.MSW Block Circuit...
  • Page 35: 3-7-12.ksw Block Circuit

    3.Schematics 3-7-12.KSW Block Circuit 3-7-13.RSW Block Circuit 3-7-14.VCON Block Circuit...
  • Page 36: Adjustment

    (Note1) It is a type that the harness of POWER CABLE JIG so far becomes long. The adjustment is possible even by past POWER CABLE JIG. (Note2) Please downloaded from Web server (http://fujifilm-di.intranets.com/). (Note3) Select one the power cable suitable each country.
  • Page 37: 4-4.jig Connections

    4.Adjustments 4-4.Jig Connections Note1: Connect all jigs and start PC. Note2: Do not connect the video cable with "VIDEO OUT" Jack of the camera, except when you adjust the video. Note3: Input voltage is a thing measured in a part near "DC_IN" Jack. Note4: Limit the current value to 2.5A or less.
  • Page 38 4.Adjustments FinePix S3000 Service Manual (2) Environmental Setup for AF Adjustments (Fig. B) [1] Set the Siemens Star Chart 890 5 mm from the convex side of the conversion lens. [2] Irradiate the Siemens Star Chart with a light source so that the surface brightness of the Siemens Star Chart is 9.0 ~ 11.5Ev.
  • Page 39: 4-6.installing The Jig Drivers On The Pc

    <Step 1> The setup software is downloaded from WEB, and software is installed in the PC. We have uploaded the ”DSC Jig Driver(ZJ00476-101)” on our website: (http://fujifilm-di.intranets.com/). <Step2> Double-click on [setup.exe](Fig.F) in the file, and follow the instructions on the screen to install the jig driver.
  • Page 40: Initial Settings Of The Adjustment Software

    4.Adjustments FinePix S3000 Service Manual 4.8 Initial Settings of the Adjustment Software * The initial settings are already written in the "FFWJ.ini" file, therefore perform the following procedure to the letter. Note that, if you change file names, the software will not start up.
  • Page 41 4.Adjustments <Step 4> Select the "Etc" tab (Fig. 3-(1)) in the "Customize" dialog box that appears. Set the "Other" items (Fig. 3-(1)) as fol- lows. Item Details Auto Measurement Change mode(-U) Do not check Use Japanese Fonts Do not check Don’t show OK NG Check or Do not check <Fig.
  • Page 42 Clear OKNG Do not use. [Caution 2] Set Mode Sets the mode Auto Run user program The FinePix S3000 is able to batch-read data, Adjustment Auto Adjust. however it is unable to batch-write data (file Help Help Basic software help read, ROM write).
  • Page 43: Starting The Adjustment Software

    4.Adjustments 4-9. Starting the Adjustment Software <Step 1> Double-click on the "FFW.EXE" in the folder copied to the C drive to display the adjustment software start-up scren.(Fig.1) >> The [FFW.EXE Startup screen (Fig.1)] is appears. <Fig. 1> <Step 2> Press the "Enter" key of the PC or click on the start button (Fig.1-(1)) in the toolbar.
  • Page 44 4.Adjustments FinePix S3000 Service Manual <Step 4> After reading the notes, press the "Enter" key of the PC. >> The [Jig Mode Setting Procedures screen (Fig.4)] is appear. How to Set Up the Jig Mode 1. Set the mode switch to the camera mode.
  • Page 45: F4] : Ccd Defect Data Input

    No. shown at right.(Fig. CCD1) <Fig. CCD1> <Step 1> Note the CCD serial No. on the CCD CONST and MAIN (http://fujifilm-di.intranets.com/). PWB ASSY when replacing the MAIN PWB ASSY. The numbers shown at right are as follows. First line: 0400002 (seven digits)
  • Page 46 4.Adjustments FinePix S3000 Service Manual < Adjustment > <Step 1> Select [F4] CCD Defect Data Input adjustment on the [Adjustment Items Select] screen(Fig.5). <Step 2> —> Set the xD picture card (can be recorded )in the camera. —> Set LENS HOOD and LENS CAP in the camera.
  • Page 47 4.Adjustments <Step 4> —>Wait until the CCD temperature is steady (Fig. CCD5). < Fig. CCD5> <Step 5> —> Write the adjustment data to the flash ROM when adjustment has been completed correctly. —> The [CCD Defect Data Input adjustment Complete] screen appears(Fig. CCD6). <...
  • Page 48: F5] Cam Adjustment

    4.Adjustments FinePix S3000 Service Manual 4-11. [F5] CAM Adjustment (shutter adjustment, adjustment for reduced aperture sensitivity, ISO sensitivity adjustment, white balance adjustment, AE adjustment, offset level adjustment) <Step 1> Select [F5] CAM Adjustment on the [Adjustment Items Select] screen (Fig.5).
  • Page 49 4.Adjustments <Step 4> <Fig. CAM3> —> The [CAM Adjustment (without filter)] screen appears(Fig. CAM4). <Step 5> <Fig. CAM4> —> Write the adjustment data to the flash ROM when adjustment has been completed correctly. —> The [CAM Adjustment Complete] screen appears(Fig. CAM5). <Note>...
  • Page 50: F6] Af Adjustment

    4.Adjustments FinePix S3000 Service Manual <Step 6> <Fig. CAM5> 4-12. [F6] AF Adjustment <Step 1> Select [F6] AF Adjustment on the [Adjustment Items Select] screen (Fig.5). —> The [AF Adjustment Preparation] screen appears. <Step 2> Run the adjustment in accordance with the instructions on the screen.
  • Page 51 4.Adjustments <Step 3> <Fig. AF2> —> Write the adjustment data to the flash ROM when adjustment has been completed correctly. —> The [AF Adjustment Complete] screen appears. <Step 4> <Fig. AF3>...
  • Page 52: F1] Battery Voltage Adjustment

    4.Adjustments FinePix S3000 Service Manual 4-13. [F1] Battery Voltage Adjustment <Step 1> Select [F1] Battery Voltage Adjustment on the [Adjustment Items Select] screen (Fig.5). —> The [Battery Voltage Adjustment Preparation] screen appears. <Step 2> Run the adjustment in accordance with the instructions on the screen.
  • Page 53 4.Adjustments <Step 4> <Fig. BATT3> —> The [5.00V Input] screen appears. <Step 5> <Fig. BATT4> —> Write the adjustment data to the flash ROM when adjustment has been completed correctly. —> The [Battery Voltage Adjustment Complete] screen appears.
  • Page 54 4.Adjustments FinePix S3000 Service Manual <Step 6> <Fig. BATT5>...
  • Page 55: F3] Lcd Adjustment

    4.Adjustments 4-14. [F3] LCD Adjustment <Step 1> Select [F3] LCD Adjustment on the [Adjustment Items Select] screen (Fig.5). —> The [LCD Adjustment Preparation] screen appears. <Step 2> Run the adjustment in accordance with the instructions on the screen. <Fig. LCD1> <Note>...
  • Page 56: F7] Flash Adjustment

    4.Adjustments FinePix S3000 Service Manual 4-15. [F7] Flash Adjustment <Step 1> Select [F7] Flash Adjustment on the [Adjustment Items Select] screen (Fig.5). —> The [Flash Adjustment Preparation] screen appears. <Step 2> Run the adjustment in accordance with the instructions on the screen.
  • Page 57: F11] : Video Adjustment

    4.Adjustments <Step 4> <Fig. FLASH3> 4-16.[F11] : Video Adjustment < Setup for Video Adjustment > Set up the PCI-2746C board in the computer as explained in the instructions for the video adjustment box. If the waveform of the brightness signal (Y) or color signal (C) does not appear in the “WAVE No. 0” window during adjustments, check the connections of the video adjustment box.
  • Page 58 4.Adjustments FinePix S3000 Service Manual < Adjustment > <Step 1> Select [F11] Video Adjustment on the [Adjustment Items Select] screen (Fig.5). —> The [Video Adjustment Preparation] screen appears. <Step 2> Run the adjustment in accordance with the instructions on the screen.
  • Page 59: F12] : End Setting

    4.Adjustments 4-17. [F12] : End Setting (Destination setting, USB ID write, Product mode setting) The setting must always be run when the adjustment software is terminated. Failure to run Terminal Setting will prevent identification as Mass Storage when the camera is connected to the PC. USB ID write requires that the USB device (in this case FinePix A205) be unique throughout the world.
  • Page 60 4.Adjustments FinePix S3000 Service Manual <Step 2> Select [F12] End Setting on the [Adjustment Items Select] screen (Fig.5). —> The [End Setting Description] screen appears. <Step 3> Run the adjustment in accordance with the instructions on the screen. <Fig. END1>...
  • Page 61 4.Adjustments <Step 5> <Fig. END3> —> The [USB ID Writing] screen appears. <Step 6> <Fig. END4> <Note> This example assumes that <H>USA has been selected. The following screen therefore appears. —> The [USA_ID USA] screen appears.
  • Page 62 4.Adjustments FinePix S3000 Service Manual <Step 6> <Fig. END5> —> The [FinePix F3000 Adjustment Complete] screen appears. <Step 7> <Fig. END6>...
  • Page 63: F8] Firmware Download

    4.Adjustments 4-18. [F8] Firmware Download [ Download and Extract ] 1) Download the firmware(archived file) from Web server (http://fujifilm-di.intranets.com/ ). 2) Extract the downloaded archived firmware. 3) The folder named ZJ00841-100 can be made by simply defrosting(Fig .FIRM1). 4) The imfidx10 folder is include in the folder ( ZJ00841-100 ).
  • Page 64 4.Adjustments FinePix S3000 Service Manual <Step 1> Select [F8] Firmware Download on the [Adjustment Items Select] screen (Fig.5). —> The [ Firmware Download ] screen appears. <Fig. FIRM3> <Step 2> Prepare the firmware download according to the instruction of the screen.
  • Page 65 4.Adjustments <Step 3> Turn off the power supply of the camera according to the instruction of the screen. *The camera is started with the new firmware when power is switched OFF/ON. <Fig. FIRM5> —> Press the [Enter] key to return to the "Initial Screen(Fig.2)". <Step 4>...
  • Page 66 FinePix S3000 Service Manual MEMO...
  • Page 67: Inspection

    5.Inspection 5.Inspection 5-1.Required Measuring Equipment Measuring equipment Remarks Power supply AC adapter (AC-5VH / AC-5VHS), stabilized power supply Digital voltmeter For general use Ammeter For general use (able to measure 1mA or less) power cable jig For general use xD-Picture card For general use TV-Monitor For general use (Resolution 600 or more)
  • Page 68: 5-4.factory Setting

    5.Inspection FinePix S3000 Service Manual Method of adjustment Measuning Preparations for adjustment Measurement point Check item Sequence Mode (measurement point, subject, other) (VRs, waveforms, required, values) equipment and jigs (VRs, position) Battery down Playback 1)Connect the power cable jig with Power cable jig the camera.
  • Page 69: Parts List

    6.Parts list 6-1.Packing and Accessoris 6-1-1.US model A114 A108 A107 A111 A121 A105 A120 A119 A112 A102 A118 A104 A117 A106 A116 A101 A109 A113 A110 A103 A115 A101 FZ05524-100 UNITARY BOX A102 FZ04942-100 PARTITION PAD A103 FZ04940-100 SHEET MOLD A104 AZF0000-311 BAG_PLASTIC_200X300_T=30_NO.11...
  • Page 70: 6-1-2.ca Model

    FinePix S3000 Service Manual 6-1-2.CA model A114 A108 A107 A111 A105 A120 A112 A102 A119 A118 A104 A117 A106 A116 A101 A109 A113 A110 A103 A115 A101 FZ05524-100 UNITARY BOX A102 FZ04942-100 PARTITION PAD A103 FZ04940-100 SHEET MOLD A104 AZF0000-311 BAG_PLASTIC_200X300_T=30_NO.11...
  • Page 71: 6-1-3.eu Model

    6-1-3.EU model A114 A108 A107 A111 A123 A122 A105 A121 A120 A112 A102 A119 A118 A104 A117 A106 A116 A101 A109 A113 A110 A103 A115 A101 FZ05524-100 UNITARY BOX A102 FZ04942-100 PARTITION PAD A103 FZ04940-100 SHEET MOLD A104 AZF0000-311 BAG_PLASTIC_200X300_T=30_NO.11 A105 AZF0000-101 BAG_PLASTIC_180X270_NO.10...
  • Page 72: 6-1-4.eg Model

    FinePix S3000 Service Manual 6-1-4.EG model A114 A108 A107 A111 A105 A119 A112 A102 A118 A104 A117 A106 A116 A101 A109 A113 A110 A103 A115 A101 FZ05524-100 UNITARY BOX A102 FZ04942-100 PARTITION PAD A103 FZ04940-100 SHEET MOLD A104 AZF0000-311 BAG_PLASTIC_200X300_T=30_NO.11...
  • Page 73: 6-1-5.ge Model

    6-1-5.GE model A114 A105 A108 A107 A111 A112 A102 A118 A104 A117 A106 A116 A101 A109 A113 A110 A103 A115 A101 FZ05524-100 UNITARY BOX A102 FZ04942-100 PARTITION PAD A103 FZ04940-100 SHEET MOLD A104 AZF0000-311 BAG_PLASTIC_200X300_T=30_NO.11 A105 AZF0000-101 BAG_PLASTIC_180X270_NO.10 A106 BB12943-100 BAR CODE LABEL A107 BF04146-100...
  • Page 74: 6-1-6.as Model

    FinePix S3000 Service Manual 6-1-6.AS model A114 A105 A107 A108 A111 A112 A102 A118 A104 A117 A106 A116 A101 A109 A113 A110 A103 A115 A101 FZ05524-100 UNITARY BOX A102 FZ04942-100 PARTITION PAD A103 FZ04940-100 SHEET MOLD A104 AZF0000-311 BAG_PLASTIC_200X300_T=30_NO.11 A105 AZF0000-101 BAG_PLASTIC_180X270_NO.10...
  • Page 75: 6-1-7.ch Model

    6-1-7.CH model A114 A107 A108 A111 A105 A112 A102 A116 A104 A109 A106 A113 A101 A110 A103 A115 A101 FZ05524-300 UNITARY BOX(CH) A102 FZ04942-100 PARTITION PAD A103 FZ04940-100 SHEET MOLD A104 AZF0000-311 BAG_PLASTIC_200X300_T=30_NO.11 A105 AZF0000-101 BAG_PLASTIC_180X270_NO.10 A106 BB06392-100 LABEL PLAIN 2 A107 BF04146-100 XDCARD 16MB ASSY...
  • Page 76: 6-2.cabinet F Block

    FinePix S3000 Service Manual 6-2.Cabinet F block 6-2-1.US/CA/EU/EG/GE/AS-MODEL M217 M216 M201 M208 M209 M212 M210 M213 M211 M220 M214 M204A M207 M215 M206 M202 M218 M205 M203 M221 M219 M201 BU02660-300 CABI FRONT ASSY M202 BB15020-200 CABI FRONT M203 BB15021-100...
  • Page 77: 6-2-2.ch-model

    6-2-2.CH-MODEL M217 M216 M201 M208 M209 M212 M210 M213 M211 M220 M214 M204 M207 M215 M206 M202 M218 M205 M221 M203 M219 M201 BU02660-300 CABI FRONT ASSY M202 BB15020-200 CABI FRONT M203 BB15021-100 LENS RING M204 ATA1425-0NN SCREW_2P_M1.4X5.0_N_N M204A BB17520-100 SCREW M205 BB15022-100...
  • Page 78: 6-3.inner Block

    FinePix S3000 Service Manual 6-3.Inner block M313 M309 M304 M312 M336 M311 M326 M309 M310 M335 M334 M301 M302 M304 M331 M325 M303 M333 M306 M326 N.S. M328 M332 M329 M327 M305 M326 M307 M319 N.S. M308 M329 M324 M323...
  • Page 79: 6-4.cabinet R Block

    6-4.Cabinet R block M405 M408 M420 M421 M416 M409 M406 M414 M412 M422 M413 M411 M415 M403 M401 M404 M410 M419 M402 M418 M403 M403 M407 M417 M422 M401 CB1199-A101 KSW PWB ASSY M402 FZ05556-100 M403 ATG1723-0ND SCREW_BT_2P_M1.7X3.0_N_D M404 BB15432-100 EARTH PLATE M405 BU02661-200...
  • Page 80: 6-5.electrical Parts

    FinePix S3000 Service Manual 6-5.Electrical parts Due to standardization,replacement in the parts list may be The components indicated by mark are critical for safty. different from the parts list specified in the circuit or the com- When indicated parts by reference number,please include ponents used on the set.
  • Page 81: Appendix

    7.Appndix 7.Appendix 7-1. Version display function This function is not provided in FinePix S3000. 7-2.List of Related Technical Updates Issued To ensure that after-sales srevice is performed accuratety, keep a record here of the technical updates issued that cover this device.
  • Page 82 FUJI PHOTO FILM CO., LTD. 26-30, Nishiazabu 2-chome, Minato-ku, Tokyo 106-8620, Japan.
