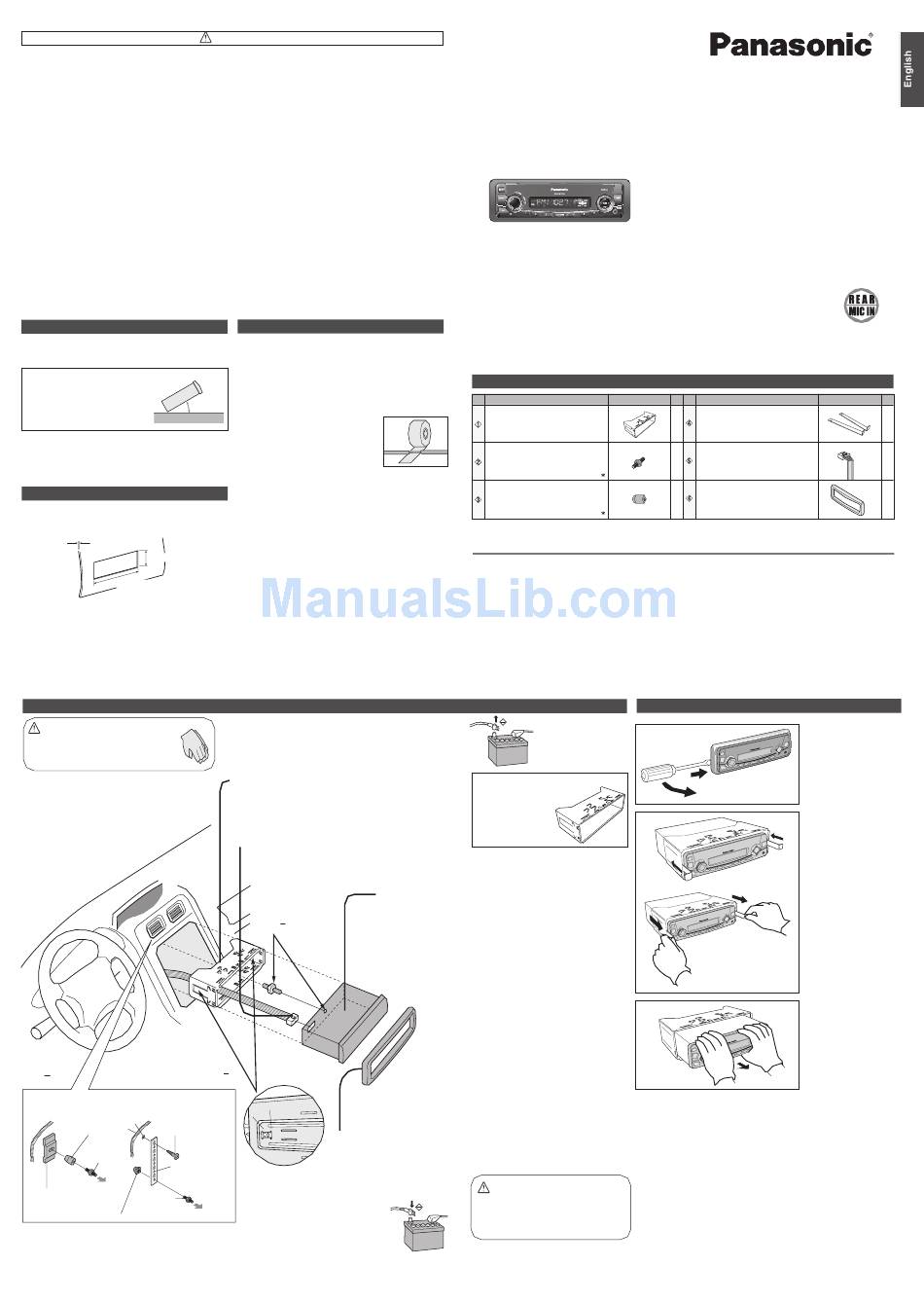

Panasonic CR-CM120U Installation Instructions

❐ This installation information is designed for professional installers with knowledge of automobile electrical safety systems and is not
intended for non-technical, do-it-yourself individuals. It does not contain instructions on the electrical installation and avoidance of
potential harm to air bag, anti-theft and ABS braking or other systems necessary to install this product. Any attempt to install this
product in a motor vehicle by anyone other than a professional installer could cause damage to the electrical safety system and could
result in serious personal injury or death.
❐ If your car is equipped with air bag and/or anti-theft systems, specific procedures may be required for connection and disconnection
of the battery to install this product. Before attempting installation of this electronic component against the manufacturer's
recommendation, you must contact your car dealer or manufacturer to determine the required procedure and strictly follow their
instructions.
FAILURE TO FOLLOW THE PROCEDURE MAY RESULT IN THE UNINTENDED DEPLOYMENT OF AIR BAGS OR ACTIVATION OF THE ANTI-THEFT
SYSTEM RESULTING IN DAMAGE TO THE VEHICLE AND PERSONAL INJURY OR DEATH.

Before Installation

Consult a professional for installation.
●Verify the radio using the antenna and speakers before
installation.
●Mounting angle right to left
: horizontal
front to rear : 0 – 30°

Dashboard

THICKNESS
MIN. 4.75 mm {3/16"}
MAX. 5.56 mm {7/32"}
53 mm {2 3/32"}
182 mm {7 5/32"}
Installation
Caution
●
Wear gloves for safety.
●
Make sure that wiring is completed before
installation.
4
w
Securing to fire wall
Using the rubber bushing e
Using the rear support strap (Option)
3 mm
Rubber Bushing e Tapping screw (Option)
Mounting Bolt w
Rear support strap (Option)
Rear support bracket To the unit
(supplied with car)
Mounting Bolt w
Hexagonal nut (Option)
WARNING

Before Wiring

Please refer to the "WARNING" statement above.
Exclusively operated with 12 V battery with negative (–)
ground.
Connect the power lead (red) last.
Connect the battery lead (yellow) to the positive (+) terminal of
the battery or fuse block terminal (BAT).
Strip about 5 mm {1/4"} of the lead ends for connection.
0 – 30°
Apply insulating tape to bare leads.
How to install the unit
1
Remove the cable from the battery negative terminal.
2
Mounting collar q insertion. Bend mounting tabs.
3
Connection of power connector t.
4
q
4
e
Clank!
5
Trim plate y mounting
Locking point
6
Battery Cable reconnection
To the unit
●Please read these instructions carefully before using this product and keep this manual for future reference.
No. Item
Mounting Collar
Mounting Bolt (5 mm ø)
Rubber Bushing
© Panasonic Corporation 2008
Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
http://www.panasonic.com
Bend appropriate tabs to secure the unit
without backlash.
4
q Screw the mounting bolt w into the main unit.
Main unit securing
w Secure to the fire wall.
e Slide the unit into the mounting collar until a click is
heard. Securing the unit.
Caution
When this unit is installed in dashboard,
ensure that there is sufficient air flow
around the unit to prevent damage from
overheating, do not block any ventilation
holes on the unit.
CR-CM120U
Model:
Installation Instructions Installation Instructions

Supplied Hardware

Diagram Q'ty No.
1
Lock Cancel Plate
FX0214C384ZB
1
Power Connector
1
Trim Plate
How to remove the unit
q
w
q
w
Receiver with Microphone Ready
Item Diagram Q'ty
2
* *
1
YGAJ021012
1
YFC054C079YA
➁ ➂ ➃
, and consist of a set. (ZZBISC1101U-J)
*
YFM294C158CA PTW0808-0 Printed in China
1 y
Remove the trim plate .
Lock release
2
q Insert the lock cancel plate
r until you hear a click.
w Pull the main unit.
3
Pull out the unit with
both hands.
