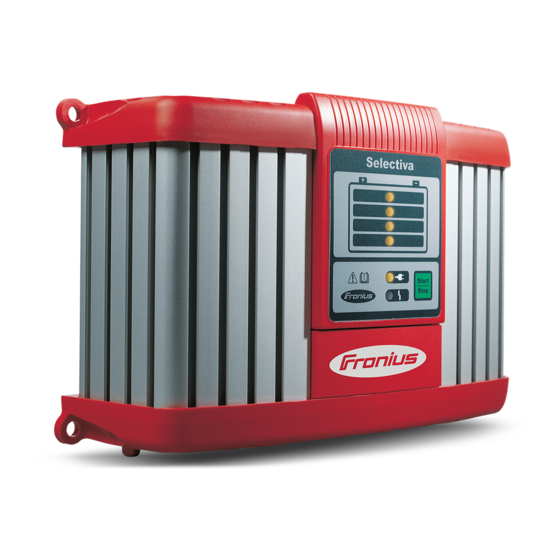

Fronius Selectiva 1020E Operating Instructions Manual
Battery charging system
Hide thumbs
Also See for Selectiva 1020E:
- Operating instructions manual (28 pages) ,
- Operating instructions manual (28 pages) ,
- Operating instructions manual (24 pages)
Subscribe to Our Youtube Channel
Related Manuals for Fronius Selectiva 1020E
Summary of Contents for Fronius Selectiva 1020E
- Page 1 Perfect Charging / Perfect Welding / Solar Energy Operating Instructions Selectiva 1020E / 1030E / 2010E / 2015E / 2020E / 2032E / 2040E Battery charging system Acctiva 1020E / 1030E / 10-2020E / 2010E 42,0426,0040,EN 001-19022015...
- Page 3 Please also note the safety rules to ensure greater safety when using the product. Careful handling of the product will repay you with years of safe and reliable operation. These are essential prerequisites for excellent results. The latest version of the operating instructions can be found on the Fronius website "www.fronius.com".
-
Page 5: Table Of Contents
Contents Safety rules ..............................Explanation of safety symbols ......................General ..............................Proper use ............................Environmental conditions........................Mains connection ..........................Dangers from mains current and charging current ................Dangers from acid, gases and vapours ....................General information regarding the handling of batteries............... Protecting yourself and others ...................... -
Page 7: Safety Rules
Safety rules Explanation of DANGER! Indicates immediate and real danger. If it is not avoided, death or se- safety symbols rious injury will result. WARNING! Indicates a potentially dangerous situation. Death or serious injury may result if appropriate precautions are not taken. CAUTION! Indicates a situation where damage or injury could occur. -
Page 8: Proper Use
Proper use The device is to be used exclusively for its intended purpose. Any use above and beyond this purpose is deemed improper. The manufacturer is not liable for any damage, or unexpected or incorrect results arising out of such misuse. Proper use includes: carefully reading and obeying all operating instructions and safety and danger notices... -
Page 9: Dangers From Acid, Gases And Vapours
Dangers from ac- Batteries contain acid which is harmful to the eyes and skin. During charging, id, gases and va- gases and vapours are released that can harm health and are highly explosive pours in certain circumstances. Only use the chargers in well ventilated areas to prevent the accumulation of explosive gases. -
Page 10: Safety Measures In Normal Operation
Safety measures Chargers with a ground conductor must only be operated on a mains supply in normal opera- with a ground conductor and a socket with a ground conductor contact. If the tion charger is operated on a mains supply without a ground conductor or in a socket without a ground conductor contact, this will be deemed gross negli- gence. -
Page 11: Maintenance And Repair
Maintenance and Under normal operating conditions, the device requires only a minimum of repair care and maintenance. However, it is vital to observe some important points to ensure it remains in a usable condition for many years. Before switching on, always check the mains plug and cable as well as charger leads and charging terminals for any signs of damage. -
Page 12: Disposal
Devices displaying this TÜV test mark satisfy the requirements of the relevant standards in Japan. Devices displaying this TÜV test mark and the mark on the rating plate satisfy the requirements of the relevant standards in Australia. Disposal Do not dispose of this device with normal domestic waste! To comply with the European Directive 2002/96/EC on Waste Electrical and Electronic Equip- ment and its implementation as national law, electrical equipment that has reached the end of its life must be collected separately and returned to an ap-... -
Page 13: General Information
Warning notices A number of safety symbols can be seen on the charger's rating plate. The safety symbols on the device must not be removed or painted over. A-4600 Wels www.fronius.com Active Inverter 2032E Art. Nr.: 4,010,328 00000000 ~230V 50/60Hz;1030W Out.:... -
Page 14: Before Commissioning
Before commissioning Safety WARNING! Incorrect operation may result in serious injury or damage. Do not use the functions described here until you have thoroughly read and understood the following documents: Operating instructions All the operating instructions for the system components, especially the safe- ty rules Battery and vehicle manufacturers' operating instructions and safety rules Proper use... -
Page 15: Control Elements And Connections
Control elements and connections General NOTE! As a result of firmware updates, you may find that there are functions available on your device that are not described in these operating instructions or vice versa. Certain illustrations may also differ slightly from the actual controls on your device, but these controls function in exactly the same way. -
Page 16: Plugging In Options
Start/Stop and setup button Start/Stop, voltage selection and for interrupting and restarting setup button charging for interrupting and restarting for accessing the Setup menu charging and selecting the characteris- for selecting the 12 V / 24 V tic type (press and hold for 10 charging voltage for accessing the Setup menu and selecting the characteris-... -
Page 17: Edge Guard Option
Edge guard op- NOTE! The edge guard removal tion process is the reverse of the fitting process. Removing covers If necessary, use a screwdriver to remove: for connections Cover (1) for connection P3 - visual and options port Cover (2) for connection P4 - multiport Cover (3) for connection P2 - I/O port Leave covers (1), (2) and (3) in place on un- used P2, P3 and P4 connections. -
Page 18: Installation
Installation If installing the charger on a firm base, use the drilling template enclosed in the packaging. NOTE! IP44 protection is only guaranteed for the upright position. If the charger is installed in a switch cabinet (or a similar sealed area), then forced-air ventilation must be provided to ensure adequate heat dissipation. -
Page 19: Fitting The Optional Bracket And Strain Relief Device For The Charger Lead
Fitting the option- IMPORTANT! The torque for all screws is al bracket and 2.5 Nm. strain relief de- vice for the charg- To fit the bracket: er lead Undo screws (1) Fit bracket (2) using the previously re- moved screws To fit the strain-relief device: Undo screw (3) Fit charger lead strain relief device (4) -
Page 20: Charging The Battery
Charging the battery Starting charging CAUTION! Danger of damage if attempting to charge a faulty battery or using the incorrect charging voltage. Before beginning charging, ensure that the battery to be charged is fully functional and the charging voltage of the device matches the battery voltage. -
Page 21: Interrupting Charging
Interrupting NOTE! Risk of damage to connection sockets and connecting plugs. Do not dis- charging connect or unplug charger leads while charging. Press the Stop/Start button while charging – The process is interrupted – Ready indicator flashes Press the Stop/Start button again to continue charging... -
Page 22: Operating Modes For Acctiva Series Only
Operating modes for Acctiva series only Back-up mode The charger powers the vehicle electronics while the battery is being changed. Any stored vehicle-specific data, settings and codes are retained. NOTE! In back-up mode, reverse polarity protection is deactivated. Please refer to the "Setup menu" section for the relevant settings. For safety reasons, the selected back-up mode is not stored if disconnected from the mains - unlike the selected characteristic. -
Page 23: Buffering
Remove charging terminals from vehicle pole terminals NOTE! Remove the mains plug to automatically restore the previously selected characteristic. After plugging in the mains plug again, wait until the LEDs go out. Buffering With buffering, vehicle functions (e.g. car radio, sliding roof, etc.) may be demonstrated during the charging process. -
Page 24: Setup Menu
Setup menu General NOTE! The following section only applies to the standard control panel (LED ver- sion). In the Setup menu, select the characteristic type according to the battery to be charged, or the requirement shown in the accompanying characteristic data sheet (normal charging, back-up mode, reactivating deep-discharge batteries, buffering). -
Page 25: Troubleshooting
Troubleshooting Safety WARNING! An electric shock can be fatal. Before opening the device: Unplug the device from the mains Disconnect battery connection Put up an easy-to-understand warning sign to stop anybody inadvertently switching it back on again Using a suitable measuring instrument, check to make sure that electrically charged parts (e.g. -
Page 26: Charging Errors
Charging errors Ready indicator lit, error indicator flashing, SOC indicator 1/2/3/4 flashing: Cause: Timeout in the corresponding charging phase or battery capacity too high Remedy: Select correct characteristic type according to the enclosed characteris- tic data sheet and charge again Cause: Battery faulty (cell short circuit, heavy sulphation) Remedy:... -
Page 27: Technical Data
Technical data Explanation The technical data can be found on the characteristic data sheet enclosed with the charger. - Page 28 Fronius Worldwide - www.fronius.com/addresses Fronius International GmbH Froniusplatz 1 A-4600 Wels E-Mail: battery.chargers@fronius.com http://www.fronius.com Under http://www.fronius.com/addresses you will find all addresses of our sales branches and partner firms!
