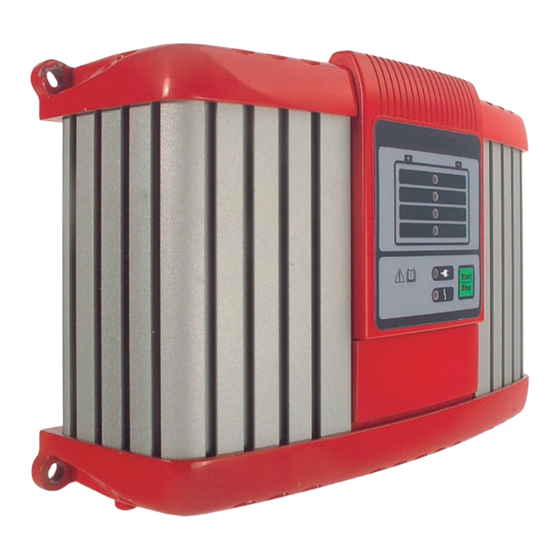

Fronius Selectiva 1020E Operating Instructions Manual

Fronius Selectiva 1020E Operating Instructions Manual

Battery charging system

Advertisement

Quick Links

/
Perfect Charging
/ Perfect Welding / Solar Energy
Selectiva 1020E / 1030E / 2010E /
2015E / 2020E / 2032E / 2040E
42,0426,0040,EN 004-21022019
Operating Instructions
Battery charging system

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Selectiva 1020E and is the answer not in the manual?

Questions and answers

Summary of Contents for Fronius Selectiva 1020E

  • Page 1 Perfect Charging / Perfect Welding / Solar Energy Operating Instructions Selectiva 1020E / 1030E / 2010E / 2015E / 2020E / 2032E / 2040E Battery charging system 42,0426,0040,EN 004-21022019...
  • Page 3 Please also note the safety rules to ensure greater safety when using the product. Careful handling of the product will repay you with years of safe and reliable operation. These are essential prerequisites for excellent results. The latest version of the operating instructions can be found on the Fronius website www.fronius.com.
  • Page 5: Table Of Contents

    Contents Safety rules ..............................Explanation of safety notices ........................ General ..............................Proper use ............................Environmental conditions........................Mains connection ..........................Dangers from mains current and charging current ................Danger due to acid, gases and vapours ....................General information regarding the handling of batteries............... Protecting yourself and others ......................
  • Page 7: Safety Rules

    Safety rules Explanation of DANGER! safety notices Indicates immediate danger. ► If not avoided, death or serious injury will result. WARNING! Indicates a potentially hazardous situation. ► If not avoided, death or serious injury may result. CAUTION! Indicates a situation where damage or injury could occur. ►...
  • Page 8: Proper Use

    For the location of the safety and danger notices on the device, refer to the section headed "General information" in the Operating Instructions for the device. Before switching on the device, rectify any faults that could compromise safety. This is for your personal safety! Proper use The device is to be used exclusively for its intended purpose.
  • Page 9: Danger Due To Acid, Gases And Vapours

    Danger due to ac- Batteries contain acid which is harmful to the eyes and skin. During charging, gases and id, gases and va- vapours are released that may be harmful to health and are highly explosive in certain cir- pours cumstances.
  • Page 10: Emc Device Classifications

    EMC Device Clas- Devices in emission class A: sifications Are only designed for use in industrial settings Can cause line-bound and radiated interference in other areas Devices in emission class B: Satisfy the emissions criteria for residential and industrial areas. This is also true for residential areas in which the energy is supplied from the public low-voltage mains.
  • Page 11: Safety Symbols

    A safety inspection should be carried out by a qualified electrician After any changes are made After any additional parts are installed, or after any conversions After repair, care and maintenance has been carried out At least every twelve months For safety inspections, follow the appropriate national and international standards and di- rectives.
  • Page 12: General Information

    Warning notices A number of safety symbols can be seen on the charger's rating plate. The safety symbols on the device must not be removed or painted over. A-4600 Wels www.fronius.com Active Inverter xxxxE Art. Nr.: 4,010,xxx xxxxxxxx EMC Emission ~230V 50/60Hz;xxxW...
  • Page 13 Ensure an adequate supply of fresh air during charging. Maintain a distance of at least 0.5 m (19.69 in.) between battery and charger during the charging pro- cedure. Do not dispose of used chargers with domestic waste. Dispose of them accord- ing to safety rules.
  • Page 14: Before Commissioning

    Before commissioning Safety WARNING! Danger from incorrect operation. This can result in severe personal injury and damage to property. ► Do not use the functions described here until you have fully read and understood the following documents: ► Operating Instructions ►...
  • Page 15: Safety Strategy - Standard Protection Devices

    Safety strategy - The new chargers are not just characterised by purely functional features. In terms of safe- standard protec- ty, the active inverters are also equipped to the highest standards. tion devices The following safety features come as standard: Voltage-free and spark-free terminals protect against explosions Reverse polarity protection prevents the battery or charger from being damaged or de- stroyed...
  • Page 16: Control Elements And Connections

    Control elements and connections General Please note: as a result of firmware updates, you may find that there are functions available on your de- vice that are not described in these Operating Instructions, or vice versa. Certain illustrations may also differ slightly from the actual controls on your device, but these controls function in exactly the same way.
  • Page 17: Connections

    Connections Function AC input - mains socket Mains cable safety bow for fitting the mains cable Connection P2 - I/O port for options on the I/O port Connection P1 - charger lead so- cket also for external stop and tempera- ture-controlled charging options Bottom of housing Function...
  • Page 18: Fitting The Optional Bracket And Strain-Relief Device For The Charging Lead

    Fitting the option- Please note: al bracket and the torque for all screws is 2.5 Nm (1.84 ft. strain-relief de- lb.). vice for the charg- ing lead To fit the bracket: Undo the screws (1) Fit bracket (2) using the previously re- moved screws To fit the strain-relief device: Undo screw (3)
  • Page 19: Preparations For Security Lock

    Preparations for The security lock is not contained in the security lock scope of supply. A security lock can only be attached to the groove on the housing as shown to the groove on the housing that is ex- actly opposite using spacer M8 DIN 125 or DIN 134, located as shown...
  • Page 20: Installation

    Installation If installing the charger on a firm base, use the drilling template enclosed in the packaging. If the charger is installed in a switch cabinet (or a similar sealed area), then forced-air ven- tilation must be provided to ensure adequate heat dissipation. There must be a clearance of 10 cm (3.94 in.) all around the charger.
  • Page 21: Charging The Battery

    Charging the battery Starting charging CAUTION! Risk of damage if attempting to charge a faulty battery or using the incorrect charg- ing voltage. This can result in damage to property. ► Before beginning charging, ensure that the battery to be charged is fully functional and the charging voltage of the device matches the battery voltage.
  • Page 22: Finishing Charging

    Finishing charg- WARNING! Danger due to ignition of oxyhydrogen caused by sparks generated when the charg- ing plug is disconnected prematurely. This may result in serious injury and damage to property. ► Before disconnecting the charging plug, press the Stop/Start button to finish charging. Press the Stop/Start button to complete charging Disconnect the charging lead (black) from the negative pole (-) on the battery Disconnect the charging lead (red) from the positive pole (+) on the battery...
  • Page 23: Setup Menu

    Setup menu General remarks Select the characteristic type in the Setup menu depending on either the battery to be charged or the requirement as specified in the accompanying characteristic data sheet. Accessing the Please note: Setup menu Do not connect the charging lead to the battery. A characteristic type cannot be selected when the charging plug is connected.
  • Page 24: Troubleshooting

    Troubleshooting Safety WARNING! Risk of electric shock. This can result in serious injuries or death. ► Before opening the device: ► Unplug the device from the mains. ► Disconnect battery. ► Put up an easy-to-understand warning sign to stop anybody inadvertently switching it back on again.
  • Page 25: Charging Errors

    Remedy: Allow device to cool down. Charging will recommence automatically once the device has cooled sufficiently. If not, have it checked by a workshop. Charging errors Ready indicator lit, error indicator flashing, SOC indicator 1/2/3/4 flashing: Cause: Timeout in the corresponding charging phase or battery capacity too high Remedy: Select correct characteristic type according to the enclosed characteris- tic data sheet and charge again...
  • Page 26: Technical Data

    Technical data Explanation The technical data can be found on the characteristic data sheet enclosed with the charger.
  • Page 28 Fronius Worldwide - www.fronius.com/addresses Fronius International GmbH Froniusplatz 1 A-4600 Wels E-Mail: perfect.charging@fronius.com http://www.fronius.com Under www.fronius.com/addresses you will find all addresses of our sales branches and partner firms!
