Team C T8E User Manual page 9
1:8 scale 4wd electric pro racing buggy
Hide thumbs
Also See for T8E:
- Manual (34 pages) ,
- Operation user's manual (35 pages) ,
- Manual (34 pages)
Advertisement
9
-
Front Hub Carrie
Bag
T08675 M4x10 Screw
...............2
T08607 Front Hub Carrier Bushing
.........4
T08673 M4x16 Screw
......4
10

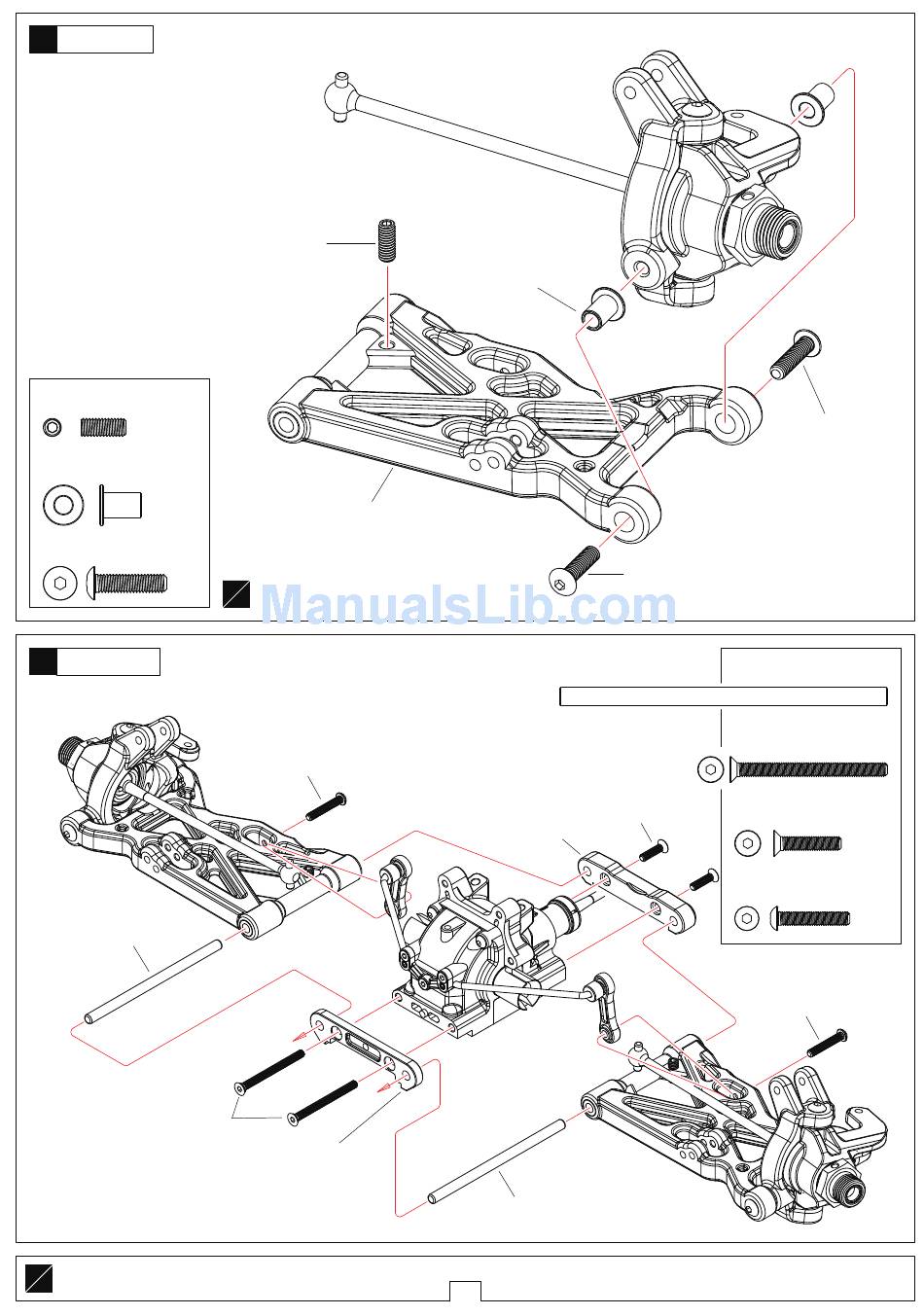

Front Suspension
Bag
T08645 4x73
T08674 M3x35
Assemble both Left and Right
L
R
D
T08675 M4x10
T08607
Front Lower Arm
L
R
D
-
T08673 M3x16
T08613
Front Arm Mount-F
T08607
Front Hub Carrier Bushing
T08673 M4x16
T08613
T08674 M3x15
Front Arm Mount-R
T08645 4x73
5
T08673 M4x16
T08645 4x73 Arm Pin
......2
T08674 M3x35 Screw
............2
T08674 M3x15 Screw
.........2
T08673 M3x16 Screw
......2
T08673 M3x16
