Team C T8E User Manual page 10

11

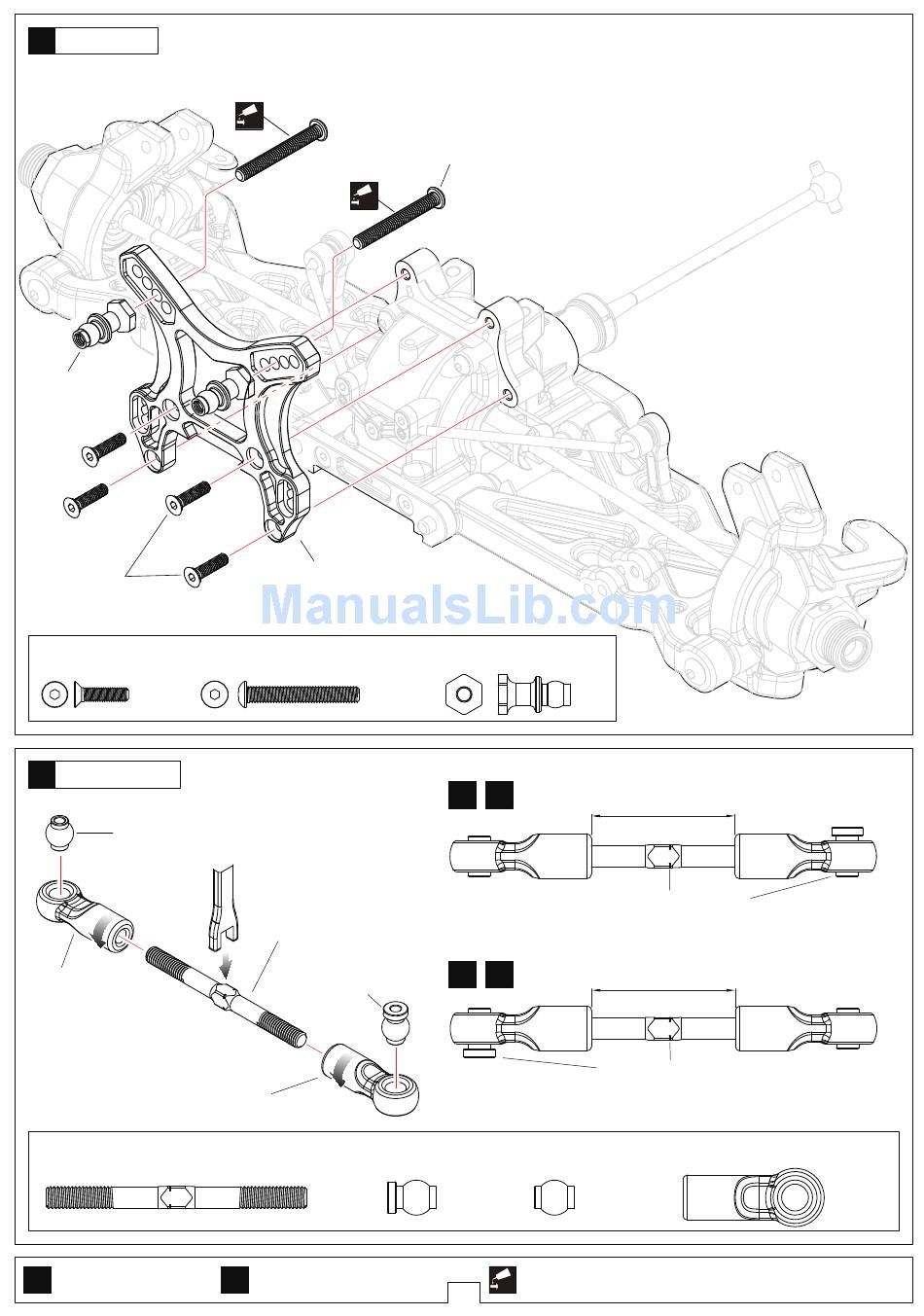

Front Shock Tower
Bag
T08622
Ball stud
球头
T08674 M3x12
T08674 M3x12 Screw T08673 M3.5x25 Screw
.........4
12
Front Upper Turnbuckle
Bag
T08606
7.8 Ball stud
5mm
T08606
7.8 Ball End-Front Upper
T08606
7.8 Ball End-Front Upper
T08643 5x58 Turnbuckle
True-to -scale diagram
1:1
D
-
Screw
Cement
Screw
Cement
T08631
Front Shock Tower
.........2
D
-
T08643
5x58 Turnbuckle
T08606
7.8 Ball stud
.........2
Assemble as many times as specified
x1
T08673 M3.5x25
T08622 Shock cap ball
Front Upper-Left
1:1 x1
Front Upper-Right
1:1 x1
T08606 7.8 Ball stud T08606 7.8 Ball stud
...............2
Apply threadlock
6
Screw
Cement
.........2
Approx.32mm
▲Projection.Note direction
Approx.32mm
▲Projection.Note direction
T08606 7.8 Ball End-Front Upper
...............2 ............4
