EHH5101
1080p Outdoor IR Dome Camera
User's Manual
Copyright © EverFocus Electronics Corp,
Release Date: May, 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EHH5101 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EverFocus EHH5101

Summary of Contents for EverFocus EHH5101

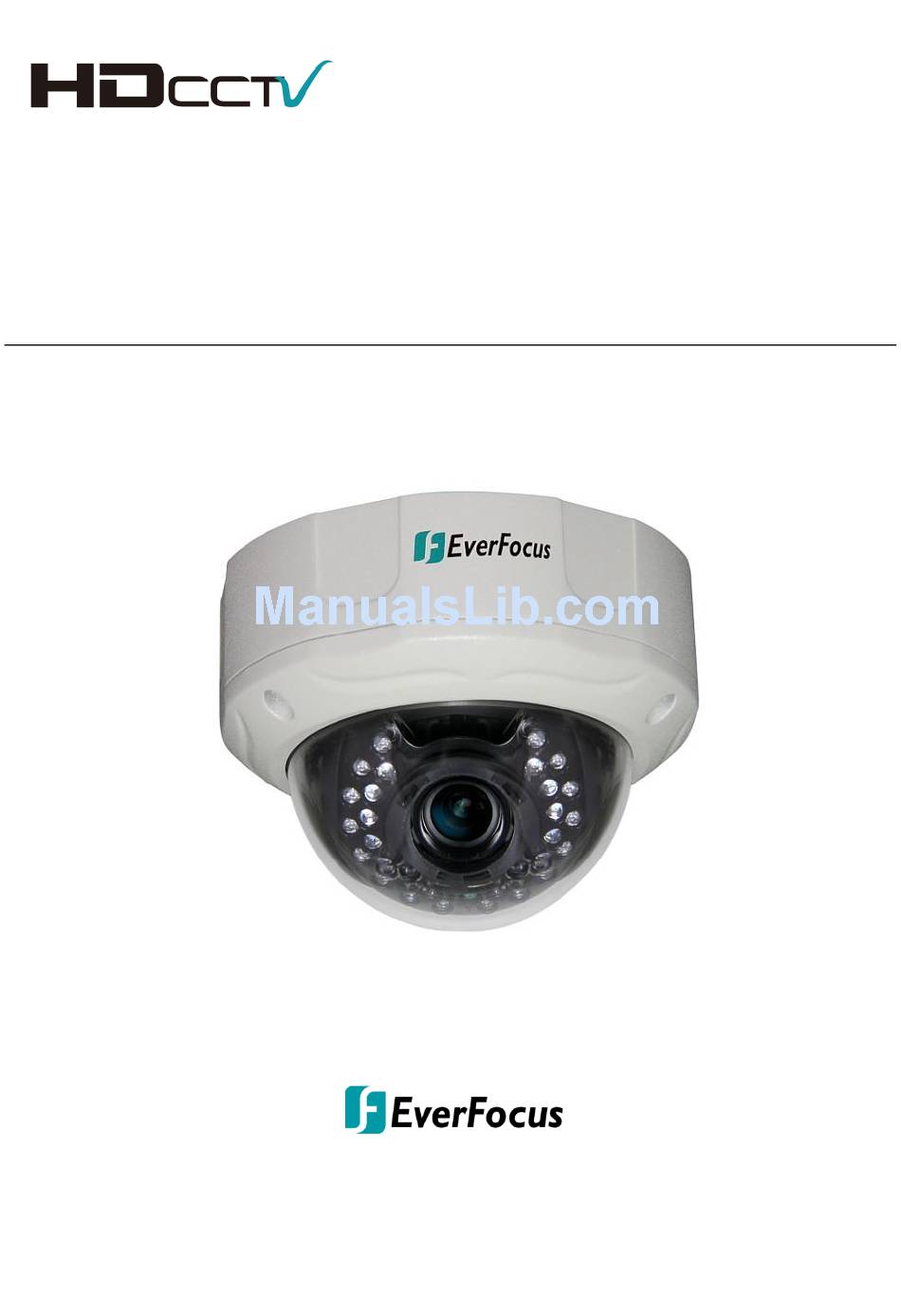

  • Page 1 EHH5101 1080p Outdoor IR Dome Camera User’s Manual Copyright © EverFocus Electronics Corp, Release Date: May, 2013...
  • Page 2 Precautions Please read this manual first to ensure correct installation and operation. This manual should be retained for future reference. The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to change without notice.
  • Page 3 This Product is RoHS compliant. Your EverFocus product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.

  • Page 4: Table Of Contents

    Contents 1. INTRODUCTION ....................1 ........................1 ACKING ........................... 1 EATURES 2. CABLE DESCRIPTION ..................2 3. INSTALLATION ....................3 .................... 3 NSTALLATION AND DJUSTMENT 4. CONFIGURATION IN THE OSD MENU .............. 7 OSD M ........................7 4.1.1 E ........................8 XPOSURE 4.1.2 C .........................

  • Page 5: Introduction

    EHH5101 1080p Outdoor IR Dome Camera 1. Introduction The EHH5101 is an HDcctv outdoor mini IR ball camera. Based on a progressive scan CMOS sensor, the camera provides 1080p high resolution images and superior video quality compared to traditional CCTV images. This superior resolution not only captures more critical evidentiary...

  • Page 6: Cable Description

    Connects to an HDcctv device, such as a DVR or HD HDcctv Output monitor, using a 75 Ohm BNC-type coaxial cable. Connects to an RS-485 device, such as EverFocus’ EKB500 RS485+ (Green) keyboard. Connects to an RS-485 device, such as EverFocus’ EKB500 RS485- (Blue) keyboard.

  • Page 7: Installation

    EHH5101 1080p Outdoor IR Dome Camera 3. Installation 3.1 Installation and Adjustment Unscrew the three Set Screws using the supplied Hexagon Wrench. Screw the Adapter Plate to the wall / ceiling using the screw holes on the Adapter Plate. Note the holes A / B are designed for screwing the camera / L-Shaped Mounting Bracket...
  • Page 8 EHH5101 1080p Outdoor IR Dome Camera You can optionally screw the camera to the wall using an L-Shaped Mounting Bracket. If you want to wire the cable through the side of the camera, follow the steps below: a. Remove the Circle Plate from the camera. You can simply loosen the Circle Plate using a coin.
  • Page 9 EHH5101 1080p Outdoor IR Dome Camera Connect the camera to the 12V DC power source using the supplied power adapter pigtail or a power adapter. Connect the camera to a DVR or a portable monitor using the Test-Out cable for viewing the camera view while adjusting camera angles.
  • Page 10 EHH5101 1080p Outdoor IR Dome Camera b. To configure camera settings using the OSD Menu Joystick, connect one end of the Test-Out cable to the Test-Out connector on the camera module and the other end to the portable monitor.  Push the Joystick up / down to select among menu items.

  • Page 11: Configuration In The Osd Menu

    EHH5101 1080p Outdoor IR Dome Camera Screw back the Set Screw using the supplied Hexagon Wrench. 4. Configuration in the OSD Menu You can use the Joystick on the rear panel of the camera to configure camera settings in the OSD menu.

  • Page 12: Exposure

    EHH5101 1080p Outdoor IR Dome Camera 4.1.1 Exposure Press the Enter / Confirm button to enter the submenu. BRIGHTNESS Use the  and  buttons to increase or decrease the screen brightness from 0 to 20. MODE Indoor Select this mode when the color temperature of the video image is similar to that found in indoor environments (around 5100 to 5300°K).

  • Page 13: Color

    EHH5101 1080p Outdoor IR Dome Camera Shutter Use the  and  buttons to adjust the shutter speed. The options include: 1/25 ~ 1/60000, FLK, and AUTO. Any selection other than AUTO and 1/25 will disable the DSS function. DSS (Digital Slow Shutter) DSS is used to maintain a vivid screen image by automatically boosting low light levels.

  • Page 14: Image

    EHH5101 1080p Outdoor IR Dome Camera Use the  and  buttons to increase or decrease the CHROMA from 0 to 20. R-OFFSET/B-OFFSET Use the  and  buttons to increase or decrease the Red and Blue offset from 0 to 20.

  • Page 15: Wdr/Blc

    EHH5101 1080p Outdoor IR Dome Camera ON ZONE NO: Use the  and  buttons to select the zone from 0 to 31. X, Y-POS, SIZ: Enter the submenu to set up the position or size of the privacy mask zone.

  • Page 16: Dnr

    EHH5101 1080p Outdoor IR Dome Camera MODE Use the  and  buttons to select OFF, BLC and WDR. Please notice the WDR is only working on round 7.5FPS. WDR_WGT Use the  and  buttons to increase or decrease the WDR weight from 0 to 4. The WDR function is only available for PAL system.

  • Page 17: Motion

    EHH5101 1080p Outdoor IR Dome Camera 4.1.6 Motion Press the Enter / Confirm button to enter the submenu. RESOLUTION Use the  and  buttons to increase or decrease the RESOLUTION level from 0 to 4. SENSITIVITY Press to set up the sensitivity for the motion detection function.
  • Page 18 EHH5101 1080p Outdoor IR Dome Camera DEFECT DET Press to select the DPC (Defective Pixel Correction) level of defect detector. Please notice; do not use this function without cover the lens. The camera will automatically correct pixel defects. Misoperation will cause the abnormal image.

  • Page 19: Specifications

    EHH5101 1080p Outdoor IR Dome Camera will turn to NTSC. Then, you can select the 720P or 1080P in the format options, and the FPS will also change accordingly. LANGUAGE Select a language for the OSD text. Options include English, French, German, Simplified Chinese, Korean and Japanese.

  • Page 20: Appendix

    EHH5101 1080p Outdoor IR Dome Camera Brightness 0-20 On / Off Contrast Boost(CTB) On / Off Day&Night Auto / Color / B&W/EXT Auto White Balance Auto / Auto extn / Preset / Manual Digital Noise Off / Low / Middle / High...
  • Page 21 EHH5101 1080p Outdoor IR Dome Camera AUTO* AUTO extn PRESET MANUAL COLOR TEMP LOW, MIDDLE, HIGH COLOR R-GAIN 0~20 B-GAIN 0~20 CHROMA 0~20 (default=7) R-OFFSET 0~20 (default=12) B-OFFSET 0~20 (default=5) SHARPNESS 0~10 (default=6) MIRROR ON, OFF* FLIP ON, OFF* D-ZOOM...
  • Page 22 EHH5101 1080p Outdoor IR Dome Camera BLC OSD ON, OFF* BLC POS-X 0~20 (default=7) BLC POS-Y 0~20 (default=7) BLC SIZ-X 0~20 (default=5) BLC SIZ-Y 0~20 (default=5) 3D-DNR HIGH, MIDDLE*, LOW, OFF OFF* RESOLUTION 0~4 (default=1) SENSITIVITY 0~20 (default=10) WINDOW TRANS...
  • Page 23 EHH5101 1080p Outdoor IR Dome Camera EverFocus Electronics Corp. EverFocus Taiwan: EverFocus Europe - Germany: 12F, No.79, Sec. 1, Shin-Tai Wu Road, Albert-Einstein-Strasse 1, D-46446 Hsi-Chih, Taipei, Taiwan Emmerich, Germany TEL: +886 2 2698 2334 TEL: +49 2822 93940 FAX: +886 2 2698 2380 FAX: +49 2822 939495 www.everfocus.com.tw...
